1998 BMW CONVERTIBLE Owners Manual

12 0
Engine compartment BMW 318i, 318is
7
6
5
5
4
3
2
1
4
360de090

12 1
At a glanceControlsCar careRepairsTechnicalDataIndex
1 Fuse box
2 Brake ßuid reservoir
3 Engine oil dipstick
4 Coolant expansion tank
5 Engine oil Þller neck
6 Supply tank for headlamp washer
*
and windshield washer system
7Battery
Engine compartment BMW 318i, 318is

12 2

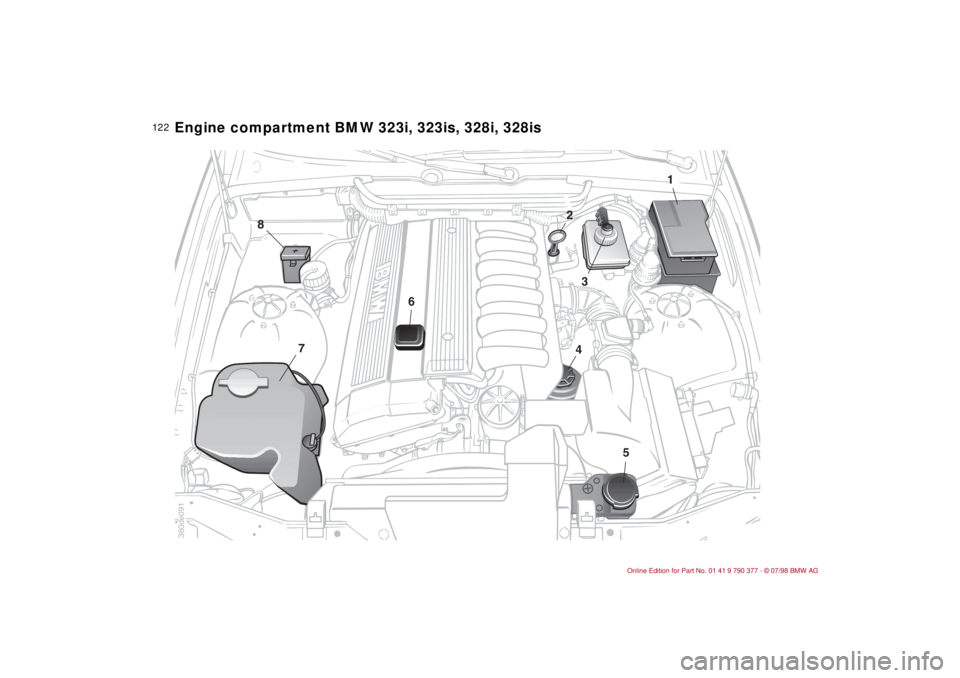

Engine compartment BMW 323i, 323is, 328i, 328is
1
3
24
5
6
7
8
360de091

12 3
At a glanceControlsCar careRepairsTechnicalDataIndex
1 Fuse box
2 Engine oil dipstick
3 Brake ßuid reservoir
4 Power steering oil reservoir
5 Coolant expansion tank
6 Engine oil Þller neck
7 Supply tank for headlamp washer
*
and windshield washer system
8 Auxiliary terminal for jump starting
Engine compartment BMW 323i, 323is, 328i, 328is

12 4
Headlamp washer
* and
windshield washer
Capacity approx. 2.65 US quarts
(2.5 liters) for the windshield washer or
5.3 US quarts (5 liters) in conjunction
with the headlamp cleaning system.
Fill with water and - if required - with
antifreeze (according to the manufac-
turer's recommendations).b
We recommend that you mix the
washer fluid before adding it to the res-
ervoir.c
Windshield washer spray
nozzles The spray from the nozzles should be
directed so as to ensure effective
cleaning, even at high speeds.
Use a needle to adjust the nozzles as
required, or have them adjusted by your
BMW Retailer.
Checking oil level As with fuel economy, oil consumption
is directly influenced by your driving
style and vehicle operating conditions.
Consequently you should check the oil
level regularly with the vehicle posi-
tioned on a level surface - approx. every
600 miles (1,000 km), or more fre-
quently if your vehicle is driven under
increased demands.
To obtain precise readings:
dCheck with engine cold, before start-
ing.
dWhen checking with the engine
warm, wait briefly for the oil to drain
back down into the oil pan (e.g.,
while refueling).
360de100
360de095
Washer fluids Engine oil

12 5
At a glanceControlsCar careRepairsTechnicalDataIndex
Measure the oil level:
1 Pull out dipstick and wipe off with a
lint-free cloth, paper tissue, etc.
2 Push the dipstick all the way into the
guide tube and pull it out again.
3 The oil level should be between the
two marks on the dipstick.
Add oil Wait until the level has dropped to just
above the lower graduation before add-
ing oil. Never wait until the oil drops
below the lower mark.
The space between the two marks on
the dipstick corresponds to approxi-
mately 1.1 US quarts (1 liter). Do not fill
to beyond the upper mark on the dip-
stick. Excess oil harms the engine.
Because it would be consumed within a
short period, it would also result in an
abnormally high rate of oil consump-
tion.a
BMW engines are designed to op-
erate without oil additives; the use of ad-
ditives could lead to damage in some
cases. This also applies to the manual
and automatic transmissions, the differ-
ential and the power steering system.c
Engine oil specificationsAlways refer to the API specifications
when selecting oil.
Required quality:
API SH
API-SH/CD
API-SH/CEViscosity ratingsViscosity = Oil flow rating according to
SAE class.
Select the SAE viscosity rating accord-
ing to the average seasonal air temper-
ature.

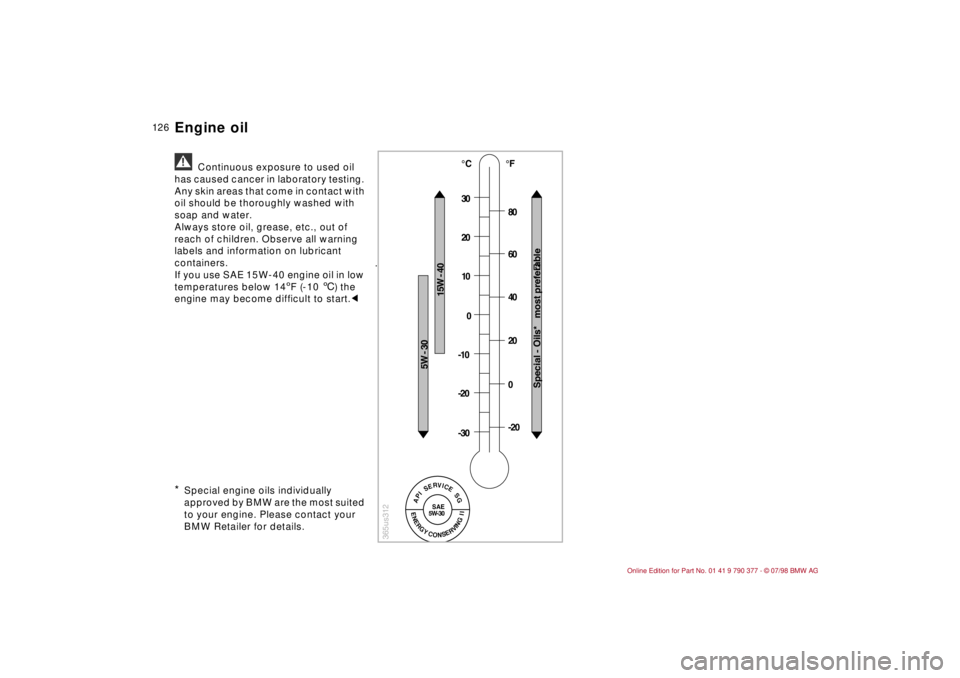

Consult the table on the following page
to determine the correct SAE viscosity.
You can continue to operate the vehicle
for short periods of time at tempera-
tures beyond the range for the SAE rat-
ing of the oil being used.A
Always observe all environmental
protection guidelines and regulations
when disposing of used oil.c
Recommendation: have the oil changed
by your BMW Retailer.
360de096
Engine oil

12 6
a
Continuous exposure to used oil
has caused cancer in laboratory testing.
Any skin areas that come in contact with
oil should be thoroughly washed with
soap and water.
Always store oil, grease, etc., out of
reach of children. Observe all warning
labels and information on lubricant
containers.
If you use SAE 15W-40 engine oil in low
temperatures below 145F (-10 6) the
engine may become difficult to start.c
*Special engine oils individually
approved by BMW are the most suited
to your engine. Please contact your
BMW Retailer for details..Engine oil
Special - Oils* most preferable
15W - 40
5W - 30
30
20
10
0
-10
-20
-30-20 0 20 40 60 80 °C°F
APISERVICESG
ENERGYCONSERVINGII
SAE
5W-30
365us312

12 7
At a glanceControlsCar careRepairsTechnicalDataIndex
Coolant level with engine cold: up to
the KALT/COLD mark on the transpar-
ent coolant expansion tank.
The coolant is a mixture of water and
extended-duty antifreeze with corrosion
inhibitor. Always maintain the prescribed
all-season 50:50 mixture ratio for year-
round protection against internal corro-
sion. No other additives are required.
Replace the coolant every three years.
To add coolantWait until the engine cools before re-
moving the cap from the expansion
tank. Before unscrewing the cap, en-
sure that the needle on the temperature
gauge is in the blue sector to avoid
scalding.
dStart by turning the cap counter-
clockwise. Pause to allow any accu-
mulated pressure to escape, then
open.
dAdd coolant up to the KALT/COLD
mark. Excess coolant drains off
through the overßow line.a
Do not add coolant while the
engine is hot.
To avoid the possibility of damage later
on, never use anything other than
factory-approved nitrite and amino-free
long-term antifreeze and corrosion
protectant. Your authorized BMW
Retailer is familiar with the official
specifications.
Antifreeze with corrosion protectant is
toxic. Always store in original contain-
ers only, keeping them tightly closed.
Store well out of reach of children.
When disposing of it, observe the
applicable environmental protection
laws.Long-term antifreeze and corrosion
protectant contains the flammable
substance ethylene glycol. You should
therefore avoid spilling it on hot engine
components, as it could catch fire and
cause serious burns.c
A
Observe the applicable environ-
mental protection laws when disposing
of used antifreeze.c
360de099Coolant
