1997 TOYOTA TACOMA warning

Publication No. OM35705U
Part No. 01999-35705
Printed in Japan 10- 9802- 05
Quick index If a service reminder indicator or warning buzzer comes on 59 . . . . .
If your vehicle will not start 139
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your engine stalls while driving 142 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 143
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you have a flat tire 144
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 152 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips for driving during break- in period 114 . . . . . . . . . . . . . . . . . . . . . . . . .
How to start the engine 127
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General maintenance 168
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Complete index 221
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gas station information
Fuel type: UNLEADED gasoline, Octane Rating 87 (Research Octane Number
91) or higher.
See page 114 for detailed information.
Fuel tank capacity: Two- wheel drive models
57 L (15.1 gal., 12.5 Imp.gal.)
Four- wheel drive models
68 L (18.0 gal., 15.0 Imp. gal.)
Engine oil: API SH, ''Energy- Conserving II'' multigrade engine oil or ILSAC mult igrade
engine oil is recommended.
See page 182 for detailed information.
Tire information: See pages 185 through 189.
Tire pressure: See page 211. T
9
I

6
Anti-lock brake system warning light * 1
Brake system warning light * 1
Seat belt reminder light* 1
Discharge warning light* 1
Low oil pressure warning light* 1
Malfunction indicator light* 1
Low fuel level warning light * 1
SRS airbag warning light* 1 Automatic transmission fluid
temperature warning light*
1
Turn signal indicator lights
Headlight high beam indicator light
Over-drive indicator light
Unengaged Parkºwarning light * 1
Low windshield washer fluid level light*1
Driving pattern (POWERº
model) indicator light
Four-wheel drive indicator light
Automatic transmission indicator lights
Indicator symbols on the instrument panel

7
Driving pattern indicator light
Cruise control indicator light * 2
*
1
: For details, see Service reminder indicators and
warning buzzersº in Chapter 1-5.
* 2
: If this light flashes, see Cruise controlº in Chapter 1-6.

25

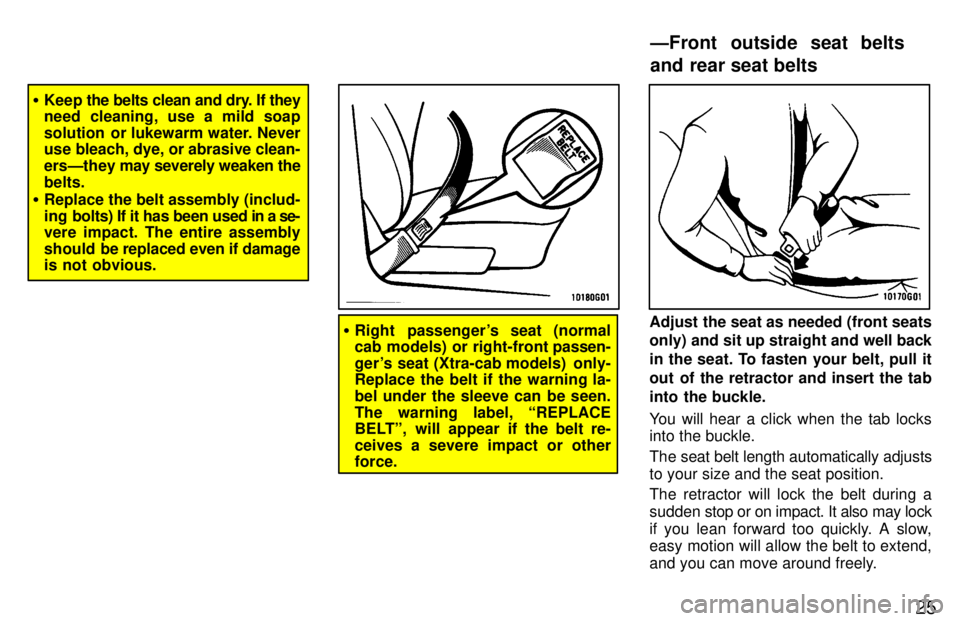

Keep the belts clean and dry. If they
need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ersÐthey may severely weaken the
belts.
Replace the belt assembly (includ-
ing bolts) If it has been used in a se-
vere impact. The entire assembly
should be replaced even if damage
is not obvious.
Right passenger's seat (normal
cab models) or right-front passen-
ger 's seat (Xtra-cab models) only-
Replace the belt if the warning la-
bel under the sleeve can be seen.
The warning label, REPLACE
BELTº, will appear if the belt re-
ceives a severe impact or other force.Adjust the seat as needed (front seats only) and sit up straight and well back
in the seat. To fasten your belt, pull it
out of the retractor and insert the tab
into the buckle.
You will hear a click when the tab locks into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may lock
if you lean forward too quickly. A slow, easy motion will allow the belt to extend,
and you can move around freely. ÐFront outside seat belts
and rear seat belts

31
This indicator comes on when the
ignition key is turned to the ACCº or
ONº position. It goes off after about 6
seconds. This means the SRS airbag
is operating properly.
The SRS airbag warning light system
monitors the airbag sensor assembly, in-
flators, warning light, interconnecting wir-
ing and power sourcesThe SRS airbag system is designed to
activate in response to a severe frontal
impact within the shaded area be-
tween the arrows in the illustration.
The SRS airbags will deploy if the severity
of the impact is above the designed
threshold level, comparable to an approxi-
mate 20 km/h (14 mph) collision when im-
pacting straight into a fixed barrier that
does not move or deform.
If the severity of the impact is below the
above threshold level, the SRS airbags
may not deploy. However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or sign
pole, which can move or deform on im-
pact, or if it is
involved in an underride col-
lision (e.g. a collision in which the noise of
the vehicle underridesº, or goes under, the bed of a truck).
For the safety of all occupants, be sure to
always wear your seat belts.

32
The SRS airbags are not designed to inflate if the vehicle is subjected to a
side or rear impact, if it rolls over, or if
it is involved in a low-speed frontalcollision.The SRS airbag system mainly consists
of the following components and their
locations are shown in the illustration.
1 SRS airbag warning light.
2 Airbag sensor assembly.
3 Steering wheel pad (airbag and inflat-or)
The airbag sensor assembly consists of a
safing sensor and airbag sensor. In a severe frontal impact, sensor detects
deceleration and the system triggers the
airbag inflator. Then a chemical reaction
in the inflator momentarily fills the airbag
with non-toxic nitrogen gas to help re-
strain the forward motion of the driver. When the airbag inflates, it produces a fairly loud noise and releases some
smoke along with the nitrogen gas. This is not harmful and does not indicate a fire.
Be sure to wash off any residue as soon
as possible to prevent minor skin irritation.
Deployment of the airbag happens in a
fraction of a
second, so the airbag must in-
flate with considerable force. While the
system is designed to reduce serious inju-
ries, it may also cause minor burns or
abrasions and swellings.
The steering wheel hub may be hot for
several m inutes, but the airbag will not be
hot. The airbag is designed to inflate onlyonce.

Part 1Fuel gauge
57
OPERATION OF INSTRUMENTS ANDCONTROLSÐ
Chapter 1-5 Gauges, Meters and Service reminderindicators
Fuel gauge
Engine coolant temperature gauge
Tachometer
Odometer and trip meter
Service
reminder indicators and
warning buzzers
With Tachometer
Without Tachometer The gauge works when the ignition
switch is on
and indicates the approxi-
mate quantity of fuel remaining in the tank. Nearly fullÐNeedle at Fº Nearly emptyÐNeedle at Eº
It is a good idea to keep the tank over 1/4 full.
This fuel gauge has a non-return type
needle wh ich remains at the last indicated
position when the ignition switch is turned
off.
If the level approaches Eº or the low fuel
level warning light (on some models)
comes on, fill the fuel tank as soon as pos-
sible.
If the fuel tank is completely empty, the malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer assoon as possible.

59
These meters show the running dis- tance.
1. OdometerÐIt shows the total distance
the vehicle has been driven.
2. Trip meterÐIt shows the distance driven since the last time it was set to zero.
The black digits on white indicate
tenths of kilometers or miles.
3. Trip meter reset knobÐIt resets the trip meter to zero.
To reset the trip meter, push the knob.
Odometer and trip meter Service reminder indicators and warning buzzers
