1997 TOYOTA PASEO Owners Manual

31

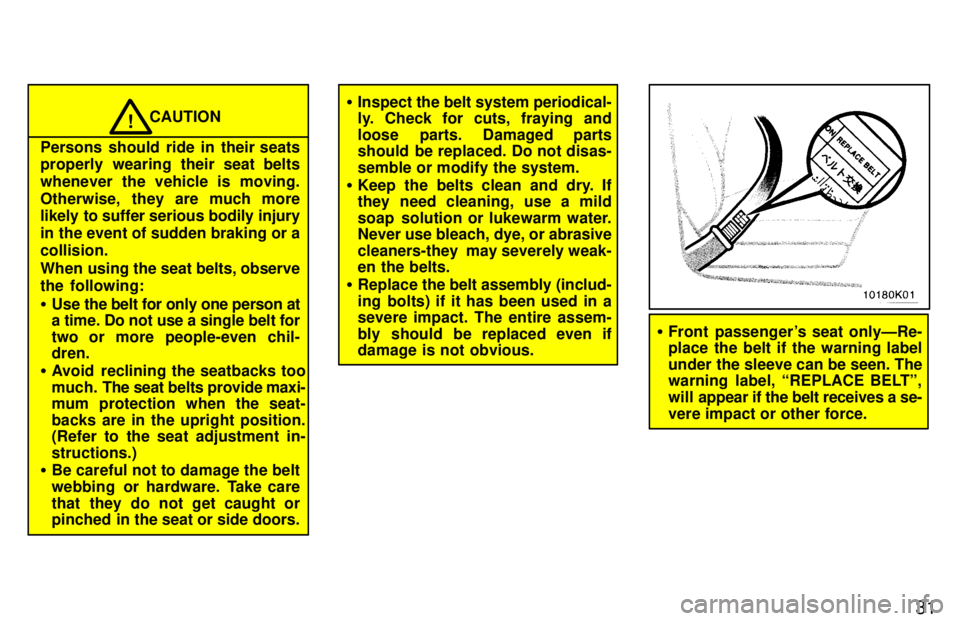

CAUTION!
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more
likely to suffer serious bodily injury
in the event of sudden braking or acollision.
When using the seat belts, observe
the following: Use the belt for only one person at
a time. Do not use a single belt for
two or more people-even chil- dren.
Avoid reclining the seatbacks too
much. The seat belts provide maxi-
mum protection when the seat-backs are in the upright position.
(Refer to the seat adjustment in- structions.)
Be careful not to damage the belt
webbing or hardware. Take care
that they do not get caught or
pinched in the seat or side doors.
Inspect the belt system periodical-
ly. Check for cuts, fraying and
loose parts. Damaged parts
should be replaced. Do not disas- semble or modify the system.
Keep the belts clean and dry. If
they need cleaning, use a mild
soap solution or lukewarm water.
Never use bleach, dye, or abrasive
cleaners-they may severely weak-
en the belts.
Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assem-
bly should be replaced even if
damage is not obvious.
Front passenger's seat onlyÐRe-
place the belt if the warning label
under the sleeve can be seen. The
warning label, REPLACE BELTº,
will appear if the belt receives a se-
vere impact or other force.

32
Adjust the seat as needed (front seats only) and sit up straight and well back
in the seat. To fasten your belt, pull it
out of the retractor and insert the tab
into the buckle.
You will hear a click when the tab locks into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may lock
if you lean forward too quickly. A slow, easy motion will allow the belt to extend,
and you can move around freely. If the seat belt cannot be pulled out of the
retractor,
firmly pull the belt and release it.
You will then be able to smoothly pull the
belt out of the retractor.
When a passenger's shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that posi-
tion and cannot be extended. This feature
is used to hold the child restraint system
securely. (For details, see Child restraintº
in this chapter.) To free the belt again, fully
retract the belt and then pull the belt out
once more.CAUTION!
After inserting the tab, make sure
the tab and buckle are locked and that the belt is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and buckle.
If the seat belt does not function
normally, immediately contact
your Toyota dealer. Do not use the
seat until the seat belt is fixed. It
cannot protect an adult occupant
or your child from injury.
Adjust the position of the lap and
shoulder belts. Position the lap belt as low as possible on
your hipsÐnot on your waist, then adjust
it to a snug fit by pulling the shoulder por- tion upward through the latch plate.
ÐSeat belts

33

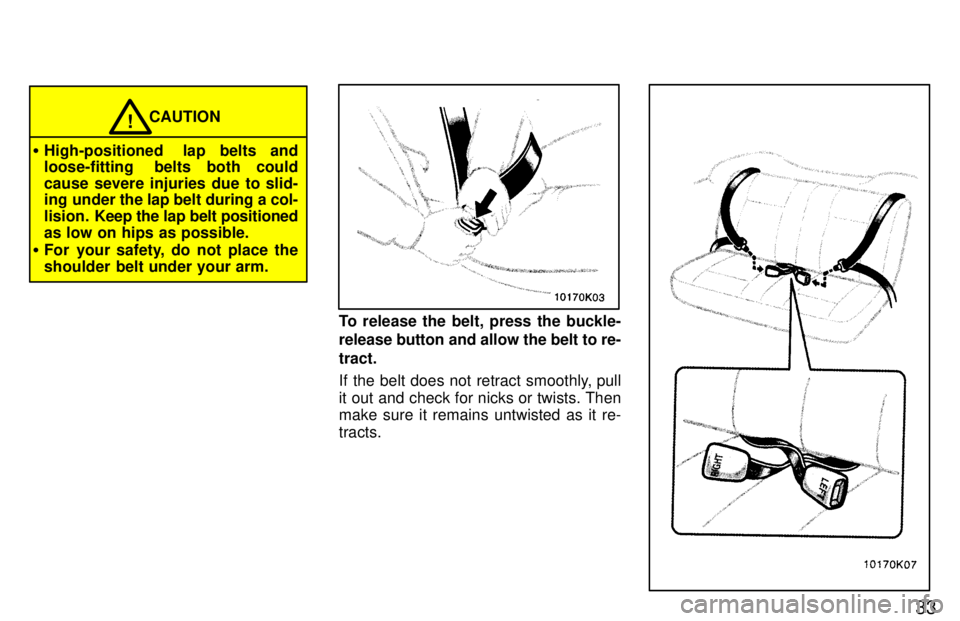

CAUTION!
High-positioned lap belts and
loose-fitting belts both could
cause severe injuries due to slid-
ing under the lap belt during a col-
lision. Keep the lap belt positioned
as low on hips as possible.
For your safety, do not place the
shoulder belt under your arm.
To release the belt, press the buckle-
release button and allow the belt to re- tract.
If the belt does not retract smoothly, pull
it out and check for nicks or twists. Then make sure it remains untwisted as it re- tracts.

34
REAR SEAT BELT FOR CONVERT-
IBLE MODELS
Rear seat belt buckles for convertible
models are intended to be crossed as
shown in
the illustration to provide a prop-
er fit to the occupant. Make sure to insert
the seat belt tabs into the crossed buckles
as shown in the illustration left. The seat belt buckle and the appropriate tab are de-
signed to securely latch while the other
seat belt tab is designed not to securely
latch. Al ways check for secure latching by
pulling on the seat belt to make sure the
correct buckle and tab are latched.

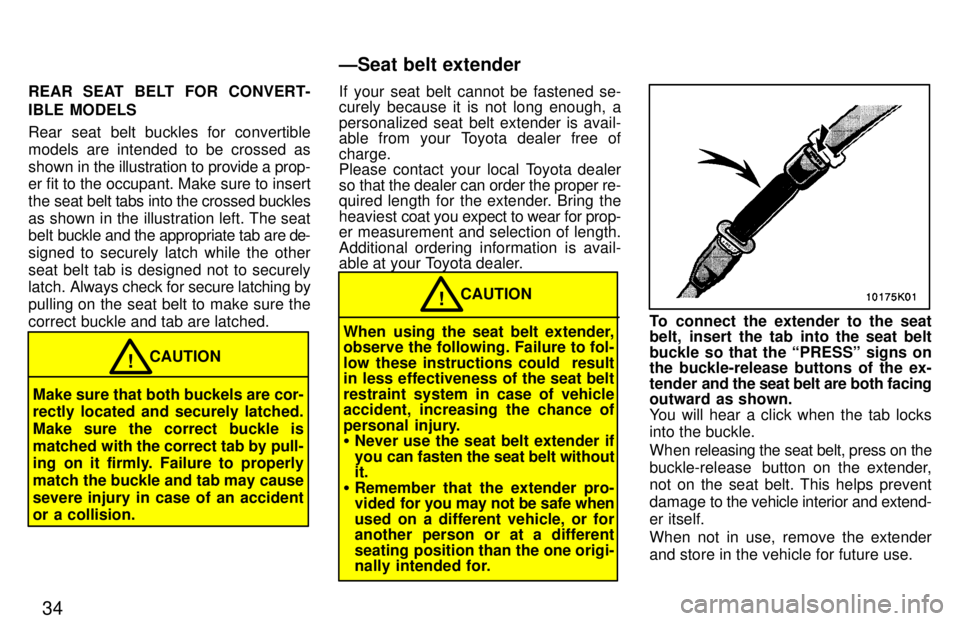

CAUTION!
Make sure that both buckels are cor- rectly located and securely latched. Make sure the correct buckle is
matched with the correct tab by pull-
ing on it firmly. Failure to properly
match the buckle and tab may cause
severe injury in case of an accident
or a collision. If your seat belt cannot be fastened se- curely because it is not long enough, a
personalized seat belt extender is avail-
able from your Toyota dealer free of charge.
Please contact your local Toyota dealer
so that the dealer can order the proper re-
quired length for the extender. Bring the heaviest
coat you expect to wear for prop-
er measurement and selection of length.
Additional ordering information is avail-
able at your Toyota dealer.
CAUTION!
When using the seat belt extender,
observe the following. Failure to fol-
low these instructions could result
in less effectiveness of the seat belt
restraint system in case of vehicle
accident, increasing the chance of
personal injury. Never use the seat belt extender if
you can fasten the seat belt without it.
Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, or for
another person or at a different
seating position than the one origi-
nally intended for.
To connect the extender to the seat
belt, insert the tab into the seat belt
buckle so that the PRESSº signs on the buckle-release buttons of the ex-
tender and the seat belt are both facing
outward as shown.
You will hear a click when the tab locks into the buckle.
When releasing the seat belt, press on the
buckle-release button on the extender, not on the seat belt. This helps prevent
damage to the vehicle interior and extend-
er itself.
When not in use, remove the extender
and store in the vehicle for future use.
ÐSeat belt extender

35
CAUTION!
After inserting the tab, make sure
the tab and buckle are locked and
that the seat belt extender is not twisted.
Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and buckle.
If the seat belt does not function
normally, immediately contact
your Toyota dealer. Do not use the
seat until the seat belt is fixed. It
cannot protect an adult occupant
or your child from injury.
The SRS (Supplemental Restraint Sys-
tem) airbags are designed to provide
further protection to the driver and
front passenger when added to the pri-
mary protection provided by the seatbelts.
In response to a severe frontal impact, the
SRS airbags work together with the seat
belts to help preventing or reduce injury by
inflating, in order to decrease the likeli-
hood of the driver's or front passenger's
head or chest directly hitting the steering
wheel or dashboard. The passenger air-
bag is activated even with no passenger
in the front seat.This indicator comes on when the
ignition key is turned to the ACCº or
ONº position. It goes off after about 6
seconds. This means the SRS airbags
are operating properly.
The SRS airbag warning light system
monitors the airbag sensor assembly, in-
flators, warning light, interconnecting wir-
ing and power sources.
SRS airbags (for U.S.A.)

36
The SRS airbag system is designed to
activate in response to a severe frontal
impact within the shaded area be-
tween the arrows in the illustration.
The SRS airbags will deploy if the severity
of the impact is above the designed
threshold level, comparable to an approxi-
mate 20 km/h (14 mph) collision when im-
pacting straight into a fixed barrier that
does not move or deform.
If the severity of the impact is below the
above threshold level, the SRS airbags
may not deploy. However, this threshold velocity will be
considerably higher if the vehicle strikes
an object, such as a parked vehicle or sign
pole, which can move or deform on im-
pact, or if it is
involved in an underride col-
lision (a collision in which the nose of the
vehicle underridesº, or goes under, the
bed of a truck.) It is possible with collision severity at the marginal level of airbag sensor detection
and activation that only one of your ve-
hicle's two airbags will deploy.
For your safety, be sure to always wear your seat belts.The SRS airbags are not designed to inflate if the vehicle is subjected to a
side or rear impact, if it rolls over, or if
it is involved in a low-speed frontalcollision.

37
The SRS airbag system mainly consists
of the following components and their
locations are shown in the illustration.
1. SRS airbag warning light
2. Steering wheel pad (airbag and inflat-or)
3. Passenger airbag module (airbag and inflator)
4. Airbag sensor assembly
The airbag sensor assembly consists of a
safing sensor and airbag sensor. In a severe frontal impact, sensors detect
deceleration and the system triggers the
airbag inflators. Then a chemical reaction in
the inflators momentarily fills the airbags
with non- toxic nitrogen gas to help restrain
the forward motion of the occupants.
When the airbags inflate, they produce a
fairly loud noise and release some smoke
along with the nitrogen gas. This is not
harmful and does not indicate a fire. Be sure
to wash off any residue as soon as possible
to prevent minor skin irritation.
Deployment of the airbags happen in a frac-
tion of a second, so the airbags must inflate
with considerable force. While the system
is designed to reduce serious injuries, it
may also cause minor burns or abrasions
and swellings.
Parts of the airbag module (steering wheel
hub, dashboard) may be hot for several
minutes, but the airbags themselves will not
be hot. The airbags are designed to inflate
only once.
A crash severe enough to inflate the air-
bags may break the windshield as the ve-
hicle buckles. In vehicles with a passenger
airbag the windshield may also be dam-
aged by absorbing some of the force of the
inflating airbag.

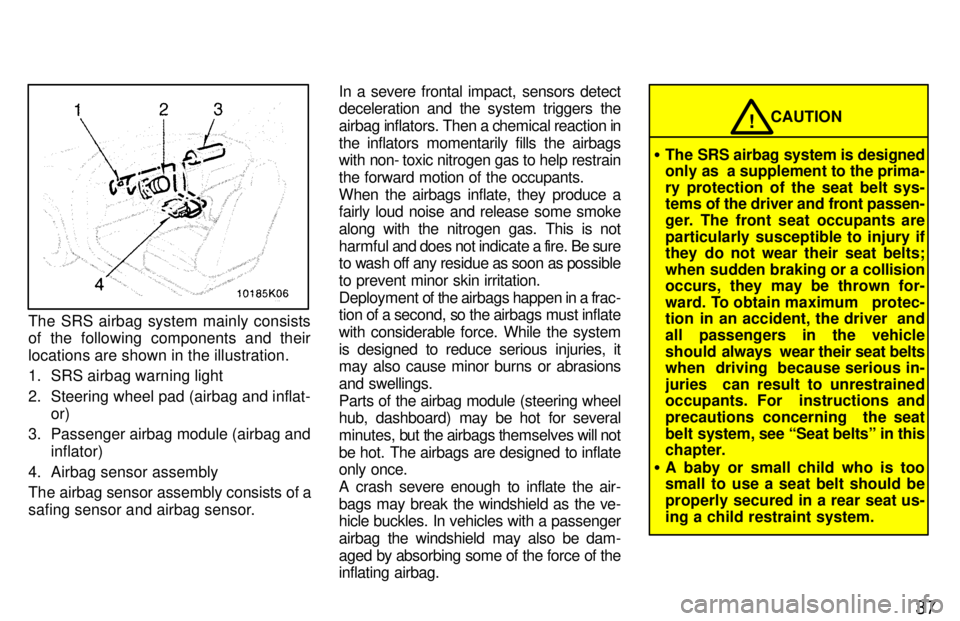

CAUTION!
The SRS airbag system is designed
only as a supplement to the prima-
ry protection of the seat belt sys-
tems of the driver and front passen-
ger. The front seat occupants are
particularly susceptible to injury if
they do not wear their seat belts;
when sudden braking or a collision
occurs, they may be thrown for-
ward. To obtain maximum protec-
tion in an accident, the driver and
all passengers in the vehicle
should always wear their seat belts
when driving because serious in-
juries can result to unrestrained
occupants. For instructions and
precautions concerning the seat
belt system, see Seat beltsº in this
chapter.
A baby or small child who is too
small to use a seat belt should be
properly secured in a rear seat us-ing a child restraint system.

38

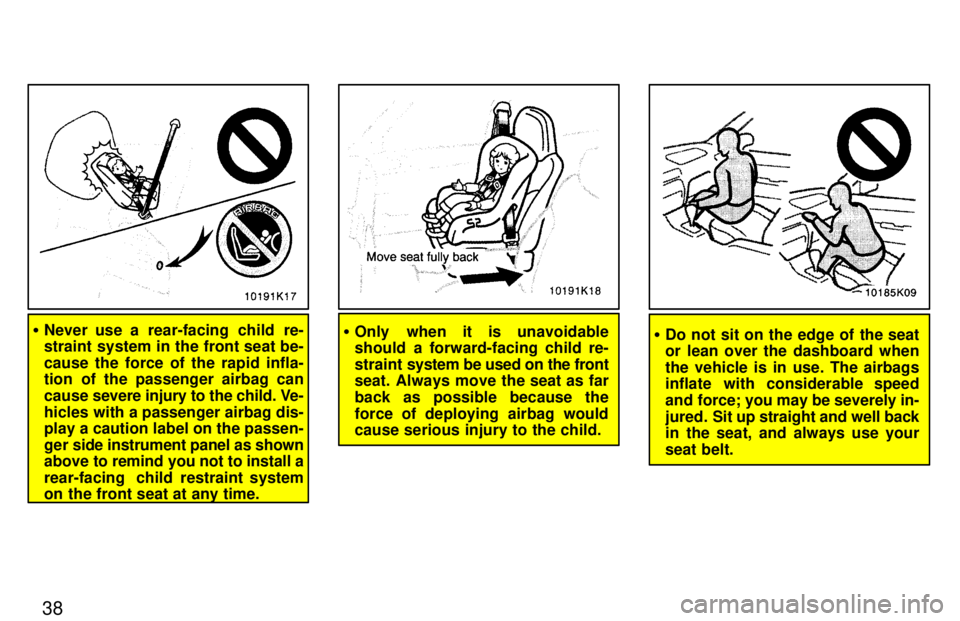

Never use a rear-facing child re-
straint system in the front seat be- cause the force of the rapid infla-
tion of the passenger airbag can cause severe injury to the child. Ve-
hicles with a passenger airbag dis- play a caution label on the passen-
ger side instrument panel as shown
above to remind you not to install a
rear-facing child restraint system
on the front seat at any time. Only when it is unavoidable
should a forward-facing child re-
straint system be used on the front
seat. Always move the seat as farback as possible because theforce of deploying airbag would cause serious injury to the child. Do not sit on the edge of the seat
or lean over the dashboard when
the vehicle is in use. The airbags
inflate with considerable speed
and force; you may be severely in-
jured. Sit up straight and well back
in the seat, and always use your
seat belt.
