7) Use engine grounding terminal or engine proper as the
grounding point to the body when measuring voltage and
resistance in the engine compartment.
OBD0040B
8) Use TCM mounting stud bolts at the body head ground-
ing point when measuring voltage and resistance inside the
passenger compartment.
9) Every MFI-related part is a precision part. Do not drop
them.
10) Observe the following cautions when installing a radio
in MFI equipped models.
CAUTION:

The antenna must be kept as far apart as possible
from the control unit.
(The ECM is located under the steering column, inside
of the instrument panel lower trim panel.)

The antenna feeder must be placed as far apart as
possible from the ECM and MFI harness.

Carefully adjust the antenna for correct matching.

When mounting a large power type radio, pay spe-
cial attention to the three items above mentioned.

Incorrect installation of the radio may affect the
operation of the ECM.
11) Before disconnecting the fuel hose, disconnect the fuel
pump connector and crank the engine for more than five
seconds to release pressure in the fuel system. If engine
starts during this operation, run it until it stops.
12) Problems in the electronic-controlled automatic trans-
mission may be caused by failure of the engine, the elec-
tronic control system, the transmission proper, or by a com-
bination of these. These three causes must be distin-
guished clearly when performing diagnostics.
13) Diagnostics should be conducted by rotating with
simple, easy operations and proceeding to complicated,
difficult operations. The most important thing in diagnostics
is to understand the customer’s complaint, and distinguish
between the three causes.
77
2-7ON-BOARD DIAGNOSTICS II SYSTEM
4. Cautions

B2M0047

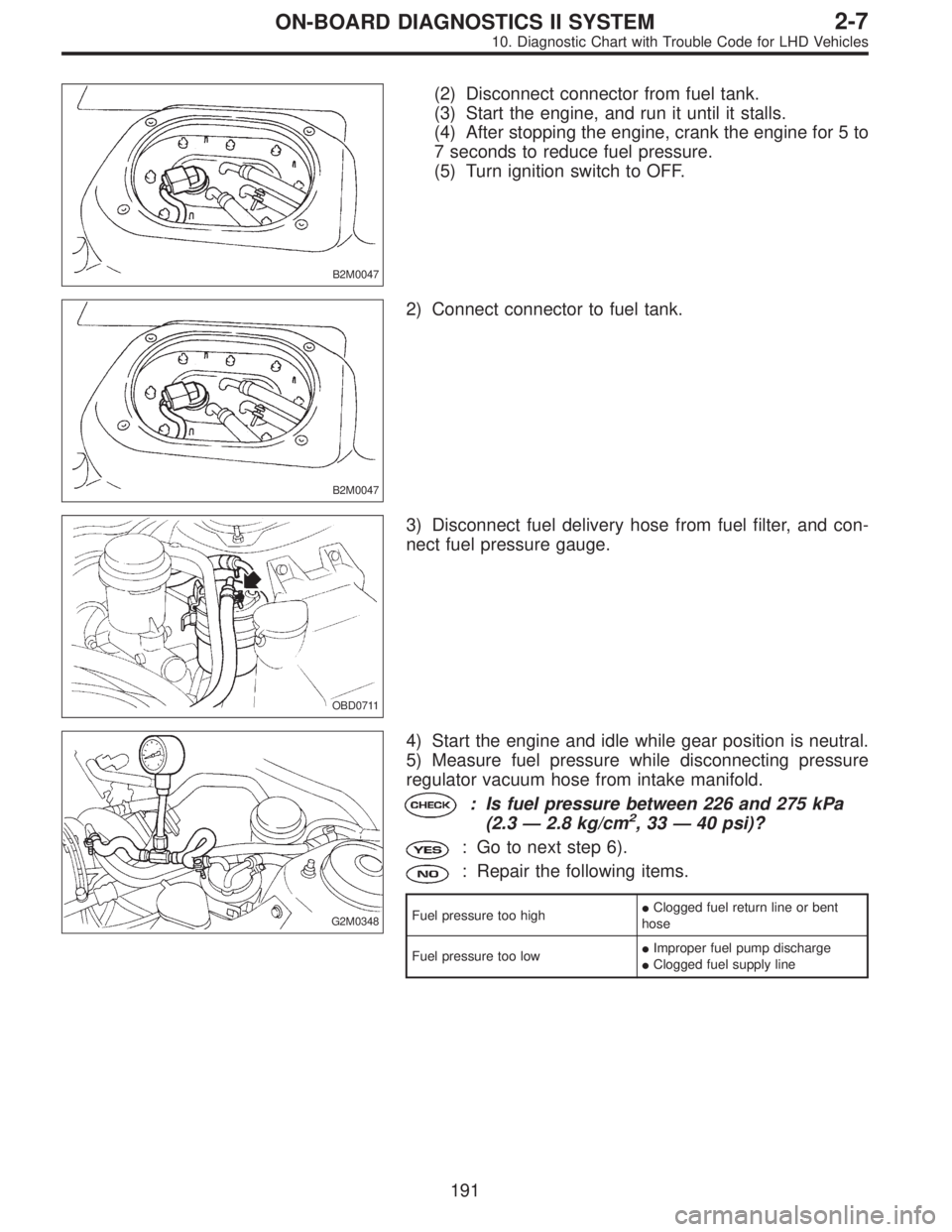

(2) Disconnect connector from fuel tank.
(3) Start the engine, and run it until it stalls.
(4) After stopping the engine, crank the engine for 5 to
7 seconds to reduce fuel pressure.
(5) Turn ignition switch to OFF.
B2M0047
2) Connect connector to fuel tank.
OBD0711
3) Disconnect fuel delivery hose from fuel filter, and con-
nect fuel pressure gauge.
G2M0348
4) Start the engine and idle while gear position is neutral.
5) Measure fuel pressure while disconnecting pressure
regulator vacuum hose from intake manifold.
: Is fuel pressure between 226 and 275 kPa
(2.3—2.8 kg/cm2,33—40 psi)?
: Go to next step 6).
: Repair the following items.
Fuel pressure too high
Clogged fuel return line or bent
hose
Fuel pressure too low
Improper fuel pump discharge

Clogged fuel supply line
191
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostic Chart with Trouble Code for LHD Vehicles

OBD0427
(5) Start and warm-up the engine and transmission.
(6) Stop the engine and turn ignition switch to ON
(Engine OFF).
(7) Move selector lever to“N”.
(8) Read data on Subaru select monitor.
(9) Designate mode using function key.
Function mode: F11
SPECIFIED DATA:

100% (Throttle is fully closed.)

15% (Throttle is fully open.)
19
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code

OBD0388A
1. CHECK HARNESS AND CONNECTORS BETWEEN
TCM AND ATF TEMPERATURE SENSOR.
1) Turn ignition switch to OFF.
2) Disconnect connectors from TCM and transmission.
3) Measure resistance of harness connector between
TCM and transmission connector.
Connector & terminal / Specified resistance:
(B54) No. 10—(B11)No.5/1Ω, or less
(B56) No. 20—(B11) No. 12 / 1Ω, or less
B3M0220B
4) Measure resistance of harness connector between
TCM and body to make sure that circuit does not short.
Connector & terminal / Specified resistance:
(B54) No. 10—Body/1MΩ, or more
(B56) No. 20—Body/1MΩ, or more
G3M0126
2. CHECK ATF TEMPERATURE SENSOR.
1) Measure resistance between transmission connector
receptacle’s terminals.
Connector & terminal / Specified resistance:
(T4) No. 5—No. 12 /
2.1—2.9 kΩ[ATF temperature: 20°C (68°F)]
2) Connect connectors to transmission and TCM.
3) Start and warm-up the engine until ATF temperature
has increased.
4) Stop the engine and disconnect connector from trans-
mission.
5) Measure resistance between transmission connector
receptacle’s terminals.
Connector & terminal / Specified resistance:
(T4) No. 5—No. 12 /
275—375Ω[ATF temperature: 80°C (176°F)]
31
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
7. Diagnostic Chart with Trouble Code

B: CHECK LIST FOR INTERVIEW
Check the following items about the vehicle’s state.
1. THE STATE OF THE WARNING LIGHTS
a. ABS warning light

1Is always on.2Sometimes comes on.3Comes on only once.4Does not come on.
When/how long does it come on?
Ignition key
position
1Lock2Acc3On (before starting engine)4Start5On after starting (Engine: run)
6On after starting (Engine: stop)
Timing
1Immediately after ignition is on.2Immediately after ignition starts.
3When advancing (Speedmiles/h,miles/h)4While traveling at a constant speed (Speedmiles/h)
5When decelerating (Speedmiles/h,miles/h)
6When turning (To right, to left, steering angledeg., steering timesec)
7When other electrical parts move (Part name:, Operating condition)
8When moving other electrical parts (Part name:, Operating condition)
b. TCS warning light

1Is always on.2Sometimes comes on.3Comes on only once.4Does not come on.
When does it come on?
Ignition key
position
1Lock2Acc3On (before starting engine)4Start5On after starting (Engine: run)
6On after starting (Engine: stop)
Timing
1Immediately after ignition is on.2Immediately after ignition starts.
3When advancing (Speedmiles/h,miles/h)4While traveling at a constant speed (Speedmiles/h)
5When decelerating (Speedmiles/h,miles/h)
6When turning (To right, to left, steering angledeg., steering timesec)
7When other electrical parts move (Part name:, Operating condition)
8When moving other electrical parts (Part name:, Operating condition)
c. TCS OFF indicator light

1Is always on.2Sometimes comes on.3Comes on only once.4Does not come on.
When/how long does it come on?
Ignition key
position
1Lock2Acc3On (before starting engine)4Start5On after starting (Engine: run)
6On after starting (Engine: stop)
Timing
1Immediately after ignition is on.2Immediately after ignition starts.
3When advancing (Speedmiles/h,miles/h)4While traveling at a constant speed (Speedmiles/h)
5When decelerating (Speedmiles/h,miles/h)
6When turning (To right, to left, steering angledeg., steering timesec)
7When other electrical parts move (Part name:, Operating condition)
8When moving other electrical parts (Part name:, Operating condition)
d. TCS operation indicator light

1Is always on.2Sometimes comes on.3Comes on only once.4Does not come on.
When does it come on?
Ignition key
position
1Lock2Acc3On (before starting engine)4Start5On after starting (Engine: run)
6On after starting (Engine: stop)
Timing
1Immediately after ignition is on.2Immediately after ignition starts.
3When advancing (Speedmiles/h,miles/h)4While traveling at a constant speed (Speedmiles/h)
5When decelerating (Speedmiles/h,miles/h)
6When turning (To right, to left, steering angledeg., steering timesec)
7When other electrical parts move (Part name:, Operating condition)
8When moving other electrical parts (Part name:, Operating condition)
14
4-4bBRAKES
6. Diagnostics Chart for On-board Diagnosis System

e. Malfunction indicator light

1Is always on.2Sometimes comes on.3Comes on only once.4Does not come on.
When does it come on?
Ignition key
position
1Lock2Acc3On (before starting engine)4Start5On after starting (Engine: run)
6On after starting (Engine: stop)
Timing
1Immediately after ignition is on.2Immediately after ignition starts.
3When advancing (Speedmiles/h,miles/h)4While traveling at a constant speed (Speedmiles/h)
5When decelerating (Speedmiles/h,miles/h)
6When turning (To right, to left, steering angledeg., steering timesec)
7When other electrical parts move (Part name:, Operating condition)
8When moving other electrical parts (Part name:, Operating condition)
2. SYMPTOMS
ABS operating
condition1Performs no work.2Operates only when abruptly applying brakes. (Conditions: vehicle speedmiles/h, how to step
on brake pedal)
3Operating time (sec., etc.)4Operating noise (Produced/Not produced)
5What kind of noise? (Knock, gong gong, bong, buzz, gong gong buzz, etc.)
6Reaction force of brake pedal (Stick, pressed down once with a clunk, pressed and released, etc.)
TCS operating
condition
1Performs no work.2Operates only when abruptly accelerating. (Conditions: vehicle speedmiles/h, how to step on
accelerator pedal)
3Operating time (sec., etc.)4Operating noise (Produced/Not produced)
5What kind of noise? (Knock, gong gong, bong, buzz, gong gong buzz, etc.)
6Whether or not operation indicator light comes on. (Come on/Does not come on, Others)
Behavior of
vehicle
1Directional stability cannot be obtained or steering arm refuses to work when applying brakes (vehicle turns to right, turns
to left, spins, etc.).
2Directional stability cannot be obtained or steering arm refuses to work when accelerating (vehicle turns to right, turns to
left, spins, etc.).
3Brakes are out of order (braking distance is long, brakes lock or drag, pedal stroke is long, pedal sticks, etc.).
4Poor acceleration (fails to accelerate, engine stalls, etc.).
5Vibration, abnormal noise (operating noise is loud, noise is produced during operation from the front of vehicle (right, left)
(tones:), noise is produced during operation from the rear of vehicle (tones:, others)
6Other phenomena (concrete symptoms)
3. CONDITIONS UNDER WHICH TROUBLE OCCURS
Environment1Weather (fine, cloudy, rain, snow, etc.)
2Ambient temperature (°C/°F)
3Road (urban area, suburbs, highway, general road, ascending slope, descending slope, paved road, gravel road, muddy
road, sandy place, etc.)
4Road surface (dry, wet, new-fallen snow, compressed snow, frozen slope, etc.)
Conditions
1Brakes (decelerationg, continuous/intermittent)2Accelerator (accelerationg, continuous/intermittent)
3Travel speed (miles, advancing, accelerating, reducing speed, low speed, turning, etc.)
4Condition of tire of each wheel (air pressure, degree of wear, whether or not genuine parts are used, whether
or not chain is passed around tires, whether or not T tire is used.) others ()
5Condition of suspension alignment ()
6Loading state ()
4. REPAIRED PARTS ARE USED OR NOT
15
4-4bBRAKES
6. Diagnostics Chart for On-board Diagnosis System

8. Diagnostics Chart with Trouble Code
A: LIST OF TROUBLE CODE
Trouble code Contents of diagnosis Ref. to 4-4b
11Start code

Trouble code is shown after start code.

Only start code is shown in normal condition.—
21
Faulty ABS sensor
(Open circuit or short circuit)Front right wheel speed sensor
[T8B0] 23 Front left wheel speed sensor
25 Rear right wheel speed sensor
27 Rear left wheel speed sensor
22
Faulty ABS sensor
(Faulty ABS sensor signal)Front right wheel speed sensor
[T8C0] 24 Front left wheel speed sensor
26 Rear right wheel speed sensor
28 Rear left wheel speed sensor
31
Faulty solenoid valve circuit(s) in hydraulic
unitFront right inlet valve [T8D0]
32 Front right outlet valve [T8E0]
33 Front left inlet valve [T8D0]
34 Front left outlet valve [T8E0]
35 Rear right inlet valve [T8D0]
36 Rear right outlet valve [T8E0]
37 Rear left inlet valve [T8D0]
38 Rear left outlet valve [T8E0]
41 Faulty ABS/TCS control module [T8F0]
42 Source voltage is high.[T8G0]
43 Faulty engine control module communication cables [T8H0]
51 Faulty valve relay[T8I0]
52 Faulty motor, motor sensor and/or motor relay [T8J0]
54 Faulty stroke sensor and/or stop light switch [T8K0]
57 Faulty fluid level sensor[T8L0]
58 Faulty pressure switch[T8M0]
61
Faulty solenoid valve circuit(s) in hydraulic
unitTCS 1 valve [T8D0]
62 TCS 2 valve [T8D0]
35
4-4bBRAKES
8. Diagnostics Chart with Trouble Code

B: CHECK LIST FOR INTERVIEW
Check the following items about the vehicle’s state.
1. THE STATE OF THE WARNING LIGHTS
a. ABS warning light

1Is always on.2Sometimes comes on.3Comes on only once.4Does not come on.
When/how long does it come on?
Ignition key
position
1Lock2Acc3On (before starting engine)4Start5On after starting (Engine: run)
6On after starting (Engine: stop)
Timing
1Immediately after ignition is on.2Immediately after ignition starts.
3When advancing (Speedmiles/h,miles/h)4While traveling at a constant speed (Speedmiles/h)
5When decelerating (Speedmiles/h,miles/h)
6When turning (To right, to left, steering angledeg., steering timesec)
7When moving other electrical parts (Part name:, Operating condition)
2. SYMPTOMS
ABS operating
condition1Performs no work.2Operates only when abruptly applying brakes. (Conditions: vehicle speedmiles/h, how to step
on brake pedal)
3Operating time (sec., etc.)4Operating noise (Produced/Not produced)
5What kind of noise? (Knock, gong gong, bong, buzz, gong gong buzz, etc.)
6Reaction force of brake pedal (Stick, pressed down once with a clunk, pressed and released, etc.)
Behavior of
vehicle
1Directional stability cannot be obtained or steering arm refuses to work when applying brakes (vehicle turns to right, turns
to left, spins, etc.).
2Directional stability cannot be obtained or steering arm refuses to work when accelerating (vehicle turns to right, turns to
left, spins, etc.).
3Brakes are out of order (braking distance is long, brakes lock or drag, pedal stroke is long, pedal sticks, etc.).
4Poor acceleration (fails to accelerate, engine stalls, etc.).
5Vibration, abnormal noise (operating noise is loud, noise is produced during operation from the front of vehicle (right, left)
(tones:), noise is produced during operation from the rear of vehicle (tones:, others)
6Other phenomena (concrete symptoms)
3. CONDITIONS UNDER WHICH TROUBLE OCCURS
Environment1Weather (fine, cloudy, rain, snow, etc.)
2Ambient temperature (°C/°F)
3Road (urban area, suburbs, highway, general road, ascending slope, descending slope, paved road, gravel road, muddy
road, sandy place, etc.)
4Road surface (dry, wet, new-fallen snow, compressed snow, frozen slope, etc.)
Conditions
1Brakes (decelerationg, continuous/intermittent)2Accelerator (accelerationg, continuous/intermittent)
3Travel speed (miles, advancing, accelerating, reducing speed, low speed, turning, etc.)
4Condition of tire of each wheel (air pressure, degree of wear, whether or not genuine parts are used, whether
or not chain is passed around tires, whether or not T tire is used.) others ()
5Condition of suspension alignment ()
6Loading state ()
4. REPAIRED PARTS ARE USED OR NOT
11
4-4cBRAKES [ABS 5.3 TYPE]
6. Diagnostics Chart for On-board Diagnosis System
