11) Install DOJ inner race on shaft and fit snap ring with
pliers.
NOTE:
Confirm that the snap ring is completely fitted in the shaft
groove.
B4M0228A
12) Install cage, which was previously fitted, to inner race
fixed upon shaft.
NOTE:
Fit the cage with the protruded part aligned with the track
on the inner race and then turn by a half pitch.


1Inner race


2Cage
B4M0227A
13) Put 80 to 90 g (2.82 to 3.17 oz) of specified grease into
the interior of DOJ outer race.
14) Apply a coat of specified grease to the cage pocket
and six balls.
15) Insert six balls into the cage pocket.
16) Align the outer race track and ball positions and place
in the part where shaft, inner race, cage and balls are pre-
viously installed, and then fit outer race.


1Outer race


2Grease
G4M0282
17) Install circlip in the groove on DOJ outer race.
NOTE:
Assure that the balls, cage and inner race are com-
pletely fitted in the outer race of DOJ.
Exercise care not to match the open end of circlip in the
ball groove of outer race.
Pull the shaft lightly and assure that the circlip is com-
pletely fitted in the groove.
18) Apply an even coat of specified grease [20 to 30 g
(0.71 to 1.06 oz)] to the entire inner surface of boot. Also
apply grease to shaft.
19) Install DOJ boot taking care not to twist it.
NOTE:
The inside of the larger end of DOJ boot and the boot
groove shall be cleaned so as to be free from grease and
other substances.
When installing DOJ boot, position outer race of DOJ at
center of its travel.
39
4-2SERVICE PROCEDURE
4. Front and Rear Drive Shafts

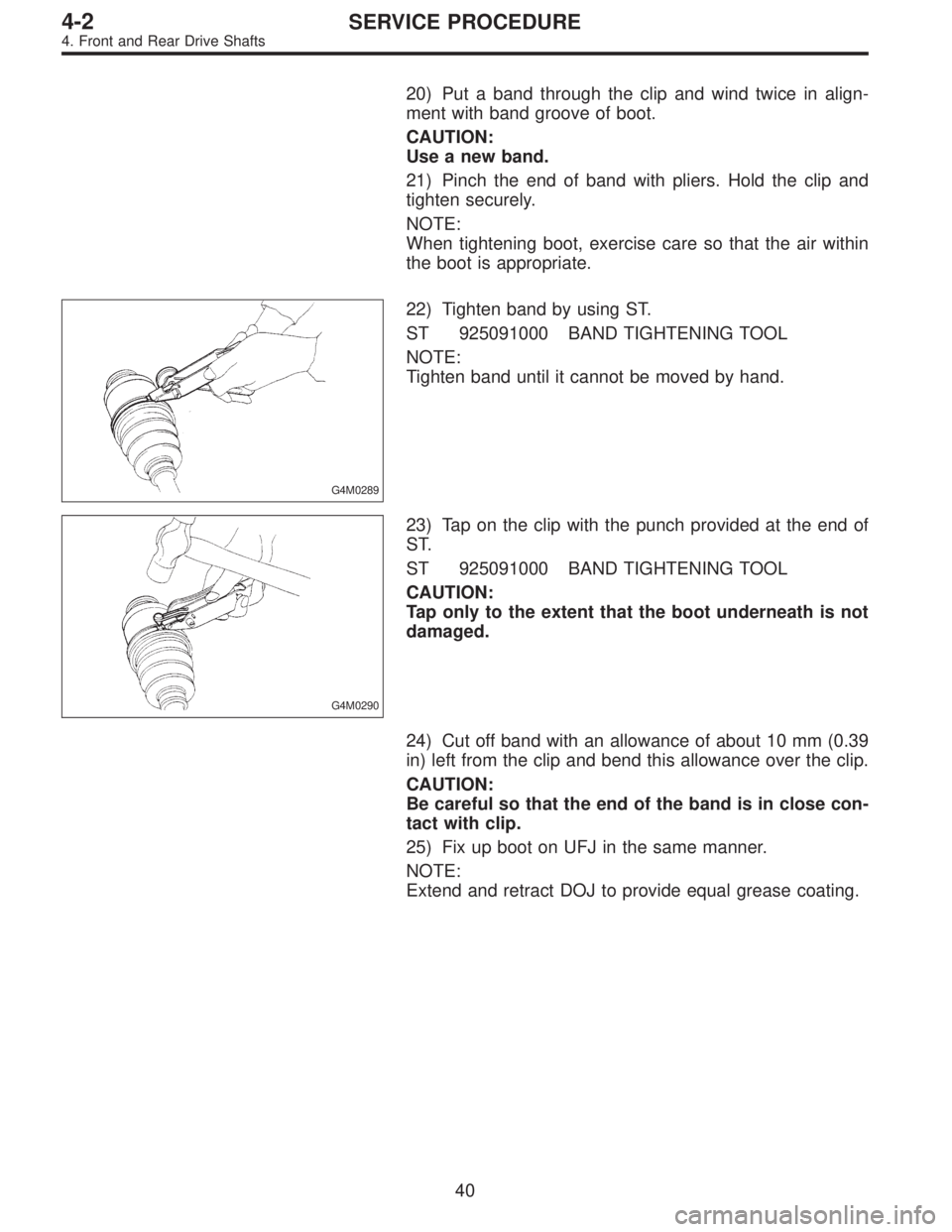

20) Put a band through the clip and wind twice in align-
ment with band groove of boot.
CAUTION:
Use a new band.
21) Pinch the end of band with pliers. Hold the clip and
tighten securely.
NOTE:
When tightening boot, exercise care so that the air within
the boot is appropriate.
G4M0289
22) Tighten band by using ST.
ST 925091000 BAND TIGHTENING TOOL
NOTE:
Tighten band until it cannot be moved by hand.
G4M0290
23) Tap on the clip with the punch provided at the end of
ST.
ST 925091000 BAND TIGHTENING TOOL
CAUTION:
Tap only to the extent that the boot underneath is not
damaged.
24) Cut off band with an allowance of about 10 mm (0.39
in) left from the clip and bend this allowance over the clip.
CAUTION:
Be careful so that the end of the band is in close con-
tact with clip.
25) Fix up boot on UFJ in the same manner.
NOTE:
Extend and retract DOJ to provide equal grease coating.
40
4-2SERVICE PROCEDURE
4. Front and Rear Drive Shafts

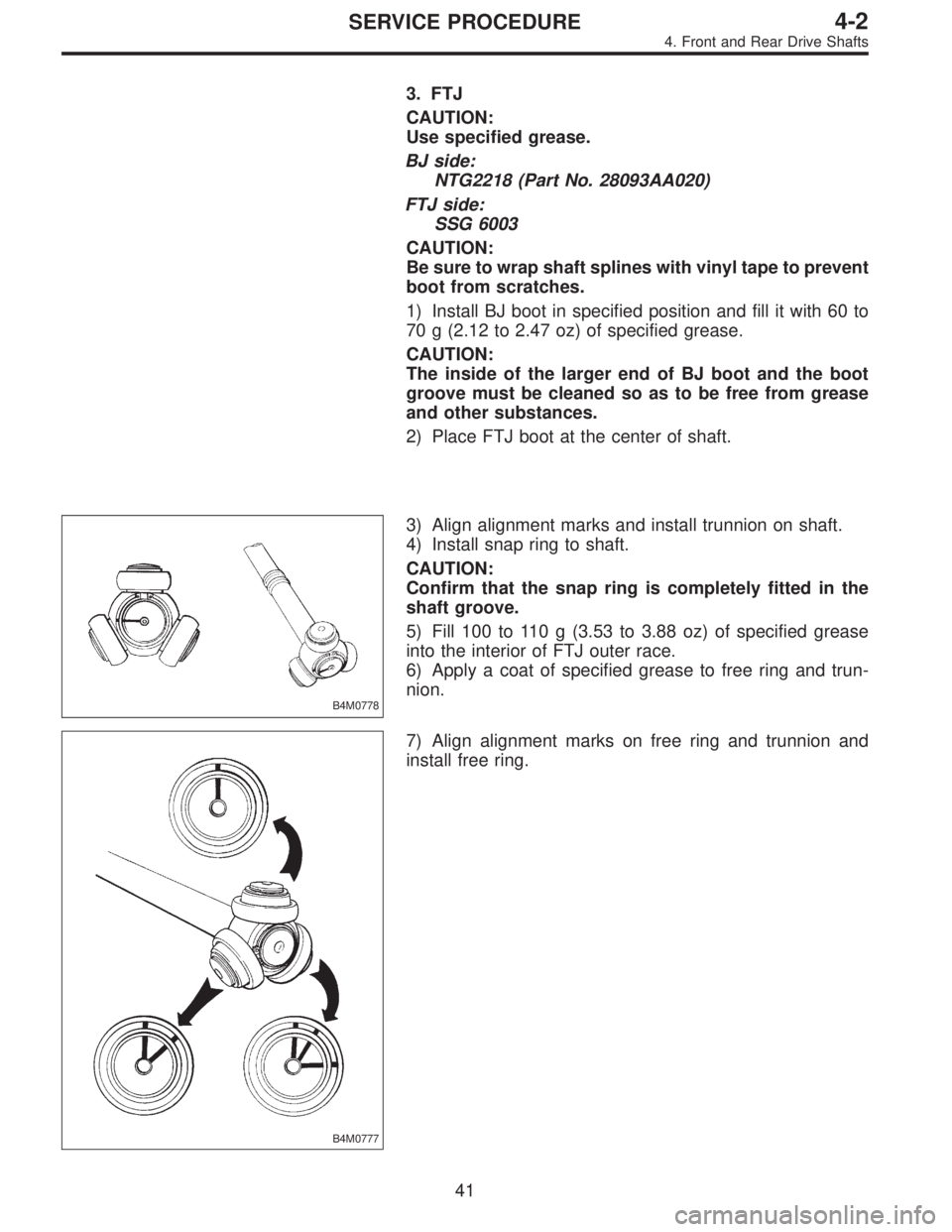

3. FTJ
CAUTION:
Use specified grease.
BJ side:
NTG2218 (Part No. 28093AA020)
FTJ side:
SSG 6003
CAUTION:
Be sure to wrap shaft splines with vinyl tape to prevent
boot from scratches.
1) Install BJ boot in specified position and fill it with 60 to
70 g (2.12 to 2.47 oz) of specified grease.
CAUTION:
The inside of the larger end of BJ boot and the boot
groove must be cleaned so as to be free from grease
and other substances.
2) Place FTJ boot at the center of shaft.
B4M0778
3) Align alignment marks and install trunnion on shaft.
4) Install snap ring to shaft.
CAUTION:
Confirm that the snap ring is completely fitted in the
shaft groove.
5) Fill 100 to 110 g (3.53 to 3.88 oz) of specified grease
into the interior of FTJ outer race.
6) Apply a coat of specified grease to free ring and trun-
nion.
B4M0777
7) Align alignment marks on free ring and trunnion and
install free ring.
41
4-2SERVICE PROCEDURE
4. Front and Rear Drive Shafts

B4M0774
8) Align alignment marks on shaft and outer race, and
install outer race.
9) Install circlip in the groove on FTJ outer race.
CAUTION:
Pull the shaft lightly and assure that the circlip is com-
pletely fitted in the groove.
10) Apply an even coat of the specified grease 30 to 40 g
(1.06 to 1.41 oz) to the entire inner surface of boot.
11) Install FTJ boot taking care not to twist it.
CAUTION:
The inside of the larger end of FTJ boot and the boot
groove shall be cleaned so as to be free from grease
and other substances.
When installing FTJ boot, position outer race of DOJ
at center of its travel.
12) Put a band through the clip and wind twice in align-
ment with band groove of boot.
CAUTION:
Use a new band.
13) Pinch the end of band with pliers. Hold the clip and
tighten securely.
NOTE:
When tightening boot, exercise care so that the air within
the boot is appropriate.
G4M0289
14) Tighten band by using ST.
ST 925091000 BAND TIGHTENING TOOL
NOTE:
Tighten band until it cannot be moved by hand.
G4M0290
15) Tap on the clip with the punch provided at the end of
ST.
ST 925091000 BAND TIGHTENING TOOL
CAUTION:
Tap to an extent that the boot underneath is not dam-
aged.
42
4-2SERVICE PROCEDURE
4. Front and Rear Drive Shafts

16) Cut off band with an allowance of about 10 mm (0.39
in) left from the clip and bend this allowance over the clip.
CAUTION:
Be careful to that the end of the band is in close con-
tact with clip.
17) Fix up boot on BJ in the same manner.
NOTE:
Extend and retract FTJ to provide equal grease coating.
G4M0291

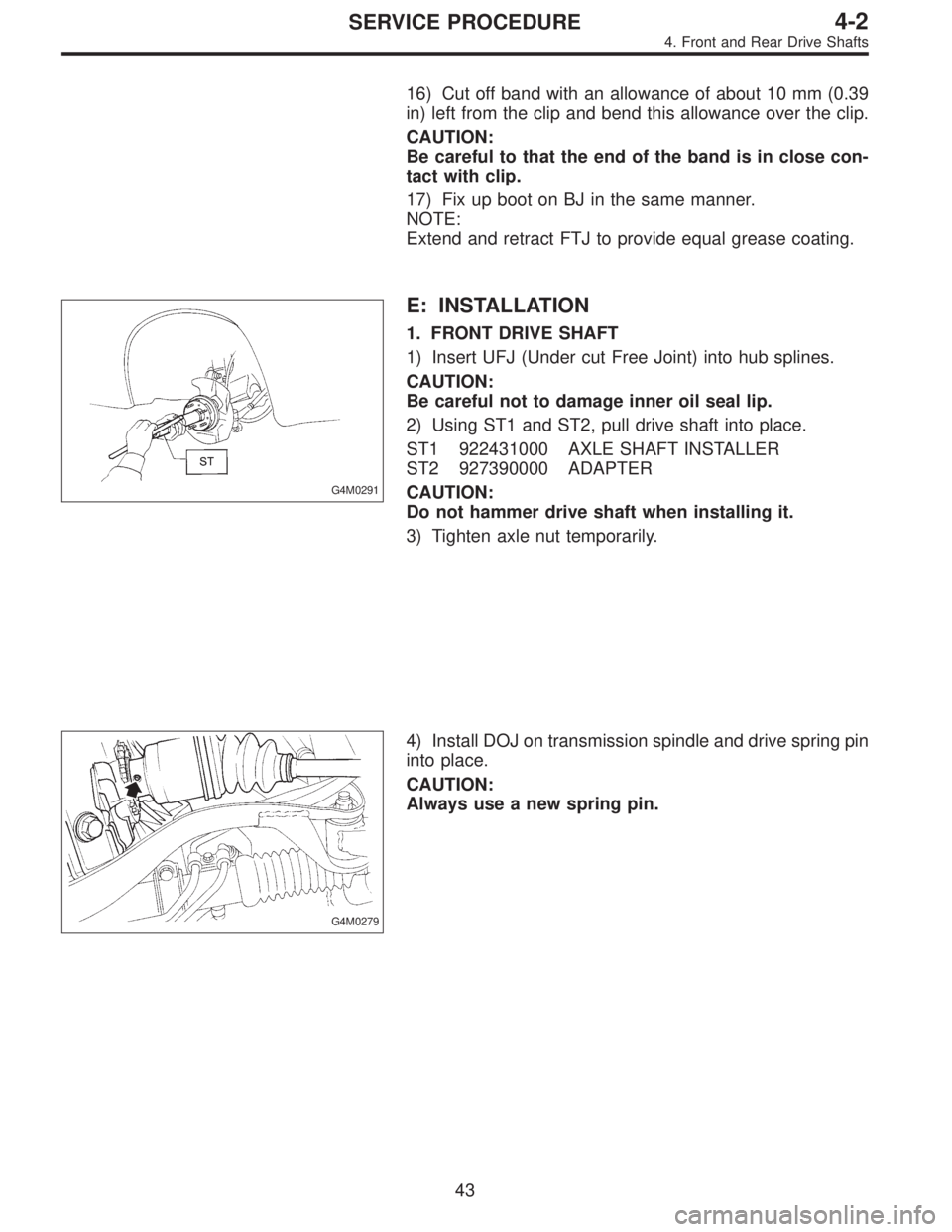

E: INSTALLATION
1. FRONT DRIVE SHAFT
1) Insert UFJ (Under cut Free Joint) into hub splines.
CAUTION:
Be careful not to damage inner oil seal lip.
2) Using ST1 and ST2, pull drive shaft into place.
ST1 922431000 AXLE SHAFT INSTALLER
ST2 927390000 ADAPTER
CAUTION:
Do not hammer drive shaft when installing it.
3) Tighten axle nut temporarily.
G4M0279
4) Install DOJ on transmission spindle and drive spring pin
into place.
CAUTION:
Always use a new spring pin.
43
4-2SERVICE PROCEDURE
4. Front and Rear Drive Shafts

5. Replacement of Front DOJ and UFJ
Boots
A: REMOVAL
1) Disconnect ground cable from battery.
2) Jack-up vehicle, support it with safety stands (rigid
rocks), and remove front wheel cap and wheels.
NOTE:
Do not remove axle nut.
3) Remove stabilizer link.
4) Disconnect transverse link from housing.
G4M0279
5) Remove spring pin which secures transmission spindle
to DOJ.
CAUTION:
Use a new spring pin.
6) Remove DOJ and UFJ boot from drive shaft.

B: INSTALLATION
1) Install DOJ and UFJ boots to drive shaft.

G4M0279
2) Install DOJ on transmission spindle and drive spring pin
into place.
CAUTION:
Always use a new spring pin.
3) Connect transverse link to housing.
4) Install stabilizer link.
46
4-2SERVICE PROCEDURE
5. Replacement of Front DOJ and UFJ Boots

6. Replacement of Rear DOJ and BJ
Boots
A: REMOVAL
1) Disconnect ground cable from battery.
2) Lift-up vehicle, and remove rear wheel cap and wheels.
NOTE:
Axle nut need not be removed.
3) Remove A.B.S. sensor clamps and parking brake cable
bracket.
4) Disconnect stabilizer link from lateral link.
5) Remove bolts which secure lateral link assembly to rear
housing.
6) Remove bolts which secure trailing link assembly to
rear housing.
7) Remove crossmember reinforcement lower from cross-
member (4 door model only).
G4M0994
8) Remove DOJ from rear differential using ST.
ST 28099PA100 DRIVE SHAFT REMOVER
NOTE:
The side spline shaft circlip comes out together with the
shaft.
G4M0995
CAUTION:
Be careful not to damage side bearing retainer. Always
use bolt as shown in figure, as supporting point for ST
during removal.
ST 28099PA100 DRIVE SHAFT REMOVER
B: INSTALLATION
1) Install DOJ and BJ boots to drive shaft.

47
4-2SERVICE PROCEDURE
6. Replacement of Rear DOJ and BJ Boots

B4M0549A
2) Using ST, install DOJ into differential.
ST 28099PA090 SIDE OIL SEAL PROTECTOR
B4M0550A
3) Insert DOJ spline end into bore of side oil seal, and
remove ST.
CAUTION:
Do not allow DOJ splines to damage side oil seal.
ST 28099PA090 SIDE OIL SEAL PROTECTOR
G3M0050
4) Align DOJ and differential splines.
5) Push housing to insert DOJ into differential.
NOTE:
Make sure DOJ is inserted properly.
CAUTION:
Discard old self-locking nut. Replace with a new one.
6) Connect rear housing assembly to trailing link
assembly, and tighten self-locking nut.
7) Connect rear housing assembly to lateral link assembly,
and tighten self-locking nut.
8) Connect stabilizer link to lateral link.
9) Install crossmember reinforcement lower to crossmem-
ber (4 door model only).
10) Install A.B.S. sensor clamps and parking brake cable
bracket.
48
4-2SERVICE PROCEDURE
6. Replacement of Rear DOJ and BJ Boots
