Page 2405 of 3342

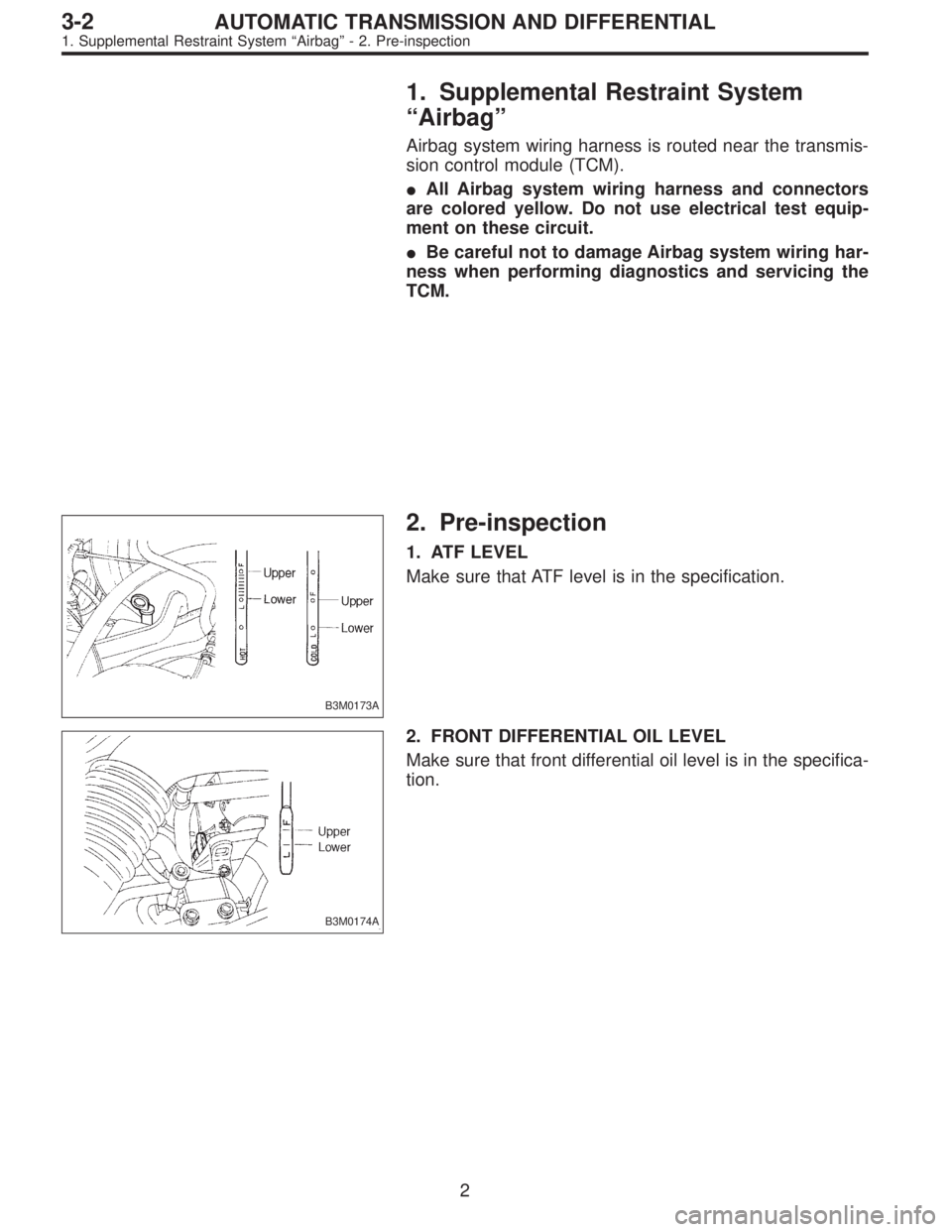

1. Supplemental Restraint System
“Airbag”
Airbag system wiring harness is routed near the transmis-
sion control module (TCM).
All Airbag system wiring harness and connectors
are colored yellow. Do not use electrical test equip-
ment on these circuit.
Be careful not to damage Airbag system wiring har-
ness when performing diagnostics and servicing the
TCM.
B3M0173A
2. Pre-inspection
1. ATF LEVEL
Make sure that ATF level is in the specification.
B3M0174A
2. FRONT DIFFERENTIAL OIL LEVEL
Make sure that front differential oil level is in the specifica-
tion.
2
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
1. Supplemental Restraint System“Airbag”- 2. Pre-inspection
Page 2406 of 3342
1. Supplemental Restraint System
“Airbag”
Airbag system wiring harness is routed near the transmis-
sion control module (TCM).
All Airbag system wiring harness and connectors
are colored yellow. Do not use electrical test equip-
ment on these circuit.
Be careful not to damage Airbag system wiring har-
ness when performing diagnostics and servicing the
TCM.
B3M0173A
2. Pre-inspection
1. ATF LEVEL
Make sure that ATF level is in the specification.
B3M0174A
2. FRONT DIFFERENTIAL OIL LEVEL
Make sure that front differential oil level is in the specifica-
tion.
2
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
1. Supplemental Restraint System“Airbag”- 2. Pre-inspection
Page 2407 of 3342
G3M0717

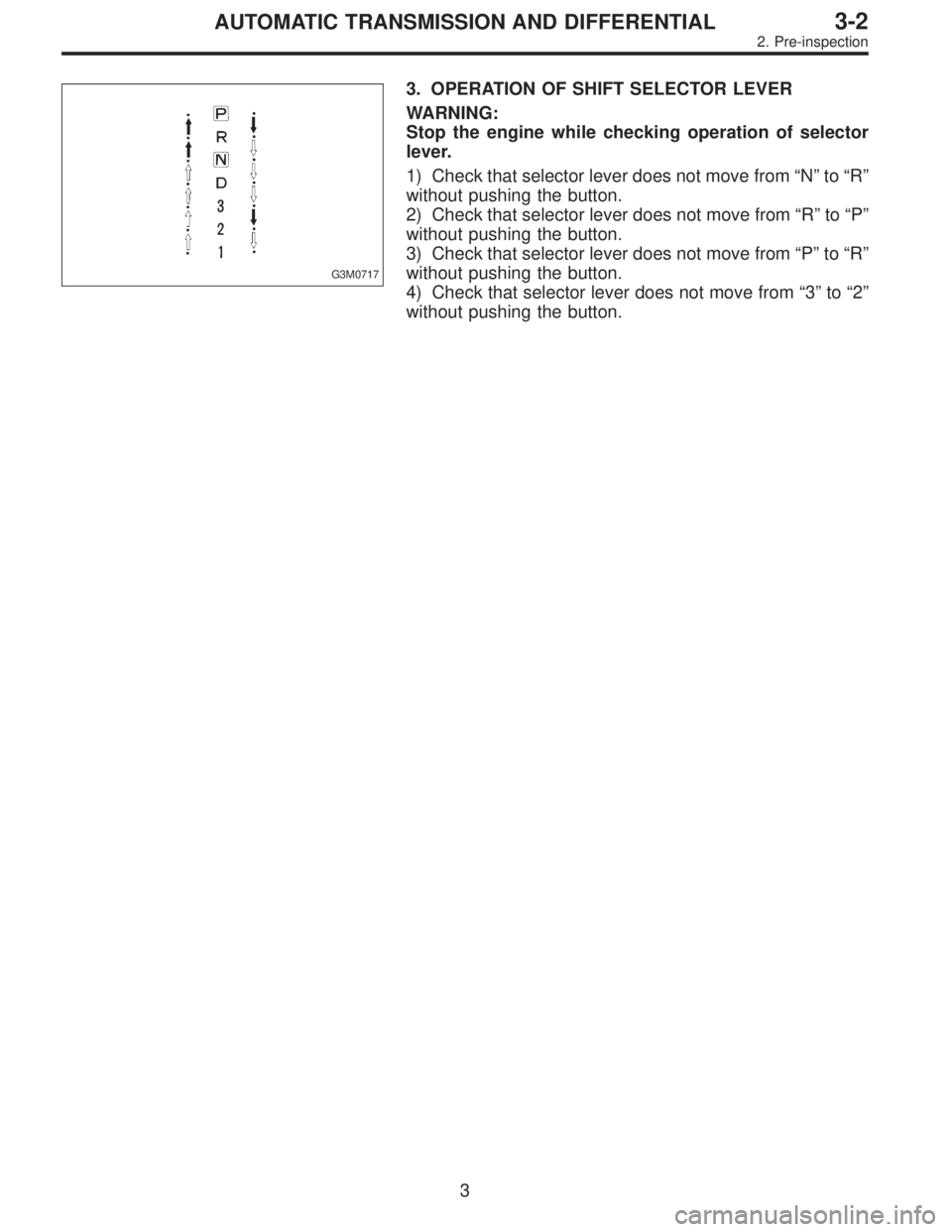

3. OPERATION OF SHIFT SELECTOR LEVER
WARNING:
Stop the engine while checking operation of selector
lever.
1) Check that selector lever does not move from“N”to“R”
without pushing the button.
2) Check that selector lever does not move from“R”to“P”
without pushing the button.
3) Check that selector lever does not move from“P”to“R”
without pushing the button.
4) Check that selector lever does not move from“3”to“2”
without pushing the button.
3
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
2. Pre-inspection
Page 2408 of 3342

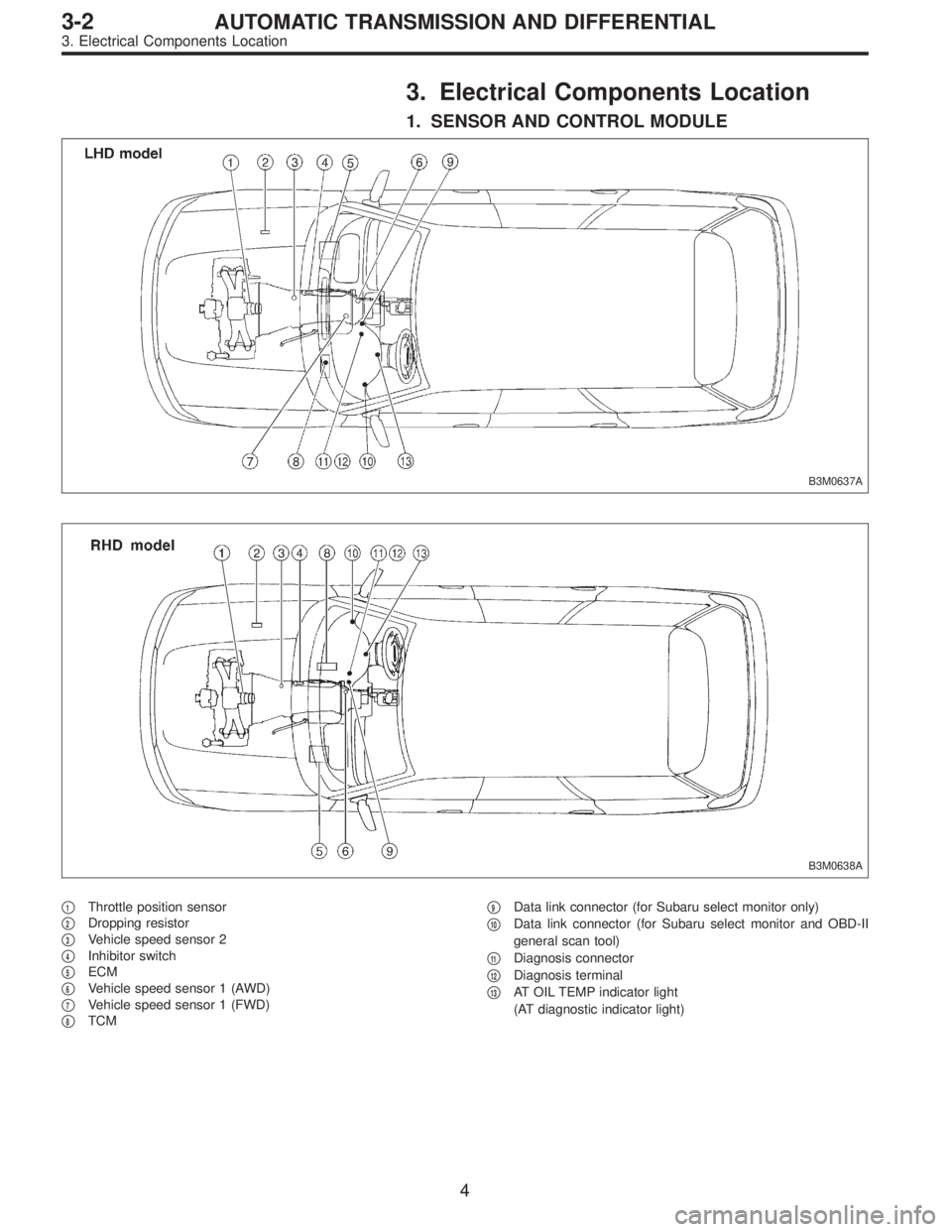

3. Electrical Components Location
1. SENSOR AND CONTROL MODULE
B3M0637A
B3M0638A
1Throttle position sensor
2Dropping resistor
3Vehicle speed sensor 2
4Inhibitor switch
5ECM
6Vehicle speed sensor 1 (AWD)
7Vehicle speed sensor 1 (FWD)
8TCM
9Data link connector (for Subaru select monitor only)
10Data link connector (for Subaru select monitor and OBD-II
general scan tool)
11Diagnosis connector
12Diagnosis terminal
13AT OIL TEMP indicator light
(AT diagnostic indicator light)
4
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
3. Electrical Components Location

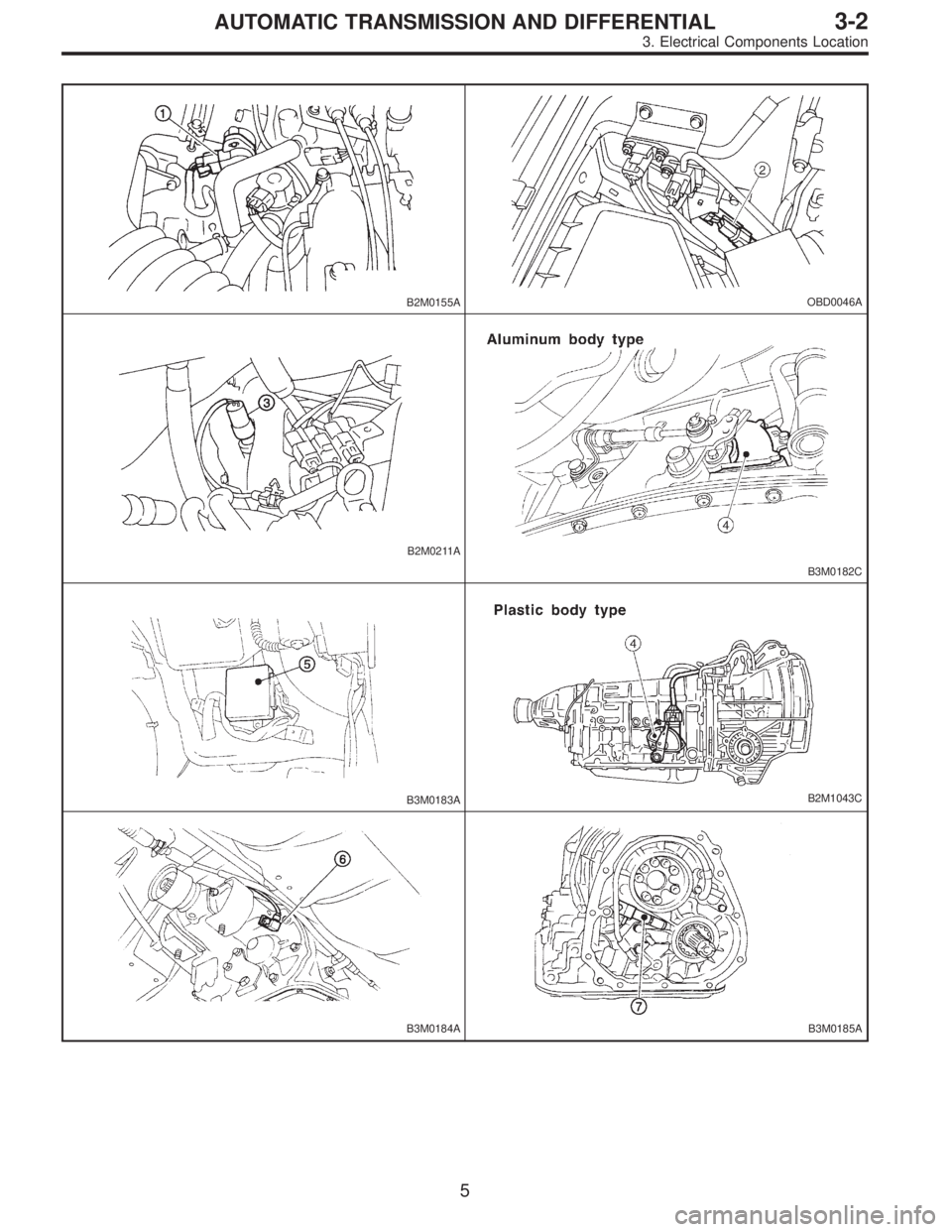

Page 2409 of 3342
B2M0155AOBD0046A
B2M0211A
B3M0182C
B3M0183AB2M1043C
B3M0184AB3M0185A
5
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
3. Electrical Components Location

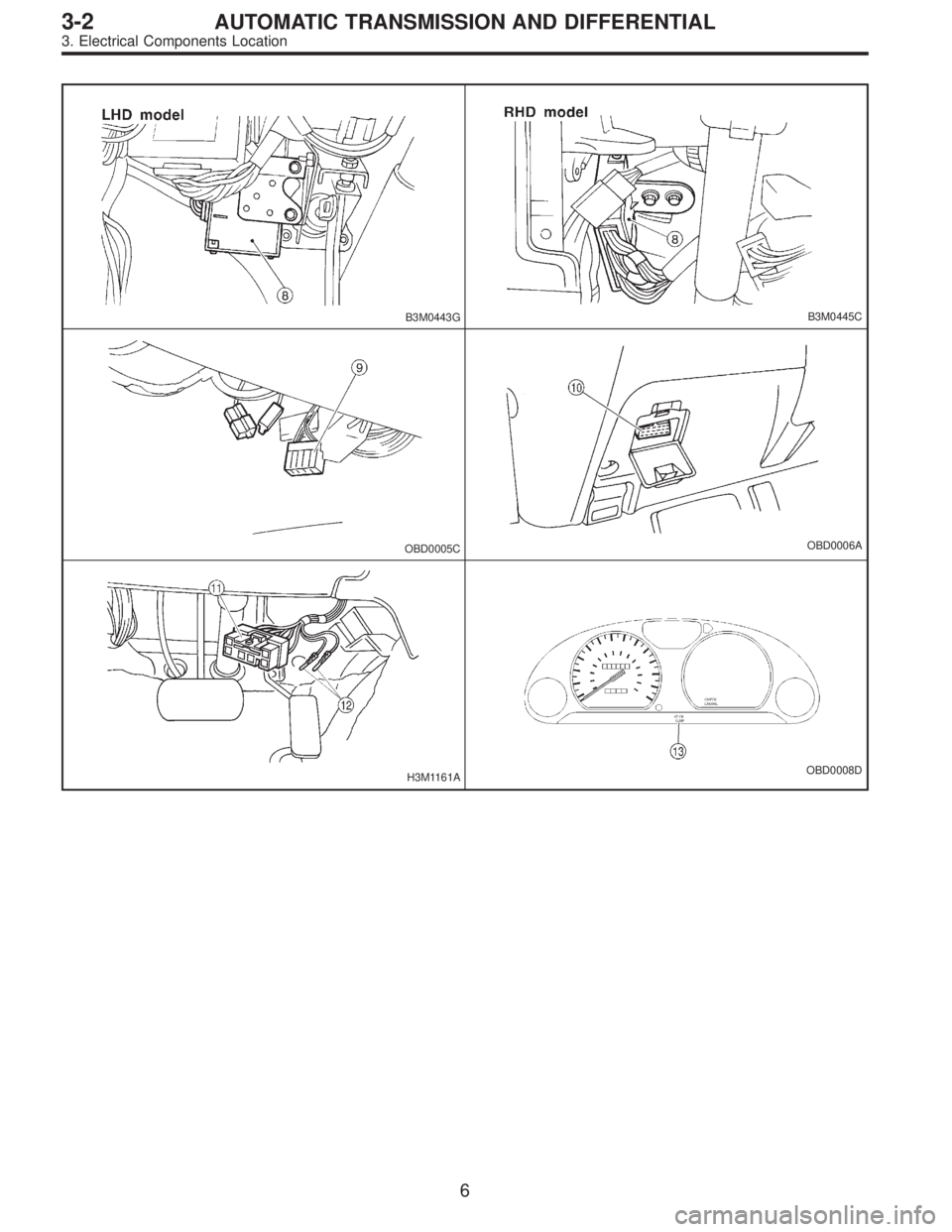

Page 2410 of 3342
B3M0443GB3M0445C
OBD0005COBD0006A
H3M1161AOBD0008D
6
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
3. Electrical Components Location
Page 2411 of 3342

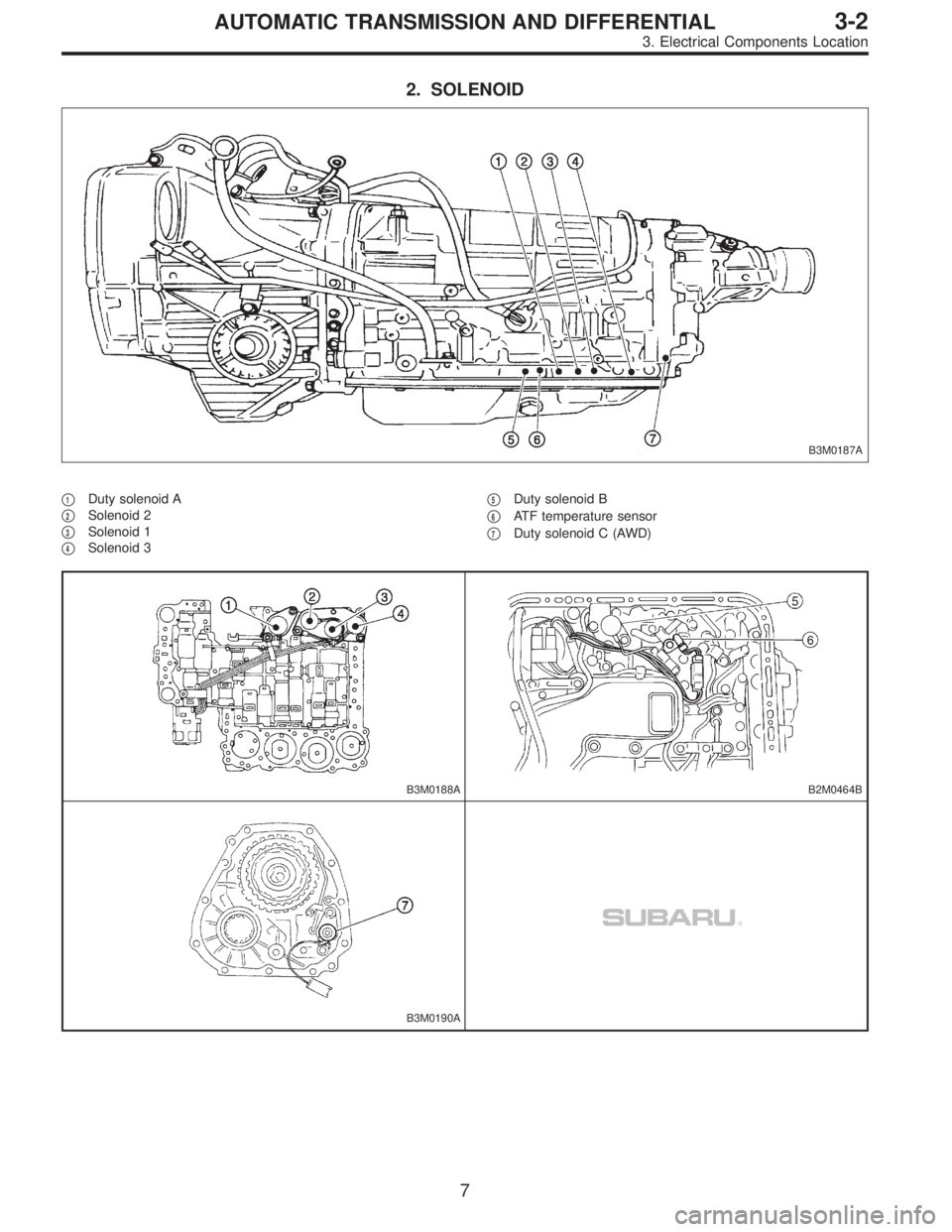

2. SOLENOID
B3M0187A
1Duty solenoid A
2Solenoid 2
3Solenoid 1
4Solenoid 3
5Duty solenoid B
6ATF temperature sensor
7Duty solenoid C (AWD)
B3M0188AB2M0464B
B3M0190A
7
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
3. Electrical Components Location
Page 2412 of 3342
4. Schematic
B3M0376A
1Ignition switch
2Combination meter
3Speedometer circuit
4Inhibitor switch
5Vehicle speed sensor 2
6Vehicle speed sensor 1
7Throttle position sensor
8Diagnosis switch
9FWD switch (AWD)
10Data link connector
11ABS control module
12Engine speed signal
13Torque control signal
14Torque control cut signal
15Mass air flow signal
16ATF temperature sensor
17Dropping resistor
18Duty solenoid A
19Duty solenoid B
20Duty solenoid C (AWD)
21Shift solenoid 1
22Shift solenoid 2
23Shift solenoid 3
24Brake switch
25Cruise set switch
8
3-2AUTOMATIC TRANSMISSION AND DIFFERENTIAL
4. Schematic
