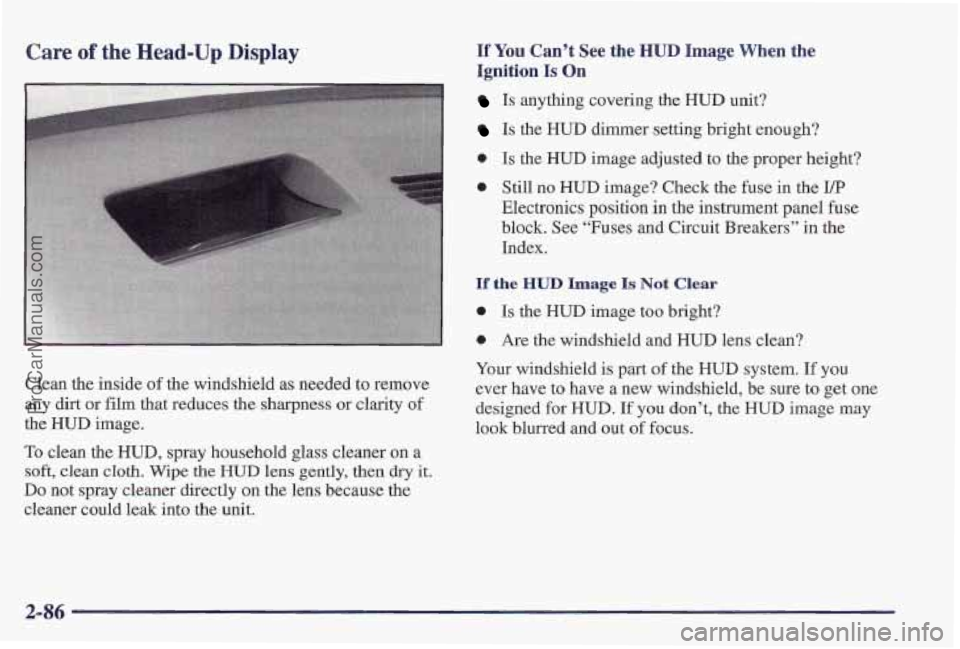

Care of the Head-Up Display
Clean the inside of the windshield as needed to remove
any dirt
or film that reduces the sharpness or clarity of
the HUD image.
To clean the HUD, spray household glass cleaner on a
soft, clean cloth. Wipe the HUD lens gently, then dry it,
Do not spray cleaner directly on the len,s because the
cleaner could leak into the unit.
If You Can’t See the HUD Image When the
Ignition Is
On
Is anything covering the HUD unit?
Is the HUD dimmer setting bright enough?
0 Is the HUD image adjusted to the proper height?
0 Still no HUD image? Check the fuse in the z/p
Electronics position in the instrument panel fuse
block. See “Fuses and Circuit Breakers” in the
Index.
If the HUD Image Is Not Clear
0 Is the HUD image too bright?
0 Are the windshield and HUD lens clean?
Your windshield is part
of the HUD system. If you
ever have to
have a nlew windshield, be sure to get one
designed
for HUD. If you don’t, the HUD image may
look blurred and out of focus.
2-86
ProCarManuals.com

Automatic Control Dual Zone Button Light
For the most efficient operation, you should set the
system temperature and press AUTO. The system will
select the best fan speed and airflow settings to keep you
comfortable. The air conditioning compressor will run if
the outside temperature is above
38 OF (3.3 O C). You may
notice a delay of three to four minutes before the fan
comes on.
Driver's Temperature Knob
The left knob sets the temperature for the entire system
when the light on DUAL button isn't lit.
If the light is
lit, the knob sets the temperature for the driver. Turn the
knob toward red (clockwise) to raise the desired cabin
temperature. Turn it toward blue (counterclockwise) to
lower the temperature. The display will show your
selection for a few seconds, then the outside temperature
will show or be displayed.
Passenger's Temperature Knob
The right knob sets the desired cabin temperature for the
passenger and will automatically force the system into a
dual zone operation, lighting the dual zone button light.
Turn the right knob toward red (clockwise) to raise the
temperature. Turn it toward blue (counterclockwise) to
lower the temperature. The
dual zone button light indicates whether the system
is in single zone
or dual zone operation. When there is
no desire for dual zone operation, push the lit dual zone
button to return to single zone operation. The dual zone
button light will
go off.
The system will operate to achieve your comfort set
point as quick as possible. If you set the temperature for
60°F (16°C)
or 90°F (32"C), the fan will go to it's
highest speed, unless you manually select a lower speed.
The system will maintain full cold or full hot operation
at these settings.
Cold Weather Example: (When you start the vehicle in
cold weather, below freezing or after being parked
overnight). If your Driver Set Temperature is 73°F
(23 "C) and you are in Full Automatic mode, the system
will automatically move the temperature doors to full
hot. The blower will start out at a low speed and the
blower speed will increase
as the engine warms up. The
air will be delivered to the floor. As the interior of the
vehicle warms up to your desired comfort point, the
blower will decrease and
the temperature door will
move to a cooler position to maintain your desired
comfort. As the cabin warms
up or the sun load
increases, the system could switch to air delivered
to the windshield and the floor. (Defog mode)
3-5
ProCarManuals.com

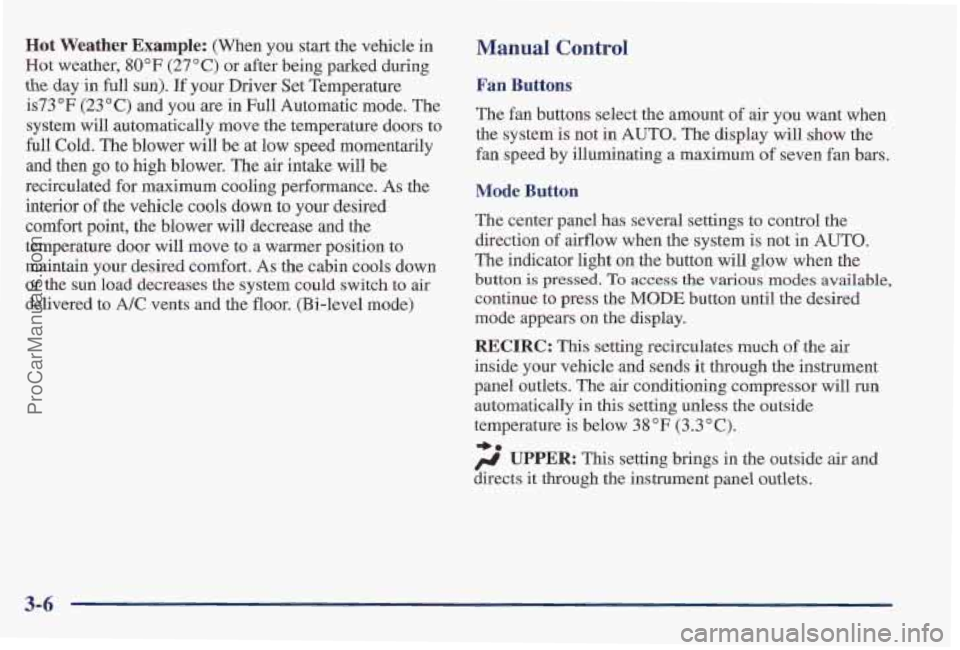

Hot Weather Example: (When you start the vehicle in
Hot weather,
80°F (27 O C) or after being parked during
the day in full sun). If your Driver Set Temperature
is73"F
(23°C) and you are in Full Automatic mode. The
system will automatically move the temperature doors
to
full Cold. The blower will be at low speed momentarily
and then
go to high blower. The air intake will be
recirculated for maximum cooling performance. As the
interior
of the vehicle cools down to your desired
comfort point, the blower will decrease and the
temperature door will move to a warmer position to
maintain your desired comfort. As the cabin cools down
or the sun load decreases the system could switch
to air
delivered to
A/C vents and the floor. (Bi-level mode)
Manual Control
Fan Buttons
The fan buttons select the amount of air you want when
the system is not in
AUTO. The display will show the
fan speed
by illuminating a maximum of seven fan bars.
Mode Button
The center panel has several settings to control the
direction
of airflow when the system is not in AUTO.
The indicator light
on the button will glow when the
button is pressed. To access the various modes available,
continue to press the MODE button until the desired
mode appears on the display.
RECIRC: This setting recirculates much of the air
inside your vehicle and sends it through the instrument
panel outlets. The air conditioning compressor will run
automatically in this setting unless the outside
temperature is below 3
8 OF (3.3 " C).
4*
/J UPPER: This setting brings in the outside air and
directs it through the instrument panel outlets.
3-6
ProCarManuals.com

Audio Systems
Your Delco@ audio system has been designed to operate
easily and give years of listening pleasure.
You will get
the most enjoyment out
of it if you acquaint yourself
with it first, Find out what your Delco system can do
and how
to operate all its controls, to be sure you’re
getting the most
out of the advanced engineering that
went into it.
Setting the Clock for AM-FM Stereo
Press SET. Within five seconds, press and hold the
SEEK clown arrow until the correct hour appears on the
display. Press and hold the
SEEK up arrow until the
correct minute appears on the display.
Setting the Clock for All Systems Except
AM-FM Stereo
Press and hold HR until the correct hour appears. Press
and hold
MIN until the correct minute appears. There
will be a two-second delay before the clock goes into
time-set mode, and the colon on the display will blink
while in this mode.
AM-FM Stereo
Playing the Radio
VOLUME:
Push this knob to turn the system on and
off. To increase volume, turn the knob clockwise. Turn
it counterclockwise to decrease volume.
RCLPROG: Press this button to recall the station
being played or to display the clock.
3-10
ProCarManuals.com

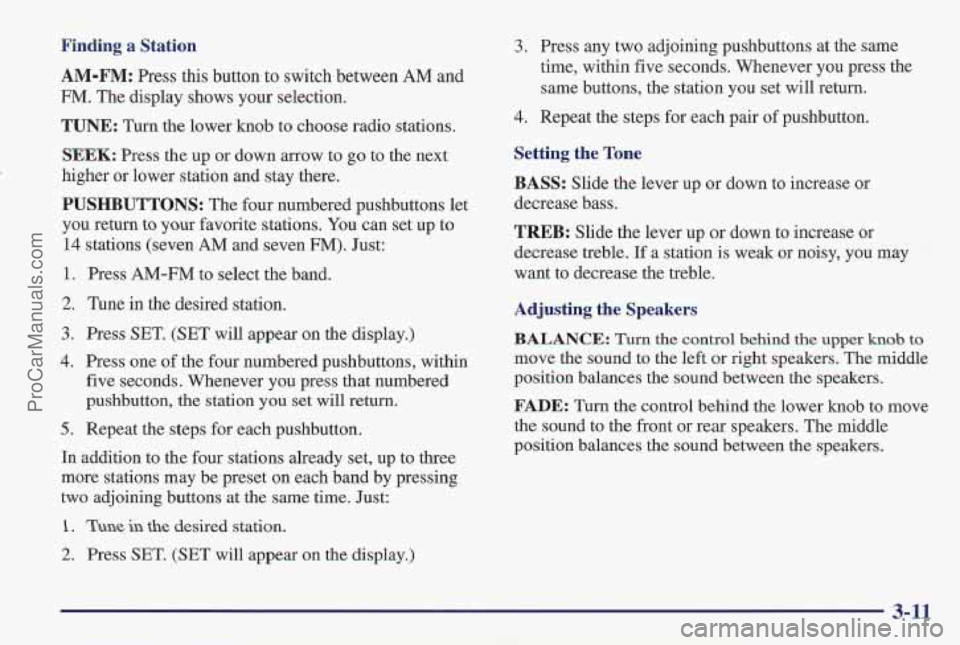

Finding a Station 3. Press any two adjoining pushbuttons at the same
time, within five seconds. Whenever you press the
same buttons, the station you set will return.
AM-FM: Press this button to switch between AM and
FM. The display
shows your selection.
TUNE: Turn the lower knob to choose radio stations. 4. Repeat the steps for each pair of pushbutton.
SEEK: Press the up or down arrow to go to the next Setting the Tone
higher or lower station and stay there.
PUSHBUTTONS: The four numbered pushbuttons let decrease bass.
you return
to your favorite stations. You can set up to
14 stations (seven AM and seven FM). Just:
1. Press AM-FM to select the band. want to decrease
the treble.
BASS: Slide the lever up or down to increase or
TREB: Slide the lever up or down to increase or
decrease treble. If a station is weak or noisy, you may
2. Tune in the desired station.
3. Press SET. (SET will appear on the display.)
4. Press one of the four numbered pushbuttons, within
five seconds. Whenever you press that numbered
pushbutton, the station
you set will return.
5. Repeat the steps for each pushbutton.
In addition to the four stations already set, up to three
more stations may be preset on each band by pressing
two adjoining buttons at the same time. Just:
1. Tune in the desired station.
2. Press SET. (SET will appear on the display.)
Adjusting the Speakers
BALANCE: Turn the control behind the upper knob to
move the sound to the left or right speakers. The middle
position balances the sound between the speakers.
FADE: Turn the control behind the lower knob to move
the sound to the front or rear speakers. The middle
position balances the sound between the speakers.
3-11
ProCarManuals.com

AM-FM Stereo with Cassette Tape Player
(If Equipped)
Playing the Radio
VOL: Push this knob to turn the system on an'd off.
To increase volume, turn the knob clockwise. Turn it
counterclockwise to decrease volume.
RECALL: Display the time with the ignition off by
pressing
this knob. When the radio is playing, press this
knob
to recall the station frequency.
Finding a Station
AM-FM: Press this button to switch between AM, FMl
and FM2. The display shows your selection.
TUNE: Press this knob lightly so it extends. Turn it to
choose radio stations.
Push the knob back into its store
position when you're not using it.
SEEK: Press the up or down arrow to go to the next
higher or lower station and stay there.
:d
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations.
You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Press AM-FM to select the band.
2. Tune in the desired station.
3. Press and hold one of the six numbered buttons until
SET appears on the display. Whenever
you press that
numbered button,
the station you set will return.
4. Repeat the steps for each pushbutton.
3-12
ProCarManuals.com

Setting the Tone Playing a Cassette
Tape
BASS:
Slide the lever to the right or left to increase or
decrease bass.
TREBLE: Slide the lever to the right or left to increase
or decrease treble. If a station is weak or noisy, you may
want to decrease the treble.
Adjusting the Speakers
BAL:
Press this knob lightly so it extends. Turn this
knob to move the sound to the left or right speakers. The
middle position balances
the sound between the
speakers.
FADE: Press this knob lightly so it extends. Turn this
knob to move the sound to the front or rear speakers.
The middle position balances the sound between
the speakers.
Push these knobs back into their stored positions when
you’re not using them. Your
tape player
is built to work best with tapes that are
30 to 45 minutes long on each side. Tapes longer than
that are
so thin they may not work well in this player.
While the tape
is playing, use the VOL, FADE, BAL,
BASS and TREB controls just as you do for the radio.
The display will show an arrow to show which side
of
the tape is playing. When the down indicator arrow is
lit, selections listed
on the bottom side of the cassette are
playing. When the
up arrow is lit, selections listed on the
top side of the cassette are playing. The tape player
automatically begins playing the other side when it
reaches the end of the tape.
If E and a number appear on the radio display, the tape
won’t play because of an error.
0 ElO: The tape is tight and the player can’t turn the
tape hubs. Remove the tape. Hold the tape with the
open end down and try
to turn the right hub
counterclockwise with
a pencil. Turn the tape over
and repeat.
If the hubs do not turn easily, your tape
may be damaged and should not be used in the
player. Try
a new tape to make sure your player is
working properly.
0 Ell: The tape is broken. Try a new tape.
3-13
ProCarManuals.com

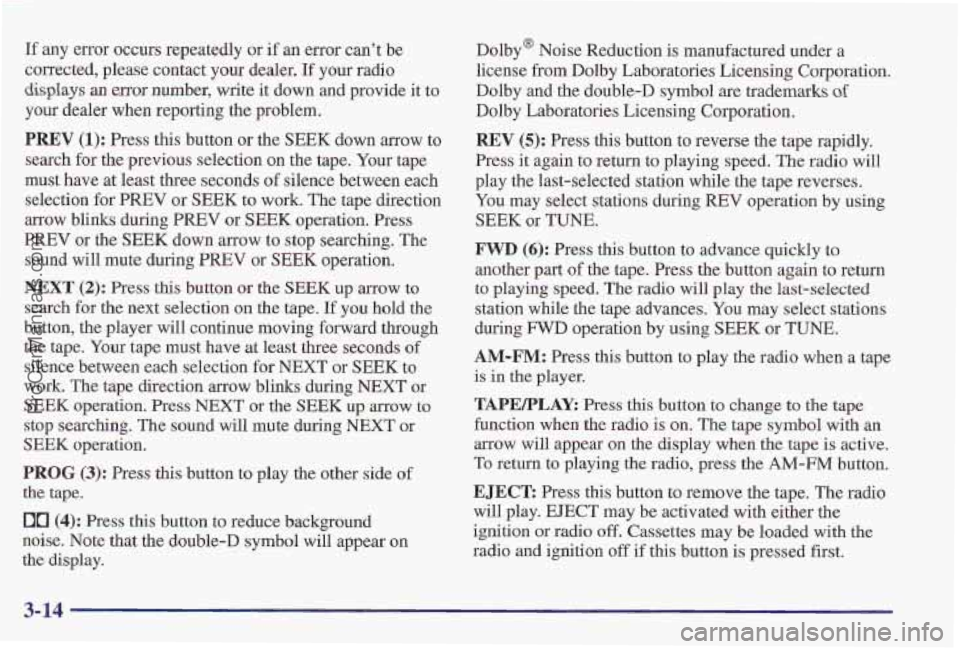

If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer.
If your radio
displays an error number, write it down and provide it to
your dealer when reporting the problem.
PREV (1): Press this button or the SEEK down arrow to
search for the previous selection on the tape, Your tape
must have at least three seconds of
silence between each
selection for
PREV or SEEK to work. The tape direction
arrow blinks during
PREV or SEEK operation. Press
PREV or the
SEEK down assow to stop searching. The
sound will mute during
PREV or SEEK operation.
NEXT (2): Press this button or the SEEK up arrow to
search for the next selection on the tape. If you hold the
button, the player will continue moving forward through
the tape. Your tape must have at least three seconds
of
silence between each selection for NEXT or SEEK to
work. The tape direction arrow blinks during NEXT or
SEEK operation. Press NEXT or the SEEK up arrow to
stop searching. The sound will mute during NEXT or
SEEK operation.
PROG (3): Press this button to play the other side of
the tape.
flu (4): Press this button to reduce background
noise. Note that the double-6) symbol will appear on
the display. Dolby* Noise Reduction is' manufactured under a
license from Dolby Laboratories Licensing Corporation.
Dolby and the double-D symbol are tradernarks
of
Dolby Laboratories Licensing Corporation.
REV (5): Press this button to reverse the tape rapidly.
Press
it again to return to playing speed. The radio will
play the last-selected station while the tape reverses.
You may select stations during REV operation by using
SEEK or TUNE,
FWD (6): Press this button to advance quickly to
another part of the tape. Press the button again
to return
to playing speed. The radio will play the last-selected
station while the tape advances.
You may select stations
during
FWD operation by using SEEK or TUNE.
AM-FM: Press this button to play the radio when a tape
is in the player.
TAPEFLAY: Press this button to change to the tape
function when the radio is
on. The tape symbol with an
arrow will appear on
the display when the tape is active.
To return to playing the radio, press the AM-FM button.
E JECE Press this button to remove the tape. The radio
will play.
EJECT may be activated with either the
ignition or radio
off. Cassettes may be loaded with the
radio and ignition off if this button is pressed first.
3-14
ProCarManuals.com
