1997 OLDSMOBILE CUTLASS fog light

Vehicle Symbols
These are some of the symbols you may find on your vehicle.
For example,
these symbols
are used
on an
original battery:
POSSIBLE A
CAUTION
INJURY
PROTECT EYES BY
SHIELDING
CAUSTIC
ACID COULD BAllERY
CAUSE
BURNS
AVOID
SPARKS
OR
FLAMES
SPARK
OR ,\I/,
COULD FLAME
EXPLODE BATIERY
These symbols
are important
for you and
your passengers
whenever your vehicle is
driven:
DOOR LOCK
UNLOCK
FASTEN SEAT
BELTS
These symbols
have to do with
your lamps:
SIGNALS e
TURN
FOG LAMPS
# 0
These symbols
are on some
of
your controls:
WINDSHIELD
WIPER
WINDSHIELD DEFROSTER
WINDOW
DEFOGGER
VENTILATING FAN
(
These symbols
are used on
warning
and
indicator lights:
COOLANT -
TEMP -
CHARGING BAllERY
SYSTEM
BRAKE
(0)
COOLANT a
ENGINE OIL e,
PRESSURE
ANTI-LOCK
(@)
BRAKES
Here are some
other symbols
you may see:
FUSE
P
LIGHTER
HORN
)cr
SPEAKER
b
FUEL B
V
ProCarManuals.com

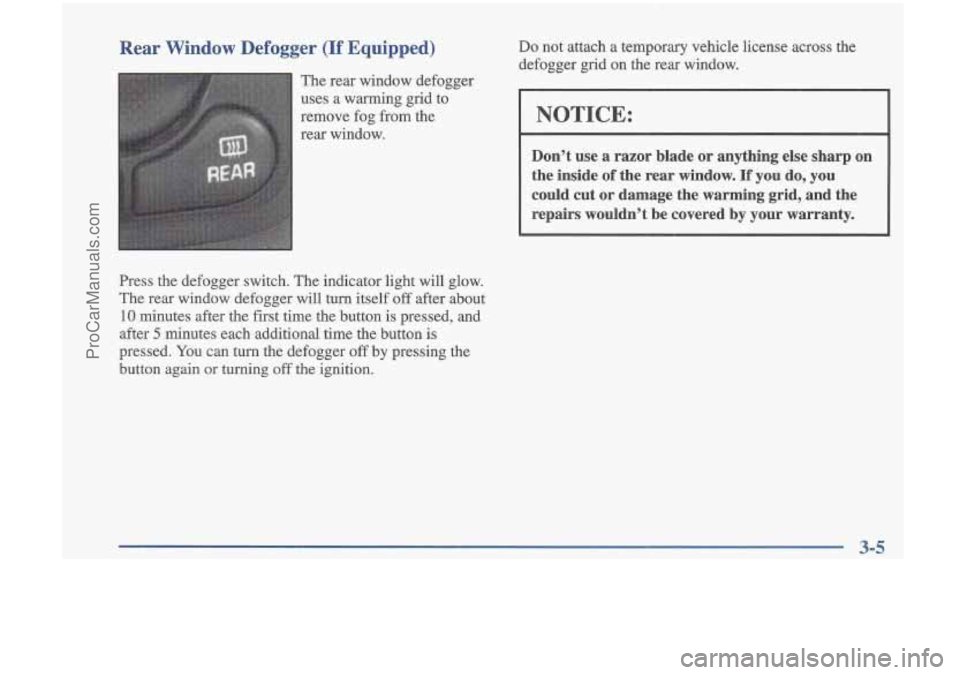

Rear Window Defogger (If Equipped)
The rear window defogger
uses a warming grid to
remove fog from the
rear window.
Press the defogger switch. The indicator light will glow.
The rear window defogger will turn itself
off after about
10 minutes after the first time the button is pressed, and
after
5 minutes each additional time the button is
pressed.
You can turn the defogger off by pressing the
button again or turning off the ignition.
Do not attach a temporary vehicle license across the
defogger grid on the rear window.
NOTICE:
Don’t use a razor blade or anything else sharp on
the inside
of the rear window. If you do, you
could cut or damage the warming grid, and the repairs wouldn’t be covered by your warranty.
ProCarManuals.com

Instrument Panel Fuse Block - Right
SEE OTHER END CAP FOR FUSE PULLER AND SPARE FUSES
CIRCUIT
0
MICRO
E n FOGLPS
0
B. CRUISE SW A. INST LPS
C. HVAC BLOWER
D. CRUISE E. FOG LPS F. INT LPS G. RDO BAlT H. SUNROOF
Usage
Instrument Panel Lights, Dimmer
Cruise Control
Climate Control System MICRO
RELAY
FOG LPS
Usage
Cruise Control
Fog Lamps Interior Lamps,
Body Function
Control Module
Radio
Sunroof
Power Windows
Fog Lamps
6-53
ProCarManuals.com

Fuse
Maxi-Fuses
4)
Usage
Right-hand Electrical Center-Fog
Lamps, Radio, Body Function Control Module, Interior Lamps
Ignition Switch
Not Used
Anti-Lock Brakes
Cooling Fans
Rear Defog
Not Used
Anti-Lock Brakes Cooling Fan
HVAC Blower (Climate Control)
Cooling Fans
Cooling Fans 35)
36)
37)
Usage
Air Conditioning Compressor
Not Used
Fuel
Pump
Automatic Light Control
Automatic Light Control
Horn
Daytime Running Lamps
Spare Fuses
Rear Defog
Accessory Power Outlets, Cigar Lighter
Anti-Lock Brakes
Anti-Lock Brakes
Air Conditioning Compressor,
Body Function Control Module
Automatic Transaxle
ProCarManuals.com

Compact Disc Player ............................ 3-14
Compact Spare Tire
............................. 5-32
Control of a Vehicle
.............................. 4-6
Convenience Net
............................... 2-43
Convex Outside Mirror
.......................... 2-40
Coolant
....................................... 6- 16
Adding
..................................... 6-19
Checking
................................... 6-18
Heater. Engine
............................... 2- 15
SurgeTank .................................. 5-14
Surge Tank Pressure Cap
....................... 6- 19
Whattouse
................................. 6-17
Cooling System
................................ 5-14
Courtesy Transportation
........................... 8-6
Cruise Control
................................. 2-32
CruiseLight
................................... 2-60
Cupholder, Center Console
....................... 2-42
Cupholder, Instrument Panel
...................... 2-42
Cupholder, Rear Seat
............................ 2-42
Customer Assistance for Text Telephone Users
......... 8-4
Customer Assistance Information
................... 8- 1
Customer Satisfaction Procedure .................... 8-2
Damage. Finish
............................... 6-47
Damage. Sheet Metal
............................ 6-47
Daytime Running Lamps
......................... 2-36
Dead Battery
................................... 5-3
Defects. Reporting Safety
......................... 8-8
Defensive Driving ............................... 4-2
Defogger. Rear Window
.......................... 3-5 Defogging
..................................... 3-4
Dimensions. Vehicle
............................ 6-58
Dolby' B Noise Reduction
.................. 3.12. 3.17
Dome Lamp
................................... 2-38
Dome Lamp Bulb Replacement
.................... 6-31
DoorLocks
..................................... 2-4
Drive. Automatic Transaxle
....................... 2-19
DriverPosition
................................. 1-12
Driving City
........................................ 4-19
Defensive
.................................... 4-2
Drunken
..................................... 4-3
Freeway
.................................... 4-20
InaBlizzard
................................. 4-26
In Foreign Countries
........................... 6-5
IntheRain .................................. 4-16
Night
...................................... 4-14
OnCurves
................................... 4-9
On Grades While Towing a Trailer ............... 4-38
On Hill and Mountain Roads
.................... 4-22
On Snow and Ice
............................. 4-25
Throughwater
............................... 4-18
WetRoads
.................................. 4-16
Winter
...................................... 4-24
With a Trailer
................................ 4-36
DrunkenDriving
................................ 4-3
Electrical Equipment. Adding
.......... 2-15. 3-20. 6-50
Electrical System
............................... 6-50
9-3
