Page 3521 of 4133

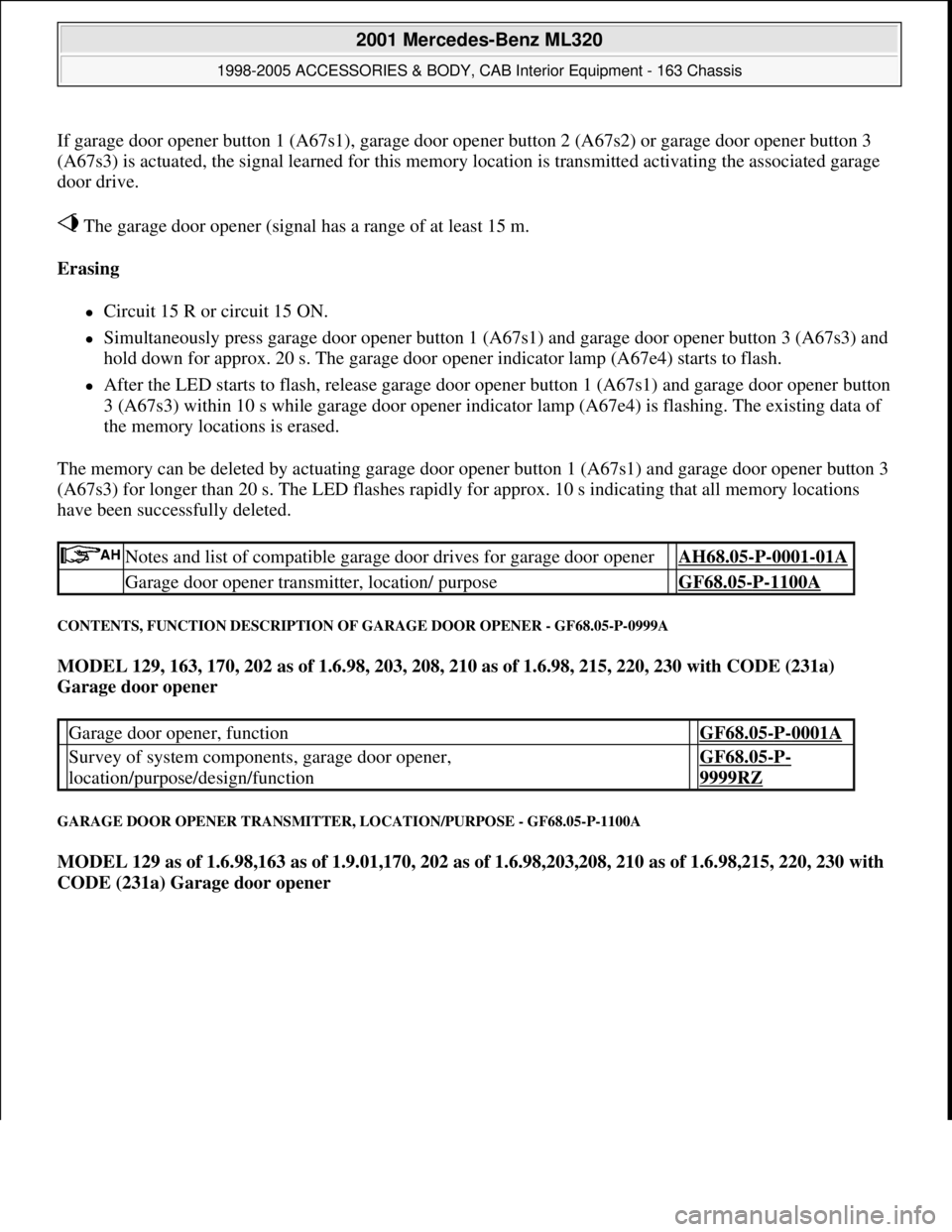

MERCEDES-BENZ ML430 1997 Complete Repair Manual If garage door opener button 1 (A67s1), garage door opener button 2 (A67s2) or garage door opener button 3
(A67s3) is actuated, the signal learned for this memory location is transmitted activating t

Page 3522 of 4133

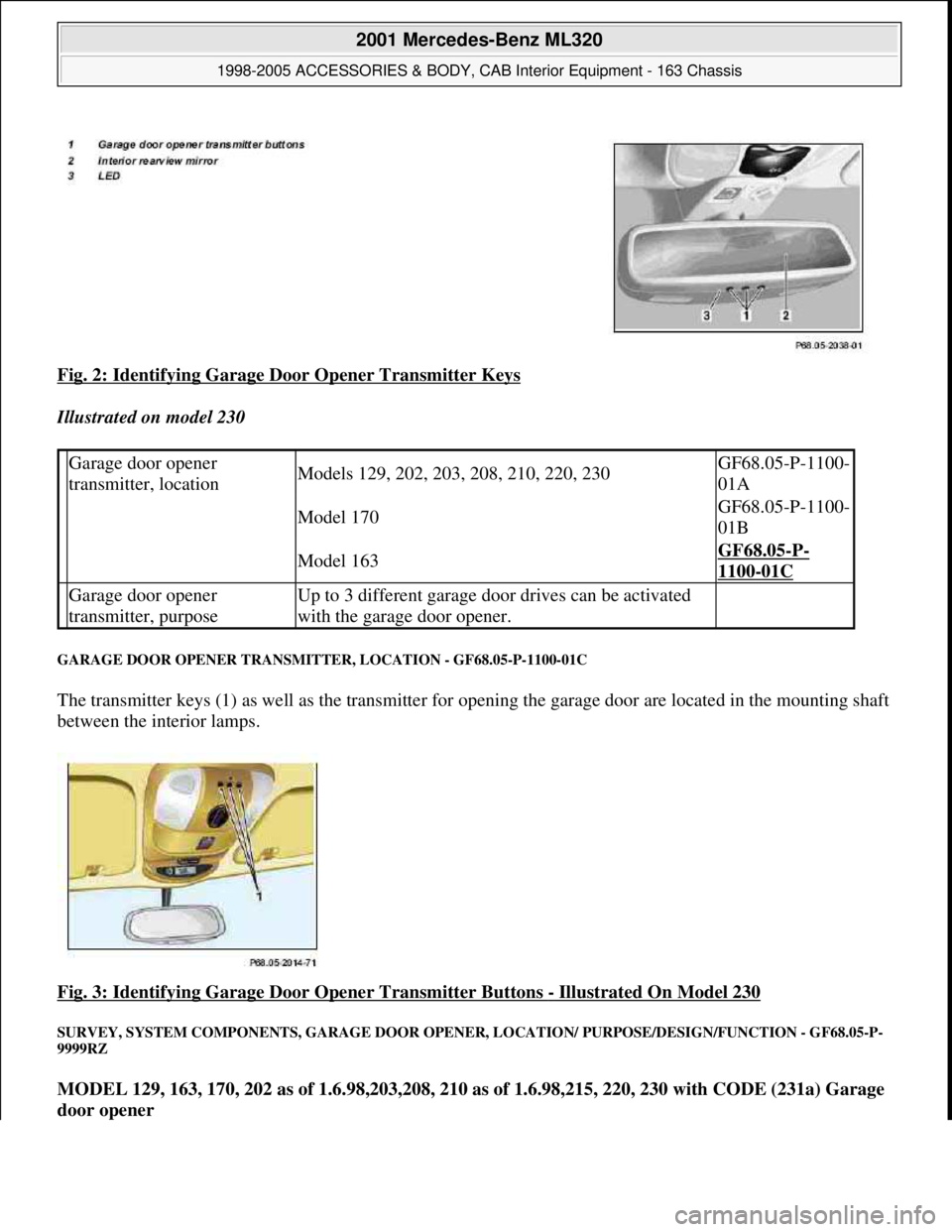

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 2: Identifying Garage Door Opener Transmitter Keys
Illustrated on model 230
GARAGE DOOR OPENER TRANSMITTER, LOCATION - GF68.05-P-1100-01C
The transmitter keys (1) as well as the transmitter f

Page 3523 of 4133

MERCEDES-BENZ ML430 1997 Complete Repair Manual AUTOMATIC DIMMING INSIDE REARVIEW MIRROR, FUNCTION - GF68.49-P-0003GH
MODEL 163 as of 1.9.99 with CODE (249b) Automatic dimming inside rearview and outside rearview
mirror (driver)
Function requir

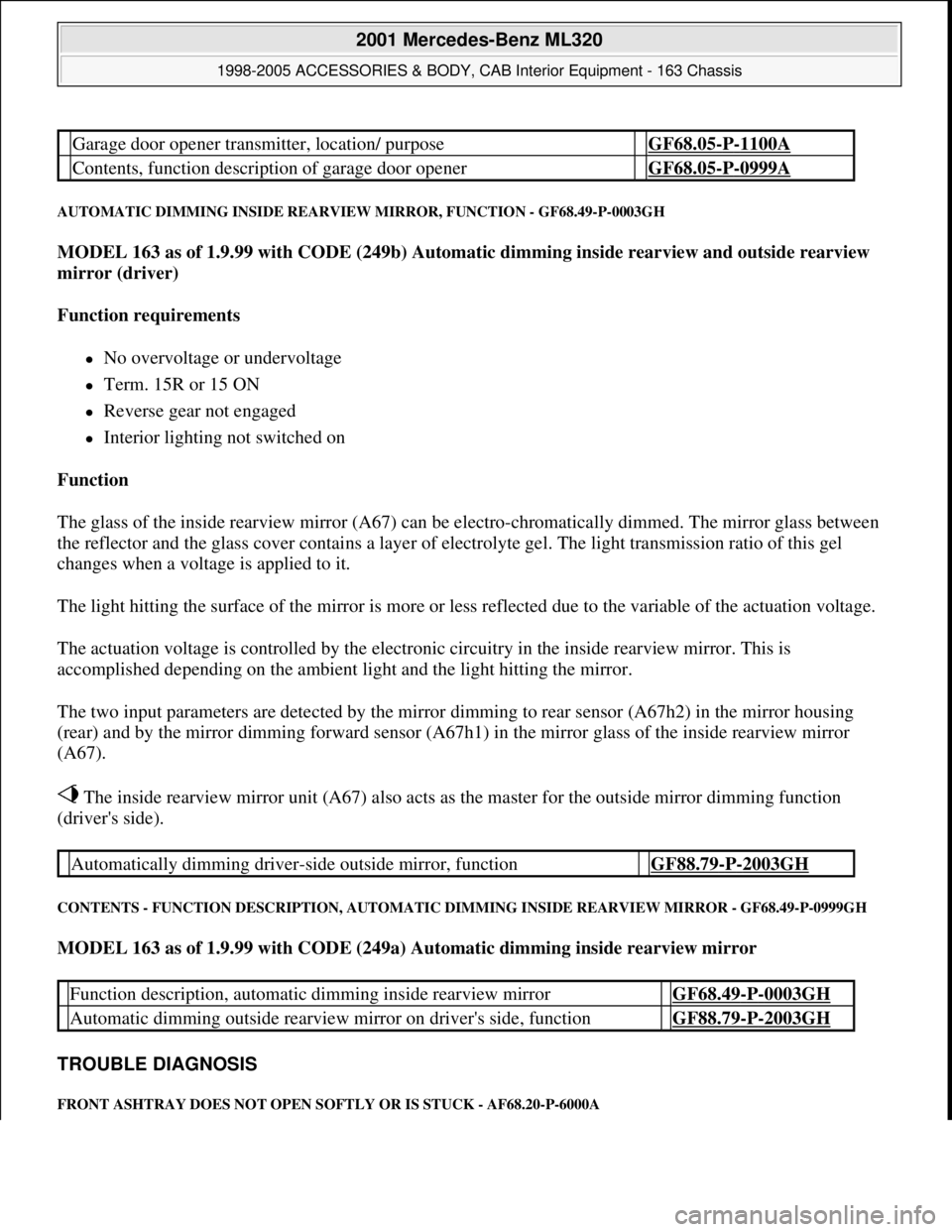

AUTOMATIC DIMMING INSIDE REARVIEW MIRROR, FUNCTION - GF68.49-P-0003GH
MODEL 163 as of 1.9.99 with CODE (249b) Automatic dimming inside rearview and outside rearview
mirror (driver)
Function requirements
No overvoltage or undervoltage
Term. 15R or 15 ON
Reverse gear not engaged
Interior lighting not switched on
Function
The glass of the inside rearview mirror (A67) can be electro-chromatically dimmed. The mirror glass between
the reflector and the glass cover contains a layer of electrolyte gel. The light transmission ratio of this gel
changes when a voltage is applied to it.
The light hitting the surface of the mirror is more or less reflected due to the variable of the actuation voltage.
The actuation voltage is controlled by the electronic circuitry in the inside rearview mirror. This is
accomplished depending on the ambient light and the light hitting the mirror.
The two input parameters are detected by the mirror dimming to rear sensor (A67h2) in the mirror housing
(rear) and by the mirror dimming forward sensor (A67h1) in the mirror glass of the inside rearview mirror
(A67).
The inside rearview mirror unit (A67) also acts as the master for the outside mirror dimming function
(driver's side).
CONTENTS - FUNCTION DESCRIPTION, AUTOMATIC DIMMING INSIDE REARVIEW MIRROR - GF68.49-P-0999GH
MODEL 163 as of 1.9.99 with CODE (249a) Automatic dimming inside rearview mirror
TROUBLE DIAGNOSIS
FRONT ASHTRAY DOES NOT OPEN SOFTLY OR IS STUCK - AF68.20-P-6000A
Garage door opener transmitter, location/ purpose GF68.05-P-1100A
Contents, function description of garage door opener GF68.05-P-0999A
Automatically dimming driver-side outside mirror, function GF88.79-P-2003GH
Function description, automatic dimming inside rearview mirror GF68.49-P-0003GH
Automatic dimming outside rearview mirror on driver's side, function GF88.79-P-2003GH

2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Interior Equipment - 163 Chassis
me
Saturday, October 02, 2010 3:35:21 PMPage 5 © 2006 Mitchell Repair Information Company, LLC.

Page 3524 of 4133

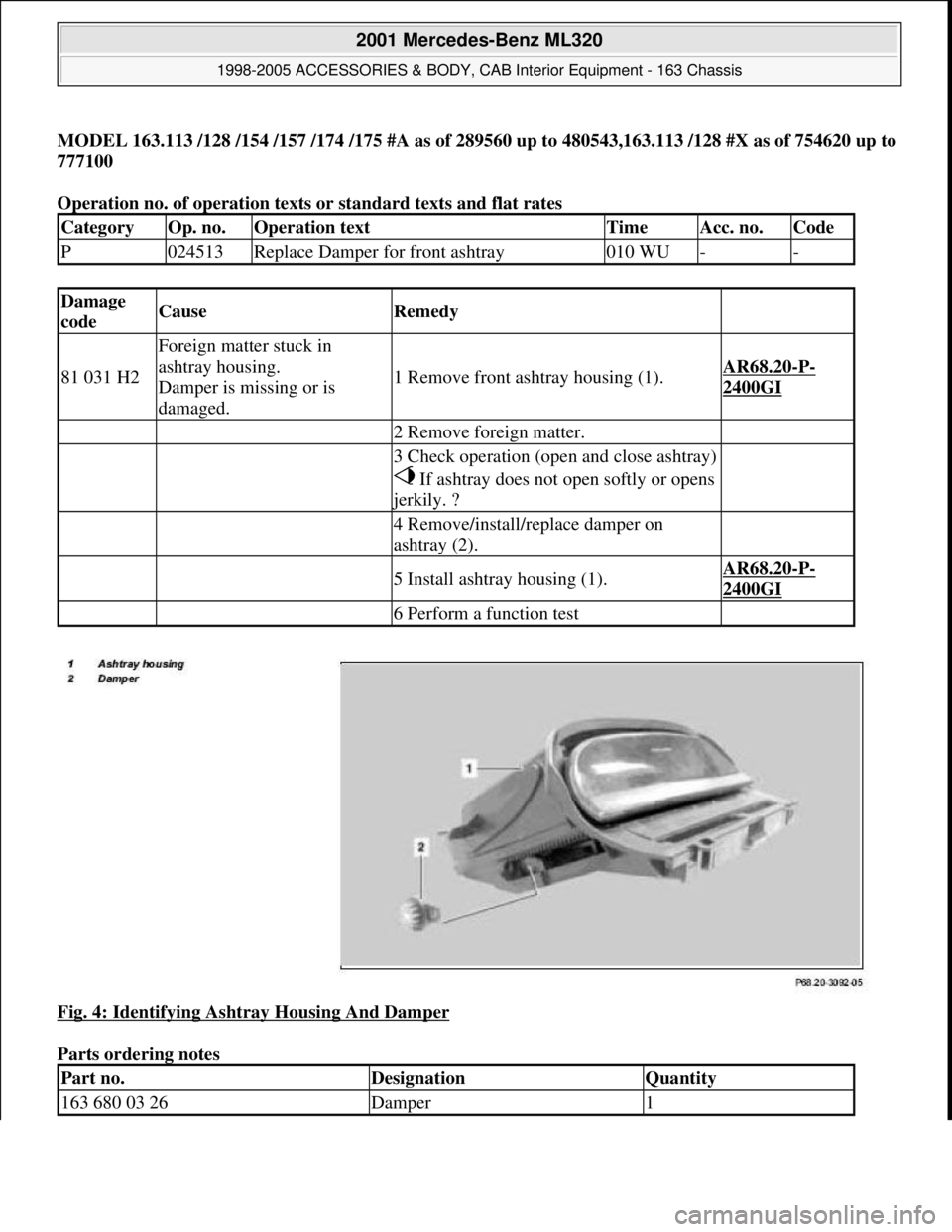

MERCEDES-BENZ ML430 1997 Complete Repair Manual MODEL 163.113 /128 /154 /157 /174 /175 #A as of 289560 up to 480543,163.113 /128 #X as of 754620 up to
777100
Operation no. of operation texts or standard texts and flat rates
Fig. 4: Identifying

Page 3525 of 4133

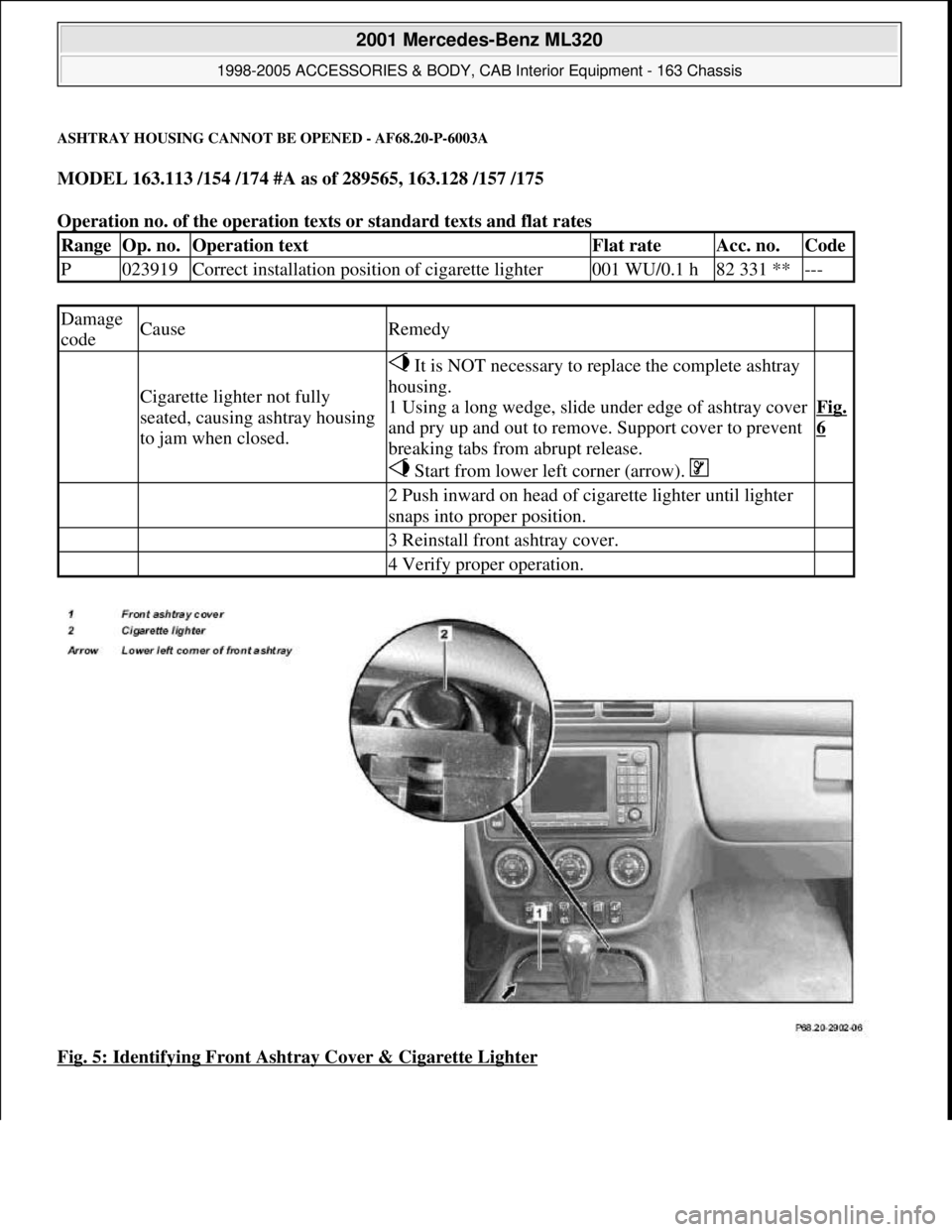

MERCEDES-BENZ ML430 1997 Complete Repair Manual ASHTRAY HOUSING CANNOT BE OPENED - AF68.20-P-6003A
MODEL 163.113 /154 /174 #A as of 289565, 163.128 /157 /175
Operation no. of the operation texts or standard texts and flat rates
Fig. 5: Identifyi

Page 3526 of 4133

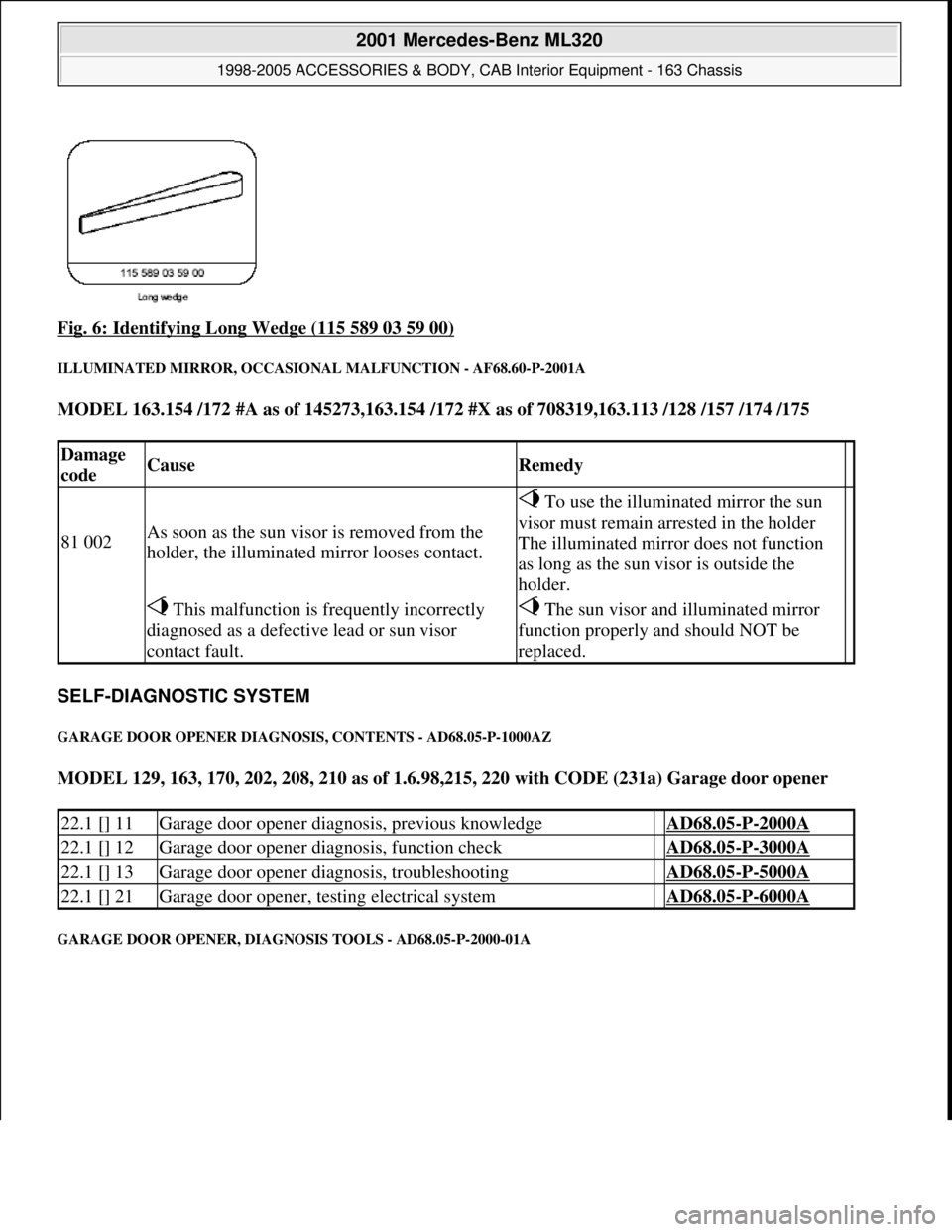

MERCEDES-BENZ ML430 1997 Complete Repair Manual Fig. 6: Identifying Long Wedge (115 589 03 59 00)
