Page 1649 of 4133

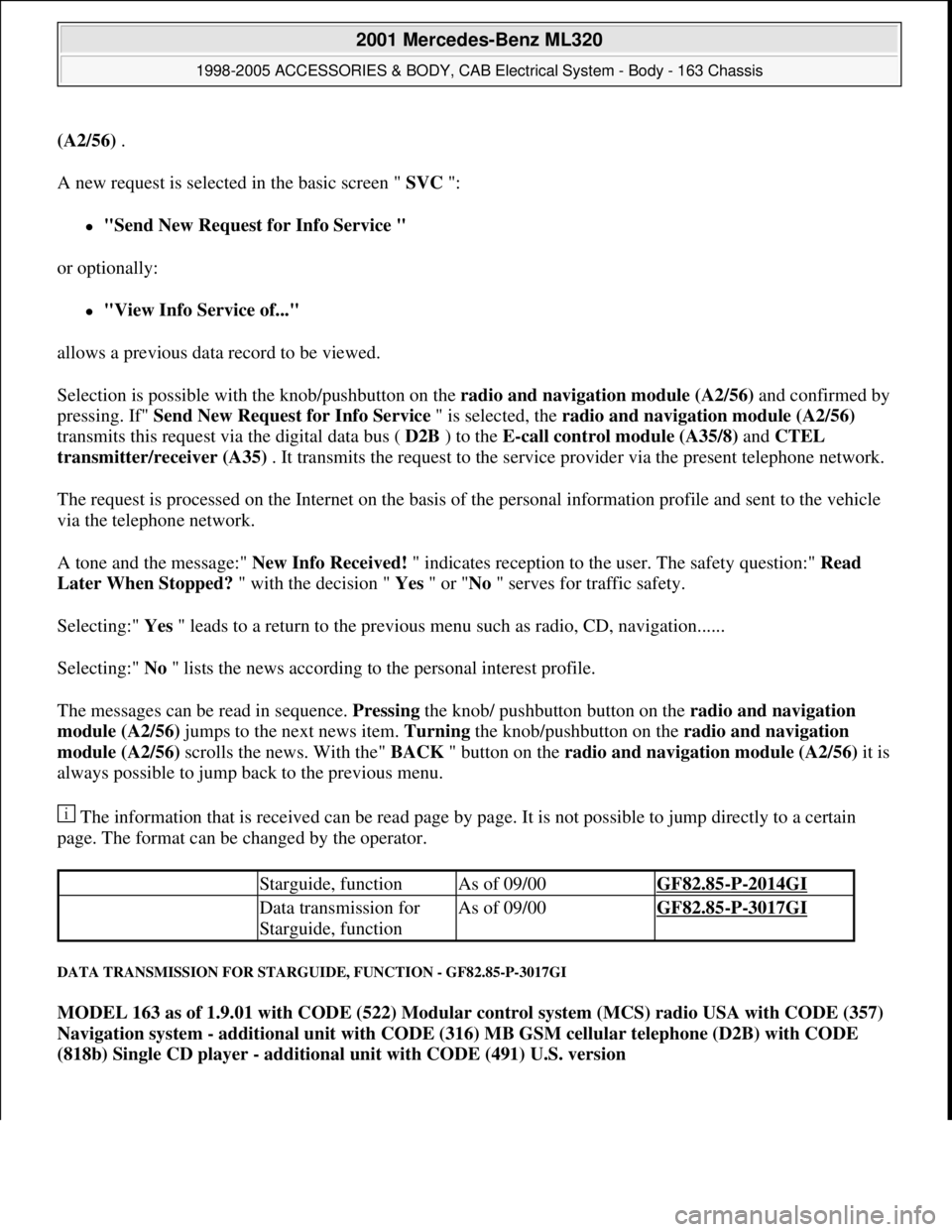

(A2/56) .
A new request is selected in the basic screen " SVC ":
"Send New Request for Info Service "
or optionally:
"View Info Service of..."
allows a previous data record to be viewed.
Selection is possible with the knob/pushbutton on the radio and navigation module (A2/56) and confirmed by
pressing. If" Send New Request for Info Service " is selected, the radio and navigation module (A2/56)
transmits this request via the digital data bus ( D2B ) to the E-call control module (A35/8) and CTEL
transmitter/receiver (A35) . It transmits the request to the service provider via the present telephone network.
The request is processed on the Internet on the basis of the personal information profile and sent to the vehicle
via the telephone network.
A tone and the message:" New Info Received! " indicates reception to the user. The safety question:" Read
Later When Stopped? " with the decision " Yes " or "No " serves for traffic safety.
Selecting:" Yes " leads to a return to the previous menu such as radio, CD, navigation......
Selecting:" No " lists the news according to the personal interest profile.
The messages can be read in sequence. Pressing the knob/ pushbutton button on the radio and navigation
module (A2/56) jumps to the next news item. Turning the knob/pushbutton on the radio and navigation
module (A2/56) scrolls the news. With the" BACK " button on the radio and navigation module (A2/56) it is
always possible to jump back to the previous menu.
The information that is received can be read page by page. It is not possible to jump directly to a certain
page. The format can be changed by the operator.
DATA TRANSMISSION FOR STARGUIDE, FUNCTION - GF82.85-P-3017GI
MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357)
Navigation system - additional unit with CODE (316) MB GSM cellular telephone (D2B) with CODE
(818b) Single CD player - additional unit with CODE (491) U.S. version
Starguide, functionAs of 09/00GF82.85-P-2014GI
Data transmission for
Starguide, functionAs of 09/00GF82.85-P-3017GI
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 154 © 2006 Mitchell Repair Information Company, LLC.
Page 1650 of 4133

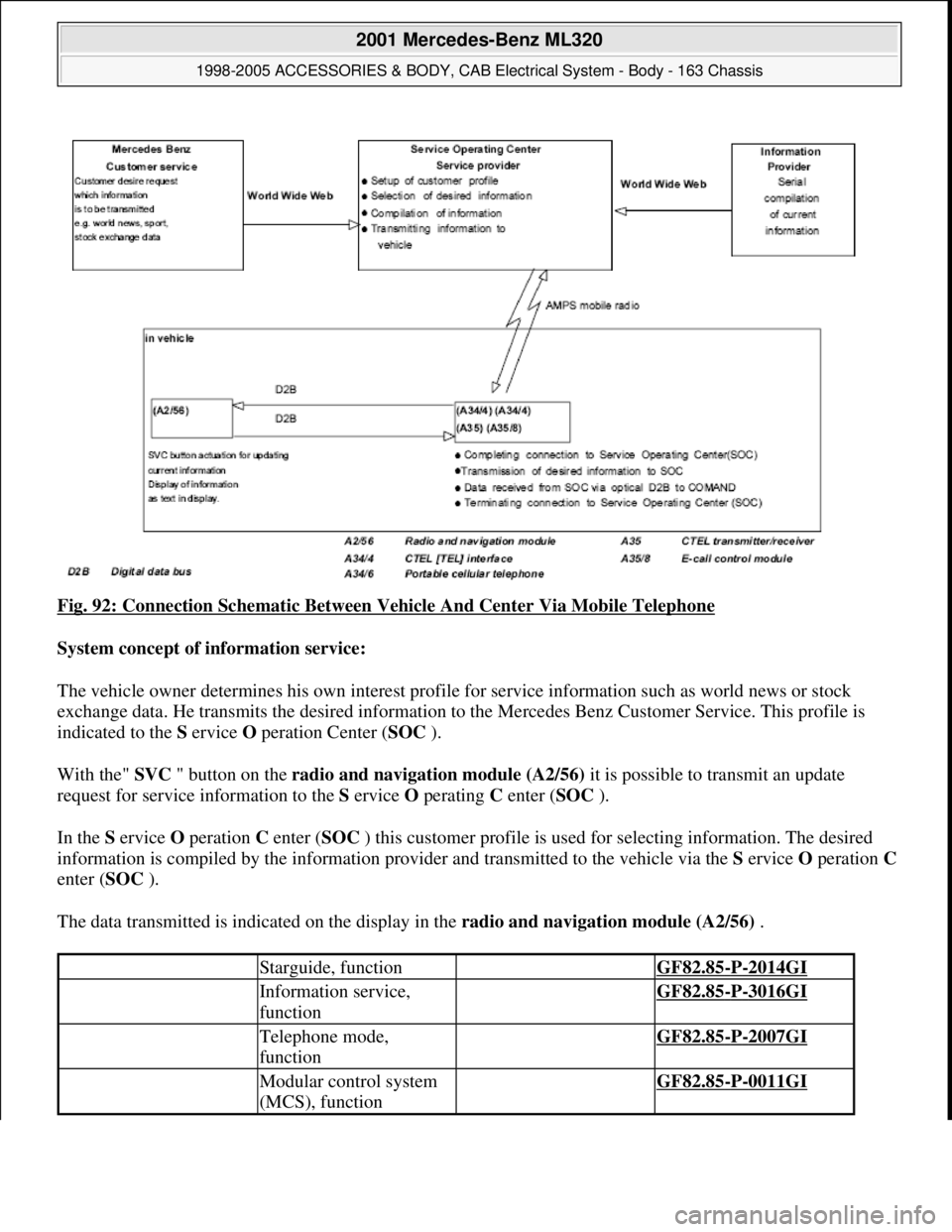

Fig. 92: Connection Schematic Between Vehicle And Center Via Mobile Telephone
System concept of information service:
The vehicle owner determines his own interest profile for service information such as world news or stock
exchange data. He transmits the desired information to the Mercedes Benz Customer Service. This profile is
indicated to the S ervice O peration Center (SOC ).
With the" SVC " button on the radio and navigation module (A2/56) it is possible to transmit an update
request for service information to the S ervice O perating C enter (SOC ).
In the S ervice O peration C enter (SOC ) this customer profile is used for selecting information. The desired
information is compiled by the information provider and transmitted to the vehicle via the S ervice O peration C
enter (SOC ).
The data transmitted is indicated on the display in the radio and navigation module (A2/56) .
Starguide, function GF82.85-P-2014GI
Information service,
function GF82.85-P-3016GI
Telephone mode,
function GF82.85-P-2007GI
Modular control system
(MCS), function GF82.85-P-0011GI
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 155 © 2006 Mitchell Repair Information Company, LLC.
Page 1651 of 4133

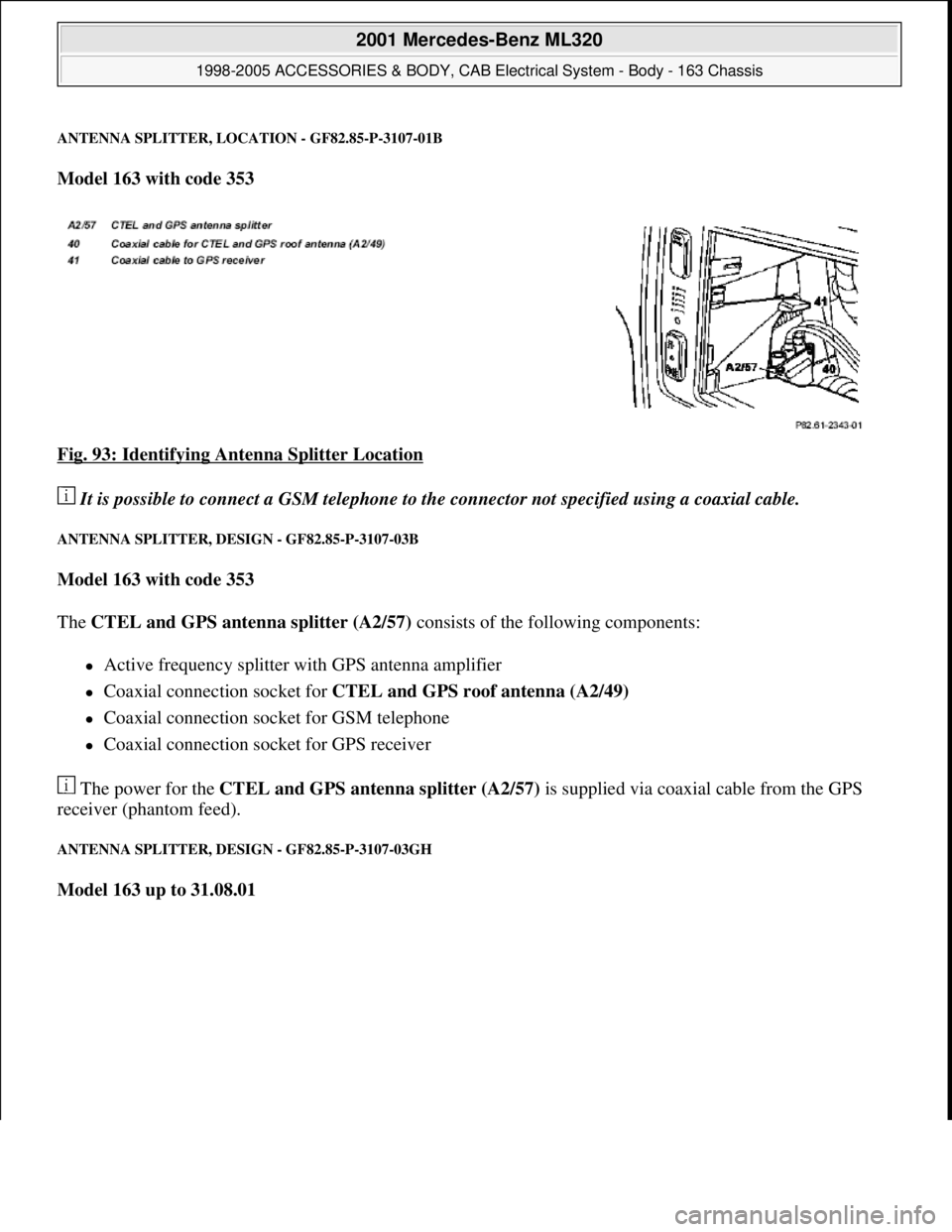

ANTENNA SPLITTER, LOCATION - GF82.85-P-3107-01B
Model 163 with code 353
Fig. 93: Identifying Antenna Splitter Location
It is possible to connect a GSM telephone to the connector not specified using a coaxial cable.
ANTENNA SPLITTER, DESIGN - GF82.85-P-3107-03B
Model 163 with code 353
The CTEL and GPS antenna splitter (A2/57) consists of the following components:
Active frequency splitter with GPS antenna amplifier
Coaxial connection socket for CTEL and GPS roof antenna (A2/49)
Coaxial connection socket for GSM telephone
Coaxial connection socket for GPS receiver
The power for the CTEL and GPS antenna splitter (A2/57) is supplied via coaxial cable from the GPS
receiver (phantom feed).
ANTENNA SPLITTER, DESIGN - GF82.85-P-3107-03GH
Model 163 up to 31.08.01
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 156 © 2006 Mitchell Repair Information Company, LLC.
Page 1652 of 4133

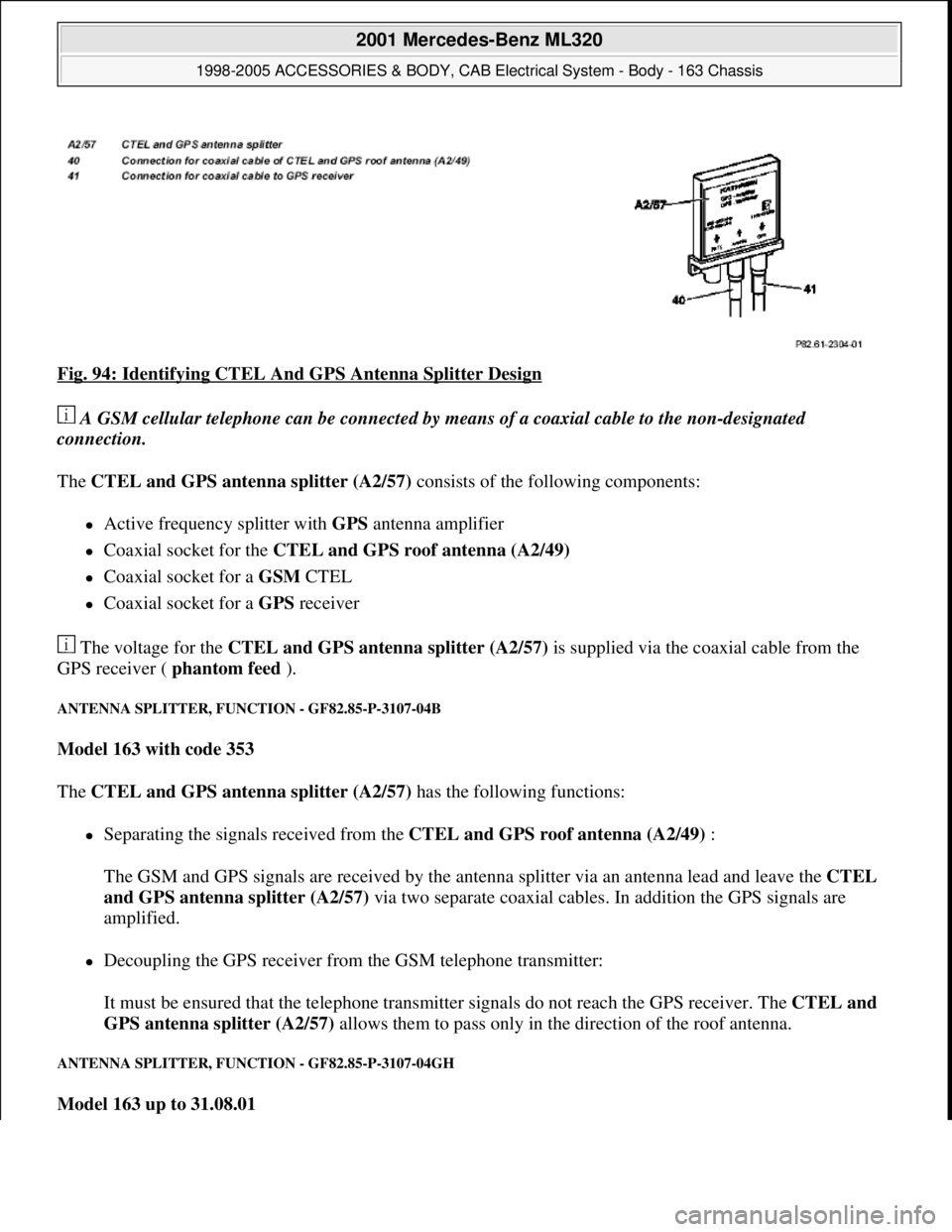

Fig. 94: Identifying CTEL And GPS Antenna Splitter Design
A GSM cellular telephone can be connected by means of a coaxial cable to the non-designated
connection.
The CTEL and GPS antenna splitter (A2/57) consists of the following components:
Active frequency splitter with GPS antenna amplifier
Coaxial socket for the CTEL and GPS roof antenna (A2/49)
Coaxial socket for a GSM CTEL
Coaxial socket for a GPS receiver
The voltage for the CTEL and GPS antenna splitter (A2/57) is supplied via the coaxial cable from the
GPS receiver ( phantom feed ).
ANTENNA SPLITTER, FUNCTION - GF82.85-P-3107-04B
Model 163 with code 353
The CTEL and GPS antenna splitter (A2/57) has the following functions:
Separating the signals received from the CTEL and GPS roof antenna (A2/49) :
The GSM and GPS signals are received by the antenna splitter via an antenna lead and leave the CTEL
and GPS antenna splitter (A2/57) via two separate coaxial cables. In addition the GPS signals are
amplified.
Decoupling the GPS receiver from the GSM telephone transmitter:
It must be ensured that the telephone transmitter signals do not reach the GPS receiver. The CTEL and
GPS antenna splitter (A2/57) allows them to pass only in the direction of the roof antenna.
ANTENNA SPLITTER, FUNCTION - GF82.85-P-3107-04GH
Model 163 up to 31.08.01
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 157 © 2006 Mitchell Repair Information Company, LLC.
Page 1653 of 4133

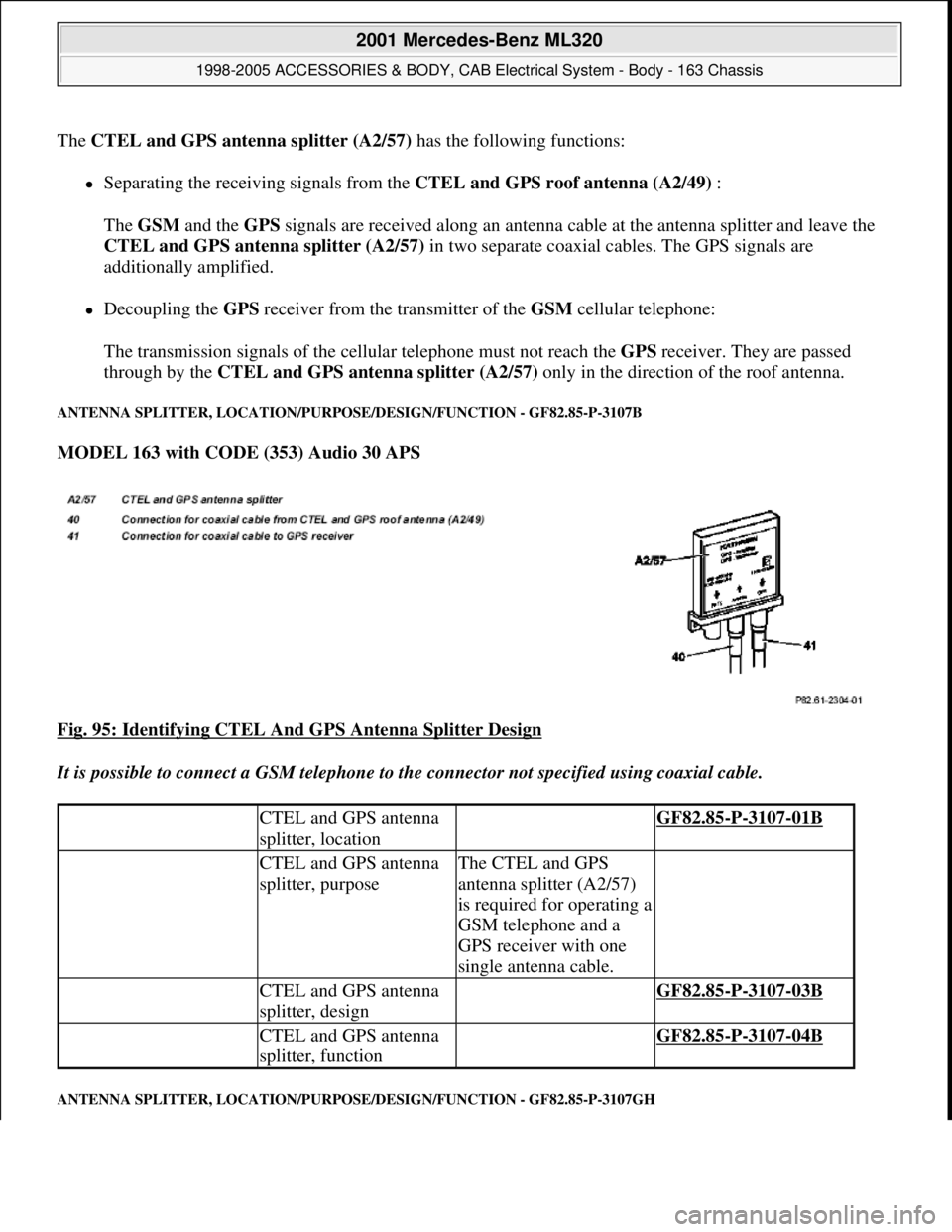

The CTEL and GPS antenna splitter (A2/57)has the following functions:
Separating the receiving signals from the CTEL and GPS roof antenna (A2/49) :
The GSM and the GPS signals are received along an antenna cable at the antenna splitter and leave the
CTEL and GPS antenna splitter (A2/57) in two separate coaxial cables. The GPS signals are
additionally amplified.
Decoupling the GPS receiver from the transmitter of the GSM cellular telephone:
The transmission signals of the cellular telephone must not reach the GPS receiver. They are passed
through by the CTEL and GPS antenna splitter (A2/57) only in the direction of the roof antenna.
ANTENNA SPLITTER, LOCATION/PURPOSE/DESIGN/FUNCTION - GF82.85-P-3107B
MODEL 163 with CODE (353) Audio 30 APS
Fig. 95: Identifying CTEL And GPS Antenna Splitter Design
It is possible to connect a GSM telephone to the connector not specified using coaxial cable.
ANTENNA SPLITTER, LOCATION/PURPOSE/DESIGN/FUNCTION - GF82.85-P-3107GH
CTEL and GPS antenna
splitter, location GF82.85-P-3107-01B
CTEL and GPS antenna
splitter, purposeThe CTEL and GPS
antenna splitter (A2/57)
is required for operating a
GSM telephone and a
GPS receiver with one
single antenna cable.
CTEL and GPS antenna
splitter, design GF82.85-P-3107-03B
CTEL and GPS antenna
splitter, function GF82.85-P-3107-04B
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 158 © 2006 Mitchell Repair Information Company, LLC.
Page 1654 of 4133

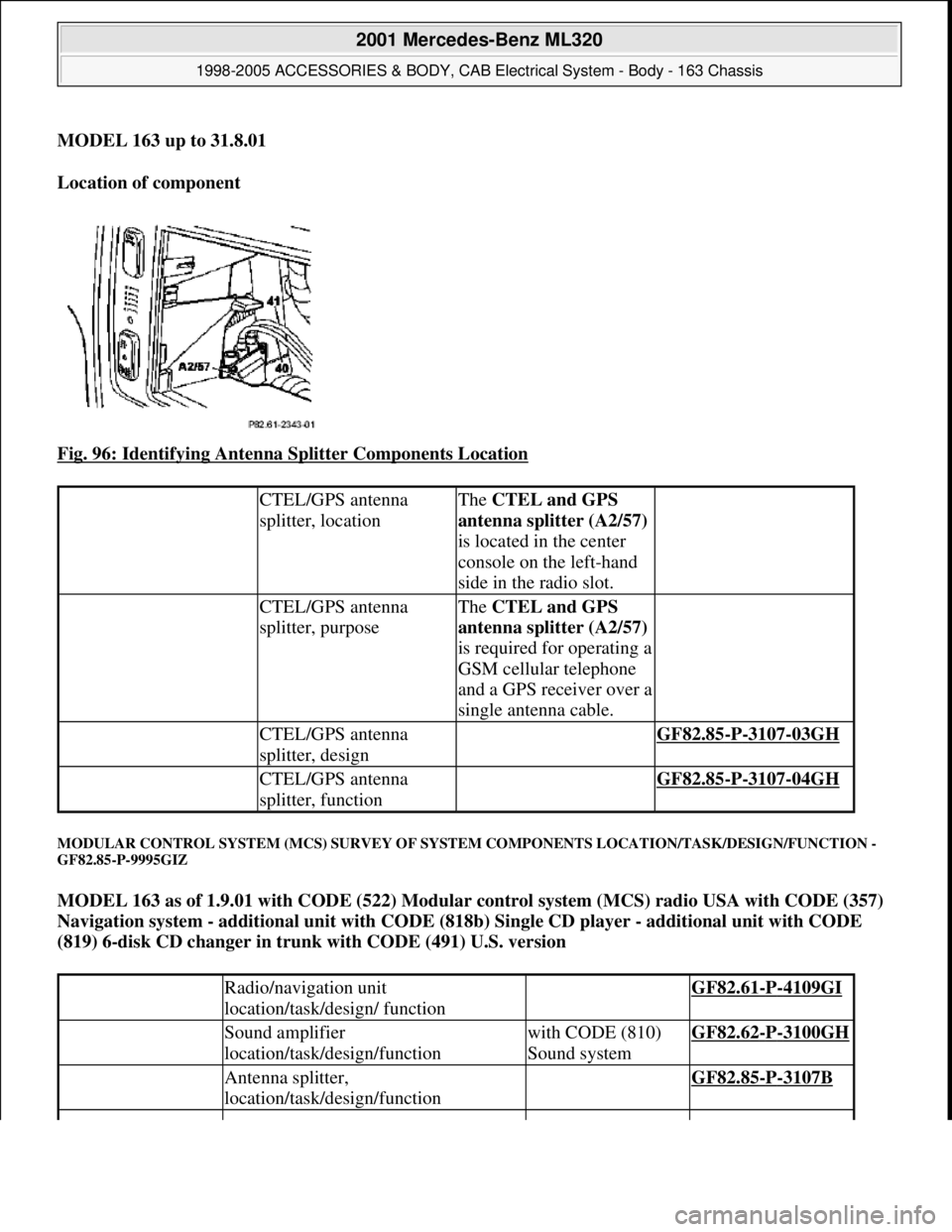

MODEL 163 up to 31.8.01
Location of component
Fig. 96: Identifying Antenna Splitter Components Location
MODULAR CONTROL SYSTEM (MCS) SURVEY OF SYSTEM COMPONENTS LOCATION/TASK/DESIGN/FUNCTION -
GF82.85-P-9995GIZ
MODEL 163 as of 1.9.01 with CODE (522) Modular control system (MCS) radio USA with CODE (357)
Navigation system - additional unit with CODE (818b) Single CD player - additional unit with CODE
(819) 6-disk CD changer in trunk with CODE (491) U.S. version
CTEL/GPS antenna
splitter, locationThe CTEL and GPS
antenna splitter (A2/57)
is located in the center
console on the left-hand
side in the radio slot.
CTEL/GPS antenna
splitter, purposeThe CTEL and GPS
antenna splitter (A2/57)
is required for operating a
GSM cellular telephone
and a GPS receiver over a
single antenna cable.
CTEL/GPS antenna
splitter, design GF82.85-P-3107-03GH
CTEL/GPS antenna
splitter, function GF82.85-P-3107-04GH
Radio/navigation unit
location/task/design/ function GF82.61-P-4109GI
Sound amplifier
location/task/design/functionwith CODE (810)
Sound systemGF82.62-P-3100GH
Antenna splitter,
location/task/design/function GF82.85-P-3107B
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 159 © 2006 Mitchell Repair Information Company, LLC.
Page 1655 of 4133

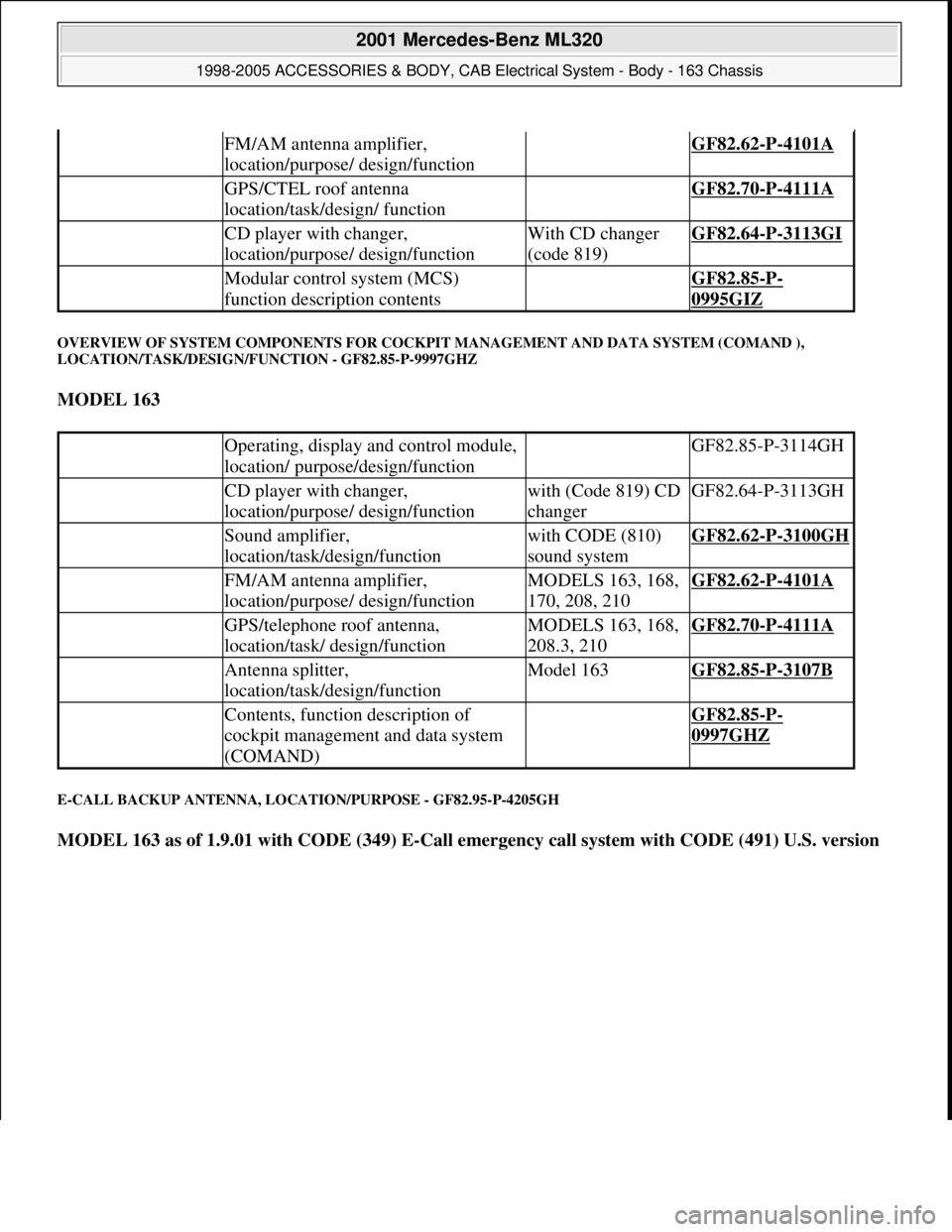

OVERVIEW OF SYSTEM COMPONENTS FOR COCKPIT MANAGEMENT AND DATA SYSTEM (COMAND ),
LOCATION/TASK/DESIGN/FUNCTION - GF82.85-P-9997GHZ
MODEL 163
E-CALL BACKUP ANTENNA, LOCATION/PURPOSE - GF82.95-P-4205GH
MODEL 163 as of 1.9.01 with CODE (349) E-Call emergency call system with CODE (491) U.S. version
FM/AM antenna amplifier,
location/purpose/ design/function GF82.62-P-4101A
GPS/CTEL roof antenna
location/task/design/ function GF82.70-P-4111A
CD player with changer,
location/purpose/ design/functionWith CD changer
(code 819)GF82.64-P-3113GI
Modular control system (MCS)
function description contents GF82.85-P-
0995GIZ
Operating, display and control module,
location/ purpose/design/function GF82.85-P-3114GH
CD player with changer,
location/purpose/ design/functionwith (Code 819) CD
changerGF82.64-P-3113GH
Sound amplifier,
location/task/design/functionwith CODE (810)
sound systemGF82.62-P-3100GH
FM/AM antenna amplifier,
location/purpose/ design/functionMODELS 163, 168,
170, 208, 210GF82.62-P-4101A
GPS/telephone roof antenna,
location/task/ design/functionMODELS 163, 168,
208.3, 210GF82.70-P-4111A
Antenna splitter,
location/task/design/functionModel 163GF82.85-P-3107B
Contents, function description of
cockpit management and data system
(COMAND) GF82.85-P-
0997GHZ
2001 Mercedes-Benz ML320
1998-2005 ACCESSORIES & BODY, CAB Electrical System - Body - 163 Chassis
me
Saturday, October 02, 2010 3:30:06 PMPage 160 © 2006 Mitchell Repair Information Company, LLC.
Page 1656 of 4133

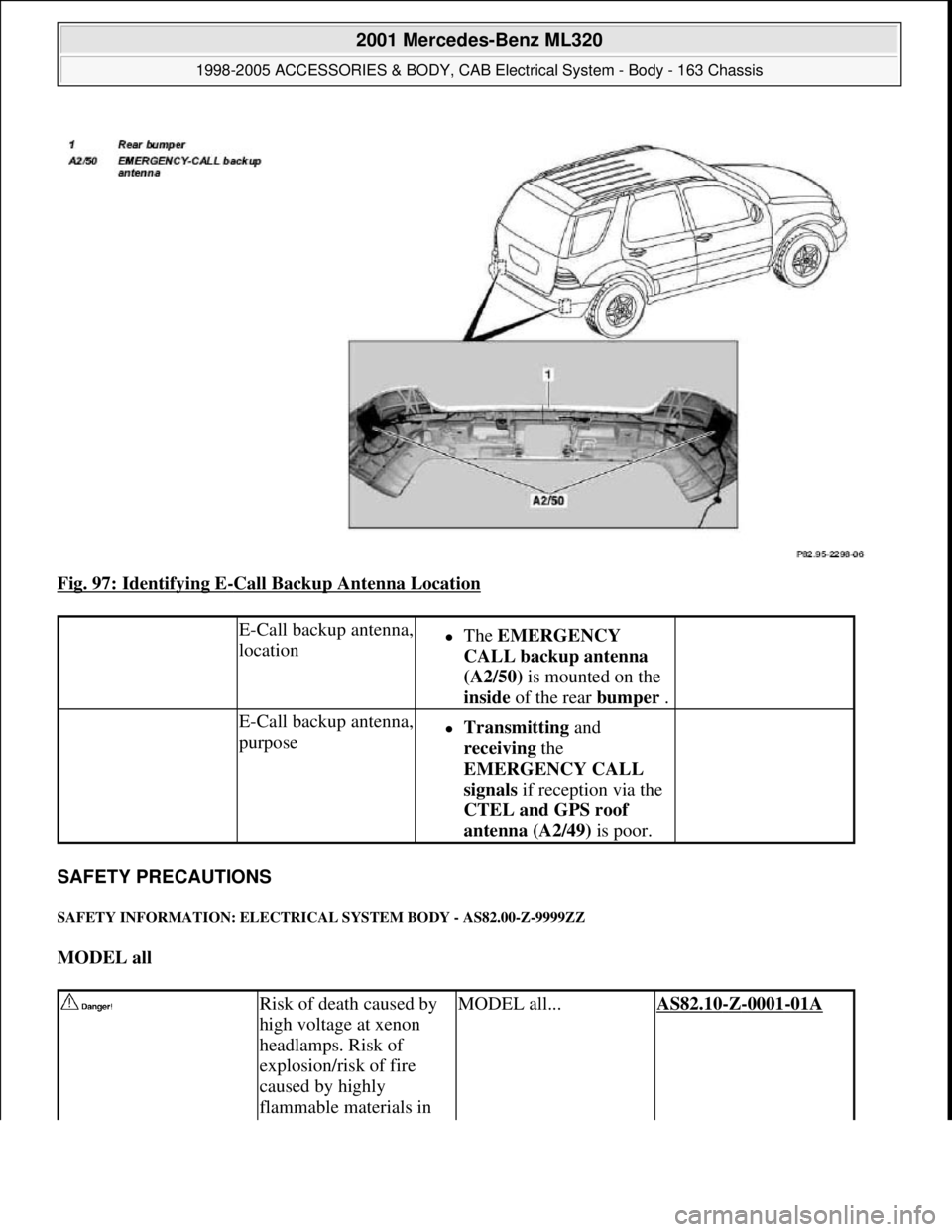

Fig. 97: Identifying E-Call Backup Antenna Location
SAFETY PRECAUTIONS
SAFETY INFORMATION: ELECTRICAL SYSTEM BODY - AS82.00-Z-9999ZZ
MODEL all
E-Call backup antenna,
locationThe EMERGENCY
CALL backup antenna
(A2/50) is mounted on the
inside of the rear bumper .
E-Call backup antenna,
purposeTransmitting and
receiving the
EMERGENCY CALL
signals if reception via the
CTEL and GPS roof
antenna (A2/49) is poor.
Risk of death caused by
high voltage at xenon
headlamps. Risk of
explosion/risk of fire
caused by highly
flammable materials in MODEL all...AS82.10-Z-0001-01A
