1997 MERCEDES-BENZ ML430 AUX

AZ82.60-P-0004A
Retrofit vehicle video system
3.10.00

MODELS
163.136 /154 /172 1A as of 145273,

163.136 /154 /172 1X as of 708319,

163.113 /128 /157 /174 /175 1#

left hand drive vehicle

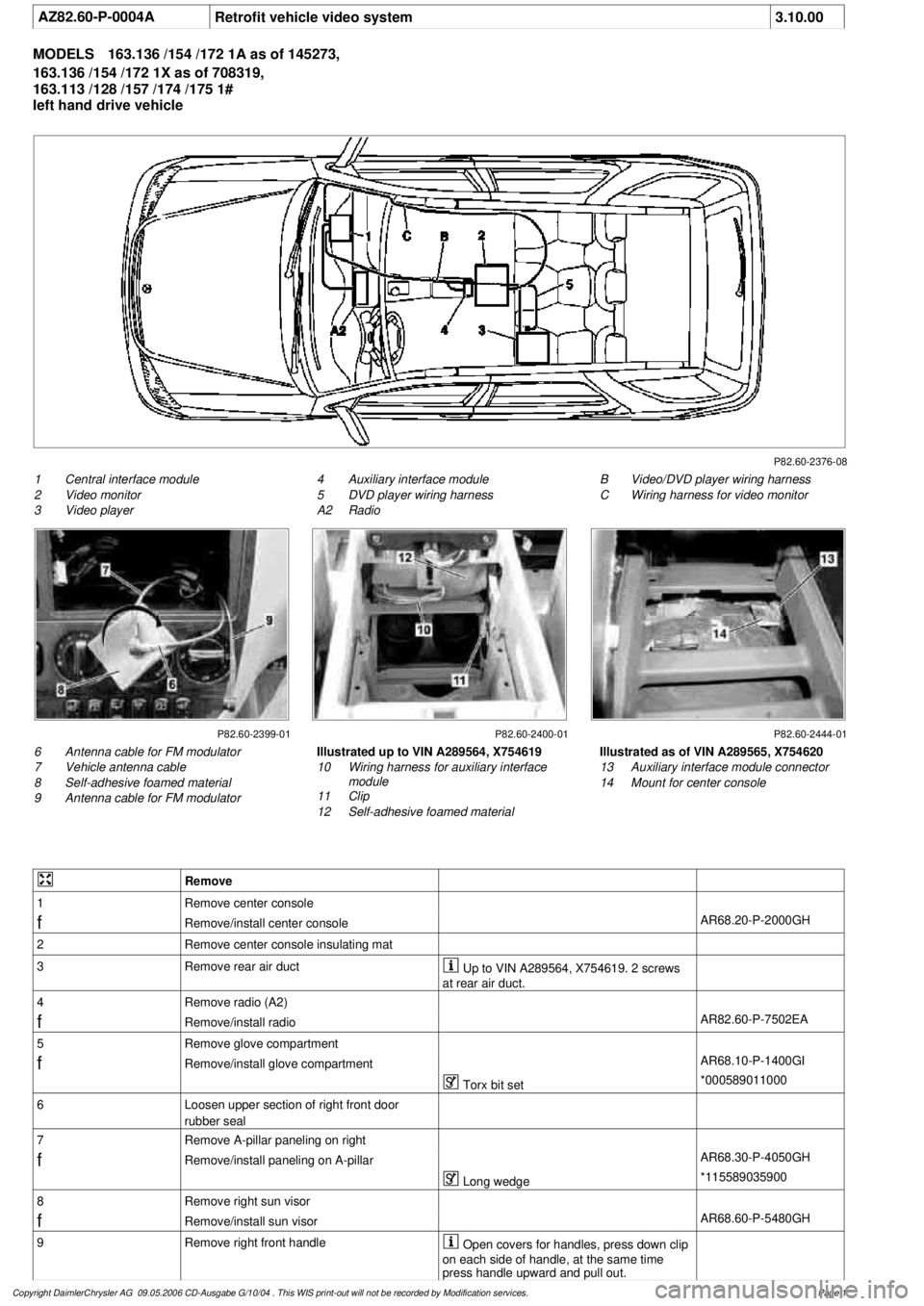

P82.60-2376-08

1
Central interface module

2
Video monitor

3
Video player
B

Video/DVD player wiring harness

C
Wiring harness for video monitor

4

Auxiliary interface module

5
DVD player wiring harness

A2
Radio

P82.60-2399-01 P82.60-2400-01 P82.60-2444-01

6
Antenna cable for FM modulator

7
Vehicle antenna cable

8
Self-adhesive foamed material

9
Antenna cable for FM modulator
Illustrated as of VIN A289565, X754620

13
Auxiliary interface module connector

14
Mount for center console

Illustrated up to VIN A289564, X754619

10
Wiring harness for auxiliary interface

module

11
Clip

12
Self-adhesive foamed material


Remove

1
Remove center console

f

Remove/install center console

AR68.20-P-2000GH

2
Remove center console insulating mat

3
Remove rear air duct
Up to VIN A289564, X754619. 2 screws

at rear air duct.

4
Remove radio (A2)

f

Remove/install radio

AR82.60-P-7502EA

5
Remove glove compartment

f

Remove/install glove compartment

AR68.10-P-1400GI

Torx bit set

*000589011000

6
Loosen upper section of right front door

rubber seal

7
Remove A-pillar paneling on right

f

Remove/install paneling on A-pillar

AR68.30-P-4050GH

Long wedge

*115589035900

8
Remove right sun visor

f

Remove/install sun visor

AR68.60-P-5480GH

9
Remove right front handle

Open covers for handles, press down clip

on each side of handle, at the same time

press handle upward and pull out.

Copyright DaimlerChrysler AG 09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

10
Remove edge guard for tilting/sliding roof

cutout

11
Release upper right B-pillar paneling

12
Remove covers at lower rear seat

Do NOT remove center cover for lower

40% seat. Do NOT reinstall curtain on 60%

front bench seat.

f

Remove and install cover on bottom of rear

seat

AR91.12-P-1100GH

13
Release side shade at the 60% bench

Fold shade upward so that the working

area is not obstructed.

14
Remove 40% rear seat

f

Remove and install bench

AR91.12-P-1010GI

Torx bit set

*000589011000


Install

15
Retrofit central interface module (1)

AZ82.60-P-0004-01A

16
Insert antenna cable for FM modulator (6) into

vehicle antenna cable (7)

17
Cover connector with self-adhesive foamed

material (8)

18
Plug remaining antenna cable of FM

modulator (9) into radio

19
Install radio (A2)

f

Remove/install radio

AR82.60-P-7502EA

20
Retrofit video monitor (2) and wiring harness

of video monitor (C)


With
glass version of electric sliding/tilting

roof, code 414a.

AZ82.60-P-0004-02A


Except
glass version of electric

sliding/tilting roof, code 414a.
AZ82.60-P-0004-02B

21
Secure upper right B-pillar paneling

Ensure that the lugs of the seat belt height

adjustment are located correctly in the recess

clearance of the paneling.

22
Install right front handle

23
Install right sun visor

f

Remove/install sun visor

AR68.60-P-5480GH

24
Install right front A-pillar cover

f

Remove/install paneling on A-pillar

AR68.30-P-4050GH

25
Re-secure upper area of rubber door seal

26
Route wiring harness of video/DVD player

(B), additional interface module (4) and wiring

harness of video monitor (C) later
Up to VIN A289564, X754619.

AZ82.60-P-0004-03A

As of VIN A289565, X754620.

AZ82.60-P-0004-03B

27
Retrofit auxiliary interface module (4) in

center console

Up to VIN A289564, X754619.

AZ82.60-P-0004-04A

As of VIN A289565, X754620.

AZ82.60-P-0004-04B

28
Install center console insulating mat

29
Install center console

f

Remove/install center console

AR68.20-P-2000GH

30.1
Plug in plug of additional interface module

and secure the wiring harness of the

additional interface module (10) to the clip

(11) together with the wiring harness of the

rear power windows in the center console

Up to VIN A289564, X754619.

30.2
Insert auxiliary interface module (13)

connector and route between center console

mount (14) and center console.

As of VIN A289565, X754620.

31.1
Secure auxiliary interface module plug in the

left rear corner of the ashtray housing using

self-adhesive foamed material (12)

Up to VIN A289564, X754619.

32
Open ashtray and cup holder and close to

check correct function

33
Attach side shade of the 60% bench

34.1
Retrofit video player (3)

AZ82.60-P-0004-05A


*BA91.12-P-1005-03A


*BA91.12-P-1008-03A

34.2
Retrofit DVD player

AZ82.60-P-0005-01GH

35
Install 40% rear seat

f

Remove and install bench

AR91.12-P-1010GI

Torx bit set

*000589011000

Copyright DaimlerChrysler AG 09.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2
