P40.10-3010-04
MODEL 211.2
1
Date of manufacture
2
Expiration date
5
Load compartment floor
P40.10-2803-04
Model 240
1
Date of manufacture
2
Expiration date
3
Trunk floor paneling
N42.10-2129-05
Model 163, 414
Shown on model 414
1
Date of manufacture
2
Expiration date
4
Left side paneling
Remove/Install
1.1Open luggage compartment lid
Model 170, 171, 203, 209, 211.0, 230, 240
1.2
Open tailgate
Model 163, 168, 211.2, 414
Model 211.6: The place where the
TIREFIT tire repair kit is kept can vary
depending on the vehicle body, see body
manufacturer's operating manual.
2.1
Lift trunk floor paneling (3), remove if
necessary.
Model 168, 170, 171, 203, 209, 211.0, 230, ,
240
2.2
Lift load compartment floor (5)
Model 211.2
2.3
Open left side paneling (4) in luggage
compartment
Model 163, 414

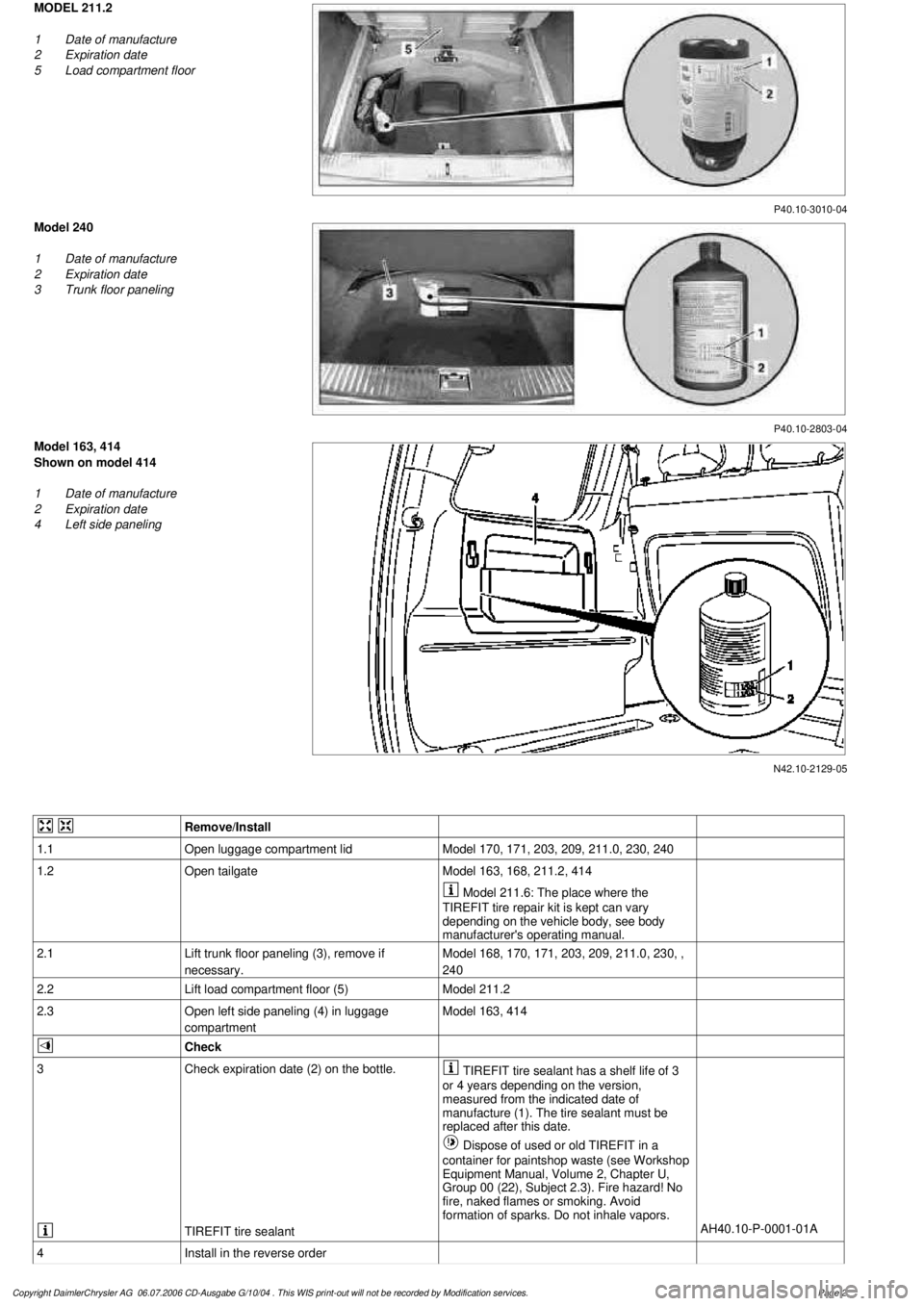

Check
3
Check expiration date (2) on the bottle.
TIREFIT tire sealant has a shelf life of 3
or 4 years depending on the version,
measured from the indicated date of
manufacture (1). The tire sealant must be
replaced after this date.
Dispose of used or old TIREFIT in a
container for paintshop waste (see Workshop
Equipment Manual, Volume 2, Chapter U,
Group 00 (22), Subject 2.3). Fire hazard! No
fire, naked flames or smoking. Avoid
formation of sparks. Do not inhale vapors.
TIREFIT tire sealant
AH40.10-P-0001-01A
4
Install in the reverse order
Copyright DaimlerChrysler AG 06.07.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2
GF54.50-P-4101GH
Electronic compass, location/purpose/design
24.3.00
MODEL
163 as of 1.9.00 with CODE (245) Trip computer
P54.50-2035-06
B26
Electronic compass
Electronic compass, location

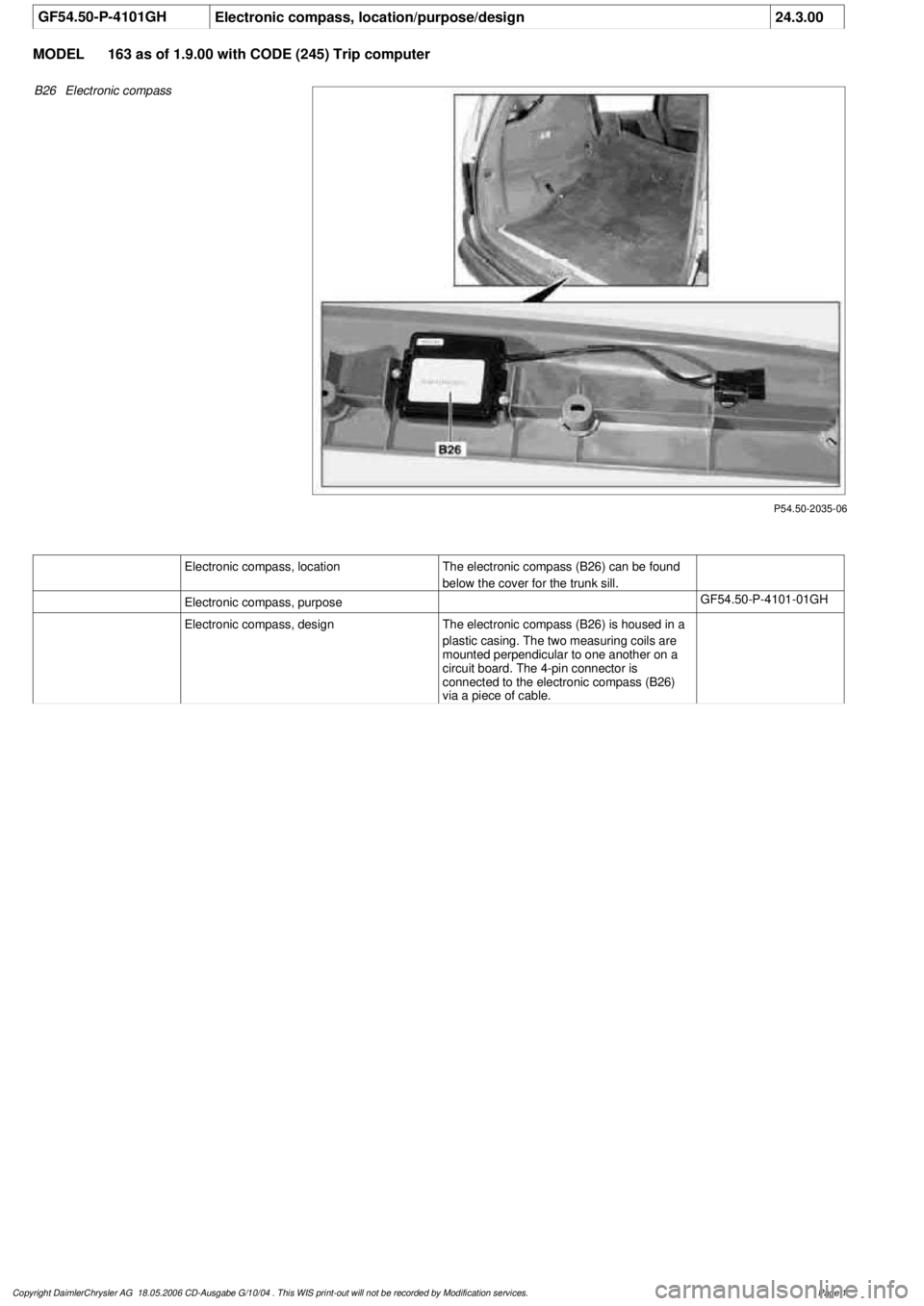

The electronic compass (B26) can be found
below the cover for the trunk sill.
Electronic compass, purpose
GF54.50-P-4101-01GH
Electronic compass, design
The electronic compass (B26) is housed in a
plastic casing. The two measuring coils are
mounted perpendicular to one another on a
circuit board. The 4-pin connector is
connected to the electronic compass (B26)
via a piece of cable.
