Front axle carrier
Wheel control, hub
Front axle torsion strut
Propeller shaft of front axle gear
Use original bolts
only.
Do not position bolts
at an angle when
screwing in.
Do not use an impact
wrench.
Observe the
tightening torque.
*BA33.10-P-1001-01C
21Lower front axle carrier
(1), pushing all hoses to
one side Installation: Contact
surfaces of front axle
carrier to longitudinal
member must be cleaned
and flat.
Insert the locating pins of
the front axle carrier into
the holes in the side
member.
22Check front axle carrier
(1) for damage
23Install in the reverse order
24Fill power steering pump
and bleedEngine 112, 113AR46.30-P-0010B
Engine 111, 612AR46.30-P-0010P
25Bleed brake system AR42.10-P-0010GH
26Perform chassis
alignment AR40.20-P-0200GH
NumberDesignationModel Series 163
BA33.10-P-1001-01CBolt of front axle carrier to frameNm200
NumberDesignationModel Series 163
BA33.20-P-1006-01DBolt, upper transverse control arm to frameNm120
NumberDesignationModel Series 163
BA32.20-P-1001-02GBolt, retaining bracket to frameNm100
NumberDesignationModel Series 163

2001 Mercedes-Benz ML320
1998-2005 DRIVELINE/AXLES Front Axle - 163 Chassis
me
Saturday, October 02, 2010 3:38:21 PMPage 7 © 2006 Mitchell Repair Information Company, LLC.

AR47.25-P-1000-01A
Separate fuel lines from engine, reconnect

P47.25-0212-03

1
Release arm

2
Sealing ring

A
Release position

B
Assembly position

P47.25-0213-03

The low pressure lines of the fuel system have plug connections

with a release arm (1) in place of screw connections.

The lines are sealed by means of a seal (2).

Disconnecting
1
Press the release arms (1) down to the stop in release position

as shown in picture A (arrow).

2
Disconnect connector on low-pressure line.

3
Pull back the release arms (1) again immediately to the stop

into the assembly position as shown in picture B (arrow).

The release arms (1) must not be kept over a long period in

the release position (A) otherwise leaks can occur due to

deformation of the low-pressure line.
Attaching

4
Check whether the release arm (1) is in the installed position
(b).

If the release arms (1) were kept for a long time in the

release position (A) the low-pressure line must be replaced

otherwise leaks can occur due to deformation of the low-

pressure line.

5
Insert connector on low-pressure line.

6
Ensure that the connector is firmly seated and free of leaks.
Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

Remove, Install


Danger!
Risk of explosion
from fuel igniting,
risk of

poisoning
from inhaling and swallowing fuel

as well as
risk of injury
to eyes and skin

from contact with fuel.
Fire, sparks, open flames or smoking

forbidden.

Pour fuels only into suitable and appropriately

marked containers.

Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A

1
Drain fuel tank

Via fuel pump. NOT for model 163.113/128.

AR47.10-P-4001GH

If fuel pump faulty, and model 163.113/128.

AR47.10-P-4000GH


*BF47.10-P-1001-01A

2
Unscrew filler cap (2) and detach from filler

cap attachment (4)

3.1
Remove left seat of 3rd seat row

If installed. See owner's manual

4
Unclip cover of left-hand side panel (1)

5.1
Detach fuel lines of expansion reservoir and

separate from filler neck

As of VIN A289565. NOT for model

163.113/128.

6
Detach fuel filler neck from guide funnel


Installation:
Check O-ring and replace if

necessary. Ensure that the bayonet-lock
remains above
the pressure sensor.

Ensure it is correctly located when installed.

Open bayonet lock (3) to do this.

7
Pull filler neck through toward interior

Screw on cap again in order to avoid fuel

flowing out.

8.1
Remove fuel tank pressure sensor (B4/3)

Only USA version

AR47.10-P-8022GH
9.1
Detach bolted connection of fuel tank filler

neck/ground (X36/4) from filler neck

NOT for model 163.113/128.

10.1
Cut cable strap for retaining clips of fuel lines
at filler neck and remove retaining clips

As of VIN A289565. NOT for model

163.113/128.


Danger!
Risk of fatal accident
from vehicle slipping

or toppling off the lift platform
Align vehicle between the columns of lifting
platform and position the four support plates


below the support strongpoints specified by

the vehicle manufacturer.

AS00.00-Z-0010-01A

11
Place the vehicle on lifting platform

AR00.60-P-1000GH

12
Separate rubber seal (5) from underside of

vehicle and remove filler neck from interior

Do not damage fuel lines at filler neck.

13
Remove left rear wheel

e

Removing and installing wheels, rotating if

necessary

AP40.10-P-4050GH

14
Remove spare wheel and spare wheel carrier

complete

NOT in the case of spare wheel

holder/spare wheel, code 849.

15
Cut a large safety cable strap for filler neck at

bracket on longitudinal frame member

16
Remove bracket from longitudinal frame

member

17
Disconnect connection for regeneration (77/2)

and fresh air connection (77/4) on activated

charcoal canister (77)


Installation
: Connect up lines as per

connection diagram:

#

Engine 111

AR47.30-P-8212-01GJ

Engines 112, 113

AR47.30-P-8212-01GI

Engines 112, 113 version
I

AR47.30-P-8212-01GH

Charcoal canister and fuel tank form a

single unit.

NOT for model 163.113/128.

18
Detach vent hose

At rear differential to rear of activated

charcoal reservoir.

19
Remove rear exhaust system heat shield.

Do not damage boot at rear axle shaft.

20
Disconnect rear propeller shaft at differential


Installation:
Install new self-locking bolts.


Tie up propeller shaft e.g. using welding

wire

Heat bolts with hot air fan to facilitate

removing. Mark propeller shaft and differential

gear flange for correct installed position.


*BA41.10-P-1002-01C

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 2

AR47.10-P-8022GH
Remove/install fuel tank pressure sensor
18.3.97

MODEL
163.154 with ENGINE 112.942 with CODE (494a) USA version

MODEL
163.157 with ENGINE 112.970 with CODE (494a) USA version

MODEL
163.172 with ENGINE 113.942 with CODE (494a) USA version

MODEL
163.174 with ENGINE 113.981 with CODE (494a) USA version

MODEL
163.175 with ENGINE 113.965 with CODE (494a) USA version

P47.10-0390-02

B4/3Fuel tank pressure sensor

Arrow
Socket


Remove, Install


Danger!
Risk of explosion
if ignition takes place,
risk

of poisoning
caused by inhaling fuel vapors

or swallowing fuel as well as
risk of injury
to

skin and eyes exposed to fuel.
Fire, sparks, open flames or smoking

forbidden.

Pour fuels only into suitable and appropriately

marked containers.

Wear protective clothing when handling fuel.

AS47.00-Z-0001-01A

1
Unscrew filler cap and remove securing tab

2
Unclip left side trim cover

3
Detach fuel filler neck from guide funnel


Installation:
Check O-ring and replace if

necessary. Ensure it is correctly located when

installed.

To do this, open bayonet lock.

4
Disconnect coupling (arrow) for fuel tank

pressure sensor (B4/3)

5
Unscrew fuel tank pressure sensor (B4/3)

from fuel tank filler neck

6
Install in the reverse order

Copyright DaimlerChrysler AG 28.05.2006 CD-Ausgabe G/10/04 . This WIS print-out will not be recorde
d by Modification services.
Page 1

GENERAL NOTES: PASSENGER CARS - AH00.01-Z-0998AZ
MODEL all
Notes on TowingMODEL 461, 463AH00.60-P-0100-
02GA
Overall vehicle
Overall vehicleFG00AH00.00-Z-9999AZ
Engine
Complete engine,
crankcase ventilation,
cylinder head, crankcaseFG01AH01.00-Z-9999AZ
Crank assemblyFG03AH03.00-Z-9999AZ
Engine timingFG05AH05.00-Z-9999AZ
Mixture formationFG07AH07.00-Z-9999AZ
Air intake, superchargingFG09AH09.00-Z-9999AZ
Electrical system - engineFG15AH15.00-Z-9999AZ
Engine lubrication,
engine oil coolingFG18AH18.00-Z-9999AZ
Engine cooling systemFG20AH20.00-Z-9999AZ
Engine suspensionFG22AH22.00-Z-9999AZ
Throttle control, cruise
control systemFG30AH30.00-Z-9999AZ
Fuel systemFG47AH47.00-Z-9999AZ
Exhaust systemFG49AH49.00-Z-9999AZ
Chassis
Manual transmissionFG26AH26.00-Z-9999AZ
Automatic transmissionFG27AH27.00-Z-9999AZ
Frame, trailer operationFG31AH31.00-Z-9999AZ
SuspensionFG32AH32.00-Z-9999AZ
Rear axleFG35AH35.00-Z-9999AZ
Wheels, chassis
alignment checkFG40AH40.00-Z-9999AZ
Brakes - hydraulic and
mechanical systemsFG42AH42.00-Z-9999AZ
Brakes - pneumatic
system and auxiliary
brakesFG43AH43.00-Z-9999AZ
SteeringFG46AH46.00-Z-9999AZ
Electrical system,
equipment and
instrumentsFG54AH54.00-Z-9999AZ

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:44 PMPage 10 © 2006 Mitchell Repair Information Company, LLC.

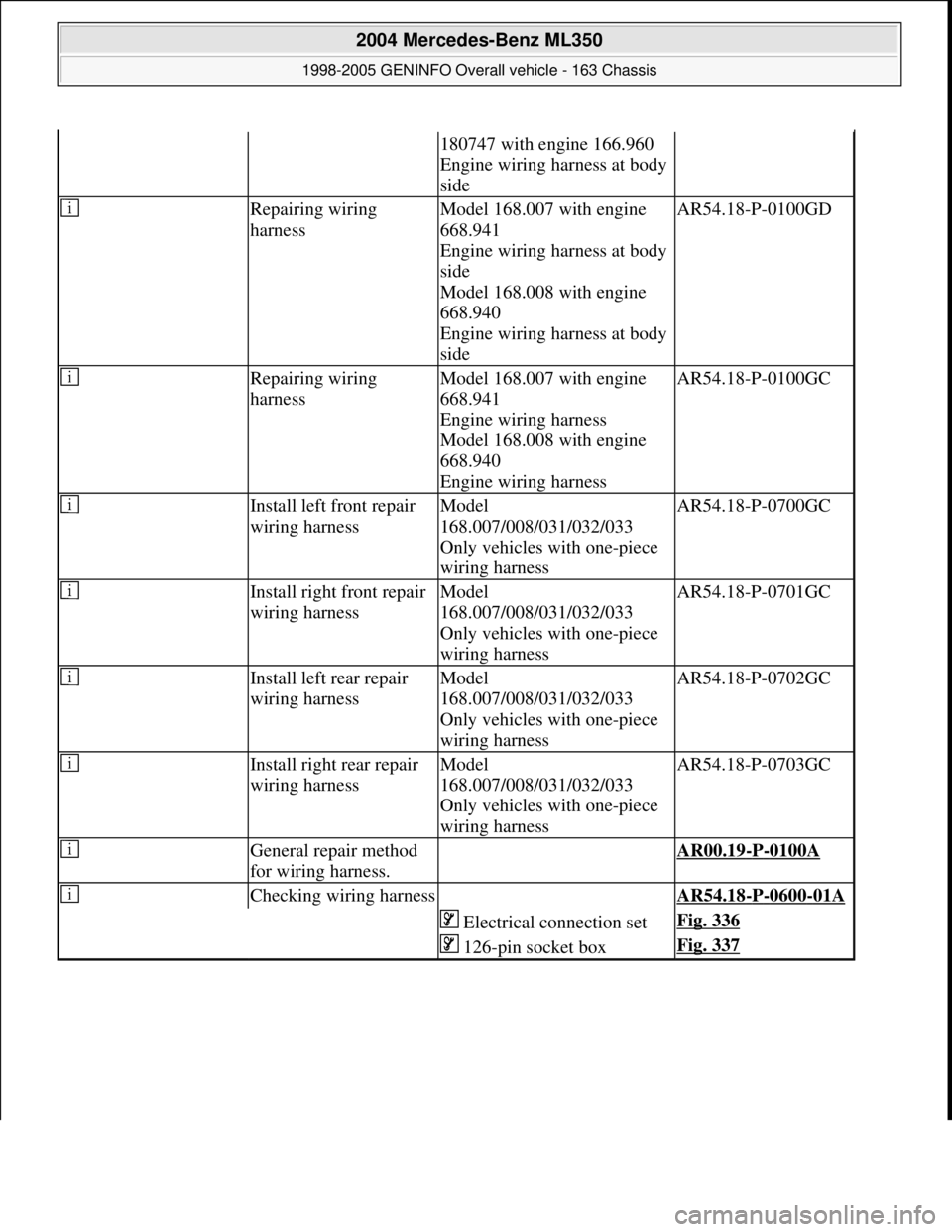

180747 with engine 166.960
Engine wiring harness at body
side
Repairing wiring
harnessModel 168.007 with engine
668.941
Engine wiring harness at body
side
Model 168.008 with engine
668.940
Engine wiring harness at body
sideAR54.18-P-0100GD
Repairing wiring
harnessModel 168.007 with engine
668.941
Engine wiring harness
Model 168.008 with engine
668.940
Engine wiring harnessAR54.18-P-0100GC
Install left front repair
wiring harnessModel
168.007/008/031/032/033
Only vehicles with one-piece
wiring harnessAR54.18-P-0700GC
Install right front repair
wiring harnessModel
168.007/008/031/032/033
Only vehicles with one-piece
wiring harnessAR54.18-P-0701GC
Install left rear repair
wiring harnessModel
168.007/008/031/032/033
Only vehicles with one-piece
wiring harnessAR54.18-P-0702GC
Install right rear repair
wiring harnessModel
168.007/008/031/032/033
Only vehicles with one-piece
wiring harnessAR54.18-P-0703GC
General repair method
for wiring harness. AR00.19-P-0100A
Checking wiring harness AR54.18-P-0600-01A

Electrical connection setFig. 336
126-pin socket boxFig. 337

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:48 PMPage 248 © 2006 Mitchell Repair Information Company, LLC.

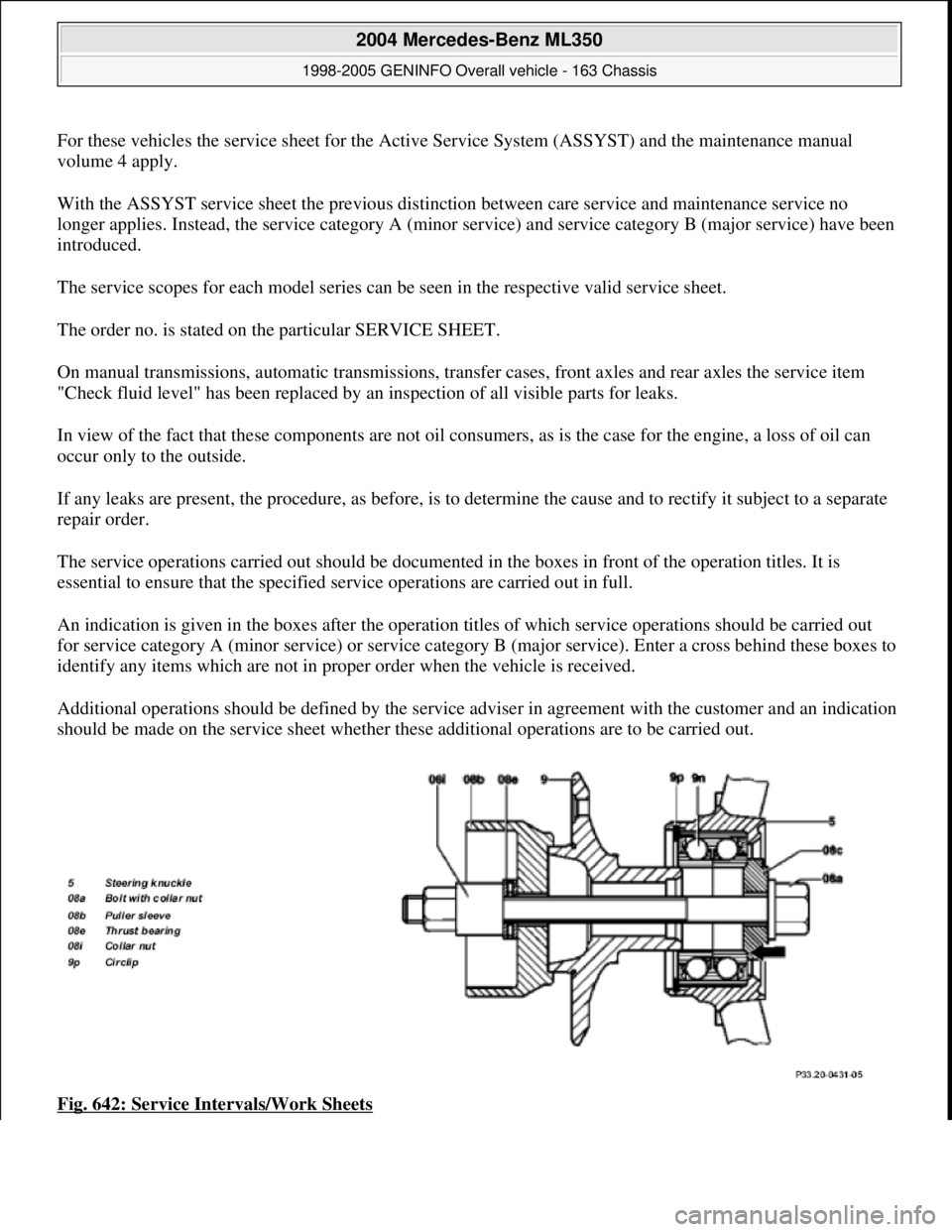

For these vehicles the service sheet for the Active Service System (ASSYST) and the maintenance manual
volume 4 apply.
With the ASSYST service sheet the previous distinction between care service and maintenance service no
longer applies. Instead, the service category A (minor service) and service category B (major service) have been
introduced.
The service scopes for each model series can be seen in the respective valid service sheet.
The order no. is stated on the particular SERVICE SHEET.
On manual transmissions, automatic transmissions, transfer cases, front axles and rear axles the service item
"Check fluid level" has been replaced by an inspection of all visible parts for leaks.
In view of the fact that these components are not oil consumers, as is the case for the engine, a loss of oil can
occur only to the outside.
If any leaks are present, the procedure, as before, is to determine the cause and to rectify it subject to a separate
repair order.
The service operations carried out should be documented in the boxes in front of the operation titles. It is
essential to ensure that the specified service operations are carried out in full.
An indication is given in the boxes after the operation titles of which service operations should be carried out
for service category A (minor service) or service category B (major service). Enter a cross behind these boxes to
identify any items which are not in proper order when the vehicle is received.
Additional operations should be defined by the service adviser in agreement with the customer and an indication
should be made on the service sheet whether these additional operations are to be carried out.
Fig. 642: Service Intervals/Work Sheets


2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:52 PMPage 401 © 2006 Mitchell Repair Information Company, LLC.

CHECK ALL VISIBLE PARTS FOR SIGNS OF LEAKS AND DAMAGE - AP00.20-P-0053GH
MODEL 163.113 /128 /136 /154 /157 /172 /174 /175
INSPECTING CHASSIS AND LOAD-BEARING BODY PARTS FOR DAMAGE AND CORROSION - AP00.20-P-0090GH
MODEL 163
with Code Z04/Z07
Model 230AP00.20-P-0001L
Model 414AP00.20-L-0001A
Taxi serviceModels 202, 210AP00.20-P-0007A
Model 203AP00.20-P-0007C
Remove
Detach lower engine
compartment panelingModels 163.172/174/175AR61.20-P-1105GH
Remove noise
encapsulationModel 163.113/128AR94.30-P-5400GH
Check

2If traces of fluid are noted
(e.g. oil), then determine
and correct the cause (on a
separate work order).
Check for leaksEngine:
Transmission
Transfer case
Front axle
Rear axle
Pressure oil pump
3Check for leaks and fixingShock absorbers,
suspension struts
4Inspect for leaks and
conditionRubber boots of front axle
shafts
5Inspect lines and hoses for
leaks and condition, pay
attention to chafing points
and routingRadiator
Fuel system
Exhaust system
Clutch actuation
Automatic transmission
Power steering
Brake system
Install
Install lower engine
compartment paneling.Models 163.172/174/175AR61.20-P-1105GH
Install noise encapsulationModel 163.113/128AR94.30-P-5400GH
1Visual inspectionControl arm mountings and
control arms of front axle

2004 Mercedes-Benz ML350
1998-2005 GENINFO Overall vehicle - 163 Chassis
me
Saturday, October 02, 2010 3:47:52 PMPage 404 © 2006 Mitchell Repair Information Company, LLC.
