1997 HONDA ODYSSEY light

Mirrors

TAB
Keep the inside and outside mirrors
clean and adjusted for best visibility.
Be sure to adjust the mirrors before
you start driving.
The inside mirror has day and night positions. The night position reduces
glare from headlights behind you. Flip the tab on the bottom edge of
the mirror to select the day or night

position.
Adjusting the Power Mirrors
Adjust the outside mirrors with the
adjustment switch on the driver'sdoor armrest:
1. Turn the ignition switch ON (II).
2. Move the selector switch to L (driver's side) or R (passenger's

side).
3. Push the appropriate edge of the

adjustment switch to move the

mirror right, left, up or down.
4. When you finish, move the
selector switch to the center (off)

position. This turns off the
adjustment switch so you can't

move a mirror out of position by

accidentally bumping the switch.
Instruments and Controls SELECTOR SWITCH
ADJUSTMENT SWITCHProCarManuals.comMain Menu Table of Contents s t

Parking Brake

To apply the parking brake, pull the lever up fully. To release it, pull upslightly, push the button, and lower
the lever. The parking brake light on the instrument panel should go out
when the parking brake is fully released (see page 34). If you try todrive the car without releasing the
parking brake, the ABS indicator may come on, and the ABS may not
work properly.
Driving the car with the parking brake
applied can damage the rear brakes
and axles.

Instruments and Controls

PARKING BRAKE LEVER

NOTICEProCarManuals.comMain Menu Table of Contents s t

Dashboard Compartment, Center Pocket, Vanity Mirror

Dashboard Compartment
Open the dashboard compartment
by squeezing the handle. Close it
with a firm push. Center Pocket
Open the center pocket by pulling
the handle. Close it with a firm push.
The light in the pocket comes on when the instrument panel lights are
on.
Vanity Mirror
To use the vanity mirror, pull down
either sun visor and swing down the

cover.

The passenger's vanity mirror is lighted. The light beside the mirror
comes on only when the light switch
is turned on.
On U.S. models
The driver's vanity mirror is also lighted.

Instruments and ControlsProCarManuals.comMain Menu Table of Contents s t

Cigarette Lighter, Ashtrays

Cigarette Lighter
The ignition switch must be in
ACCESSORY (I) or ON (II) for the cigarette lighter to work. To heat up
the lighter, push it in. It will pop out
when it is ready for use. Do not hold
the lighter in while it is heating up,
you could cause it to overheat. Ashtrays

ASHTRAY

Open the front ashtray by pulling on
the bottom edge. Push it in to close it.
To remove the ashtray for emptying, push down on the metal plate inside,
then pull the ashtray out completely. The rear ashtray is in the armrest on
the left rear door. To use the rearashtray, swing the lid open.
To remove the rear ashtray, open the lid and pull it straight up.

CONTINUED

Instruments and Controls

CIGARETTE LIGHTER

ASHTRAYProCarManuals.comMain Menu Table of Contents s t

Ashtrays, Interior Lights

Use the ashtray only for cigarettes,
cigars, and other smoking materials. To prevent a possible fire and damage
to your car, don't put paper or other
things that can burn in the ashtray.
Ceiling Lights
Your Honda has two ceiling lights. Each ceiling light has a three-
position switch. In the OFF position,
the lights do not come on. In the
center position they come on when
you open any door. In the ON position, they stay on continuously.
Spotlights

On some models

Turn on the spotlight by pushing the button next to each light. Push the
button again to turn it off.

Instruments and Controls
DOOR ACTIVATED

NOTICEProCarManuals.comMain Menu Table of Contents s t

Interior Lights
Tailgate Light
The tailgate light has a two position switch. In the OFF (down) position,
the light does not come on. In the ON (up) position, the light comes on
when you open the tailgate. Courtesy Lights
Each door has a courtesy light. This
light comes on when you open the
door.

Your car also has a courtesy light in the ignition switch. This light comes
on when you open the driver's door.
It remains on for several seconds
after the door is closed.

Instruments and ControlsProCarManuals.comMain Menu Table of Contents s t

Comfort and Convenience Features

The heating and air conditioning systems in your Honda provide a
comfortable driving environment in
all weather conditions.
The standard audio system has many features. This section de-scribes those features and how to
use them. (If you selected an
optional audio system, refer to the
operating instructions that came
with it.)
Some models have an anti-theft
audio system that requires a code
number to enable it. Heating and Cooling........................ 74
What Each Control Does............ 74How to Use the System............... 76
To Turn Everything Off ............. 81
Rear A/C Unit.............................. 82
Audio System (U.S. LX and

Canadian EX)........................... 83

Operating the Radio.................... 84
Adjusting the Sound.................... 86
Audio System Lighting............... 86
Radio Frequencies and Reception.................................. 86
Operating the Cassette Player... 87
Tape Search Functions............... 88
Caring for Cassettes.................... 89
Operating the Optional CD Player/Changer....................... 90
Audio System (U.S. EX).................. 92
Operating the Radio.................... 93
Adjusting the Sound.................... 96 Radio Frequencies....................... 97
Radio Reception........................... 97
Operating the Cassette Player... 99
Tape Search Functions............. 100
Caring for the Cassette Player...................................... 101
Operating the Optional CD

Player/Changer..................... 102

Protecting Compact Discs........ 104
CD Changer Error
Indications.............................. 105

Theft Protection........................ 106

Comfort and Convenience FeaturesProCarManuals.comMain Menu Table of Contents s t

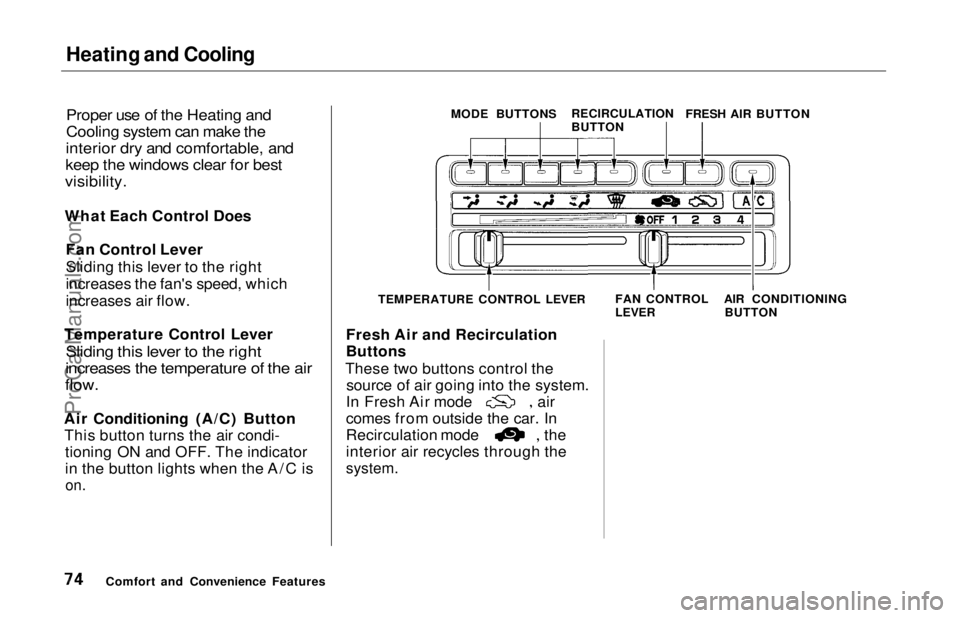

Heating and Cooling

Proper use of the Heating and
Cooling system can make the

interior dry and comfortable, and

keep the windows clear for best

visibility.

What Each Control Does Fan Control Lever
Sliding this lever to the right
increases the fan's speed, which
increases air flow.
Temperature Control Lever
Sliding this lever to the right
increases the temperature of the air

flow.

Air Conditioning (A/C) Button This button turns the air condi- tioning ON and OFF. The indicator
in the button lights when the A/C is
on.
Fresh Air and Recirculation
Buttons
These two buttons control the source of air going into the system. In Fresh Air mode air
comes from outside the car. In
Recirculation mode the
interior air recycles through the

system.

Comfort and Convenience Features MODE BUTTONS
RECIRCULATION
BUTTONFRESH AIR BUTTON
TEMPERATURE CONTROL LEVER FAN CONTROL

LEVER
AIR CONDITIONING
BUTTONProCarManuals.comMain Menu Table of Contents s t
