1997 GMC JIMMY check engine

Some gasolines that are not reformulated for low
emissions contain an octane-enhancing additive called
methylcyclopentadienyl manganese tricarbonyl
(MMT):
ask your service station operator whether or not his fuel
contains MMT. General Motors does not recommend the
use
of such gasolines. If fuels containing MMT are used,
spark plug life may be reduced and your emission
control system performance
may be affected. The
malfunction indicator lamp on your instrument panel
may turn on.
If this occurs, return to your authorized
GM dealer for service.
To provide cleaner ail-, all gasolines in the United States
are now required
to contain additives that will help
prevent deposits from forming
in your engine and fuel
system, allowing; your emission control system to
function properly. Therefore, you should not have
to add
anything
to the fuel. In addition, gasolines containing
oxygenates, such as ethers and ethanol, and
reformulated gasolines may be available
in your area to
help clean the air. General Motors recommends that you
use these gasolines if they comply with the
specifications described earlier.
I NOTICE:
Your vehicle was not designed for fuel that
contains methanol. Don’t use it. It can corrode
metal parts in your fuel system and also damage
plastic and rubber parts. That damage wouldn’t
be covered under your warranty.
Fuels in Foreign Countries
If you plan on driving in another country outside the United
States or Canada, the proper fuel may be hard to find. Never
use leaded gnsooline or any other fuel not recommended
in the
previous text on fuel. Costly repairs caused by use of
improper fuel wouldn’t be covered by your warranty.
To check on ~w1 availability, ask an auto club, or
contact a nlajor oil company that does business in the
country where you’ll be driving.
You can also write us at the following address for
advice. Just tell us where you-re going and give your
Vehicle Identil’ication Number
(VIN).
General Motors International Product Center
1908 Colonel Sam Drive
Osha~/a. Ontario
L 1 H 8P7
6-4

Before closing the hood, be sure all the filler caps are on
properly. Then lift the hood to relieve pressure on the
hood prop.
Remove the hood prop from the slot in the hood and
return the prop to its retainer.
Then just pull the hood down firmly to close. It will
latch when dropped from
10 to12 inches (25 to 30 cm)
without pressing on the hood.
Engine Oil
It’s a good idea to check your engine oil every time you
get fuel.
In order to get an accurate reading, the oil must
be warm and the vehicle must be on level ground.
The oil dipstick is a
yellow ring.
Turn
off the engine and give
the oil
a few minutes to
drain back into the oil pan.
If you don’t, the oil dipstick
might not show the
actual level.
Checking Engine Oil
Pull out the dipstick and clean it with a paper towel or
cloth, then push it back in
all the way. Remove it again,
keeping the tip down, and check the level.
6-9

Automatic Transmission Fluid
Operating the engine with the air cleaner off can
cause you or others
to be burned. The air cleaner
not only cleans the air, it stops flame
if the engine
backfires.
If it isn't there, and the engine
backfires, you could be burned. Don't drive with
it
off, and be careful working on the engine with
the air cleaner
off.
I NOTICE:
If the air cleaner is off, a backfire can cause a
damaging engine fire. And, dirt can easily get
into your engine, which
will damage it. Always
have the air cleaner
in place when you're driving.
When to Check and Change
A good time to check your automatic transmission fluid
level is when the engine oil is changed.
Change both the fluid
and filter every 50.000 miles
(83 000 km) if the vehicle is mainly driven under one or
more of these conditions:
In heavy city traffic where the outside temperature
regularly reaches
90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi. police or delivery service.
If you do not use your vehicle under any of these
conditions, the fluid and filter do not require changing.
See "Scheduled Maintenance Services"
in the Index.
6-14

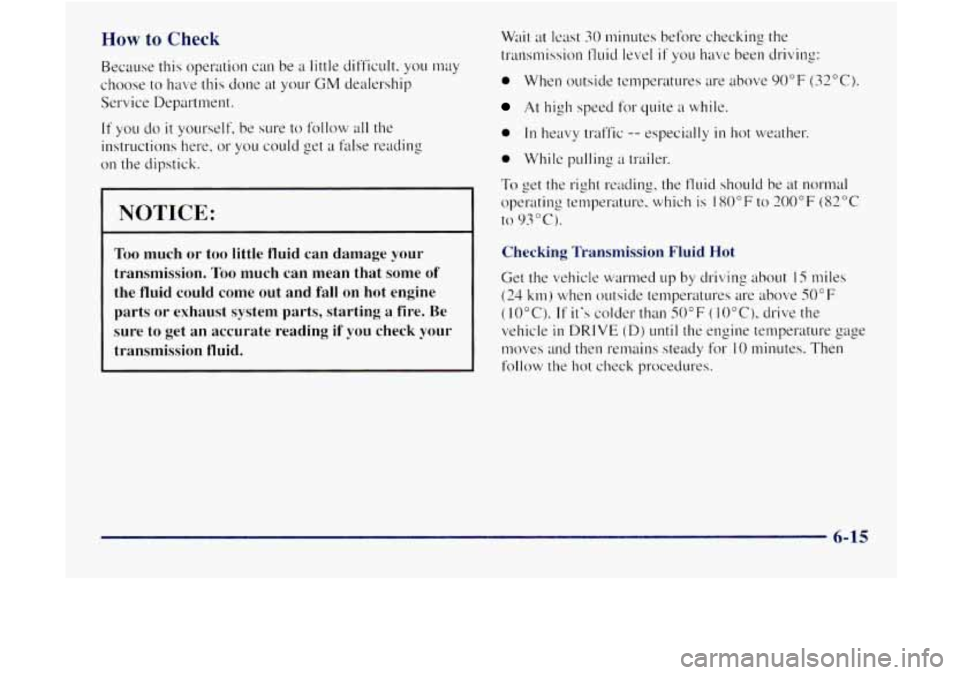

How to Check
Because this operation can be a little difficult, you may
choose to hm;e this done at your
GM dealership
Service Department.
If you do it yourself, be sure to follow all the
instructions here,
or you could get a false reading
on the dipstick.
NOTICE:
Too much or too little fluid can damage your
transmission.
Too much can mean that some of
the fluid could come out and fall on hot engine
parts or exhaust system parts, starting a fire. Be
sure
to get an accurate reading if you check your
transmission fluid.
Wait at least 30 minutes before checking the
transmission fluid level
if you have been driving:
0 When outside temperatures are above 90°F (32°C).
At high speed for quite a while.
0 In heavy traffic -- especially in hot weather.
0 While pulling a trailer.
To get the right reading, the fluid slwuld be at normal
operating temperature. which
is 180°F to 200°F (82°C
to 93°C).
Checking Transmission Fluid Hot
Get the vehicle warmed up by driving about 15 miles
(24 km) when outside temperatures are above 50°F
( 10°C). If it's colder than 50°F ( IOOC), drive the
vehicle
in DRIVE (D) until the engine temperature gage
rnoves and then remains steady for
10 minutes. Then
follow the hot check procedures.
6-15

Checking Transmission Fluid Cold
A cold check is made after the vehicle hus been sitting
for eight hours or
Inore with the engine off and is lwd
only as a reference. Let the engine run rlt idle for five
minutes
if outside temperatures are 50°F ( 10°C) oI
more. If it’s colder than 50°F ( IOOC), you may have to
idle the engine longer. Should the fluid level be low
during a cold check, you rrlwst perfor111 a hot check
before adding fluid. This
will give you a more accurate
reading
of the fluid level.
Checking the Fluid Hot or Cold
Park your vehicle on a level place. Keep the
engine running.
With the parking brake applicd. place the shift le\;er
in PARK (P).
With your foot on the brake pedal, move the shift
lever through each
gear range, pausing for about
three seconds
in each range. Then. position the shit’t
lever
in PARK (P).
Let the engine run at idle for three minutes or more.
I. Flip the handle LIP and then pull out the dipstick and
wipc it with a clean rag or paper towel.
2. Push it back in all the way, wait three seconds and
then pull it back out again.
6-16

Manual Transmission Fluid
When to Check
A good time to have it checked is when the engine oil is
changed. However, the fluid in YOLK manual
transmission doesn't require changing.
How to Check
Because this operation can be a little dii'licult, you
may choose to have this done at your GM dealership
Service Department.
If you do it yourself, be sure to follow all the
instructions here, or you could get
false reading.
NOTICE:
Too much or too little fluid can damage your
transmission.
Too much can mean that some of
the fluid could come out and fall on hot engine
parts or exhaust system parts, starting a
fire. Be
~ sure to get an accurate reading if you check your
~ transmission fluid.
6-18

Adding only plain water to your cooling system can be dangerous. Plain water, or some other
liquid like alcohol, can boil before the proper
coolant mix will. Your vehicle’s coolant warning
system
is set for the proper coolant mix. With
plain water or the wrong mix, your engine could
get too hot but you wouldn’t get the overheat warning. Your engine could catch fire and you or
others could be burned. Use a
50/50 mix of clean
water and
DEX-COOL@ coolant.
NOTICE:
If you use an improper coolant mix, your engine
could overheat and be badly damaged. The
repair cost wouldn’t be covered by your
warranty.
Too much water in the mix can freeze
and crack the engine, radiator, heater core and
other parts.
If you have to add coolant more than four times a year,
have your dealer check your cooling
system.
I NOTICE:
If you use the proper coolant, you don’t have to
add extra inhibitors or additives which claim to improve the system. These can be harmful.
6-24

Checking Coolant
When your engine is cold. the coolant level should be at
ADD, or a little higher. When your engine is warm. the
level
should be up to FULL HOT, or a little higher.
Adding Coolant
If you need more coolant, add the proper DEX-COOL'
coolant mixture crt rhe cwolcrllt I-KO\!PI-J tcrnk.
~ ' Turning the radiator pressure cap when the
engine and radiator are hot can allow steam and
scalding liquids to blow out and burn
you badly.
With the coolant recovery tank,
you will almost
never have to add coolant at the radiator.
Never turn the radiator pressure cap
-- even a
little
-- when the engine and radiator are hot.
Add DEX-COOL@ coolant mixture at the recovery
tank, but be careful not to spill
it.
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol,
and it will burn
if the engine parts are hot
enough. Don't
spill coolant on a hot engine.
6-25
