1997 CHEVROLET MONTE CARLO wiper fluid

Downloaded from www.Manualslib.com manuals search engine Windshield Wipers
You control the windshield
wipers by turning the band
marked
WIPER. For a
single wiping cycle, turn the
band to MIST. Hold it there
until the wipers start, then
let go. The wipers will stop
after one cycle.
If you want
more cycles, hold the band
on MIST longer.
For steady wiping at low speed, turn the band to
LO. For
high-speed wiping, turn the band further, to
HI. To stop
the wipers, turn the band to
OFF.
You can set the wiper speed for a long or short delay
between wipes. This can be very useful in light rain or
snow. Turn the band to choose the delay time. The
closer to
LO, the shorter the delay.
Be sure to clear ice and snow from the wiper blades
before using them. If they’re frozen to the windshield,
carefully loosen or thaw them. If your blades do become
damaged, get new blades or blade inserts. Heavy snow or
ice can overload your wipers. A circuit
breaker will stop them until the motor cools. Clear away
snow or ice to prevent an overload.
Windshield Washer
At the top of the multifunction lever, there’s a paddle
with the word PUSH on it.
To spray washer fluid on the
windshield, push the paddle. The wipers will run for
several sweeps and then either stop or return to your
preset speed.
In freezing weather, don’t use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
2-29

Downloaded from www.Manualslib.com manuals search engine Driving in Rain and on Wet Roads Rain and wet roads can mean driving trouble. On a wet
road, you can’t stop, accelerate or turn as well because
your tire-to-road traction isn’t as good as on dry roads.
And, if your tires don’t have much tread left, you’ll get
even less traction. It’s always wise to go slower and be
cautious if rain starts to fall while you are driving. The
surface may get wet suddenly when
your reflexes are
tuned for driving on dry pavement.
The heavier the rain, the harder
it is to see. Even if your
windshield wiper blades are in good shape, a heavy rain
can make it harder to see road signs and traffic signals,
pavement markings, the edge
of the road and even
people walking.
It’s wise
to keep your windshield wiping equipment in
good shape and keep your windshield washer tank filled
with washer fluid. Replace your windshield wiper
inserts when they show signs of streaking or missing
areas on the windshield,
or when strips of rubber start to
separate from the inserts.

Downloaded from www.Manualslib.com manuals search engine The exit speed is usually posted.
Reduce your speed according to your speedometer, not
to your sense of motion. After driving for any distance
at higher speeds, you may tend to think you are going
slower than you actually are.
Before Leaving on a Long Trip
Make sure you’re ready. Try to be well rested. If you
must start when you’re not fresh
-- such as after a day’s
work
-- don’t plan to make too many miles that first part
of the journey. Wear comfortable clothing and shoes you
can easily drive in.
Is your vehicle ready for a long trip? If you keep it
serviced and maintained, it’s ready to go.
If it needs
service, have it done before starting out.
Of course,
you’ll find experienced and able service experts in
Chevrolet dealerships all across North America. They’ll
be ready and willing to help if you need
it.
Here are some things you can check before a trip:
0
0
0
0
0
0
0
Windshield Washer Fluid: Is the reservoir full? Are
all windows clean inside and outside?
Wiper Blades: Are they in good shape?
Fuel, Engine Oil, Other Fluids: Have
you checked
all levels?
Lamps: Are they all working? Are the lenses clean?
Tires: They are vitally important to a safe,
trouble-free trip. Is the tread good enough for
long-distance driving? Are the tires all inflated to the
recommended pressure?
Weather Forecasts: What’s the weather outlook
along your route? Should you delay your trip a short
time to avoid a major storm system?
Maps:
Do you have up-to-date maps?

Downloaded from www.Manualslib.com manuals search engine 0 Section 6 Service and Appearance Care
Here you will find information about the care of your Chevrolet. This section begins with service and fuel
information, and then
it shows how to check important fluid and lubricant levels. There is also technical information
about your vehicle, and a part devoted to its appearance care.
6-2
6-3
6-4 6-5
6-7 6- 10
6-16
6- 17
6-20
, 6-24 6-25
6-27
6-30
6-3
1
6-3 1
6-37 6-37 6-45
Service
Fuel
Fuels in Foreign Countries
Filling Your Tank
Checking Things Under the Hood
Engine Oil
Air Cleaner
Automatic Transaxle Fluid
Engine Coolant
Power Steering Fluid
Windshield Washer Fluid
Brakes Battery
Bulb Replacement
Halogen Bulbs
Windshield Wiper Blade Replacement
Tires
Appearance Care 6-46
6-50
6-50
6-50
6-50 6-5 1
6-52 6-52
6-5
2
6-5 3 6-5 3
6-53 6-54
6-55
6-55
6-56
6-65
Cleaning the Inside of Your Chevrolet
Care
of Safety Belts
Cleaning Glass Surfaces
Cleaning the Outside of
the Windshield and
Wiper Blades
Weatherstrips
Cleaning the Outside of Your Chevrolet
Cleaning Aluminum Wheels (If Equipped)
Cleaning Tires Sheet Metal Damage
Finish Damage
Underbody Maintenance
Chemical Paint Spotting
Appearance Care Materials Chart
Vehicle Identification Number (VIN)
Service Parts Identification Label
Electrical System
Air Conditioning Refrigerants
6-1

Downloaded from www.Manualslib.com manuals search engine Care of Safety Belts
Keep belts clean and dry.
U
Do not bleach or dye safety belts. If you do, it
may severely weaken them. In a crash, they
might not be able to provide adequate protection. Clean safety belts only with mild soap and
lukewarm water.
Cleaning Glass Surfaces
Glass should be cleaned often. GM Glass Cleaner (GM
Part
No. 1050427) or a liquid household glass cleaner
will remove normal tobacco smoke and dust films
on
interior glass.
Don’t use abrasive cleaners on glass, because they may
cause scratches. Avoid placing decals on the inside rear
window, since they may have to be scraped off later. If
abrasive cleaners are used on the inside
of the rear
window, an electric defogger element may be damaged.
Any temporary license should not be attached across the
defogger grid.
Cleaning the Outside of the
Windshield and Wiper Blades
If the windshield is not clear after using the windshield
washer, or if the wiper blade chatters when running,
wax, sap or other material may be on the blade
or windshield.
Clean the outside of the windshield with
GM
Windshield Cleaner, Bon Ami@ Powder (non-scratching
glass cleaning powder), GM Part
No. 105001 1. The
windshield is clean if beads do not form when you rinse
it with water.
Grime from
the windshield will stick to the wiper blades
and affect their performance. Clean the blade by wiping vigorously with a cloth soaked in full-strength
windshield washer solvent. Then
rinse the blade
with water.
Check the wiper blades and clean them as necessary;
replace blades that look worn.
Weatherstrips
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth at least every six
months. During very cold, damp weather more frequent
application may be required. (See “Recommended
Fluids and Lubricants” in the Index.)

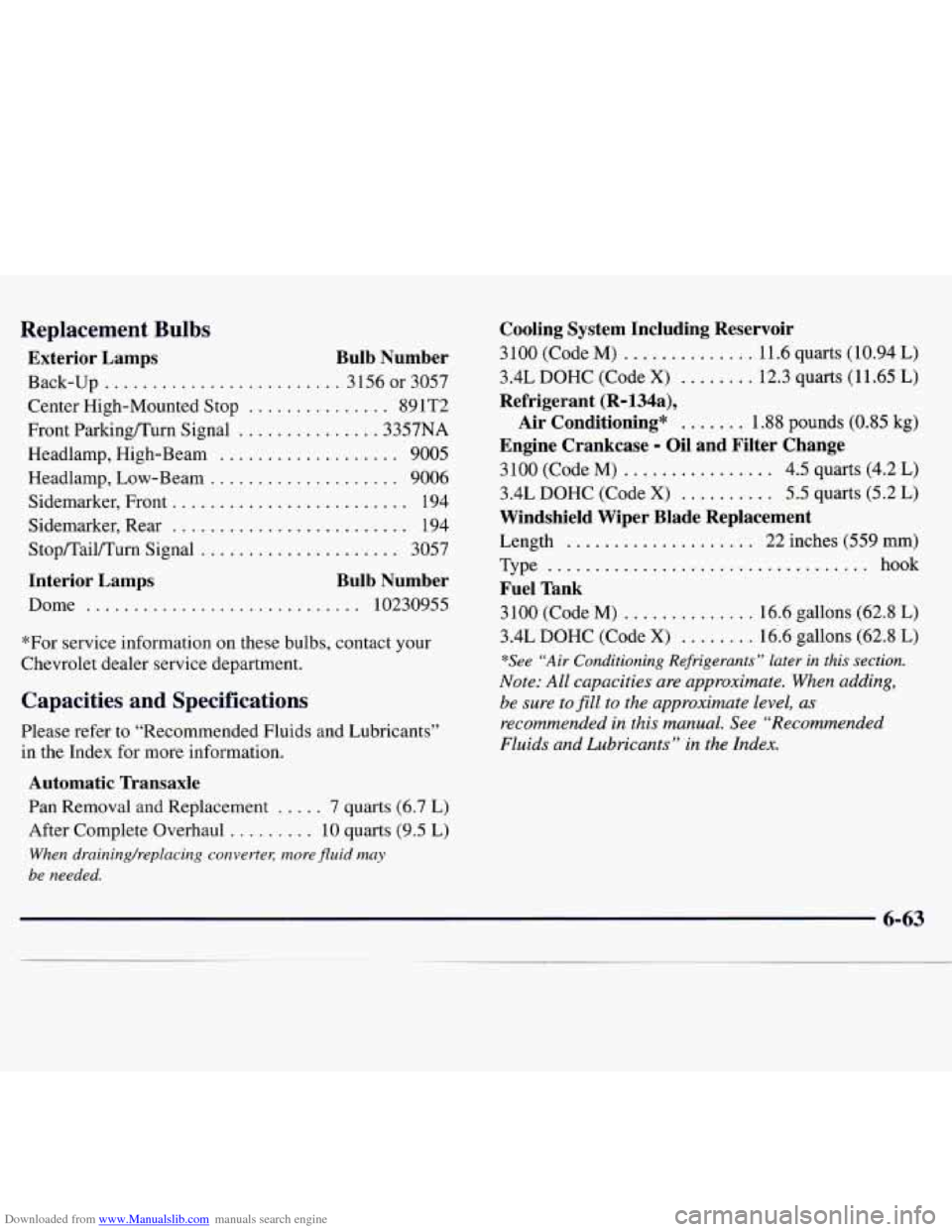

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Exterior Lamps Bulb Number
Back-up ......................... 3 156 or 3057
Center High-Mounted Stop
............... 891T2
Front ParkingiTurn Signal
............... 3357NA
Headlamp, High-Beam
................... 9005
Headlamp, Low-Beam
.................... 9006
Sidemarker, Front
......................... 194
Sidemarker, Rear
......................... 194
Stop/Tail/Turn Signal
..................... 3057
Interior Lamps Bulb Number
Dome ............................. 10230955
*For service information
on these bulbs, contact your
Chevrolet dealer service department.
Capacities and Specifications
Please refer to “Recommended Fluids and Lubricants”
in
the Index for more information.
Automatic Transaxle
Pan Removal and Replacement ..... 7 quarts (6.7 L)
After Complete Overhaul
......... 10 quarts (9.5 L)
When drainingh-eplucing convertel; more fluid muy
be needed.
Cooling System Including Reservoir
3100 (Code M) .............. 11.6 quarts (10.94 L)
3.4L DOHC (Code
X) ........ 12.3 quarts (1 1.65 L)
Refrigerant (R-l34a),
Air Conditioning* ....... 1.88 pounds (0.85 kg)
Engine Crankcase - Oil and Filter Change
3100 (Code M) ................ 4.5 quarts (4.2 L)
3.4L DOHC (Code
X) .......... 5.5 quarts (5.2 L)
Windshield Wiper Blade Replacement
Length .................... 22 inches (559 mm)
Type
.................................. hook
Fuel Tank
3100 (Code M) .............. 16.6 gallons (62.8 L)
3.4L DOHC (Code
X) ........ 16.6 gallons (62.8 L)
*See “Air Conditioning Refrigerants” later in this section.
Note: All capacities are approximate. When adding,
be sure to
Jill to the approximate level, as
recommended in this manual. See “Recommended
Fluids and Lubricants” in the Index.

Downloaded from www.Manualslib.com manuals search engine At Least %ice a Year Automatic Transaxle Check
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages are
working properly. Look for any other loose or damaged
safety belt system parts. If you see anything that might
keep a safety belt system from doing its job, have
it
repaired. Have any torn or frayed safety belts replaced.
Also look
for any opened or broken air bag coverings,
and have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace blade
inserts that appear worn or damaged or that streak or
miss areas of the windshield. Also see “Wiper Blades,
Cleaning” in the Index. Check the transaxle
fluid level;
add if needed. See
“Automatic Transaxle” in the Index. A fluid loss
may indicate a problem. Check the system and repair
if needed.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified
in Part D.
Body Lubrication Service
Lubricate all hinges and latches, including those for the
hood, rear compartment, glove box door, console door
and any folding seat hardware. Part
D tells you what to
use. More frequent lubrication may be required when
exposed
to a corrosive environment.

Downloaded from www.Manualslib.com manuals search engine Brake Adjustment
.................................. 6-30
Fluid
....................................... 6-27
Master Cylinder
.............................. 6-27
Replacing System Parts
........................ 6-30
System Warning Light
.................... 2-50, 6-28
Trailer
...................................... 4-34
Transaxle Shift Interlock
....................... 2-24
Transaxle Shift Interlock Check
.................. 7-39
Brakes, Anti-Lock
............................... 4-7
Braking
........................................ 4-6
Braking in Emergencies
........................... 4-9
Break-In, New Vehicle
.......................... 2- 12
Brightness Control
.............................. 2-34
BTSI
......................................... 2-24
Bulb Replacement
.............................. 6-3 1
Canadian Roadside Assistance .................... 8-7
Capacities and Specifications
...................... 6-63
Carbon Monoxide
................ 2-8,2-25,4-27, 4-33
Cassette Deck Service
........................... 7-37
Cassette Tape Player
............................. 3-7
Cassette Tape Player Care
........................ 3- 19
Center High-Mounted Stoplamp Bulb Replacement
.... 6-34
Center Passenger Position
........................ 1-26
CertificationLabel
.............................. 4-29
Chains, Safety
................................. 4-34
Chains. Tire
................................... 6-45
Parking
..................................... 2-20
PedalTravel
................................. 6-30
Wear
....................................... 6-29
BTSICheck
................................... 7-39 Change Oil Soon Light
.......................... 2-58
Changing a Flat Tire
............................. 5-24
Charging System Light
.......................... 2-49
Checking Your Restraint Systems
.................. 1-45
Chemical Paint Spotting
.......................... 6-53
Child Restraints
................................ 1-34
Securing
in a Rear Outside Seat Position ........... 1-36
Securing
in the Center Rear Seat Position .......... 1-38
Securing in the Passenger Seat Position
........... 1-39
Securing in the Right Front Seat Position
.......... 1-39
TopStrap
....,.....,......,................. l-35
WheretoPut ................................ 1-34
Cigarette Lighter
............................... 2-39
Circuit Breakers and Fuses
....................... 6-56
Cleaner, Air
................................... 6-16
Cleaning
...................................... 6-46
Aluminum Wheels
............................ 6-52
Exterior Lampshenses
........................ 6-51
Glass Surfaces ............................... 6-50
Inside of Your Chevrolet
....................... 6-46
Outside
of Your Chevrolet ...................... 6-51
Special Problems ............................. 6-48
Vinyl
....................................... 6-49
Windshield and Wiper Blades
................... 6-50
Fabric
...................................... 6-46
FabricProtection
............................. 6-47
Instrumentpanel
............................. 6-49
Leather
..................................... 6-49
SafetyBelts
................................. 6-50
Stains
...................................... 6-46
Tires
....................................... 6-52
Wheels
..................................... 6-51
9-2
