1997 CHEVROLET CORVETTE headlamp

Downloaded from www.Manualslib.com manuals search engine 3.
4.
5.

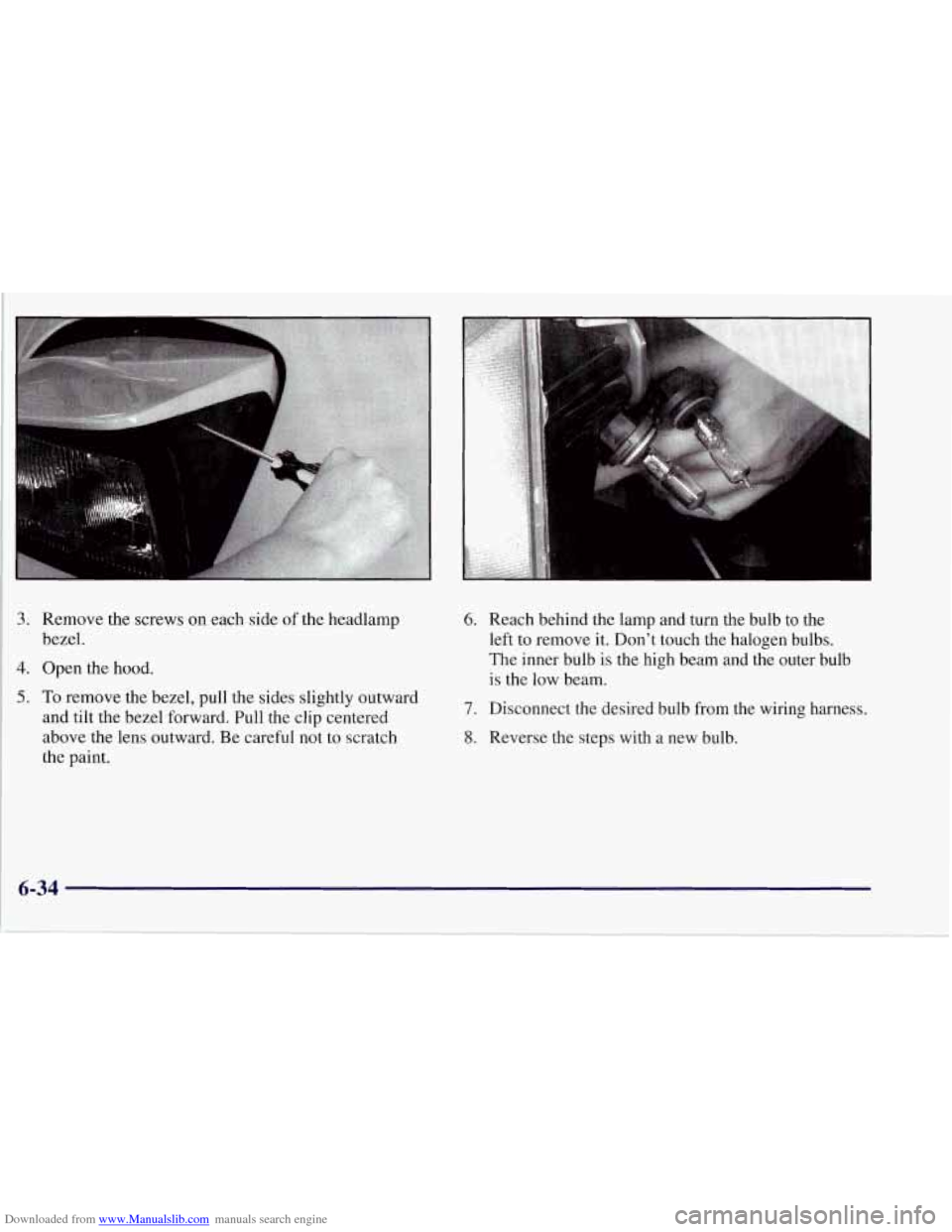

Remove the screws on each side of the headlamp
bezel.
Open the hood.
To remove the bezel, pull the sides slightly outward
and
tilt the bezel forward. Pull the clip centered
above the lens outward. Be careful not to scratch
the paint.
6. Reach behind the lamp and turn the bulb to the
left
to remove it. Don’t touch the halogen bulbs.
The inner bulb is the high beam and the outer bulb
is the low beam.
7. Disconnect the desired bulb from the wiring harness.
8. Reverse the steps with a new bulb.
6-34

Downloaded from www.Manualslib.com manuals search engine Wheel Alignment and Tire Balance
The wheels on your vehicle were aligned and balanced
carefully at the factory to give you the longest tire life
and best overall performance.
Scheduled wheel alignment and wheel balancing
are not
needed. However, if you notice unusual tire wear or
your vehicle pulling one way or the other, the alignment
may need to be reset. If you notice your vehicle
vibrating when driving on a smooth road, your wheels may need to be rebalanced.
Wheel Replacement
Replace any wheel that is bent, cracked, or badly rusted
or corroded. If wheel nuts keep coming loose, the wheel,
wheel bolts and wheel nuts should be replaced. If the
wheel leaks air, replace it (except some aluminum
wheels, which can sometimes be repaired). See your
Chevrolet dealer if any of these conditions exist.
Your dealer will know the kind of wheel you need.
Each new wheel should have the same load-carrying
capacity, diameter, width, offset and be mounted the
same way as the one it replaces.
If you need to replace any of your wheels, wheel bolts
or wheel nuts, replace them only with new
GM original
equipment parts. This way, you will be sure to have the
right wheel, wheel bolts and wheel nuts for your
Corvette.
Using the wrong replacement wheels, wheel bolts
or wheel nuts on your vehicle can be dangerous. It
could affect the braking and handling
of your
vehicle, make your
tires lose air and make you lose
control. You could have
a collision in which you or
others could be injured. Always use the correct
wheel, wheel bolts and wheel nuts for replacement.
NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer or
odometer calibration, headlamp aim, bumper
height, vehicle ground clearance and tire
clearance to the body and chassis.

Downloaded from www.Manualslib.com manuals search engine NOTICE:
When using the accessory plug:
0
0
0
0
DO NOT splice wires directly into the
vehicle electrical wire harness.
If done
incorrectly, splicing may cause damage to
your electrical system and would not be
covered by the vehicle’s warranty.
The maximum load of any electrical
equipment should not exceed
15 amps.
Be sure to turn off any electrical equipment
when not in use. Leaving electrical
equipment on for extended periods of time
can drain your battery.
DO NOT use this plug if the electrical
equipment requires frequent connecting
and disconnecting. This may cause
excessive wear on the accessory plug and
damage your electrical system and the
damage would not be covered by
your warranty.
Headlamps
The headlamp wiring is protected by a circuit breaker.
An electrical overload will cause the lamps to go on and
off, or in some cases to remain off. If this happens, have
your headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by a fuse and
an internal circuit breaker.
If the motor overheats due to
heavy snow, etc., the wiper will stop until the motor
cools. If the overload
is caused by some electrical
problem and not snow, etc., be sure to get
it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power seats and other power
accessories. When the current load is too heavy, the
circuit breaker opens and closes, protecting the circuit
until the problem is fixed or goes away.
6-62

Downloaded from www.Manualslib.com manuals search engine Fuse
22
23
24
25
26
27
28
29
30
31
32
33
34
35 36
37
Usage
Body Control Module - Ignition 3
Body Control Module - Ignition 2
Radio Antenna
Body Control Module
- Ignition I,
Instrument Panel Control
Hatch/Trunk Release
HVAC Controls
Bose Speakers
Diagnostic
Right Door Control Module Power Feed Door Right
Fuel Tank Door
Door Control Module Left
Power Feed Door Left
Driver Power Seat (Circuit Breaker)
Passenger Power Seat (Circuit Breaker)
Micro Relay
- Monitored (Inadvertent)
Load Control 41
42
43
44
45
46
47
48
49
50
51
52
39
40
Fuse Usage
38 Micro Relay - Right Daytime
Running Lamp
Micro Relay
- Hatch Release
Micro Relay -Left Daytime
Running Lamp
Blank
Micro Relay
- Courtesy Lamps
Bose Mini Relay
- Speakers
Mini Relay
- Rear Defogger
Maxifuse
- Ignition 2
Maxifuse - Rear Defogger
Blank
Maxifuse
- Ignition
Maxifuse
- Blower Motor
Starter
Blank Maxi Circuit Breaker
- Headlamps
6-65

Downloaded from www.Manualslib.com manuals search engine Engine Compartment Fuse Block

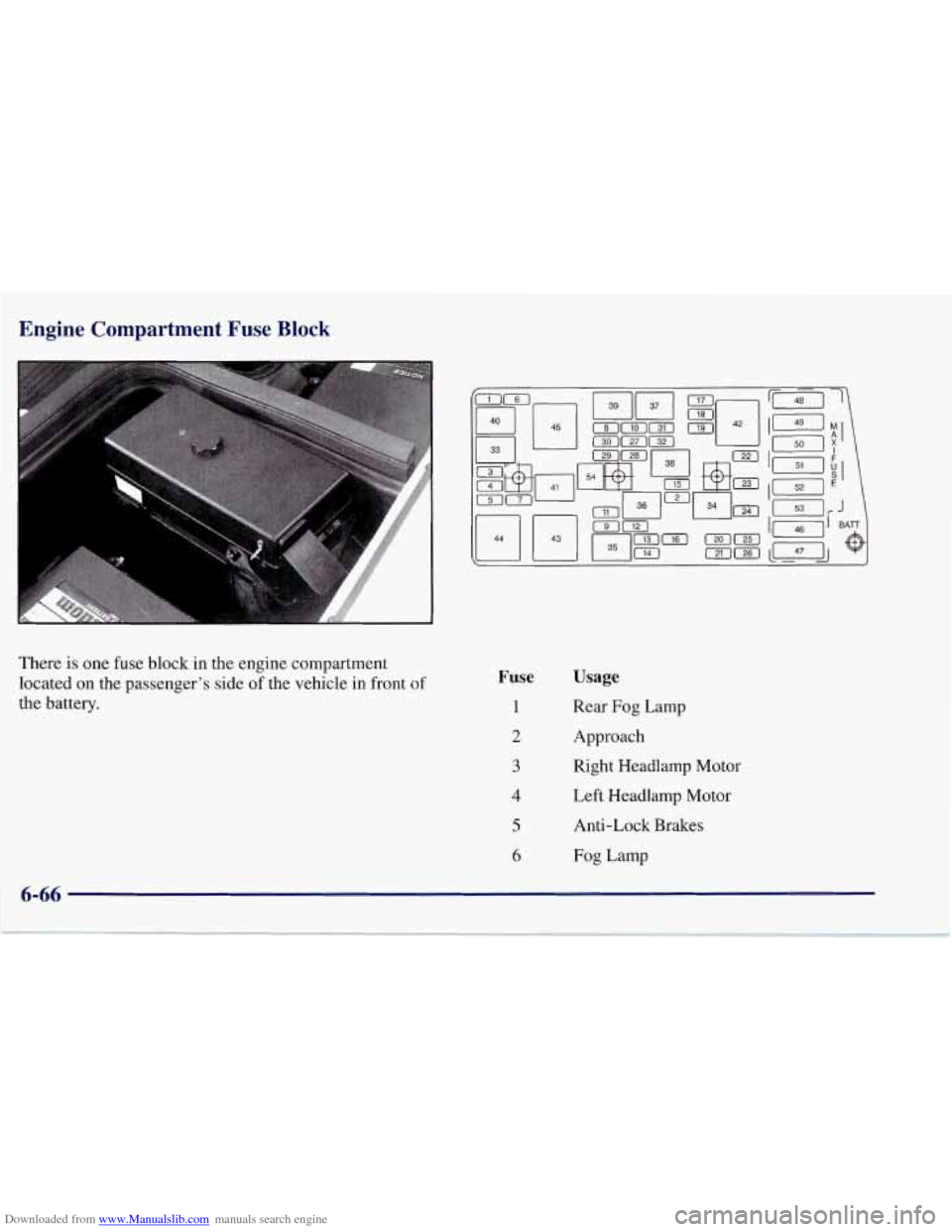

There is one fuse block in the engine compartment
located on the passenger’s side of the vehicle in front
of
the battery.
J
i EATT
J
Fuse
1
2
3
4
5
6
Usage
Rear Fog Lamp
Approach
Right Headlamp Motor
Left Headlamp Motor
Anti-Lock Brakes
Fog Lamp
‘ 6-66

Downloaded from www.Manualslib.com manuals search engine Fuse
7
8
9
10 11
12
13
14
15
16
17
18
19
20
Usage
Selective Real Time Damping
Headlamp
Low Beam Right
Headlamp High Beam Right
Headlamp
Low Beam Left
Horn
Headlamp High Beam Left
Fuel Pump Cooling Fan
- Ignition 3
Oxygen Sensor
Powertrain Control Module
Throttle Control
Injector 2
Engine Ignition
Blank
Fuse
21
22
23
24
25
26 27
28
29
30 31
32
33
34
Usage
Blank
Injector
1
Powertrain Control Module
Air Conditioning
Blank
Blank
Spare Spare
Spare
Spare
Spare
Spare
Micro Relay
- Air Pump
Micro Relay
- Air Conditioner
and Clutch
6-67

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Automatic Transmission Indicator ............ 194
Console Compartment Flood
................ LED
Glove Box Lamp ......................... 194
Mirror Reading Lamps
.................... 212-2
Visor Vanity Mirror
........................ 37
Underhood
............................. 211-2
IP Courtesy Lamps
........................ 194
Headlamp High Beam
.................... 9005
Headlamp Low Beam .................... 9006
Fog .................................... 893
Rear Courtesy .......................... PC168
Front ParlunglTurn Signal
............. 3 157NAK
Back-up
............................... 2057
Front Sidemarker
......................... 194
Rear Sidemarker
......................... 194
Stopflail Turn Signal
..................... 3057
Center High-Mounted Stoplamp
............. LED
License
................................. 194
Capacities and Specifications
Engine
Type .................................... V8
Fuel Delivery ............ Sequential Multi-Port
VIN Engine Code .......................... G
Fuel Injection (SFI)
Valve Arrangement ............. Overhead Valve
Piston Displacement ..................... 5.7 L
Bore ...................... 3.90 inches (9.9 cm)
Stroke .................... 3.62 inches (9.2 cm)
Compression Ratio ..................... 10.1 : 1
Horsepower ............................. 345
Firing Order .................. 1-8-7-2-6-5-4-3
Thermostat Temperature
Specification
.................. 1 87 O F (86 O C)
6-69

Downloaded from www.Manualslib.com manuals search engine Fiberglass Springs .............................. 6-58
Fifth Gear. Manual Transmission
................... 2-29
Filling Your Tank
................................ 6-5
Filter. Air Cleaner
.............................. 6- 16
Finish Care
.................................... 6-56
Finish Damage
................................. 6-57
First Gear. Automatic Transmission
................ 2-28
First Gear. Manual Transmission
................... 2-29
Flashers. Hazard Warning
......................... 5-2
Flat Tire. What to
Do ............................ 5-22
Floor Mats
.................................... 2-60
Fluid Capacities
................................ 6-70
FobTraining
................................... 2-89
Foreign Countries, Fuel
........................... 6-5
Fourth Gear. Manual Transmission
................. 2-29
French Language Manual
11
Front Sidemarker Lamp Bulb Replacement ........... 6-35
Front Turn Signal Lamp Bulb Replacement
.......... 6-35
Fuel
.......................................... 6-3
Canada
...................................... 6-4
In Foreign Countries
........................... 6-5
Fuel. Filling Your Tank
........................... 6-5
Fuses and Circuit Breakers
....................... 6-63
Gages
FogLamps
.................................... 2-51
.. ...........................
FrontTowing .................................. 5-10
Gage ....................................... 2-80
Engine Coolant Temperature
.................... 2-75
Engine Oil Pressure
........................... 2-78
Fuel
....................................... 2-81
Voltmeter
................................... 2-73 GAWR
.................................. 4.30. 4.31
Gear Positions
................................. 2-26
Gross Axle Weight Rating
................... 4.30. 4.31
Gross Vehicle Weight Rating
................. 4.30. 4-31
Guide en Franpis
11
GVWR .................................. 4.30. 4.31
Halogen Bulbs
................................ 6-33
Hazard Warning Flashers
.......................... 5-2
Headlamp Doors
............................... 2-44
Headlamp/Highbeams Bulb Replacement
............ 6-33
Headlamps
.................................... 2-43
Wiring
..........................................
Hearing Impaired, Customer Assistance .............. 8-4
Heating
....................................... 3-12
High-Beam Lamps
.............................. 2-45
Highway Hypnosis
............ ............... 4-24
Hill and Mountain Roads
..... ............. 4-24
Hood
Checking Things Under
...... .............. 6-8
Release
.................................... 6-8
Horn
......................................... 2-40
Hydraulic Clutch
............................... 6-20
Hydroplaning
.......................... ... 4-20
.. .................................
HighLow Beamchanger ...................... 2-45
Heritage Pages
111 ... ...................................
Ignition Switch .............. ............... 2-20
Inadvertent Load Control
....... ............... 2-53
Inflation. Tire
.................................. 6-43
Inside Daymight Rearview Mirror
................. 2-53
9-5
