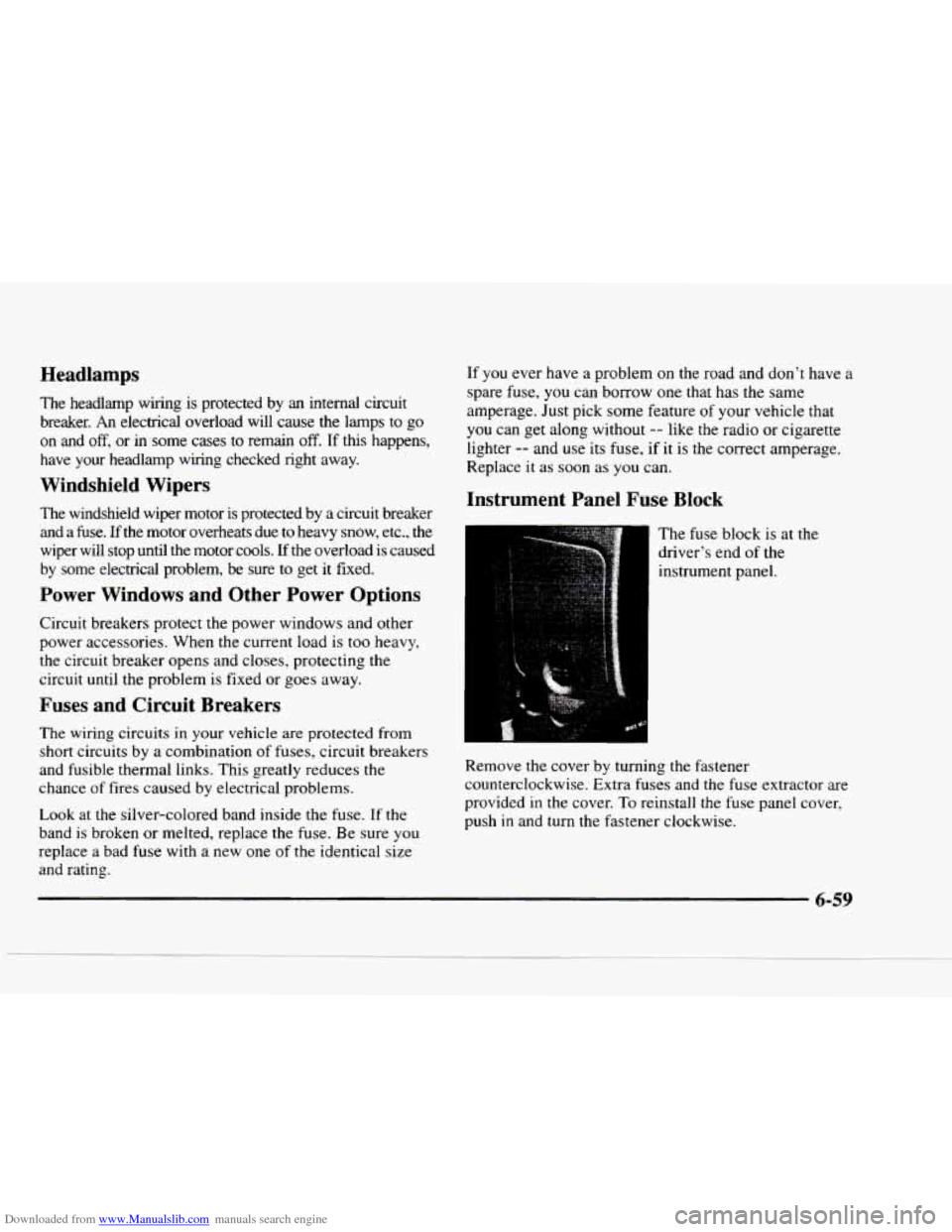

Downloaded from www.Manualslib.com manuals search engine Headlamps
The headlamp wiring is protected by an internal circuit
breaker.
An electrical overload will cause the lamps to go
on and off, or in some cases to remain off. If this happens,
have your headlamp wiring checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit breaker
and a fuse.
If the motor overheats due to heavy snow, etc., the
wiper will stop until the motor cools.
If the overload is caused
by some electrical problem, be sure
to get it fixed.
Power Windows and Other Power Options
Circuit breakers protect the power windows and other
power accessories. When
the current load is too heavy,
the circuit breaker opens and closes, protecting the
circuit until the problem is fixed or goes away.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses, circuit breakers
and fusible thermal links. This greatly reduces the
chance
of fires caused by electrical problems.
Look at the silver-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating. If you
ever have a problem on the road and don't have
a
spare fuse, you can borrow one that has the same
amperage. Just pick some feature
of your vehicle that
you
can get along without -- like the radio or cigarette
lighter
-- and use its fuse, if it is the correct amperage.
Replace it as soon as
you can.
Instrument Panel Fuse Block
The fuse block is at the
driver's end
of the
instrument panel.
Remove the cover by turning the fastener
counterclockwise. Extra fuses and the fuse extractor
are
provided in the cover. To reinstall the fuse panel cover,
push
in and turn the fastener clockwise.
Downloaded from www.Manualslib.com manuals search engine FuseKircuit Breaker Usage
5
6
7
8
9
10
11
12
13
14
15
Oxygen Sensor Heater, Exhaust Gas
Recirculation, Cam Sensor,
CANN.
Purge, Canister Vent Solenoid, Mass
Airflow Sensor, Cam Shaft Sensor
Blower Motor, Temperature
Door
Motor, HI Blower Relay Coil
Power Auxiliary Outlets, Assembly
Line Diagnostic Link
Rear Window Defogger
PCMNCM Battery,
Fuel Pump
PCM/VCM Ignition, Injectors, Crank
Sensor, Coil Driver Module
Radio, Inside Rearview Mirror Map
Lamp, Overhead Console Reading
Lamps, Rear Wiper, Rear Washer,
Overhead Console Display
Anti-Lock Braking System, VCM
Clock, Radio Battery, CD Player
A/C Compressor Battery Feed
Daytime Running Lamps;
Fog
Lamps, Fog Lamp Relay
IGN-3
FuseKircuit
Breaker
Usage
16
17
18
19
20
21
22
23
24
Turn Signals and Back-up Lamps,
Brake-Transmission Shift Interlock
Solenoid
Windshield Washer, Windshield
Wiper Motor
Not Used
Electric Shift Transfer Case
Crank Relay, Air Bag Module
Not Used
Air Bag Module
Cluster Illumination, Radio
Illumination, Heater Lamp,
4WD
Illumination, Chime Module, Fog
Lamp Illumination, Rear Wiper
Switch Illumination, Rear Defogger
Switch Illumination, Liftglass
Release Switch Illumination,
Overhead Console Illumination
PRNDL Power, 4L6OE Automatic
Transmission
6-61
