1997 AUDI A4 Rear Seats Workshop Manual

72-73

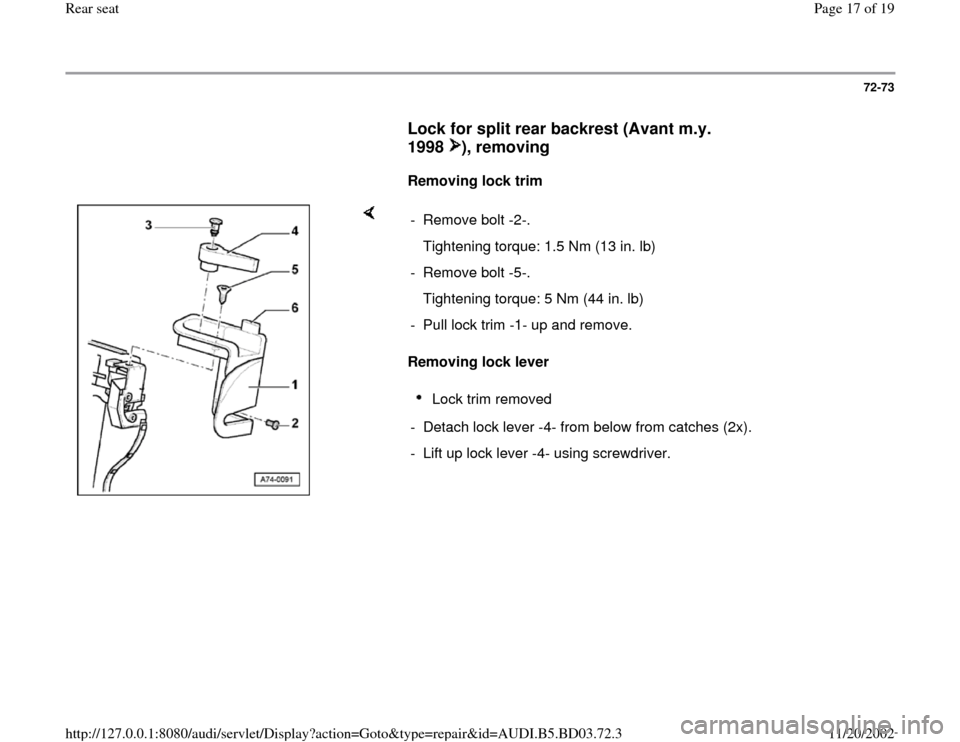

Lock for split rear backrest (Avant m.y.
1998 ), removing


Removing lock trim

Removing lock lever - Remove bolt -2-.
Tightening torque: 1.5 Nm (13 in. lb)
- Remove bolt -5-.
Tightening torque: 5 Nm (44 in. lb)
- Pull lock trim -1- up and remove.
Lock trim removed
- Detach lock lever -4- from below from catches (2x).
- Lift up lock lever -4- using screwdriver.
Pa
ge 17 of 19 Rear seat11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.72.3

72-74

Removing locking cylinder

Warning indicator
Ignition key is required to remove and install locking cylinder -3- Locking lever -4- removed
- Using screwdriver, lift catches while simultaneously pressing out
locking cylinder -3-. When rear backrest is locked, pin -6- is 1-2 mm above lock trim.If rear backrest is not locked, pin -6- is approx. 20 mm above lock trim
-1- and a red mark is visible.
Pa
ge 18 of 19 Rear seat11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.72.3

72-75

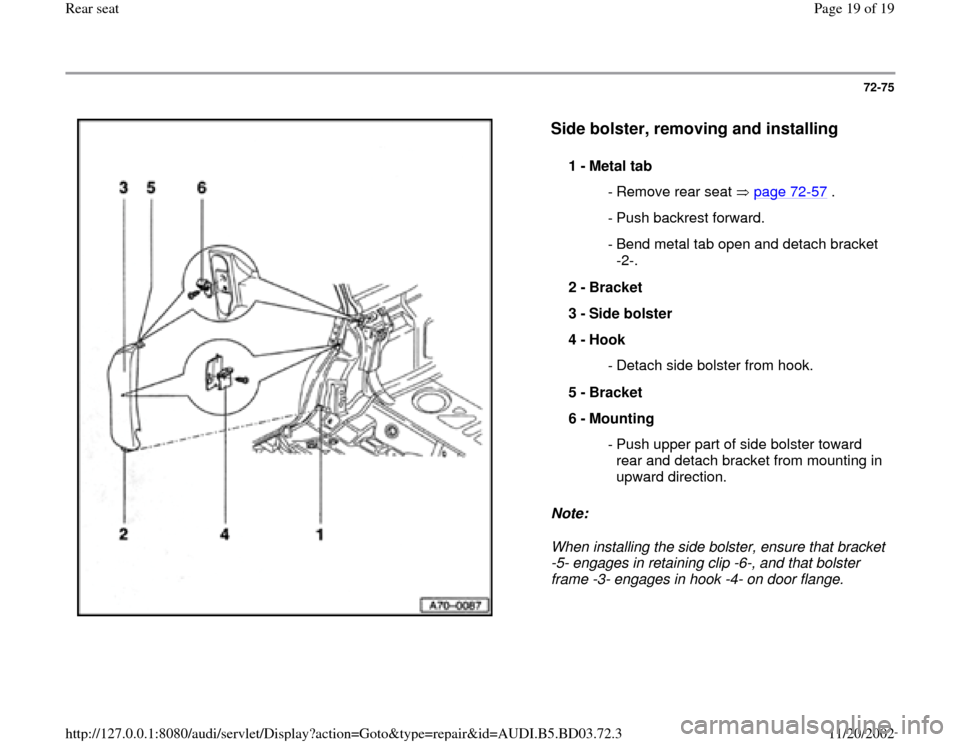

Side bolster, removing and installing

Note:
When installing the side bolster, ensure that bracket
-5- engages in retaining clip -6-, and that bolster
frame -3- engages in hook -4- on door flange. 1 -
Metal tab
- Remove rear seat page 72
-57
.
- Push backrest forward.
- Bend metal tab open and detach bracket
-2-.
2 -
Bracket
3 -
Side bolster
4 -
Hook
- Detach side bolster from hook.
5 -
Bracket
6 -
Mounting
- Push upper part of side bolster toward
rear and detach bracket from mounting in
upward direction.
