72-74

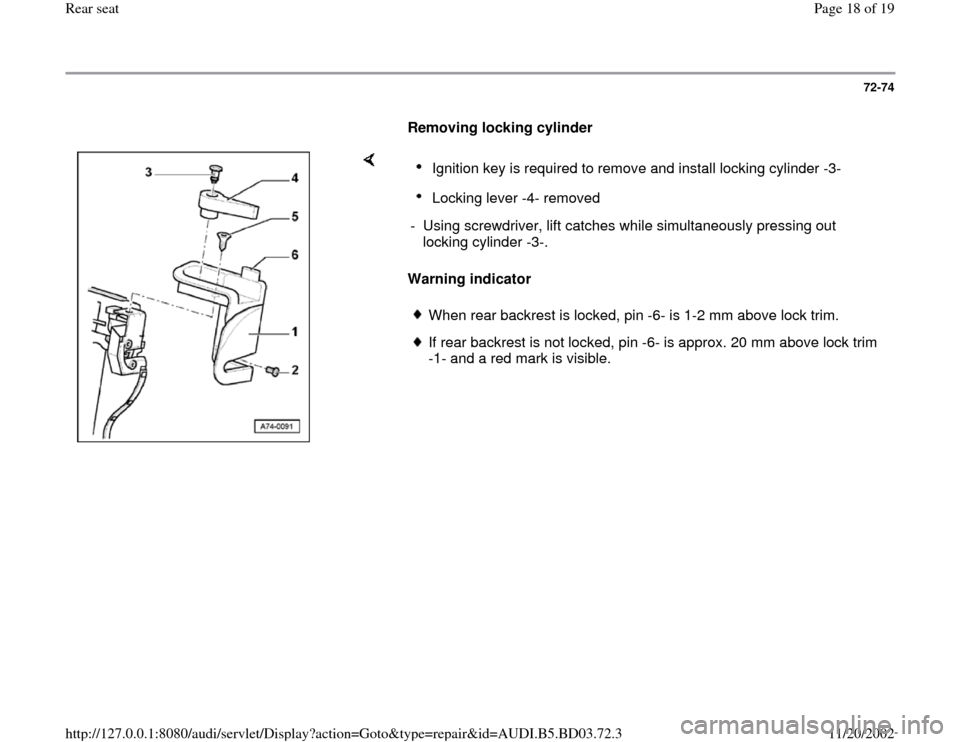

Removing locking cylinder
Warning indicator
Ignition key is required to remove and install locking cylinder -3- Locking lever -4- removed
- Using screwdriver, lift catches while simultaneously pressing out
locking cylinder -3-. When rear backrest is locked, pin -6- is 1-2 mm above lock trim.If rear backrest is not locked, pin -6- is approx. 20 mm above lock trim
-1- and a red mark is visible.
