Rear seat

Rear seat, removing and installing


- Using screwdriver -2-, carefully lift headrest guides -3- out of rear
backrest -1-.

- Detach rear seat -2- upward out of mounting -3-.
- To install, brackets -2- must be pushed into mountings -3-.
Pa
ge 1 of 19 Rear seat
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.72.3

72-58


One-piece rear seat backrest, removing
and installing

Notes: 1 -
One-piece backrest
- Remove rear seat page 72
-57
.
- Remove headrests page 72
-70
.
- For vehicle with ski sack, remove ski
sack frame page 74
-31
.
- Remove headrest guides page 72
-67
.
- Remove bolts -3- (2x).
- Push rear backrest -1- up and detach
rear backrest -1- from brackets -4- (4x).
Vehicles with LATCH System:
- Remove tabs -2- behind LATCH bracket.
To install rear backrest, push tab -2-
behind LATCH bracket. If LATCH is retrofitted, it may be necessary
to flatten tab -2- in vise down to about 3
mm.
2 -
Tab
Pa
ge 2 of 19 Rear seat
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.72.3

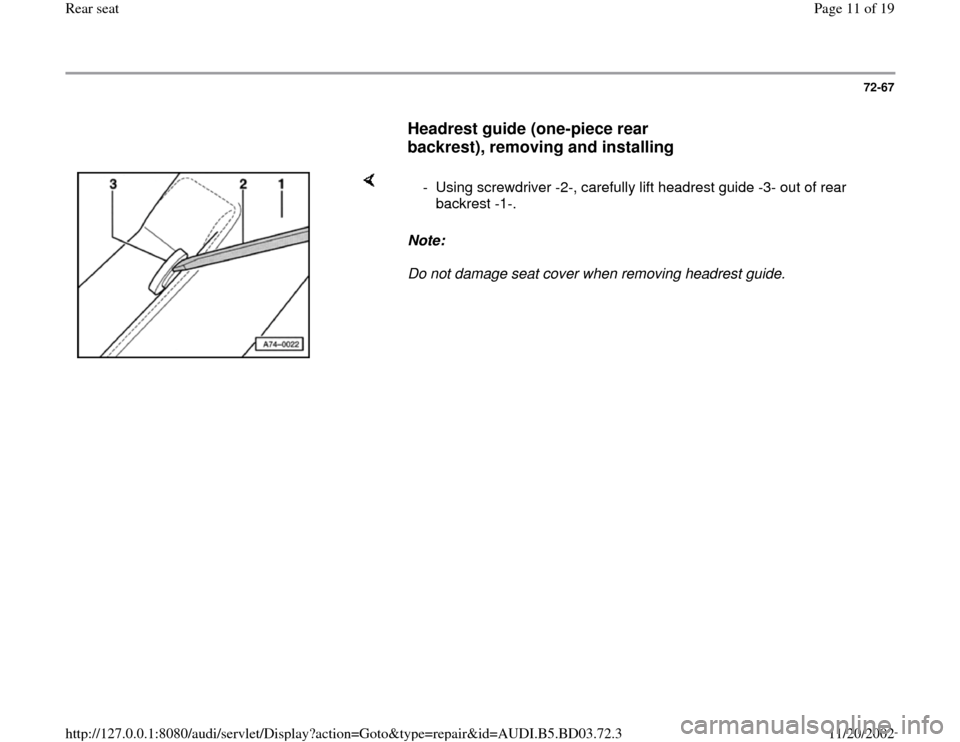

72-67

Headrest guide (one-piece rear
backrest), removing and installing


Note:
Do not damage seat cover when removing headrest guide. - Using screwdriver -2-, carefully lift headrest guide -3- out of rear
backrest -1-.
Pa
ge 11 of 19 Rear seat11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.BD03.72.3

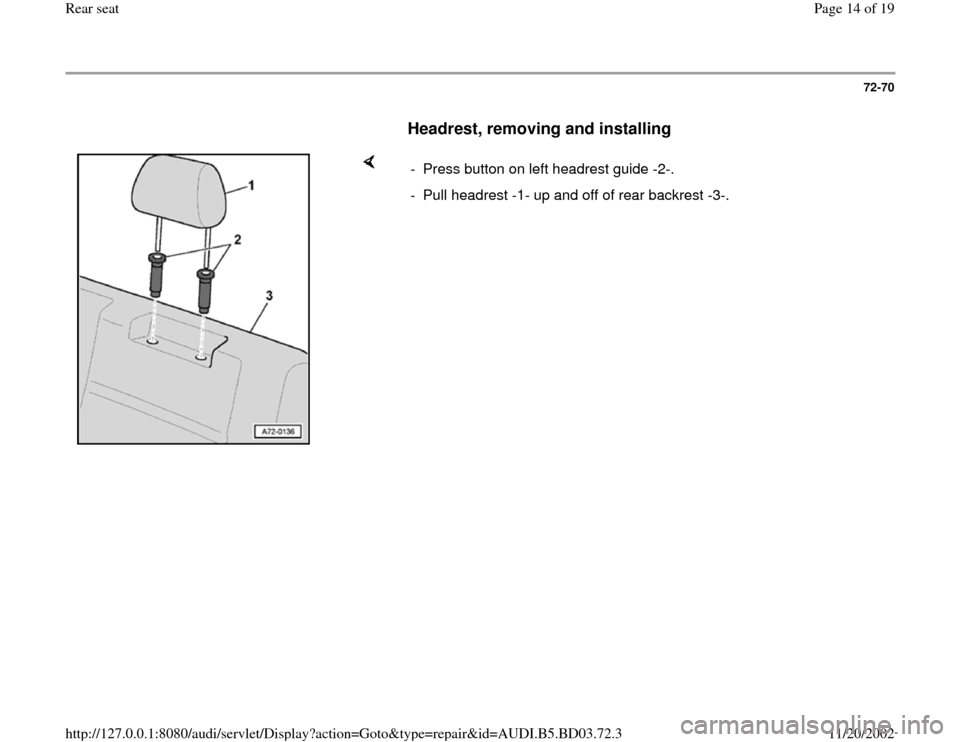

72-70

Headrest, removing and installing


- Press button on left headrest guide -2-.
- Pull headrest -1- up and off of rear backrest -3-.
