1997 AUDI A4 AWM Engine Assembly Workshop Manual

13-25

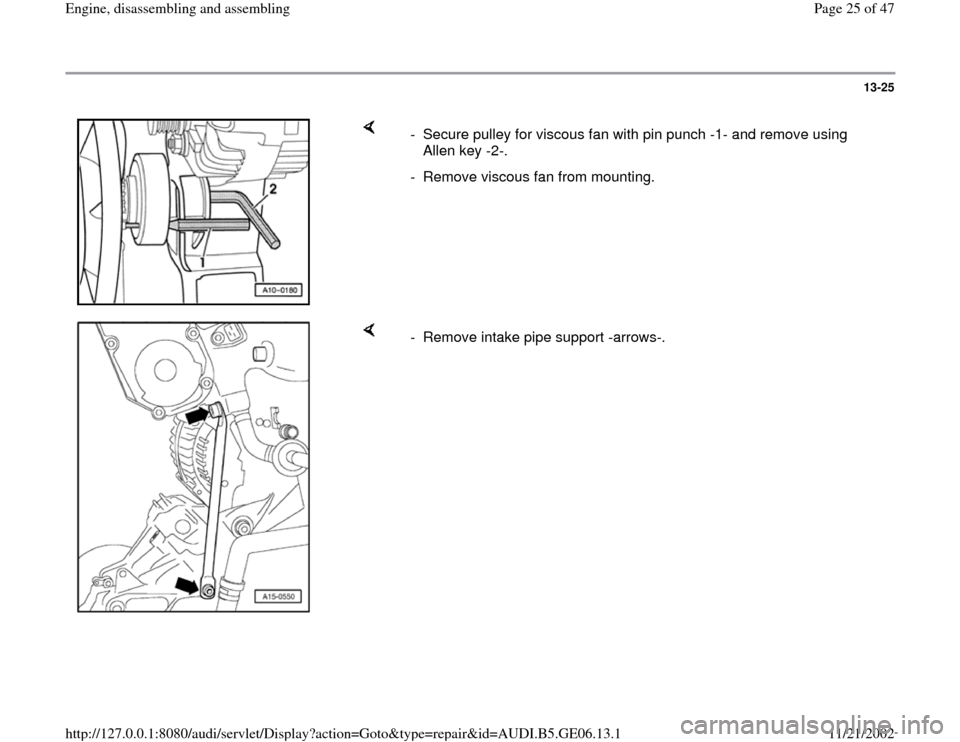

- Secure pulley for viscous fan with pin punch -1- and remove using
Allen key -2-.
- Remove viscous fan from mounting.

- Remove intake pipe support -arrows-.
Pa
ge 25 of 47 En
gine, disassemblin
g and assemblin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.13.1

13-26

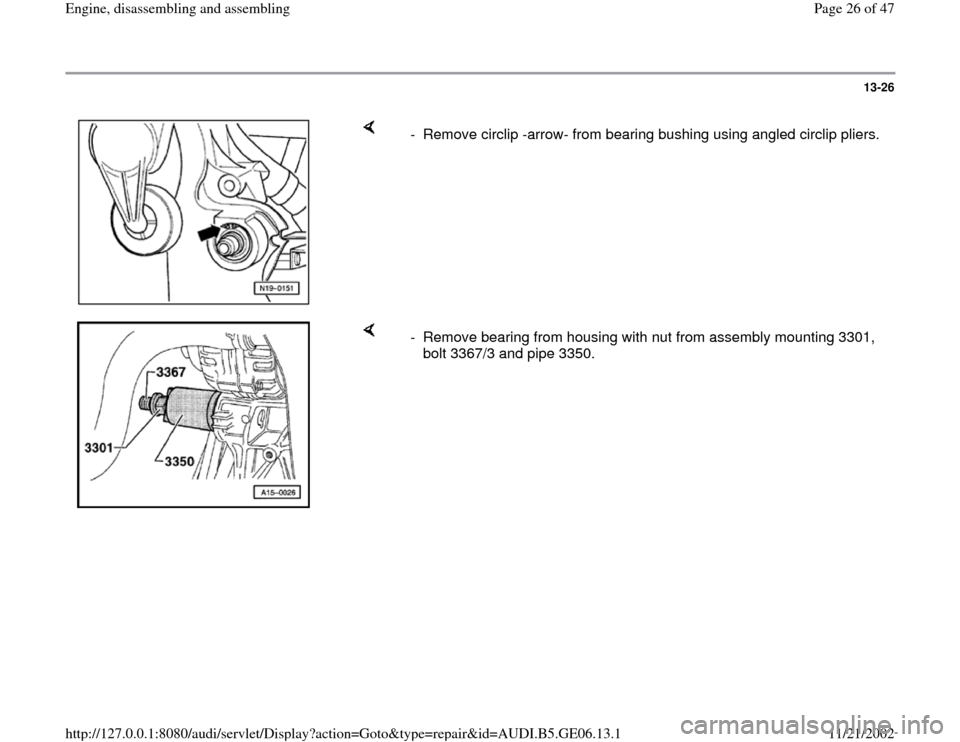

- Remove circlip -arrow- from bearing bushing using angled circlip pliers.

- Remove bearing from housing with nut from assembly mounting 3301,
bolt 3367/3 and pipe 3350.
Pa
ge 26 of 47 En
gine, disassemblin
g and assemblin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.13.1

13-27

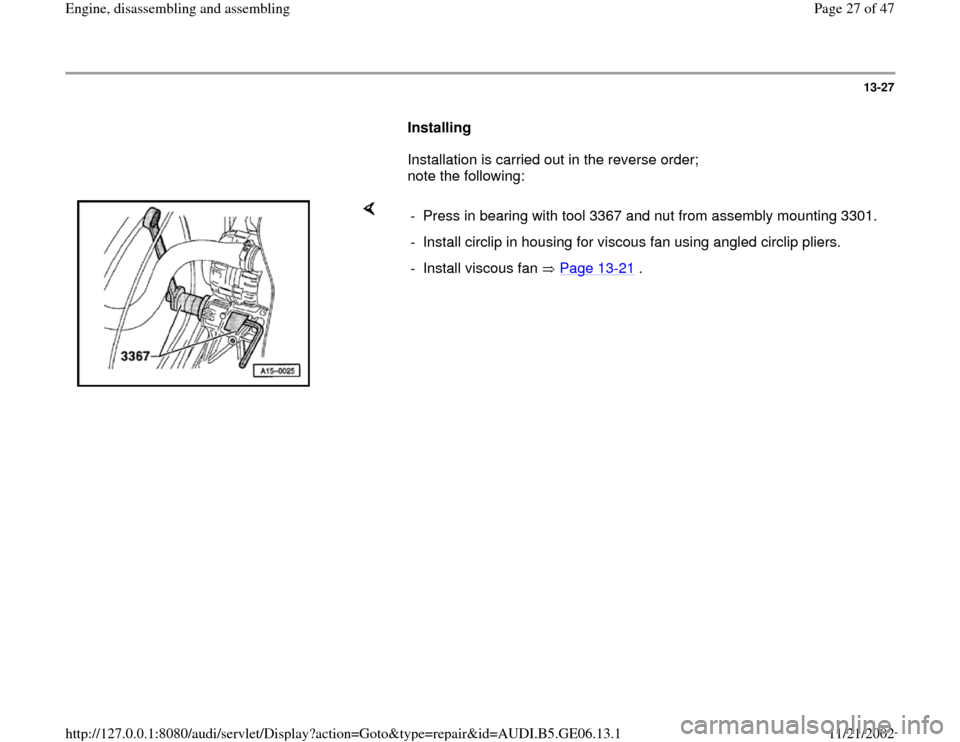

Installing
Installation is carried out in the reverse order;
note the following:

- Press in bearing with tool 3367 and nut from assembly mounting 3301.
- Install circlip in housing for viscous fan using angled circlip pliers.
- Install viscous fan Page 13
-21
.
Pa
ge 27 of 47 En
gine, disassemblin
g and assemblin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.13.1

13-28

Bracket for Generator, power steering
pump and viscous fan, removing and
installing


Removing

- Observe or obtain radio anti-theft code on
vehicles with coded radio.

- Disconnect Ground strap at battery with ignition
switched off.

- Remove cover from power steering fluid
reservoir.

- Mark connectors -1 to 5- and remove from bracket.
Pa
ge 28 of 47 En
gine, disassemblin
g and assemblin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.13.1

13-29

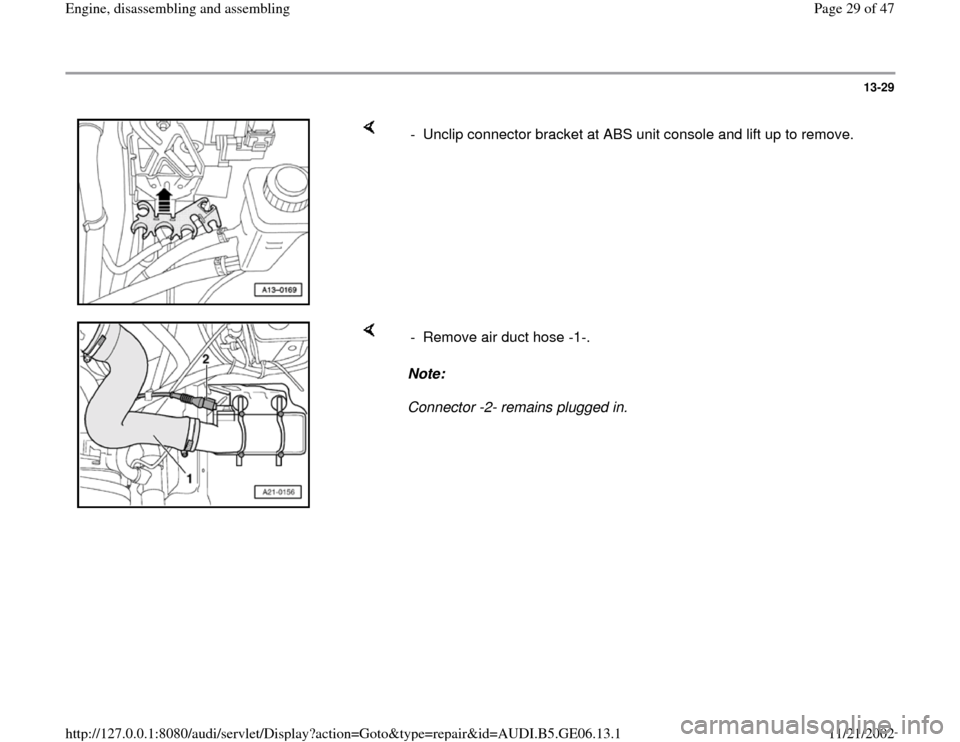

- Unclip connector bracket at ABS unit console and lift up to remove.

Note:
Connector -2- remains plugged in. - Remove air duct hose -1-.
Pa
ge 29 of 47 En
gine, disassemblin
g and assemblin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.13.1

13-30

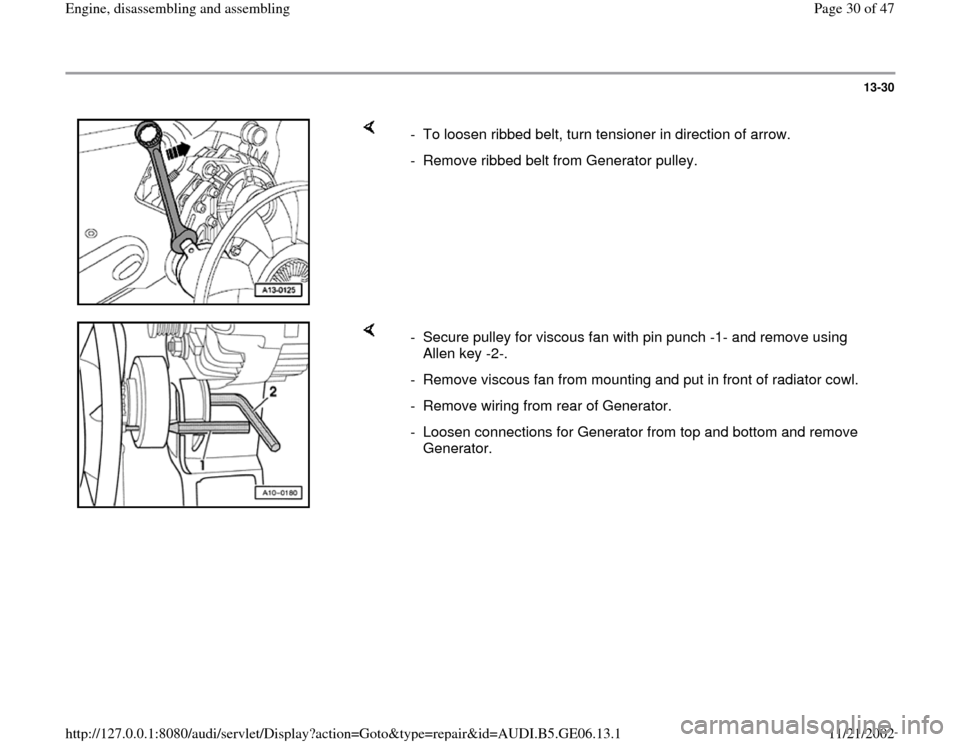

- To loosen ribbed belt, turn tensioner in direction of arrow.
- Remove ribbed belt from Generator pulley.

- Secure pulley for viscous fan with pin punch -1- and remove using
Allen key -2-.
- Remove viscous fan from mounting and put in front of radiator cowl.
- Remove wiring from rear of Generator.
- Loosen connections for Generator from top and bottom and remove
Generator.
Pa
ge 30 of 47 En
gine, disassemblin
g and assemblin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.13.1

13-31

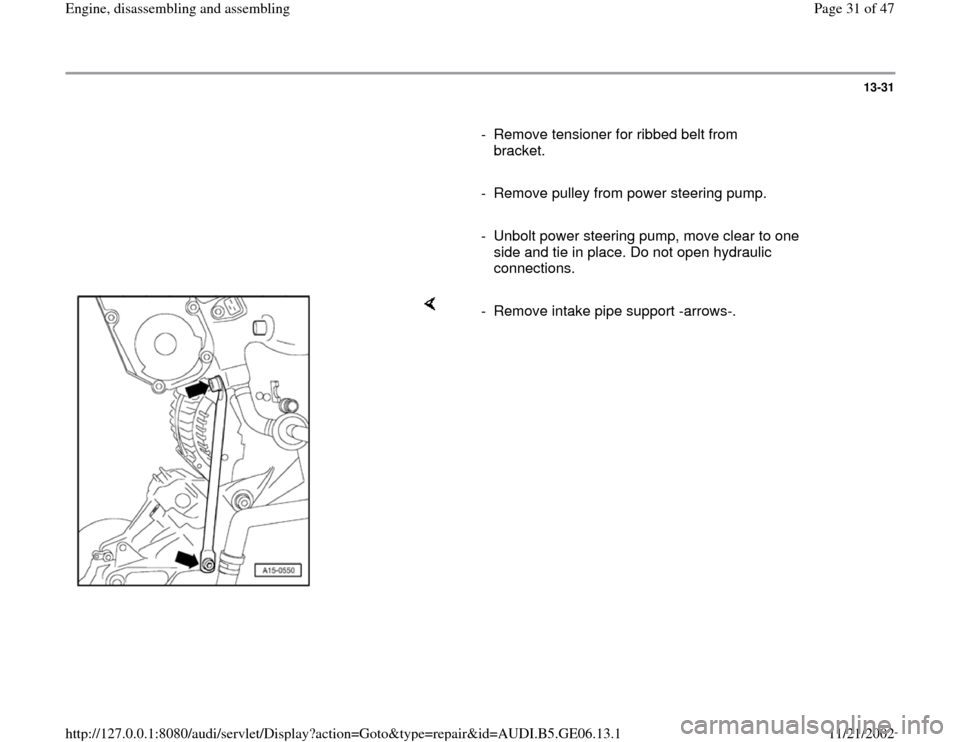

- Remove tensioner for ribbed belt from
bracket.

- Remove pulley from power steering pump.

- Unbolt power steering pump, move clear to one
side and tie in place. Do not open hydraulic
connections.

- Remove intake pipe support -arrows-.
Pa
ge 31 of 47 En
gine, disassemblin
g and assemblin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE06.13.1

13-32

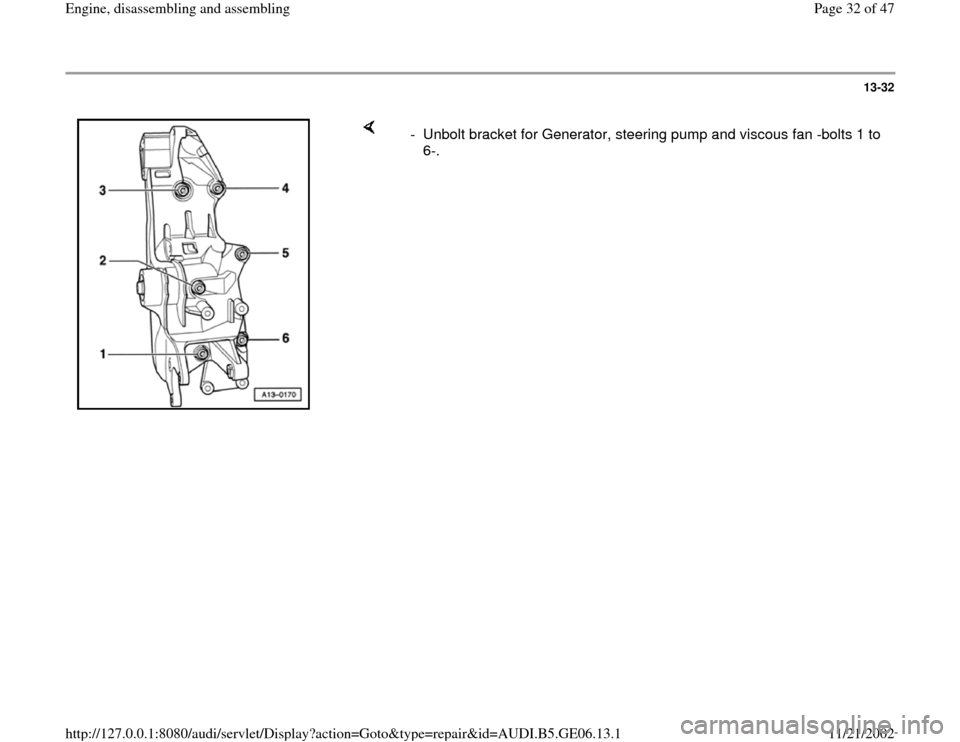

- Unbolt bracket for Generator, steering pump and viscous fan -bolts 1 to
6-.
