1997 AUDI A4 APB Engine Valve Gear Service Workshop Manual

15-17

Rear oil seal and sealing flange (left cylinder
head)

Note:
Rear sealing flange and oil seal on left-hand
cylinder head must be replaceed together as
follows:

- Remove bolts -arrows- and remove engine cover panels -A...C-.

- Remove air duct -arrows-.
Pa
ge 17 of 99 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.15.1

15-18


Note:
Leave coolant hoses connected. - Remove coolant reservoir -arrows- and move it clear to the side.
- Unplug connector from coolant level monitor.
- Move wiring harness clear at bulkhead.

- Unbolt bracket -arrows- for plug connectors on bulkhead and move
clear to the side.
- Unbolt Hall sensor housing (10 Nm).
- Remove bolt securing Hall sensor rotor (20 Nm) and carefully lever off
rotor using a screwdriver.
Pa
ge 18 of 99 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.15.1

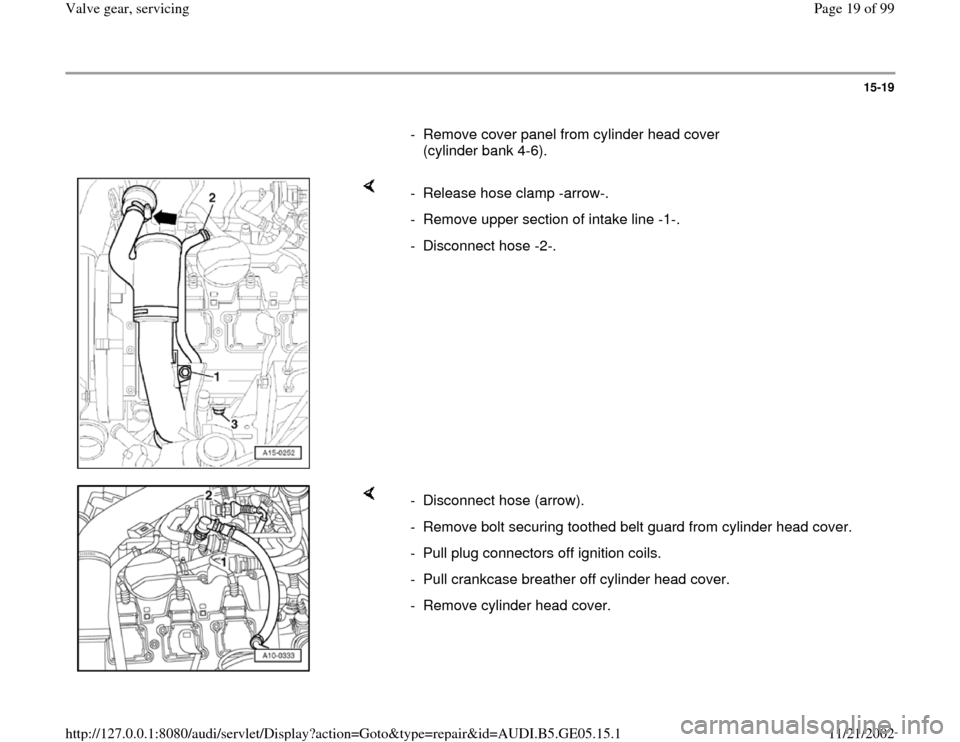

15-19

- Remove cover panel from cylinder head cover
(cylinder bank 4-6).

- Release hose clamp -arrow-.
- Remove upper section of intake line -1-.
- Disconnect hose -2-.

- Disconnect hose (arrow).
- Remove bolt securing toothed belt guard from cylinder head cover.
- Pull plug connectors off ignition coils.
- Pull crankcase breather off cylinder head cover.
- Remove cylinder head cover.
Pa
ge 19 of 99 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.15.1

15-20


- Remove double bearing cap -arrows-.
- Take out oil seal and sealing flange.
- Clean contact surfaces and sealing surfaces of double bearing cap.

- Apply a thin coating of sealant 454 300 A2 to shaded areas on double
bearing cap (see illustration), install bearing cap and tighten bolts to 10
Nm.
Pa
ge 20 of 99 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.15.1

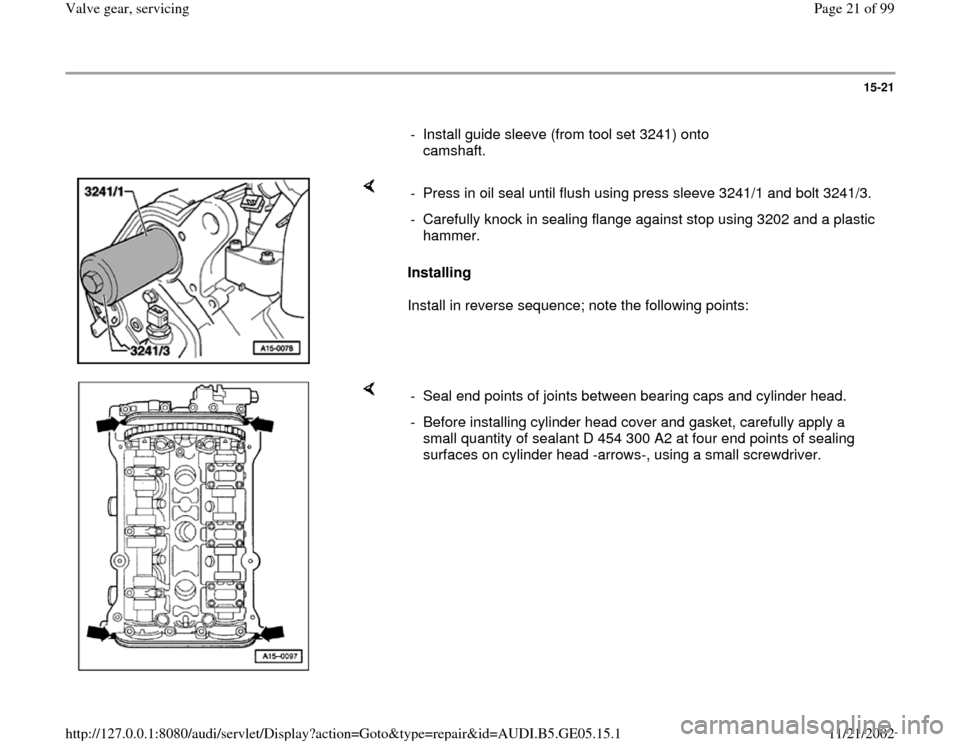

15-21

- Install guide sleeve (from tool set 3241) onto
camshaft.

Installing
Install in reverse sequence; note the following points: - Press in oil seal until flush using press sleeve 3241/1 and bolt 3241/3.
- Carefully knock in sealing flange against stop using 3202 and a plastic
hammer.

- Seal end points of joints between bearing caps and cylinder head.
- Before installing cylinder head cover and gasket, carefully apply a
small quantity of sealant D 454 300 A2 at four end points of sealing
surfaces on cylinder head -arrows-, using a small screwdriver.
Pa
ge 21 of 99 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.15.1

15-22

Cylinder head covers, removing and
installing


Removing and installing left cylinder head
cover

Removing

- Remove bolts -arrows- and remove engine cover panels -A...C-.

- Remove air duct -arrows-.
Pa
ge 22 of 99 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.15.1

15-23


Note:
Leave coolant hoses connected. - Remove coolant reservoir -arrows- and move it clear to the side.
- Unplug connector from coolant level monitor.
- Remove cover panel from cylinder head cover (cylinder bank 4 - 6).

Note:
Plug lower section of intake line. - Release hose clamp -arrow-.
- Remove intake line -1-.
- Disconnect hose -2-.
- Detach water line -3-.
Pa
ge 23 of 99 Valve
gear, servicin
g
11/21/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.GE05.15.1

15-24

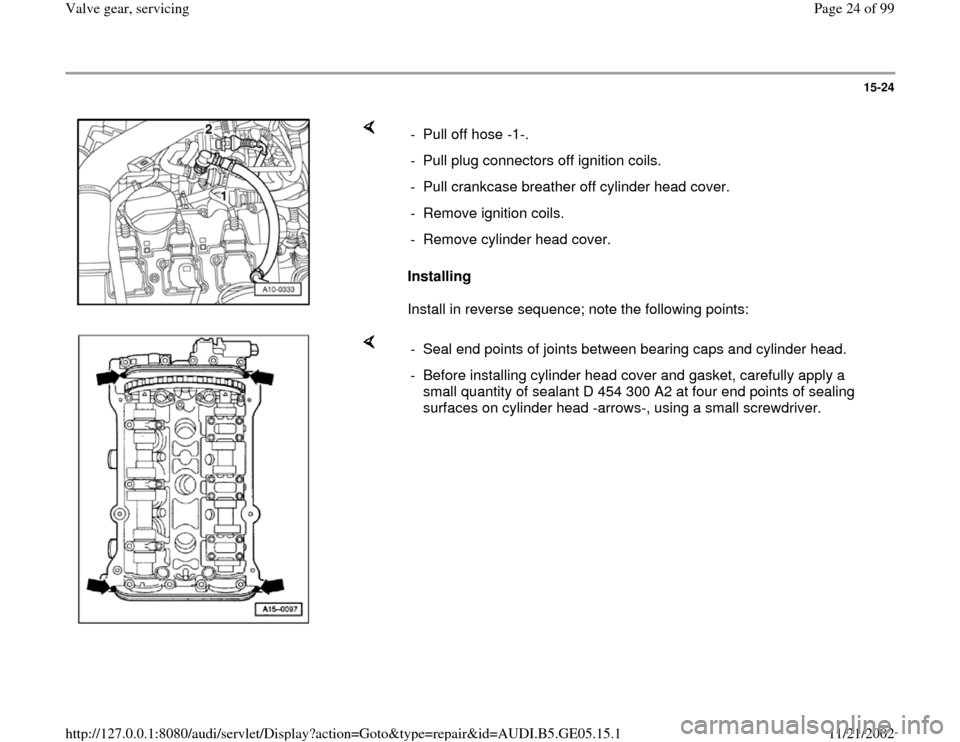

Installing
Install in reverse sequence; note the following points: - Pull off hose -1-.
- Pull plug connectors off ignition coils.
- Pull crankcase breather off cylinder head cover.
- Remove ignition coils.
- Remove cylinder head cover.

- Seal end points of joints between bearing caps and cylinder head.
- Before installing cylinder head cover and gasket, carefully apply a
small quantity of sealant D 454 300 A2 at four end points of sealing
surfaces on cylinder head -arrows-, using a small screwdriver.
Pa
ge 24 of 99 Valve
gear, servicin
