1997 AUDI A4 01V Transmission Electrical And Electronic Components Workshop Manual

01-11


Electrical/electronic
components and locations

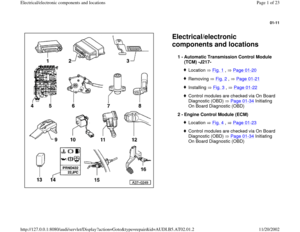

1 -
Automatic Transmission Control Module
(TCM) -J217-
Location Fig. 1
, Page 01
-20
Removing Fig. 2
, Page 01
-21
Installing Fig. 3
, Page 01
-22
Control modules are checked via On Board
Diagnostic (OBD) Page 01
-34
Initiating
On Board Diagnostic (OBD)
2 -
Engine Control Module (ECM)
Location Fig. 4
, Page 01
-23
Control modules are checked via On Board
Diagnostic (OBD) Page 01
-34
Initiating
On Board Diagnostic (OBD) Pa
ge 1 of 23 Electrical/electronic com
ponents and locations
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT02.01.2

01-12


3 -
Data Link Connector (DLC)
Location page 01
-24
, Fig. 5
4 -
Conductor strip with Transmission Fluid
Temperature (ATF) Sensor -G93-
Location page 01
-26
, Fig. 7
-G93- is checked via On Board Diagnostic
(OBD)
5 -
Valve body Location page 01
-25
, Fig. 6
The solenoid valves -N88-, -N89-, -N90-, -
N91-, -N92-, -N93- and -N94- are attached
to the valve body Components are checked via OBD
Pa
ge 2 of 23 Electrical/electronic com
ponents and locations
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT02.01.2

01-13

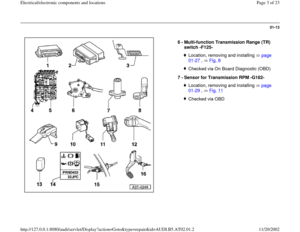

6 -
Multi-function Transmission Range (TR)
switch -F125-
Location, removing and installing page 01
-27
, Fig. 8

Checked via On Board Diagnostic (OBD)
7 -
Sensor for Transmission RPM -G182- Location, removing and installing page 01
-29
, Fig. 11

Checked via OBD
Pa
ge 3 of 23 Electrical/electronic com
ponents and locations
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT02.01.2

01-14


8 -
Transmission Vehicle Speed Sensor (VSS)
-G38- (also referred to as Sensor for
Transmission Output RPM -G195-)
Location, removing and installing page 01
-28
, Fig. 10

Checked via On Board Diagnostic (OBD)Records the transmission output speed
9 -
Tiptronic switch -F189- Location, removing and installing page 01
-27
, Fig. 9

The switch can be checked in, read
measured value block page 01
-186
and
in the electrical check page 01
-273

Pa
ge 4 of 23 Electrical/electronic com
ponents and locations
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT02.01.2

01-15


Repair Manual, 5 Spd. Automatic Transmission
01V, Repair Group 37
10 -
Shift lock solenoid -N110-
Location page 01
-30
, Fig. 12
Removing and installingCan be checked electrically page 01
-
273
and via reading measured value block
page 01
-186

Pa
ge 5 of 23 Electrical/electronic com
ponents and locations
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT02.01.2

01-16


Repair Manual, Fuel Injection & Ignition, Repair
Group 01 11 -
Throttle Position (TP) sensor -G69-
Location page 01
-30
, Fig. 13
The TP sensor signal will be checked via
On Board Diagnostic (OBD) The TP sensor signal is transmitted to the
transmission control module via the engine
control module. The signal can only be
checked in measured value block Page 01
-186
. If OBD indicates a malfunction in
the TP sensor, perform OBD for the Engine
Control Module.
Pa
ge 6 of 23 Electrical/electronic com
ponents and locations
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT02.01.2

01-17


Repair Manual, Repair Manual, Electrical
Equipment, Repair Group 94

Electrical Wiring Diagrams, Troubleshooting &
Component Locations 12 -
Cruise control switch -E45-
Location: The cruise control switch is on
the steering column Removing and installing:Can be checked during electrical test
page 01
-273

13 -
Starting interlock relay -J207-
Location page 01
-31
, Fig. 14
Pa
ge 7 of 23 Electrical/electronic com
ponents and locations
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT02.01.2

01-18


14 -
Transmission Range (TR) Selector Lever
Display -Y6-
Location page 01
-31
, Fig. 15
When the TR Selector Lever Display does
not light up, it indicates that the
transmission is in emergency running
mode with the Transmission Control
Module (TCM) inactive. All segments of the TR Selector Lever
Display light up, it indicates that the
transmission is in emergency running
mode with the TCM active.
15 -
Kick down switch -F8- Location page 01
-32
, Fig. 16
Can be checked electrically page 01
-
273
and via reading measured value block
page 01
-186

Pa
ge 8 of 23 Electrical/electronic com
ponents and locations
11/20/2002 htt
p://127.0.0.1:8080/audi/servlet/Dis
play?action=Goto&t
yp
e=re
pair&id=AUDI.B5.AT02.01.2
