1996 TOYOTA PASEO Owners Manual

Publication No. OM16488U
Part No. 01999-16488
Printed in Japan 04- 9811- 02
Quick index If a service reminder indicator or warning buzzer comes on 55 . . . . .
If your vehicle will not start 103
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your engine stalls while driving 106 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle overheats 106
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If you have a flat tire 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If your vehicle needs to be towed 114 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tips for driving during break- in period 87 . . . . . . . . . . . . . . . . . . . . . . . . . .
How to start the engine 97
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General maintenance 124
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Complete index 163
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gas station information
Fuel type: UNLEADED gasoline , Research Octane Number 91 (Octane Rating) or
higher
See page 87 for detailed information.
Fuel tank capacity: 45 L (11.9 gal., 9.9 lmp. gal.)
Engine oil: API SH, Energy- Conserving llº multigrade engine oil or ILSAC multig rade
engine oil is recommended.
Use SAE 10W- 30 if normal temperatures are above -18 C (0 F).
See page 136 for detailed information.
Tire information: See pages 139 through 143.
Tire pressure: See page 157. P–6
B

Part 11
OPERATION OF INSTRUMENTS AND CONTROLSÐ
Chapter 1-1 Overview of instruments and controls
Instrument panel overview
Instrument cluster overview
Indicator symbols on the instrument panel

21. Side vent
2. Instrument cluster
3. Center vents
4. Personal lights
5. Rear view mirror remote control lever
6. Glovebox
7. Power door lock switch
8. Power window switches
9. Parking brake lever
10. Automatic transmission selector lever or manual transmission gear shift lever
11. Hood lock release lever
Instrument panel overview

3
1. Instrument panel light control knob
2. Headlight and turn signal switch
3. Wiper and washer switches
4. Emergency flasher switch
5. Clock
6. Air conditioning controls
7. Car audio
8. Cigarette lighter
9. Ashtray
10. Cup holder
11. Rear window defogger switch
12. Ignition switch
13. Cruise control switch

4
1. Engine coolant temperature gauge
2. Fuel gauge
3. Service reminder indicators orindicator lights 4. Odometer
5. Speedometer
6. Theft deterrent system indicator light
7. Tachometer
8. Trip meter reset knob
9. Trip meter
Instrument cluster overview
With tachometer

5
1. Fuel gauge
2. Service reminder indicators or
indicator lights
3. Odometer4. Speedometer
5. Engine coolant temperature gauge
6. Trip meter reset knob
7. Trip meter

Without tachometer

Indicator symbols on the instrument panel
6
Anti-lock brake system warning light* 1
Brake system warning light *
1
Seat belt reminder light* 1
Discharge warning light* 1
Low oil pressure warning light* 1
Malfunction indicator lamp* 1
Low fuel level warning light* 1 Open door warning light*
1
SRS airbag warning light* 1
Turn signal indicator lights
Headlight high beam indicator light
Overdrive-of f indicator light
Cruise control indicator light* 2
*1: For details, see Service reminder indicators and warning
buzzersº in Chapter 1-5.
*2: If this light flashes, see Cruise controlº in Chapter 1-6.

Part 1Keys
7
OPERATION OF INSTRUMENTS AND CONTROLSÐ
Chapter 1-2 Keys and Doors
Keys
Side doors
Power windows
Trunk lid
Hood
Theft deterrent system

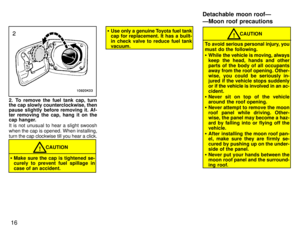

Fuel tank cap
Detachable moon roof
Detachable sun shade
Your vehicle is supplied with two
kinds of key.
1. Master keyÐThis key works in every lock.
2. SubkeyÐThis key will not work in the trunk.
To protect things locked in the trunk when
you have your vehicle parked, leave the subkey with the attendant. Since the doors and trunk lid can be
locked without a key, you should always
carry a
spare master key in case you acci-
dentally lock your keys inside the vehicle.KEY NUMBER PLATE
Your key number is shown on the
plate. Keep the plate in a safe place
such as your wallet, not in the vehicle.
If you should lose your keys or if you need
additional keys, duplicates can be made
by a Toyota dealer using the key number.
You should also put a copy of the key
number with your important papers.
