1996 PONTIAC FIREBIRD Owners Manual

ProCarManuals.com

Section ,I 3 Comfort Controls and Audio Systems
In this section you’ll find out how to operate the comfort
control and audio systems offered with your Pontiac. Be
sure
to read about the particular systems supplied with
your vehcle.
Comfort Controls
With this system, you can control the heating and
ventilation in your Pontiac.
If you have the air
conditioning option, you can also control cooling. Your
vehicle also has the flow-through ventilation
system described later in this section.
Fan Control Knob
FAN: Turn this knob to select the force of air
you want.
Temperature Control Knob
Turn the knob to change the temperature of the air
flowing from the heating system. Turn it to the right for
warmer air and
to the left for cooler air. The temperature
of the air cannot be less than the temperature of the
outside air.
3-1
ProCarManuals.com

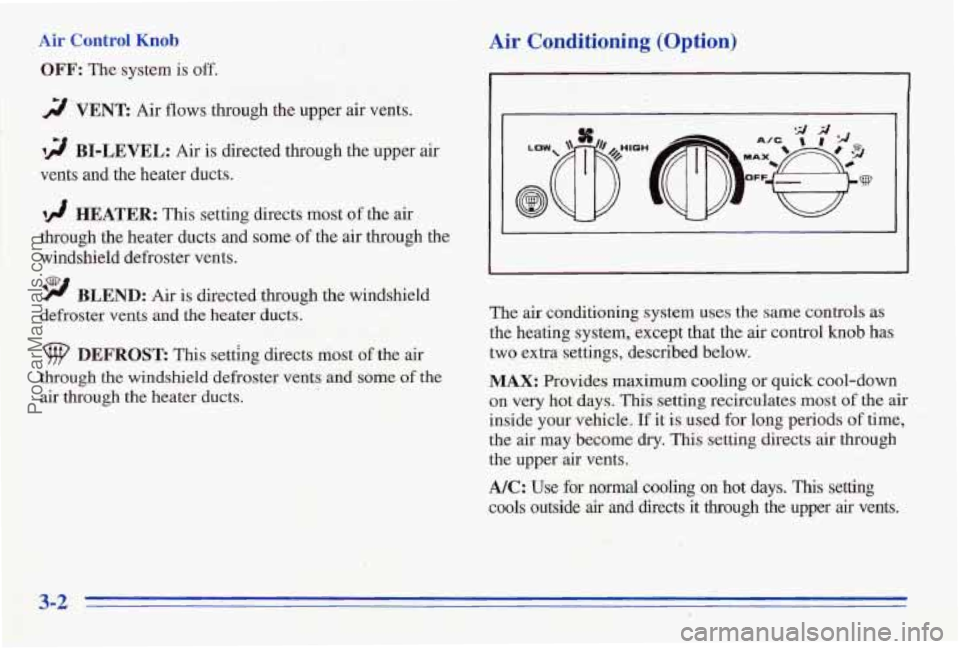

Air Control Knob
OFF: The system is off.
3 VENE Air flows through the upper air vents.
12 BI-LEVEL: Air is directed through the upper air
vents
and the heater ducts.
12 HEATER: This setting directs most of the air
through the heater ducts and some of the air through the
windshield defroster vents.
9 BLEND: Air is directed through the windshield
defroster vents and
the heater ducts.
DEFROST: This setting directs most of the air
through
the windshield defroster vents and some of the
air through the heater ducts.
The air conditioning system uses the same controls as
the heating system, except that the air control knob has . .. 7 two extra settings, described below. _.
MAX: Provides maximum cooling or quick cool-down
on very hot days.
This setting recirculates most of the air
inside your vehicle. If it is used for long periods of time9
the air
may become dry. This setting directs air through
the upper air vents.
NC: Use for normal cooling on hot days. This setting
cools outside air and directs it through the upper air vents.
ProCarManuals.com

The air conditioner compressor operates in MAX, A/C,
BI-LEVEL, BLEND and DEFROST when the outside
temperature is above freezing. When the air conditioner
is on, you may sometimes notice slight changes
in your
vehicle’s engine speed and power. This is normal because
the system .is designed to cycle the compressor on and off
to keep
the desired cooling and help fuel economy.
Cooling
The air conditioner works best if you keep your
windows closed.
On very hot days, open the windows
just long enough for the hot air to escape.
1. Turn the air control knob to A/C for normal cooling.
2. Turn the temperature control knob to a
3. Move the fan control knob to the desired speed. For faster cooling, move
the knob to
MAX.
comfortable setting. During initial start-up
only, if your vehicle
is equipped
with an optional engine coolant heater, you can use it in
cold weather (around
+20 O F/-8 O C or lower) to improve
heater performance on start up. Because an engine
coolant heater warms the engine coolant, your vehicle’s
‘heating system can more efficiently provide heat for the
passenger area
of your vehicle. See “Engine Coolant
Heater” in the Index.
Bi-Level Heating
You may want to use bi-level heating on cool, but sunny
days. This setting directs cool air toward your body and
warmer air toward your feet.
1. Turn the air control knob to BI-LEVEL.
2. Turn the temperature control knob to a
comfortable setting.
3. Turn the fan control knob to the desired speed.
Heating
The heater works best if you keep your windows closed
while using it.
1. Turn the air control knob to HEATER.
2. Turn the fan control knob to the desired speed.
3. Turn the temperature control knob to a
comfortable setting.
3-3
ProCarManuals.com

Rear Window Defogger (Option) Do not attach anything like a temporary vehicle li 1 cense
or
a decal across the defogger grid on the rear window. -
uses a warming grid to
The rear window defogger
rear window. remove
fog from the NOTICE:
-
Don’t use a razor blade or something else sharp
on the inside of the rear window. If you do, you
could cut or damage the warming grid, and the
repairs
wouldn’t be covered by your warranty.
Press
the switch to turn on the defogger. An indicator
light will come on
to remind you that the defogger is on.
The defogger will turn off automatically after about
10 minutes of use. If you turn it on again, the defogger
will operate for about five
minutes only. You can also
turn the defogger off by pressing the switch again.
3-4
ProCarManuals.com

Ventilation System
Ventilation
For mild outside temperatures when little heating or
cooling is needed, you can still direct outside air through
your vehicle.
1. Turn the air control knob to VENT.
2. Turn the temperature control knob to a
3. Turn the fan control knob to the desired speed. comfortable setting. Your
Pontiac's flow-through ventilation system
supplies outside air into the vehicle when it is moving.
Outside air will also enter the vehicle when the
blower
fan is running.
Ventilation Tips
0 Keep the hood and front air inlet free of ice, snow or
any other obstruction (such
as leaves). The heater
and defroster will work far better, reducing the
chance of fogging the inside of your windows.
0 When you enter a vehicle in cold weather, turn the
fan control knob to the right for a few moments
before driving off. This helps clear the intake ducts
of snow and moisture, an'd reduces the chance of
fogging the inside of your windows.
0 Keep the air path under the front seats clear of
objects. This helps air to circulate throughout
your vehicle.
Defogging and Defrosting
1. Turn the air control knob to DEFROST.
2. Turn the temperature control knob to the
3. Turn the fan control knob to the desired speed.
desired setting.
3-5
ProCarManuals.com

Audio Systems
Your Delco@ audio system has been designed to operate
easily and give years of listening pleasure. You will get
the most enjoyment out of it if you acquaint yourself
with
it first. Find out what your Delco system can do
and how to operate all its controls, to be sure you’re
getting the
most out of the advanced engineering that
went into it.
If you have power door locks, your vehicle has a feature
called Retained Accessory Power
(RAP). With RAP you
can play your audio system even after the ignition is
off.
See “Retained Accessory Power” in the Index.
Setting the Clock for All Systems Except
AM-FM Stereo
Press and hold HR until the correct hour appears. Press
and hold
MIN until the correct minute appears. There
will
be a two-second delay before the clock goes into
time-set mode, and the colon
on the display will blink
while in this mode.
AM-FM Stereo with Cassette Tape Player
Playing the Radio
VOL: Push this knob to turn the system on or off. Turn
it clockwise to increase volume and counterclockwise to
decrease volume.
RECALL: Press this button briefly to recall the station
being played or
to display the clock. If you press the
knob when the ignition is
off, the clock will show for a
few seconds.
3-6
ProCarManuals.com

Finding a Station
AM-FM:
Press this button to get AM, €341 or FM2.
The display shows your selection.
If a cassette tape is
playing, press this button to play the radio.
TUNE: Press this knob lightly so it extends. Turn it, to
choose radio stations. Push the knob back in when
you’re nat using it.
SEEK: Press the up or down arrow to go to the next
higher or lower station.
PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM,.six FM1 and six FM2).
Setting the Tone
1. Press AM-FM to select the band.
2. Find the station you want by using TUNE or SEEK.
3. Press and hold one of the six numbered buttons until
SET appears on the display. Whenever you press that
numbered button,’the station you set
will return.
4. Repeat the steps for each pushbutton.
BASS: Slide the lever to the right or left to increase or
decrease bass.
TREBLE: Slide the lever to the right or left to increase
or decrease treble.
If a station is weak or noisy, slide the
lever down to reduce the noise.
Adjusting the Speakers
BAL:
Press this knob lightly so it extends. Turn this
knob to move the sound to the left or right speakers. Use
the middle position to balance these speakers. Push the
knob back in when you’re not using it.
FADE: Press this knob lightly so it extends. Turn this
knob to move the sound to the front or rear speakers.
Use the middle position to balance these speakers. Push
the
knob back in when you’re not using it.
3-7
