If the Light Is Flashing
The following may prevent more serious damage to
your vehicle:
Reduce vehicle speed.
0 Avoid liard accelerations.
~ .I.<.’.) . .e ,,- .I - ..
L:‘:’r’ j. , 0 Avoid steep uphill grades.
0 If towing a trailer, reduce the amount of wgo being
hauled as soon as it is possible.
If the light stops flashing and remains on steady, see “E
the Light Is On Steady” following.
If the light continues to flash,, when it is safe to do so,
stop the vehicle. Put your vehicle in PARK (P), Turn the
key off, wait at least 10 seconds and restart the engine.
If the light remains on steady, see “If the Light Is On
Steady” following. If the light is still flashing follow the
previous steps, and drive the vehicle to your dealer or
qualified service center for service.
If the Light Is On Steady
You may be able to correct the emission system
malfunction b’y considering the following:
Did
you just put fuel into your vehicle?
If so, reinstall the fuel cap, making sure to fully install
the
cap. The diagnostic system can determine if the fuel
cap
has been left off or improperly installed. This will
allow fuel to evaporate into the atmosphere. A few
driving trips should turn the light off.
Rid you just drive through a deep puddle of water?
If so, your electrical system may be wet. The condition
will usually be corrected when the electrical system
dries out. A few driving trips should turn the light off.
ProCarManuals.com

Are you low on fuel?
As your engme starts to run out of fuel, your engine may
not run as’ efficiently as designed since small- amounts
of
air are sucked into the fuel line causing a misfire. The
system can detect this. Adding fuel should correct this
condition. Make sure to install the fuel cap properly. It
will take a few driving ,trips
to turn the light off.
Have you recently changed brands of fuel?
If so, be sure to fuel your vehicle with quality fuel (see
“Fuel”
in the Index). Poor fuel quality will cause your
engine not to run as efficiently as designed.
You may
notice
this as stalling after start-up, stalling when you
put the vehicle into gear, misfiring, hesitation on
acceleration or
stumbling on acceleration. (These ’
conditions may go away once the engine is warmed up.)
This will be detected by the system and cause the light
to
Imn on.
If you experience this condition, change the fuel brand
you use. It will require at least one full tank of the
proper fuel
to turn the light off.
If none of the above steps have made the light turn off,
have your dealer or qualified service center check the
vehicle. Your dealer has the proper test equipment.
and
diagnostic tools to fix any mechanical or electrical
problems that may have developed.
Engine Oil Pressure 1,ig.ht
If you have a problem with
your oil, this light may
stay
on after you start your
engine,
or come on when
you are driving.
This may indicate that oil is not going through your
engine quickly enough to keep it cool. the engine could
be low on oil, or could have some other oil problem.
If you are driving, carefully pull over to a safe location
and stop to check the oil level. See “Checking Engine
Oil” in the Index.
If the engine oil is low, add oil as required. See “Adding
Engine
Oil” in the Index.
3 71
ProCarManuals.com

Fuel Gage
Your fuel gage tells you about how much fuel you have
left, when the ignition is on. When the gage reads in the
yellow band, a warning chime will sound and the
CHECK GAGES warning light will go on, if you have
this option.
Here
are some things that some owners ask about. None
of these show a problem with your fuel gage:
At the service station, the gas pump shuts off before
It takes a little more or less fuel to fill up than the
the
gage reads
FULL (F).
gage indicated. For example, the gage may have
indicated the tank was half full, but it actually took a
little more or less than half the tank's capacity to fill
the tank.
0 The gage moves a little when you turn a corner,
The gage doesn't go back to EMPTY (E) when you
If you have the large span (220") gage, the needle
speed up, or make a hard stop.
turn off the ignition.
moves more
for a given amount of fuel. This does not
indicate excessive
fuel consumption, and is normal.
Boost Gage (Option)
OST
Vehicles equipped with the supercharged engine have
this boost gage that indicates vacuum during light to.
moderate throttle and boost under heavier throttle. The
gage displays the air pressure level in psi going into the
engine's combustion chamber.
The gage
is automatically centered at zero psi every
time the engine is started. Actual vacuum or boost is
displayed from this zero point. Changes
in ambient
pressure, such as driving in mountains and changing
weather, will slightly change the zero reading.
ProCarManuals.com

Pressing the AUTO button will display the requested
temperature, fan speed'and
air delivery mode for five
seconds, then change to display the outside air
temperature. Be careful not to put anything over the
sensor located in the middle
of the instrument panel near
the windshield, or over the sensor
in the gnlle above the
radio. These sensors are used by the automatic system to
regulate temperature.
The exterior temperature display sensor is in front
of the
car, near the radiator. This displayed temperature is most
accurate when the vehicle
is moving. During stops, or
while idling, the display shows the previous driving
temperature for best system control.
To avoid blowing cold air in cold weather, the system
will delay turning
on the fan until warm air is available.
The length
of delay depends on outside air temperature,
engine coolant temperature, and time since the engine
was last started. Pushing the
fan button will override this
delay and change the fan to a selected single speed.
If you leave your vehicle, the system will remember the
control setting the next time you start your engine.
Manual Operation
You may also manually adjust the delivery mode or
fan speed.
'!! HEAT: Manually selecting HEAT by cycling
through the
MODE settings will deliver air to the floor
outlets.
+# DEFOG: Manually selecting DEFOG by cycling
through the
MODE settings will deliver air to the floor
and windshield outlets.
12 BI-LEVEL: Manually selecting BI-LEVEL by
cycling through the MODE setting will deliver warm air
to the floor and cooler air to the middle instrument panel outlets.
OFF: Press this button to turn the system off. Fresh air
will continue to flow through the vehicle, and the
system
will try to maintain the previously set
temperature. The outside temperature will show in the
display when the system
is OFF.
w.
ProCarManuals.com

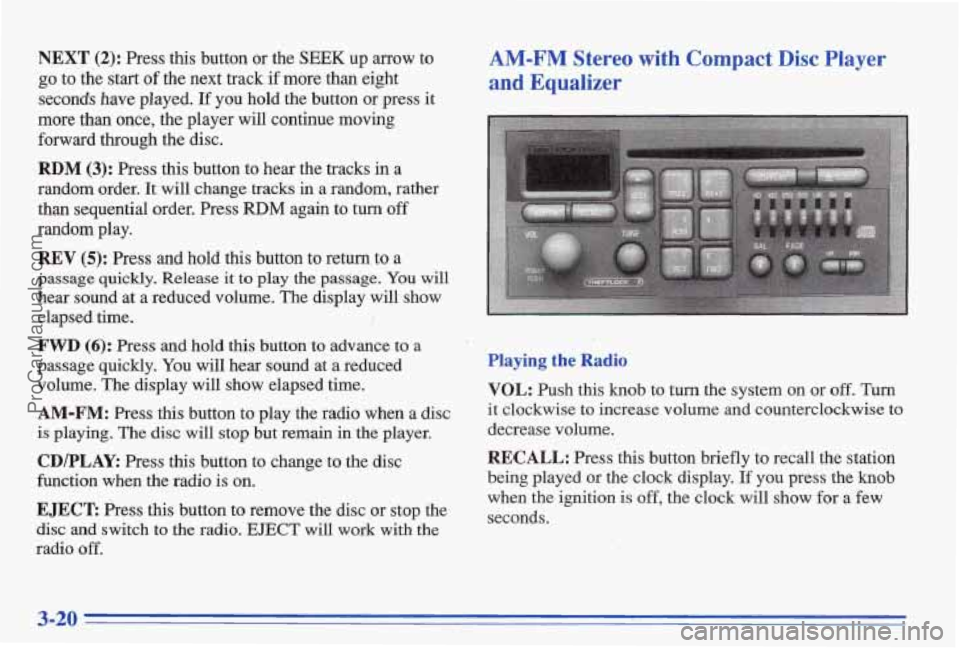

NEXT (2): Press this button or the SEEK up arrow to
go to the start of the next track if more than eight
secmds have played. If you hold the button or press it
more than once, the player will continue moving
forward through the disc.
RDM (3): Press this button to hear the tracks in a
random order.
It will change tracks in a random, rather
than sequential order. Press
RDM again to turn off
random play.
REV (5): Press and hold this button to return to a
passage quickly. Release
it to play the passage. You will
hear sound
at a reduced volume. The display will show
elapsed time.
FWD (6): Press and hold this button to advance to a
passage quickly. You will hear sound at a reduced
volume. The display will show elapsed the.
AM-FM: Press this button to play the radio when a disc
is playing. The disc will stop but remain in the player.
CD/PLAY: Press this button to change to the disc
function when the radio is on.
EJECT Press this button to remove the disc or stop the
disc
and switch to the radio. EJECT will work with the
radio
off.
AM-FM Stereo with Compact Disc Player
and Equalizer
Playing the Radio
VOL: Push this knob to turn the system on or off. Tm
it clockwise to increase volume and counterclockwise to
decrease volume.
RECALL: Press this button briefly to recall the station
being played or
the clock display. you press the knob
when the ignition is off, the clock will show for a few
seconds.
3-20
ProCarManuals.com

P

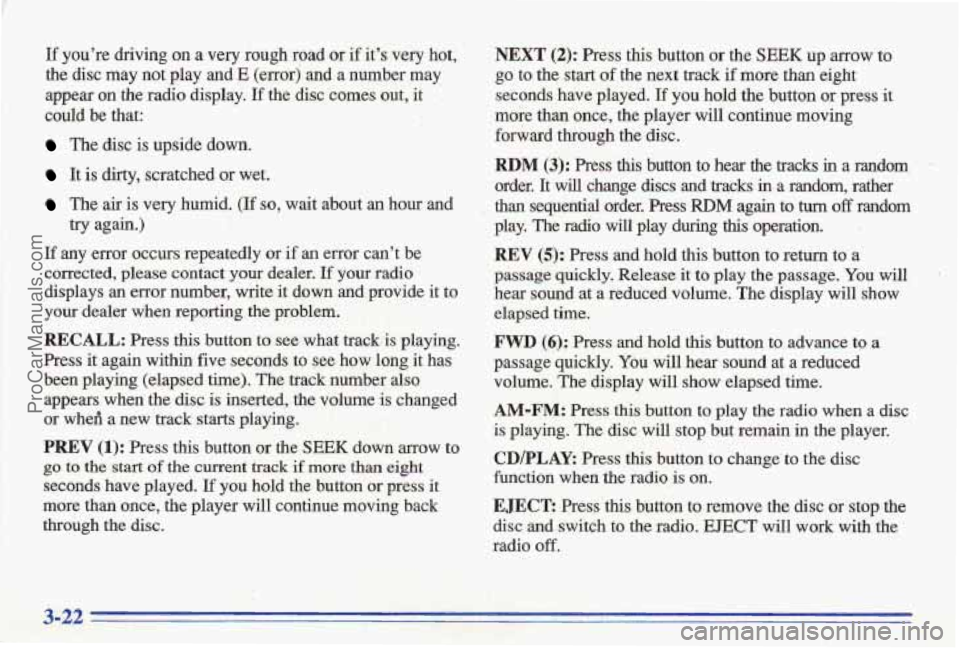

If you're driving on a very rough road or if it's very hot,
the disc may not play and E (error) and a number may
appear on the radio display. If the disc comes out, it
could be that:
The disc is upside down.
It is dm7 scratched or wet.
The air is very humid. (If so, wait about an hour and
If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer.
If your radio
displays an error number, write it down
and provide it to
your dealer when reporting the problem.
WECALL: Press this button to see what track is playing.
Press it again within five seconds to
see how long it has
been playing (elapsed
time). The track number also
appears when the disc
is inserted, the volume is changed
or whefi a new
track starts playing.
PWV (1): Press this button or the S'EEK down mow to
go to the start of the current track if more than eight
seconds have played.
If you hold the-button or press it
more than once, the player will continue moving back
through the disc.
try again.)
NEXT (2): Press this button ar the SEEK up arrow to
go to the start of the next track if more than eight
seconds have played.
If you hold the button or press it
more
than once, the player will continue moving
furward through the disc.
RDM (3): Press this button to hear the tracks in a random
order. It will change discs and tracks in a random, rather
than sequential order. Press RDM again to turn o€f randm
play. The radio
will' play during this operation.
REV (5): Press and hold this button to return to a
passage quickly. Release it
to play the passage. You will .I 's "f '
hear sound at a reduced volume. The display will show
elapsed time.
FWD (6): Press and hold this button to advance to a
passage quickly. You will hear sound at a reduced
volume.
WE display will show elapsed time.
AM-PM: Press this button to play the radio when a disc
is
playing. The Bjsc will stop but remain in the player.
CRIPLAY: Press this button to change'to the disc:
function when the radio,is
on,
EJECT Press'this button to remove the disc or stop the
disc and switch
to the radio. EJECT will work with the
radio off.
::>, _. : 7% ,
3-22
ProCarManuals.com

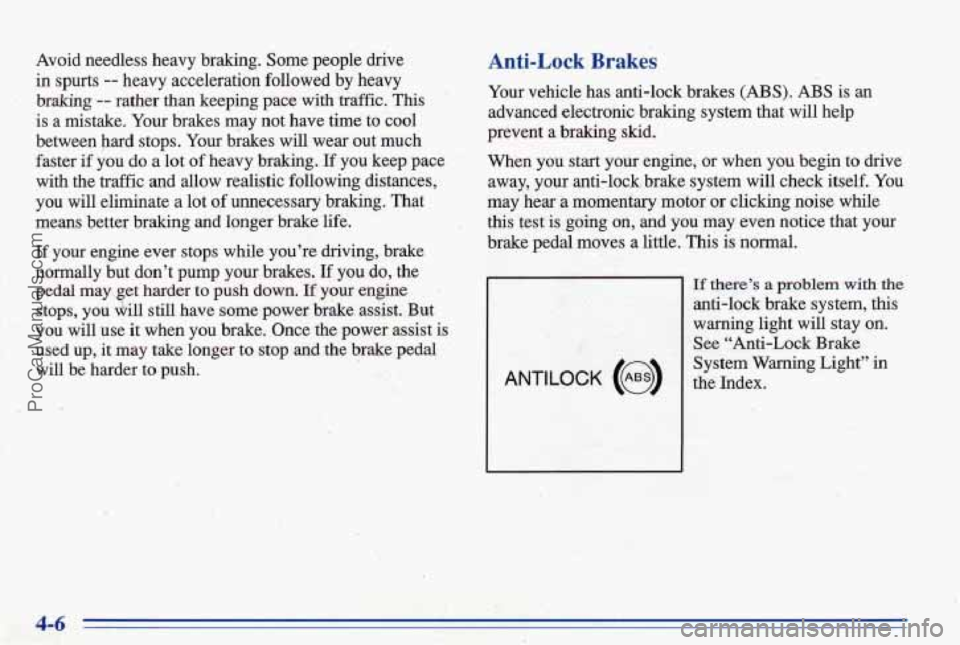

Avoid needless heavy braking. Some people drive
in spurts -- heavy acceleration followed by heavy
braking
-- rather than keeping pace with traffic. This
is a mistake. Your brakes may not have time to cool
between
hard stops. Your brakes will wear out much
faster if you
do a lot of heavy braking. If you keep pace
with the traffic and allow realistic following distances,
you will eliminate
a lot of unnecessary braking. That
means better braking
and longer brake life.
If your engine ever stops while you’re driving, brake
normally but don’t pump your brakes. If you do, the
pedal may
get harder to push down. If your engine -
stops, you dill still have some power brake assist. But
you
will use it when you brake. Once the power assist is
used up,
it may take longer to stop and the brake pedal
will be harder tol push.
Anti-Lock Brakes
Your vehicle has anti-lock brakes (ABS). ABS is an
advanced electronic braking system that will help
prevent
a braking skid.
When you start your engine, or when you begin to drive
away, your anti-lock, brake system
will check itself. You
may hear a momentary motor or clicking noise while
this test is
going on, and you may even notice that your
brake pedal moves
a little. This is normal.
ANTILOCK (a)
If there’s a problem with the
anti-lock brake system, this
warning light will stay on.
See “Anti-Lock Brake
System
Warning Light” in
the Index.
4-6
ProCarManuals.com

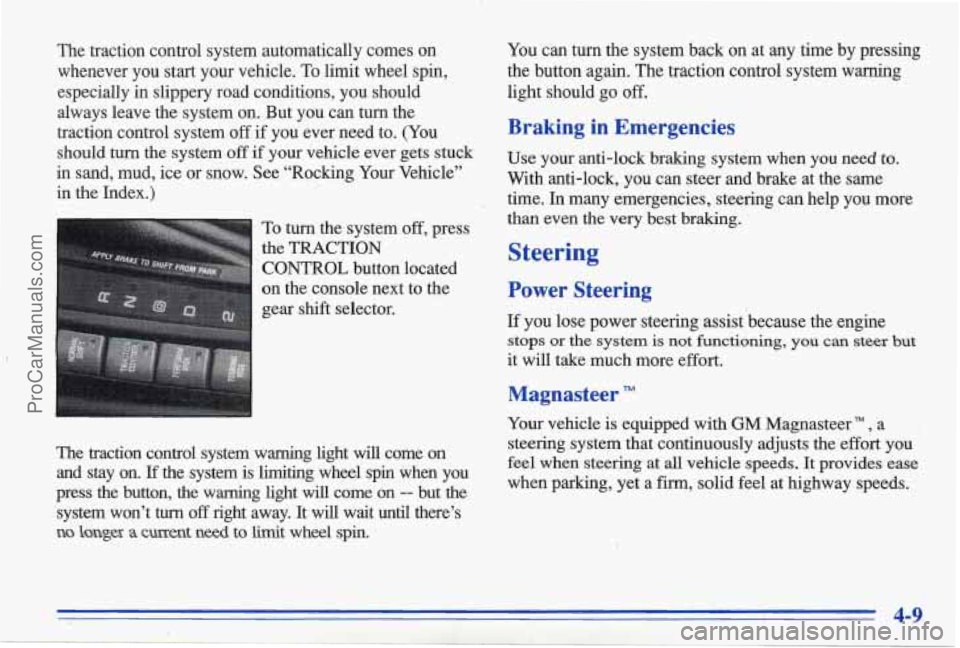

The traction control system automatically comes on whenever you start your vehicle. To limit wheel spin,
especially in slippery road conditions, you should
always leave the system on. But you can turn the
traction control system off if you ever need to. (You
should
turn the system off if your vehicle ever gets stuck
in sand, mud, ice or snow. See “Rocking Your Vehicle”
in the Index.)
To turn the system off, press
the
TRACTION
CONTROL button located
on the console next to the
gear shift selector.
I I
The traction control system warning light will come on
and stay on. If the system is limiting wheel spin when you
press
the button, the warning light will come on -- but the
system won’t
turn off right away. It will wait until there’s
no longex a current need to limit wheel spin.
You can turn the system back on at any time by pressing
the button again. The traction control system warning
light should
go off.
Braking in Emergencies
Use your anti-lock braking system when you need to.
With anti-lock, you can steer and brake at the same
time. In many emergencies, steering can help you more
than even
the very best braking.
Steering
Power Steering
If you lose power steering assist because the engine
stops or the system. is not functioning, you can steer but
it will take much more effort.
Magnasteer
Your vehicle is equipped with GM Magnasteer TM , a
steering system that continuously adjusts the effort you
feel when steering.at all vehicle speeds. It provides ease
when parking, yet a firm, solid feel at highway speeds.
4-9
ProCarManuals.com
