Vehicle Symbols
These are some of the symbols you may find on your vehicle.
For example, these symbols are used on
an
original battery:
POSSIBLE A
CAUTION
INJURY
PROTECT EYES BY
SHIELDING
CAUSTIC
BURNS AVOID
SPARKS
OR
FLAMES
SPARK
OR ,\I/,
COULD
RAM€
EXPLODE BATTERY
These symbols are
important
for you and
your passengers whenever your
vehicle
is
driven:
f-l DOOR LOCK
UNLOCK
FASTEN SEAT
BELTS
e?
AIR BAG p
These symbols
have to do with your lights:
SIGNALS e
TURN
PARKING
p$ LAMPS
FOG LAMPS
$0
These symbols are on some of
your controls:
WIPER Q
WINDSHIELD
DEFROSTER
VENTILATING
FAN - )
These symbols are used on
warning
and
indicator lights:
ENGINE
COOLANT
- e-
TEMP -
CHARGING I-1
BATTERY
SYSTEM
BRAKE
(0)
COOLANT a
ENGINE OIL e,
PRESSURE
ANTI~LOCK (@)
BRAKES
Here are some
other symbols
you
may see:
FUSE
LIGHTER
m
HORN )tr
SPEAKER
b
FUEL p3
v
ProCarManuals.com

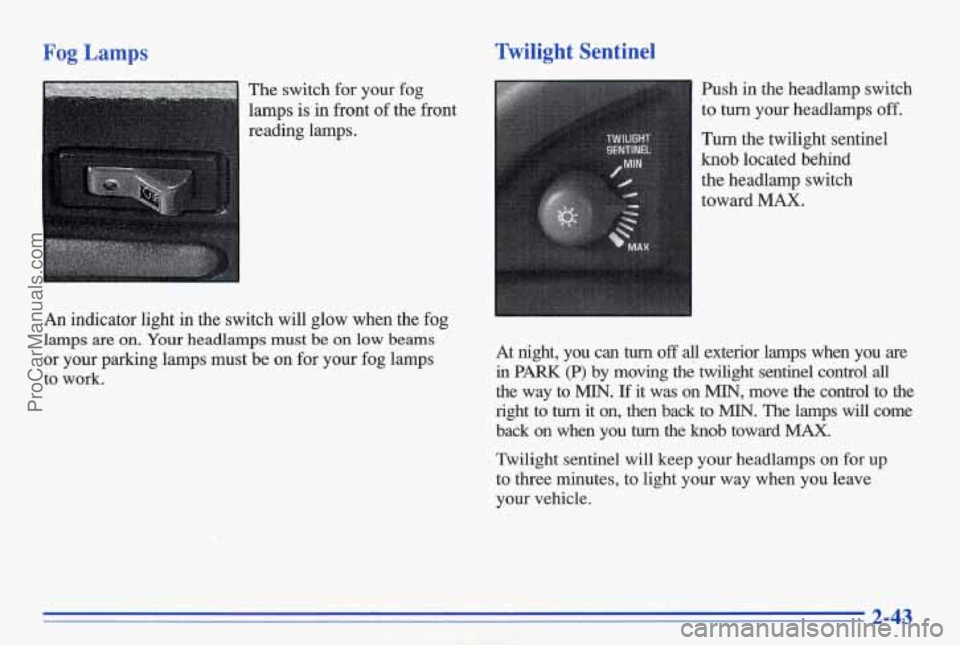

Fog Lamps
The switch for your fog
lamps is in front
of the front
reading lamps.
An indicator light in the switch will glow when the fog
lamps are on. Your headlamps must be on low beams
or your parking lamps must be on for your fog lamps
to work.
Twilight Sentinel
Push in the headlamp switch
to
turn your headlamps off.
Turn the twilight sentinel
knob located behind
the headlamp switch
toward
MAX.
At night, you can turn off all exterior lamps when you are
in
PARK (P) by moving the twilight sentinel control all
the way to MIN. If it was on MIN, move the control to the
right to
turn it on, then back to MIN. The lamps will come
back on when you
turn the knob toward MAX.
Twilight sentinel will keep your headlamps on for up
to three minutes, to light your way when you leave your vehicle.
2-43
ProCarManuals.com

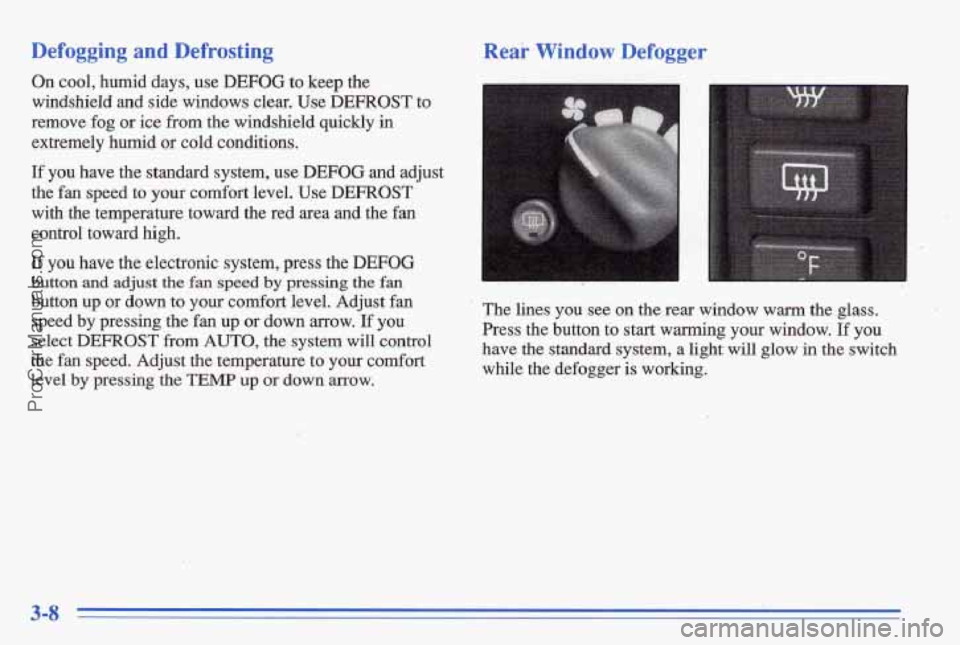

Defogging and Defrosting
On cool, humid days, use DEFOG to keep the
windshieId
and side windows clear. Use DEFROST to
remove fog or ice
fi-om the windshield.quickly in
extremely humid or cold conditions.
If you have the standard system, use DEFOG and adjust
the
fan speed to your comfort level. Use DEFROST
with the temperature toward the red area and the fan
control toward high.
If you have the electronic system, press the DEFOG
button and adjust the fan speed by pressing the fan
button up or down to your comfort level. Adjust fan
speed by pressing the fan up or down arrow. If you
select
DEFROST fi-om AUTO, the system will control
the fan speed. Adjust the temperature to your comfort
level
by pressing the TEMP up QT UQ'W, . ,% <, .. . -. ' . ,..
Rear Window Defogger
The lines you see on the rear window warm the glass,
Press the button to start warming your window.
If you
have the standad system, a light will glow in the switch
while the defogger
is working.
ProCarManuals.com

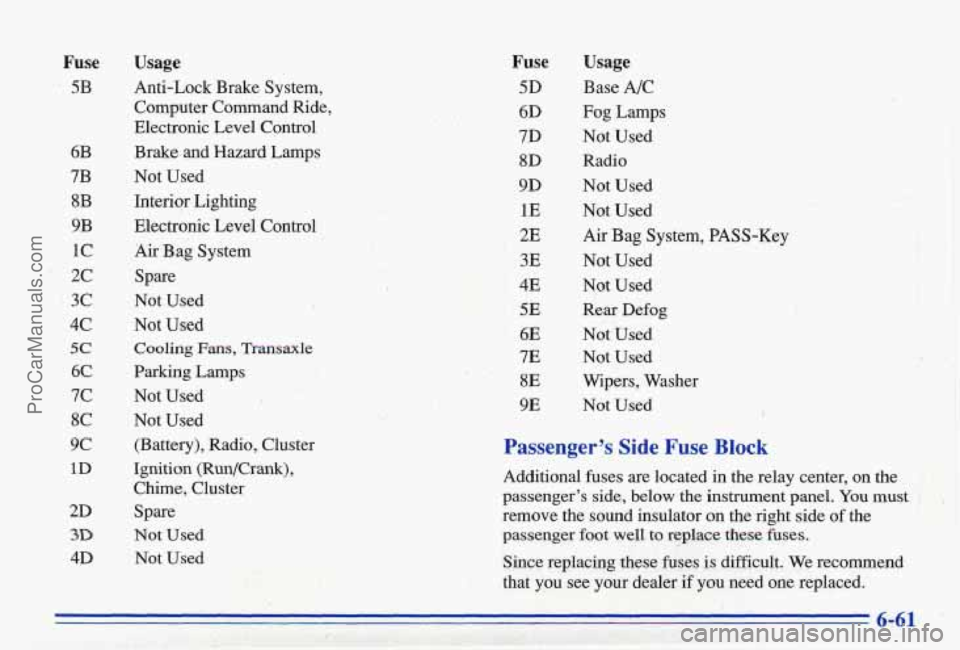

Fuse
5B
6B
7B 8B
9B
1c
2c
3c
4,c
5c
6C
7c
8C
9c
1D
2D
3D
4D
Usage
Anti-Lock Brake System, Computer Command Ride,
Electronic Level Control
Brake and Hazard Lamps
Not Used
Interior
I Lighting
Electronic Level Control
Air Bag System
Spare
Not Used
Not Used
Cooling Fans, Trmsmle
Parking Lamps
Not Used
Not Used (Battery), Radio, Cluster
Ignition (Run/Crank), Chime, Cluster
Spare
Not Used Not Used
Fuse
5D
6D
7D 8D
9D
1E
2E
3E
4E
5E
6E
7E
8E
9E
Usage
Base A/C
Fog Lamps
Not Used Radio
Not Used Not Used
Air Bag System, PASS-Key
Not Used
Not Used
Rear Defog
Not Used
Not Used
Wipers, Washer
Not Used
I
Passenger% Side Fuse Block
Additional fuses are located in the relay center, on the
passenger's side, below the instrument panel.
You must
.. : i',
.- . '! i . -." remove the sound insulator on the right side of the
>. passenger foot well to replace these fbses.
Since replacing these fuses is difficult. We recommend
that you see your dealer
if you need me replaced.
