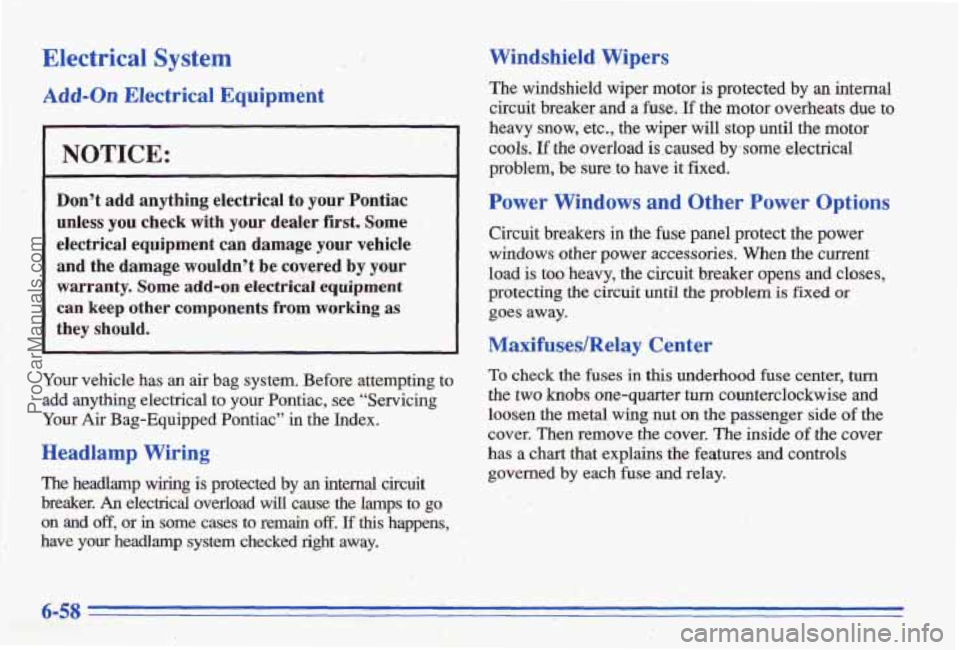

Electrical System
Add-on Electrical Equipment
NOTICE:
Don’t add anything electrical to your Pontiac
s; i; unless you check with your dealer first. Some
. +, and the damage wouldn’t be covered by your
warranty.
Some add-on electrical equipment
can keep other components from working as
they should.
...a . . % .-
.. b.., r -‘ ‘i ’-’ t electrical equipment can damage your vehicle
Youfvehicle has an air bag system. Before attempting to
add anything electrical to your Pontiac, see “Servicing
Ysur Air Bag-Equipped Pontiac” in the Index.
Headlamp Wiring
The headlamp wiring is protected by an internal circuit
breaker.
An electrical overload will cause the lamps to go
on
.and off, or in mrne cases to re& off. .If this happens,
have
your headlamp system checked right away.
Windshield Wipers
The windshield wiper motor is protected by an internal
circuit breaker
and a fuse. If the motor overheats due to
heavy snow, etc., the wiper
will stop until the motor
cools. If tbe overload is .caused by some electrical
problem, be
sure to have it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows other power accessories. When the current
load is too’heavy, the circ,uit breaker opens and closes,
protecting
the circuit until the problem is fixed or
goes away.
MaxifusedRelay Center
To check the fuses in this underhood fuse center, turn
the two knobs one-quarter turn counterclockwise and
loosen the metal wing nut on the passenger side of the
cover. Then remov’e the cover. The inside of the cover
has
a chart that explahs the features and controls
governed
by each fuse and relay.
I -.: ~ _I = L i , -. . :. . ,
6-58
ProCarManuals.com

Fuse
5B
6B
7B 8B
9B
1c
2c
3c
4,c
5c
6C
7c
8C
9c
1D
2D
3D
4D
Usage
Anti-Lock Brake System, Computer Command Ride,
Electronic Level Control
Brake and Hazard Lamps
Not Used
Interior
I Lighting
Electronic Level Control
Air Bag System
Spare
Not Used
Not Used
Cooling Fans, Trmsmle
Parking Lamps
Not Used
Not Used (Battery), Radio, Cluster
Ignition (Run/Crank), Chime, Cluster
Spare
Not Used Not Used
Fuse
5D
6D
7D 8D
9D
1E
2E
3E
4E
5E
6E
7E
8E
9E
Usage
Base A/C
Fog Lamps
Not Used Radio
Not Used Not Used
Air Bag System, PASS-Key
Not Used
Not Used
Rear Defog
Not Used
Not Used
Wipers, Washer
Not Used
I
Passenger% Side Fuse Block
Additional fuses are located in the relay center, on the
passenger's side, below the instrument panel.
You must
.. : i',
.- . '! i . -." remove the sound insulator on the right side of the
>. passenger foot well to replace these fbses.
Since replacing these fuses is difficult. We recommend
that you see your dealer
if you need me replaced.
