Indicator Lights

The instrument panel has many indicators to give you important
information about your car.
Lamp CheckMany of the indicator lights come on
when you turn the ignition switch ON (II), allowing you to see that they
are working. If an indicator does not
light during this test, it cannot alert
you if that system develops a prob-
lem. Have the dealer check your car
for burned-out bulbs or other
problems.

* The U.S. instrument panel is
shown. Differences for the Canadian
model are noted in the text.

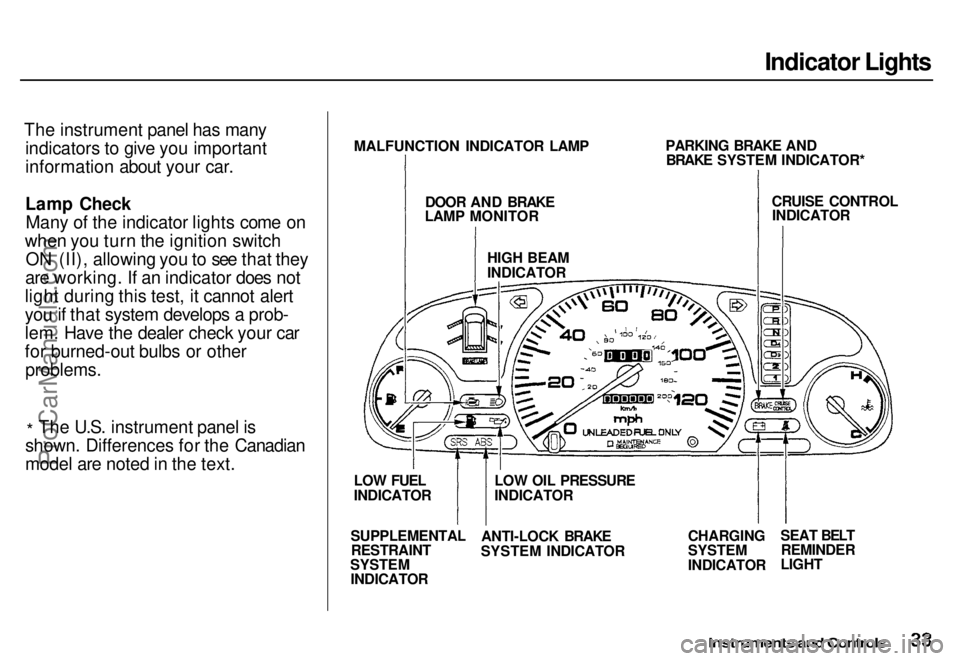

Instruments and Controls

MALFUNCTION INDICATOR LAMP
DOOR AND BRAKE
LAMP MONITOR
HIGH BEAM

INDICATOR
PARKING BRAKE AND
BRAKE SYSTEM INDICATOR*
CRUISE CONTROL
INDICATOR
CHARGING

SYSTEM

INDICATOR
SEAT BELT

REMINDER
LIGHT

LOW OIL PRESSURE

INDICATOR

ANTI-LOCK BRAKE
SYSTEM INDICATOR

SUPPLEMENTAL
RESTRAINT

SYSTEM
INDICATOR
LOW FUEL

INDICATORProCarManuals.comMain Menu s t Table of Contents

Indicator Lights

"Daytime Running

Lights" Indicator

Canadian models only

This indicator lights when you turn the ignition to ON (II) with the
headlight switch off and the parkingbrake set. It should go off if you turn on the headlights or release the
parking brake. If it comes on at any other time, it means there is a
problem with the DRL. There may also be a problem with the high
beam headlights. High Beam Indicator
This light comes on with the high beam headlights. See page 40 forinformation on the headlight
controls.
Cruise Control Indicator
This lights when you set the cruise control. See page 46 for informationon operating the cruise control.
Low Fuel Indicator
This light comes on as a reminder that you must refuel soon.
Instruments and Controls
DRL

CRUISE

CONTROL
ProCarManuals.comMain Menu s t Table of Contents

Controls Near the Steering Wheel

The two levers on the steering column contain controls for driving
features you use most often. The left lever controls the turn signals,
headlights, and high beams. The right lever controls the windshield
wipers.
The rear window defogger switch and hazard warning switch are on
the dashboard under the center air
vent.
The controls near the left air vent are for the sunroof, cruise control
and instrument panel brightness.
The lever on the underside of the steering column allows you to tilt the
steering wheel.

Instruments and Controls

HAZARD WARNING LIGHT

SHIFT LEVER
REAR WINDOW

DEFOGGER
HORN
BUTTONS

SUNROOF

SWITCH

CRUISE
CONTROL

INSTRUMENT
BRIGHTNESS
HEADLIGHTS/

TURN SIGNALS
TILT

ADJUSTMENT
WINDSHIELD

WIPERS/WASHERSProCarManuals.comMain Menu s t Table of Contents

Controls Near the Steering Wheel

Headlights

The rotating switch on the left lever controls the lights. Turning this switch to the first position
turns on the parking lights, taillights, instrument panel lights, side-marker
lights, and rear license plate lights.
Turning the switch to the second position turns on the
headlights. If you leave the lights on with the
ignition switch in ACCESSORY (I)
or LOCK (0), you will hear a
reminder chime when you open the
driver's door.
To change between low beams and high beams, pull back on the turnsignal lever until you hear a click,
then let go. The blue high beam indicator will light (see page 36). To flash the high beams, pull back
and hold the turn signal lever.
Release the lever and the high
beams will go off.
The high beams will stay on for as long as you hold the lever, no matter
what position the headlight switch is
in.

Daytime Running Lights (Canadian Models)
With the headlight switch off, the high beam headlights come on with
reduced brightness when you turn
the ignition switch to ON (II) and release the parking brake. They
remain on until you turn the ignition
off, even if you set the parking brake
The headlights revert to normal operation when you turn them on
with the switch.
Instruments and ControlsProCarManuals.comMain Menu s t Table of Contents

Lights

Check the operation of your car's
exterior lights at least once a month.
A burned out bulb can create an unsafe condition by reducing your car's visibility and the ability to
signal your intentions to other
drivers.
Check the following: Headlights (low and high beam)

Parking lights

Taillights
Brake lights
High-mount brake light
Turn signals
Back-up lights
Hazard light function
License plate light
Side marker lights
Daytime running lights

(Canadian cars)

If you find any bulbs are burned out,
replace them as soon as possible. Refer to the chart on page 219 todetermine what type of replacement
bulb is needed. Headlight Aiming
The headlights were properly aimed when your car was new. You should check their aim if you regularly carryheavy items in the cargo area or pulla trailer. Each headlight assembly
has horizontal and vertical adjust- ment indicators. These are set to
their "0" positions after the head-
lights are aimed at the factory.
To check these settings:
1. Make sure the fuel tank is full. Park the car on level ground.
2. The driver or someone who weighs the same should be sittingin the driver's seat for all checks and adjustments.
Load your car with the items you normally carry. HORIZONTAL ANGLE GAUGE
If you usually pull a trailer, load it as
you would normally and attach it to
the car. Push down on the front and rear bumpers several times to makesure the car is sitting normally.

3. Open the hood.

4. Check the horizontal angle gauge.
The line on the adjustment screwindicator should line up with the"0" mark on the gauge.

Maintenance
CONTINUEDProCarManuals.comMain Menu s t Table of Contents

Index

Fluids
Automatic Transmission........... 155

Brake........................................... 156

Power Steering........................... 157

Windshield Washer................... 154

FM Stereo Radio
Reception.................................... 97

Folding the Second Seats ............... 58

Folding the Third Seats.................. 60

Foreign Countries, Driving in...... 109

Four-way Flashers......................... 43

Front End, Towing by Emergency
Wrecker.................................... 213

Fuel.................................................. 108
Fill Door and Cap....................... 110

Gauge.......................................... 38

Octane Requirement................. 108

Oxygenated................................ 108

Tank, Filling the......................... 110

Fuses, Checking the...................... 209

Gas Mileage, Improving................ 114

Gasohol........................................... 108

Gasoline.......................................... 108
Gauge.......................................... 38

Octane Requirement................. 108

Tank, Filling the......................... 110

Gas Station Procedures................. 110

Gauges Engine Coolant Temperature .... 38

Fuel.............................................. 38

Gearshift Lever Positions............. 120 Glass Cleaning............................... 187
Glove Box......................................... 53
Halogen Headlight Bulbs.............. 177
Hazard Warning Flashers............. 43

Headlights....................................... 40
Aiming......................................... 175Daytime Running Lights............. 40
High Beam Indicator................... 36High Beams, Turning on............ 40
Low Beams, Turning on............. 40
Reminder Chime.......................... 40 Replacing Halogen Bulbs ......... 177

Turning on.................................. 40

Head Restraints............................... 56
Heating and Cooling........................ 74 High Altitude, Starting at............ 119
High-Low Beam Switch............... 40

Hood, Opening the ...................... 111

Horn............................................... 39

Hot Coolant, Warning about...... 151 Hydroplaning................................ 127
Identification Number, Vehicle.. 216
If Your Car Has to be Towed..... 213Ignition
Keys............................................. 49

Switch.......................................... 49

Timing Control System............. 225
Indicator Lights, Instrument

Panel............................................. 33

Infant Restraint............................... 22 Inflation, Proper Tire .................... 170
Inside Mirror................................... 64

Inspection, Tire.............................. 171

Instrument Panel............................. 33

Instrument Panel Brightness........ 41
Interior Cleaning............................ 186
Interior Lights................................. 70

Introduction...................................... iProCarManuals.comMain Menu s t
