1996 HONDA ODYSSEY CD player

Comfort and Convenience Features

The heating and air conditioning system in your car provides a com-
fortable driving environment in all
weather conditions.
The standard audio system has many features. This section de-scribes those features and how to
use them. (If you selected an
optional audio system, refer to the operating instructions that came
with it.)
Some models have an anti-theft
audio system that requires a code
number to enable it. Heating and Cooling........................ 74
What Each Control Does............ 74How to Use the System............... 76
To Turn Everything Off ............. 81 Rear A/C Unit.............................. 82
Audio System (U.S. LX and
Canadian EX)........................... 83

Operating the Radio.................... 84
Adjusting the Sound.................... 86 Radio Frequencies and Reception.................................. 86
Operating the Cassette Player... 87
Tape Search Functions............... 88
Caring for Cassettes.................... 89Operating the Optional CD Player/Changer....................... 90
Audio System (U.S. EX).................. 92 Operating the Radio.................... 93
Adjusting the Sound.................... 96 Radio Frequencies....................... 97
Radio Reception........................... 97
Operating the Cassette Player... 99
Tape Search Functions............. 100 Caring for the Cassette Player...................................... 101 Operating the Optional CD
Player/Changer..................... 102
Protecting Compact Discs........ 104 CD Error Indications................. 105
Theft Protection........................ 106

Comfort and Convenience FeaturesProCarManuals.comMain Menu s t

Audio System

Operating the Cassette Player
Turn the audio system ON. Make sure the tape opening on the cassette
is facing to the right, then insert the
cassette most of the way into the slot.
The system will pull it in the rest of the way, and begin to play.
The tape direction indicator will light to show you which side of the cassette is playing. The indicates
the side you inserted facing upward
is now playing. If you want to play the other side, press the PROG/PLAY button.
Dolby B noise reduction turns on
when you insert a cassette. If the tape was not recorded with Dolby Bnoise reduction, turn it off by
pressing the
button.

DOLBY BUTTON

When the system reaches the end of the tape, it will automatically reversedirection and play the other side. If
you want to remove the cassette from the drive, press the EJECT
button.
Comfort and Convenience Features

PWR/VOL KNOB

FF/REW/SKIP

BUTTONS
CASSETTE

SLOT
TAPE DIRECTION

INDICATOR

EJECT

BUTTON
PROG/PLAY

BUTTONProCarManuals.comMain Menu s t Table of Contents

Audio System

Operating the Optional CD
Player/Changer
A Compact Disc changer is available through your dealer. It holds up to six discs, providing several hours of
continuous entertainment. You operate the CD changer with thesame controls used for the radio.
Your dealer also has an accessory in- dash single CD player available that
is operated by the radio controls. Tooperate this unit, use the instructions (except for those relating to multiple
discs) in this section.
Using the instructions that came
with the changer, load the desired CDs in the magazine, and load the
magazine in the changer. To operate the CD changer, the
ignition must be in ACCESSORY (I)or ON (II) and the audio system
must be on. If you are listening to a cassette, eject it. Press the CD button until "CD"
appears in the display. The system
will start to play the first track of the
first disc in the magazine.
When that disc ends, the next disc in the magazine is loaded and played.
After the last disc finishes, the system returns to disc 1.
Comfort and Convenience Features PWR/VOL KNOB
TUNE/SEEK
BUTTONS
RPT

BUTTON
STEREO INDICATOR

PRESET

BUTTONS
CD BUTTONProCarManuals.comMain Menu s t Table of Contents

Audio System

To select a different disc than the one that is playing, press the

appropriate preset button (1 — 6).

The system will load that disc and begin playing it from the first track.
You can use the TUNE/SEEKbuttons to select tracks within a disc.Push and release the appropriate
TUNE/SEEK button, the system will move to the beginning of a track. Press the button to move to the
beginning of the next track, and press the button to move to the
beginning of the current track.
If you press and hold the TUNE/SEEK button, you will hear a beep
and the system will continue to moveacross tracks. Release the button
when you think it has reached the desired place on the disc.
REPEAT — When you activate the
Repeat feature by pressing the RPT

button, the system continuously

replays the current track. You will
see RPT in the display as a reminder.

Press the RPT button again to turn it
off.

To take the system out of CD mode,
press the AM or FM button, or insert
a cassette in the player. When you

return to CD mode, play will contin-
ue at the same disc and track.

If you turn the system off while a CD

is playing, either with the PWR/VOL

knob or the ignition switch, play will
continue at the same disc and track
when you turn it back on.
Protecting Compact Discs

For information on how to handleand protect compact discs, see page
104.

CD Error Indications For information on the meaning of
the CD Error Indications and what to do when you see those indications,
refer to page 105.
Comfort and Convenience FeaturesProCarManuals.comMain Menu s t Table of Contents

Audio System

Operating the Cassette Player

Turn the audio system ON. Make sure the tape opening on the cassette
is facing to the right, then insert the
cassette most of the way into the slot.
The system will pull it in the rest of the way, and begin to play.
The tape direction indicator will light to show you which side of the cassette is playing. The indicates
the side you inserted facing upward
is now playing. If you want to play
the other side, press the PROG

button.

Dolby B noise reduction turns on
when you insert a cassette. If the tape was not recorded with Dolby B
noise reduction, turn it off by pressing the button.
When the system reaches the end of
the tape, it will automatically reversedirection and play the other side. If
you want to remove the cassette
from the drive, press the EJECT
button.

Comfort and Convenience Features

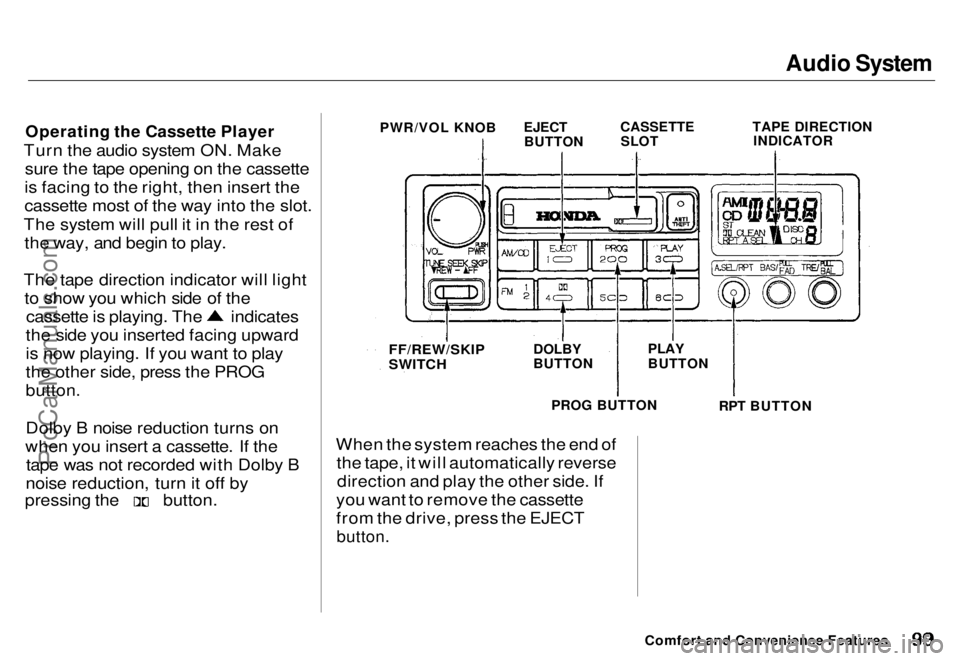

PWR/VOL KNOB

EJECT

BUTTON
CASSETTE

SLOT
TAPE DIRECTION

INDICATOR

FF/REW/SKIP

SWITCH
DOLBY
BUTTON

PLAY

BUTTON

PROG BUTTON
RPT BUTTONProCarManuals.comMain Menu s t Table of Contents

Audio System

Caring for the Cassette Player
The cassette player picks up dirt and oxides from the tape. This
contamination builds up over time
and causes the sound quality todegrade. To prevent this, you should
clean the player after every 30 hours
of use.
As a reminder, after every 30 hours of use, the system will flash CLEAN
in the display for 5 seconds every
time you insert a cassette in the player. After you clean the player,
reset the CLEAN indicator by
pressing the Preset 6 button while
playing a tape. Hold the button until
you hear a beep and the indicator goes out.
If you do not clean the cassette
player regularly, it may eventually
become impossible to remove the contamination with a normal
cleaning kit.
Use 100-minute or shorter cassettes.

Cassettes longer than that use
thinner tape that may break or jam

the drive.

Look at the cassette before you

insert it. If the tape is loose, tighten

it by turning a hub with a pencil or

your finger.

If the label is peeling off, remove it
from the cassette or it could cause
the cassette to jam in the player.

Never try to insert a warped or
damaged cassette in the player.
The player automatically ejects cassettes that do not play properly. Ifit ejects a cassette before it begins to
play, it is probably defective and should not be inserted again. You
may have a cassette suddenly stop
playing, reverse directions once or
twice and then eject. This is normally an indication the tape is wound
unevenly. It should play after the
tape is manually rewound.
When they are not in use, store cassettes in their cases to protect
them from dust and moisture. Never
place cassettes where they will beexposed to direct sunlight, high heat,
or high humidity. If a cassette is
exposed to extreme heat or cold, let
it reach a moderate temperature
before inserting it in the player.
Never try to insert foreign objects
into the cassette player.
Comfort and Convenience Features

CLEAN INDICATORProCarManuals.comMain Menu s t Table of Contents

Audio System

Operating the Optional CD
Player/Changer

A Compact Disc changer is available through your dealer. It holds up tosix discs, providing several hours of
continuous entertainment. You
operate the CD changer with the same controls used for the radio.
Your dealer also has an accessory in- dash single CD player available that
is operated by the radio controls. To
operate this unit, use the instructions (except for those relating to multiple
discs) in this section. Using the instructions that came
with the changer, load the desired CDs in the magazine, and load the
magazine in the changer.
To operate the CD changer, the ignition must be in ACCESSORY (I)or ON (II) and the audio system
must be on. If you are listening to a
cassette, eject it.
Comfort and Convenience Features PWR/VOL KNOB
RPT INDICATOR
TUNE/SEEK SWITCH CD BUTTON A. SELECT INDICATOR
A. SELECT/RPT BUTTONProCarManuals.comMain Menu s t Table of Contents

Audio System

Press the CD button until "CD"
appears in the display. The system
will start to play the first track of the first disc in the magazine.
When that disc ends, the next disc inthe magazine is loaded and played.
After the last disc finishes, the system returns to disc 1.
To select a different disc than the one that is playing, press theappropriate preset button (1 — 6).
The system will load that disc and begin playing it from the first track.
You can use the TUNE/SEEK switch to select tracks within a disc.
If you push and release the TUNE/
SEEK switch, the system will move
to the beginning of a track. Push the switch up to move to the beginning
of the next track, and push theswitch down to move to the begin-
ning of the current track.
If you push and hold the TUNE/
SEEK switch, you will hear a beep
and the system will continue to move across tracks. Release the switch
when you think it has reached the desired place on the disc.
RPT — When you activate the Repeat feature by pressing the A.SEL/RPT button, the system continu-
ously replays the current track. You
will see RPT in the display as a reminder. Press the button again to
turn it off.
RANDOM PLAY — This feature,
when activated, plays the tracks on a CD in random order, rather than in
the order they are recorded on the CD. To activate Random Play, press
the A. SEL/RPT button until you see
A. SEL in the display. The system will then select and play tracksrandomly on the current disc. When
all tracks on that disc have been
played, the next disc is loaded and
played randomly. This continues
until you deactivate Random Play by
pressing A. SEL/RPT again.
If the system is in Repeat mode, you
must turn it off by pressing A. SEL/
RPT before you can select Random
Play. Then press the button again
until you see A. SEL displayed.
To take the system out of CD mode, press the AM or FM button, or inserta cassette in the player. When you
return to CD mode, play will contin-
ue at the same disc and track.
If you turn the system off while a CD
is playing, either with the PWR/VOL
knob or the ignition switch, play will
continue at the same disc and track
when you turn it back on.
Comfort and Convenience FeaturesProCarManuals.comMain Menu s t Table of Contents
