Safety Restraints
21
*
[SR09920(ALL)05/95]
THE FORCE OF THE RAPIDLY INFLATING PASSENGER AIR
BAG COULD PUSH THE TOP OF THE REAR-FACING SEAT
AGAINST THE VEHICLE SEATBACK, ARMRESTS OR
CONSOLE. REAR-FACING INFANT SEATS MUST ALWAYS
BE SECURED IN THE REAR SEAT.
*
[SR10100(ALL)05/95]
RWARNING
Do not place objects or mount equipment on or near the
air bag cover on the steering wheel or in front seat areas
that may come in contact with a deploying air bag.
Failure to follow this instruction may increase the risk of
personal injury in the event of a collision.
*
[SR10200(ALL)06/95]
For further information about the proper mounting of
equipment in the front seat of this vehicle, please refer to Ford's
brochure entitledSome Important Information About Air Bag
Supplemental Restraint Systemwhich can be obtained by calling
Helm Inc. at 1-800-782-4356. Ask for brochure FPS-8602.
*
[SR10300(ALL)06/95]
For additional important safety information on the proper use of
seat belts, child seats, and infant seats, please read the other
sections of this part of the Owner Guide, especially sections
entitledSafety Belts for ChildrenandSafety Seats for Children.
*
[SR10400(ALL)01/95]
How the Air Bag Supplemental Restraint System
Operates
*
[SR10500(ALL)06/95]
The Air Bag Supplemental Restraint System consists of the
driver and passenger air bags, impact sensors, a system
diagnostic module, a readiness light and tone, and the electrical
wiring which connects the components.
*
[SR10600(ALL)05/95]
The driver air bag is in the center of the steering wheel and is
indicated by the letters ªSRS.º The right front passenger seat air
bag is in the upper right-hand section of the instrument panel
ledge above the glove compartment. The letters ªSRSº appear
there. Both air bags are designed to stay out of sight until they
are activated.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

55
Starting Your Windstar
*
[ST02000(ALL)03/95]
Ignition
%*
[ST02100(ALL)01/95]
Understanding the Positions of the Ignition
*
[ST02300(ALL)09/93]
13-1/2 pica
art:0040047-C
The ignition positions
% [ST02401(ALL)02/94]
ACCESSORY allows you to operate some of your vehicle's
electrical accessories while the engine is not running. For
example, you can use ACCESSORY to turn on the radio or
windshield wipers without starting the engine.
*
[ST02501(ALL)01/93]
LOCK locks the steering wheel and the gearshift lever.
*
[ST02600(ALL)01/93]
OFF allows you to shut off the engine and all accessories
without locking the steering wheel, or the gearshift lever.
*
[ST02701(ALL)01/93]
ON allows you to test your vehicle's warning lights to make
sure they work before you start the engine. The key returns to
the ON position once the engine is started and remains in this
position while the engine runs.
*
[ST02801(ALL)01/93]
START cranks the engine. Release the key once the engine starts
so that you don't damage the starter. The key should return to
the ON position when you release it. The START position also
allows you to test the brake warning light.
File:wnsts.ex
Update:Tue Mar 19 08:25:19 1996

56
%*
[ST03100(ALL)02/95]
Removing the Key From the Ignition
*
[ST03200(ALL)01/93]
LOCK is the only position that allows you to remove the key
from the ignition. The LOCK feature helps to protect your
vehicle from theft, because it also locks the steering wheel and
the gearshift lever when the key is removed.
%*
[ST03300(ALL)01/93]
If your key is stuck in the LOCK position, and you are unable
to turn it, move your steering wheel left or right until the key
turns freely.
*
[ST03400(ALL)01/93]
To remove your key from the ignition:
*
[ST03500(ALL)05/95]1.
Put the gearshift lever in P (Park).
*
[ST03600(ALL)02/95]2.
Set the parking brake fully.
*
[ST03700(ALL)03/95]3.
Turn the ignition key to LOCK.
*
[ST03800(ALL)03/95]4.
Remove the key.
*
[ST03900(ALL)01/93]
RWARNING
When you leave your vehicle, place the gearshift lever in
Park (P). Set the parking brake fully, and shut off the
engine. Never park your vehicle in Neutral (N). If you do
not take these precautions, your vehicle may move
suddenly and injure someone.
*
[ST04100(ALL)01/93]
RWARNING
Do not leave children, unreliable adults, or pets alone in
your vehicle. They could accidentally injure themselves
or others through inadvertent operation of the vehicle.
Further, on hot, sunny days, temperatures in a closed
vehicle could quickly become high enough to cause
severe and possibly fatal injuries to people as well as
animals.
File:wnsts.ex
Update:Tue Mar 19 08:25:19 1996

58
[ST05400(ALL)02/95]
Starting the Engine
[ST05500(ALL)02/95]
To start the engine:
[ST05600(ALL)02/95]1.
Follow the steps underPreparing to Start Your Vehicleand
underTesting the Warning Lightsin this section.
*
[ST05700(ALL)01/93]2.
Keep your foot on the brake pedal and turn the ignition key
to ON.
[ST05800(ALL)02/95]3.
DO NOT depress the accelerator pedal when starting your
engine. DO NOT use the accelerator until after the engine is
running and you are ready to drive away.
[ST05900(ALL)02/95]4.
Turn the key to the START position until the engine starts.
(Release the key after the engine has started and it will
return to the ON position.)
[ST06000(ALL)02/95]
If you have difficulty in turning the key, rotate the steering
wheel slightly to relieve any binding.
%*
[ST06600(ALL)04/94]
For a cold engine:
*
[ST06700(ALL)04/95]
n
At temperatures10ÊF (-12ÊC) andbelow:If the engine does
not start infifteen (15) secondson the first try, turn the key
to OFF, wait approximately ten (10) seconds so you do not
flood the engine, then try again.
*
[ST06800(ALL)04/95]
n
At temperaturesabove10ÊF(-12ÊC):If the engine does not
start infive (5) secondson the first try, turn the key to OFF,
wait approximately ten (10) seconds so you do not flood the
engine, then try again.
*
[ST06900(ALL)04/94]
For a warm engine:
*
[ST07000(ALL)04/95]
n
Do not hold the key in the START position for more than
five (5) secondsat a time. If the engine does not start within
five (5) seconds on the first try, turn the key to the OFF
position. Wait a few seconds after the starter stops, then try
again.
File:wnsts.ex
Update:Tue Mar 19 08:25:19 1996

Warning Lights and Gauges
75
%*
[LG06100(ALL)04/95]
Turn Signal Indicator Lights
[LG06150(ALL)12/93]
See ªTurn Signalsº in theSteering Column Controlschapter of
this Owner Guide.
[LG06200(ALL)12/93]
6 pica art:0050190-A
The turn signal indicator lights
[LG06250(ALL)03/94]
If one or both of your turn signal indicators does not light up
or remains on continuously when you signal a turn, have the
turn signaling system serviced as soon as possible.
%*
[LG06400(ALL)01/95]
High Beam Light
[LG06500(ALL)10/93]
This light comes on when the headlamps are turned to high
beam or when the high beams are flashed. If your vehicle is
equipped with Daytime Running Lights (Canadian vehicles
only) and the headlamps are on when the high beams are
flashed, the high beam indicator will not light.
[LG06600(ALL)11/93]
6 pica art:0050154-B
The high beam indicator light
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

92
[LG11285(ALL)12/93]
6 pica art:0050220-A
The speed control light
%*
[LG11301(ALL)04/95]
Turn Signal Indicator Lights
[LG11310(ALL)12/93]
See ªTurn Signalsº in theSteering Column Controlschapter of
this Owner Guide.
[LG11320(ALL)12/93]
6 pica art:0050190-A
The turn signal indicator lights
[LG11331(ALL)03/94]
If one or both of your turn signal indicators does not light up
or remains on continuously when you signal a turn, have the
turn signaling system serviced as soon as possible.
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

102
% [LG18500(ALL)06/94]
Auxiliary Warning Module (If equipped)
[LG18600(ALL)06/94]
An additional bank of indicator and warning lights is located
above the driver's side vent, just to the right of the steering
wheel. The light(s) located in this module are described and
illustrated below.
[LG18700(ALL)04/95]

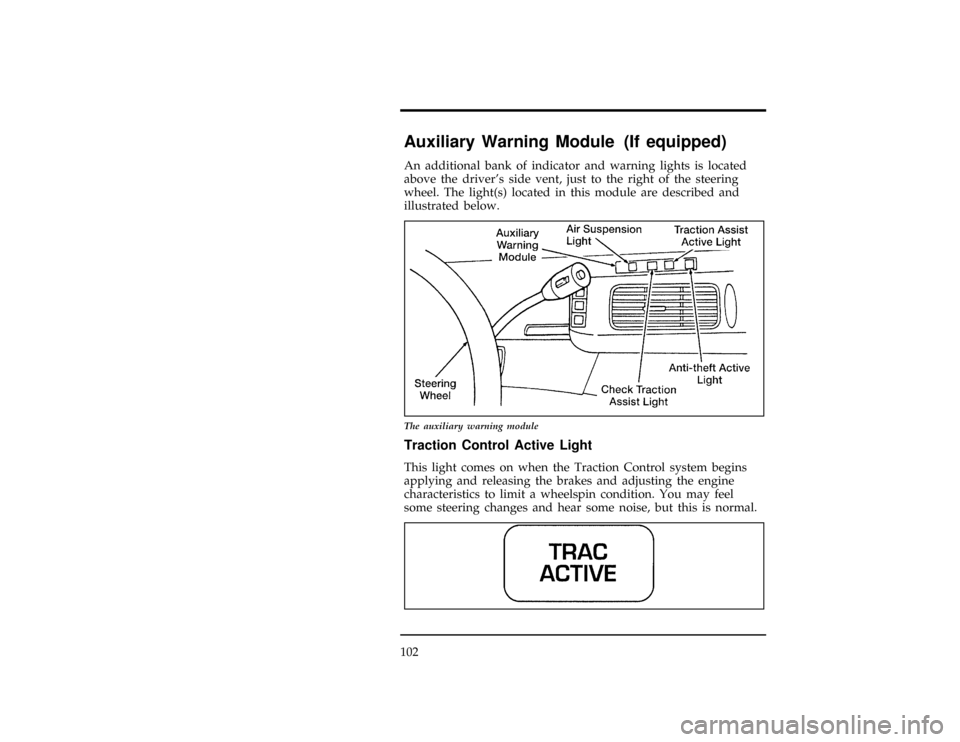

13-1/2 pica art:0050122-F
The auxiliary warning module
% [LG18710(ALL)05/95]
Traction Control Active Light
[LG18720(ALL)04/95]
This light comes on when the Traction Control system begins
applying and releasing the brakes and adjusting the engine
characteristics to limit a wheelspin condition. You may feel
some steering changes and hear some noise, but this is normal.
[LG18730(ALL)04/95]
one inch art:0050274-AFile:wnlgs.ex
