Keep the tires properly inflated. To find out the
recommended tire pressure, seeChecking the pressure of the
tireslater in this chapter.
[SV14400(ALL)02/95]
n
Use your air conditioning system wisely. To find out about
fuel economy and air conditioning, seeClimate control systems
in the Index.
[SV14500(ALL)02/95]
In addition to your individual driving habits, optional
equipment, such as air conditioning, can have a significant effect
on fuel economy. Various aftermarket add-on items that increase
aerodynamic drag can also reduce fuel economy.
%*
[SV14600(ALL)03/95]
Engine Oil Recommendations
*
[SV14750(ALL)04/95]
We recommend using Motorcraft oil or an equivalent oil
meeting Ford Specification ESE-M2C153-E and displaying the
American Petroleum Institute CERTIFICATION MARK on the
front of the container.
*
[SV14800(ALL)03/95]
Use only engine oils displaying the American Petroleum
Institute CERTIFICATION MARK on the front of the container:
*
[SV14850(ALL)05/94]
10-1/2 pica
art:0001314-A
The API Certification Mark
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

Servicing Your Windstar
317
*
[SV15000(ALL)01/95]
Neveruse:
*
[SV15100(ALL)01/95]
n
ªNon-Detergentº oils
*
[SV15200(ALL)04/95]
n
Oils labeled API SA, SB, SC, SD, SE, SF or SG
%*
[SV15300(ALL)01/95]
n
Additional engine oil additives, oil treatments or engine
treatments
%*
[SV15400(ALL)03/95]
Engine oils with anSAE 5W-30viscosity arePREFERREDfor
your vehicle. They provide the best engine performance, fuel
economy and engine protection for all climates down to-15ÊF
(-25ÊC).
%*
[SV15550(ALL)03/95]
Synthetic engine oils which are CERTIFIED and of the preferred
viscosity may be used in your engine. The engine oil and oil
filter must still be changed according to the maintenance
schedule.
%*
[SV15600(ALL)01/95]
Checking and Adding Engine Oil
*
[SV15700(ALL)03/95]
Since the proper amount of engine oil is important for safe
engine operation, check the oil using the dipstick each time you
put fuel in your vehicle. Remember the engine must be off, the
oil must be warm and the vehicle must be parked on level
ground.
%*
[SV15800(ALL)03/95]
Checking the engine oil level:
*
[SV15900(ALL)02/95]1.
Turn the engine off after it has warmed up and allow a few
minutes for the engine oil to drain back into the oil pan.
*
[SV16000(ALL)03/95]2.
Set the parking brake, making sure the gearshift is securely
latched in P (Park).
*
[SV16100(ALL)02/95]3.
Open the hood. Protect yourself from engine heat.
[SV16200(ALL)08/94]4.
Locate the dipstick labelled ªEngine Oilº and carefully pull it
out of the engine.
*
[SV16300(ALL)01/95]5.
Wipe the dipstick clean and put it back into position, making
sure it is fully seated.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

318
[SV16400(ALL)02/95]
7-1/2 pica art:0050073-D

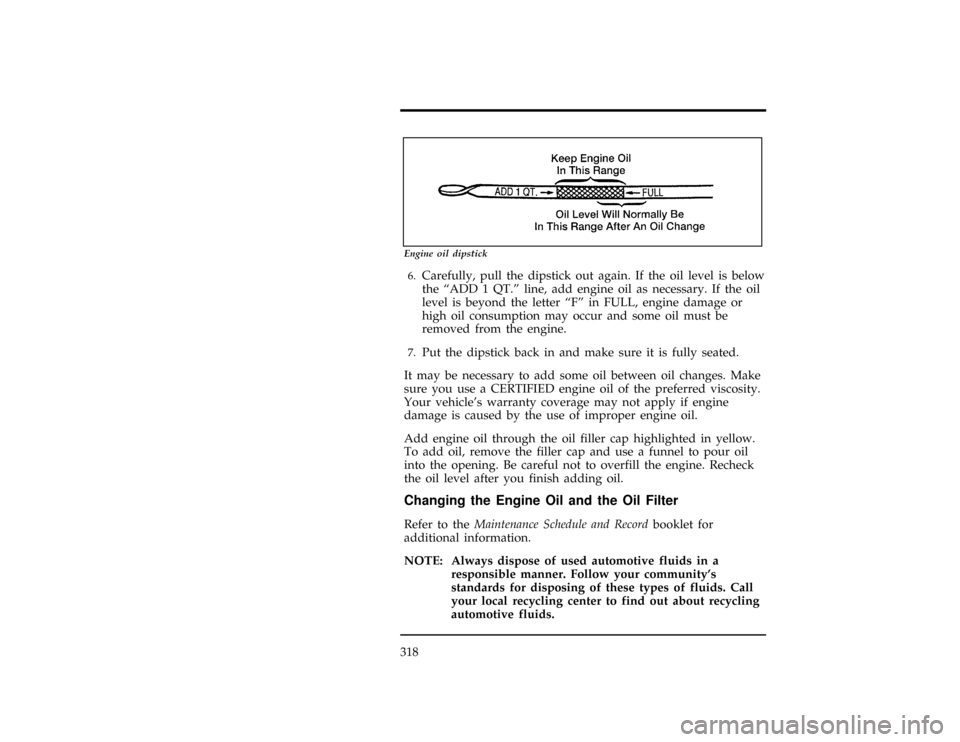

Engine oil dipstick
*
[SV16500(ALL)02/95]6.
Carefully, pull the dipstick out again. If the oil level is below
the ªADD 1 QT.º line, add engine oil as necessary. If the oil
level is beyond the letter ªFº in FULL, engine damage or
high oil consumption may occur and some oil must be
removed from the engine.
*
[SV16600(ALL)01/95]7.
Put the dipstick back in and make sure it is fully seated.
*
[SV16700(ALL)01/95]
It may be necessary to add some oil between oil changes. Make
sure you use a CERTIFIED engine oil of the preferred viscosity.
Your vehicle's warranty coverage may not apply if engine
damage is caused by the use of improper engine oil.
*
[SV16800(ALL)03/95]
Add engine oil through the oil filler cap highlighted in yellow.
To add oil, remove the filler cap and use a funnel to pour oil
into the opening. Be careful not to overfill the engine. Recheck
the oil level after you finish adding oil.
%*
[SV16900(ALL)01/95]
Changing the Engine Oil and the Oil Filter
*
[SV17200(ALL)04/95]
Refer to theMaintenance Schedule and Recordbooklet for
additional information.
% [SV18200(ALL)12/93]
NOTE: Always dispose of used automotive fluids in a
responsible manner. Follow your community's
standards for disposing of these types of fluids. Call
your local recycling center to find out about recycling
automotive fluids.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

Servicing Your Windstar
319
*
[SV18300(ALL)05/95]
RWARNING
Continuous contact with USED motor oil has caused
cancer in laboratory mice.
*
[SV18320(ALL)05/95]
Protect your skin by washing with soap and water.
%*
[SV18400(ALL)03/95]
Engine Coolant
%*
[SV18500(ALL)02/95]
Checking the engine coolant
[SV18600(ALL)11/93]
Your vehicle's engine coolant protects the engine from
overheating in the summer and from freezing in the winter.
Check the level of the engine coolant at least once a month, but
preferably each time you stop for fuel. Simply check the coolant
reservoir, located in the engine compartment. The coolant
should stay slightly above the ªFULL COLDº mark.
*
[SV18700(ALL)01/95]
Adding engine coolant
*
[SV18900(ALL)05/95]
RWARNING
Do not put engine coolant in the container for the
windshield washer fluid.
*
[SV18920(ALL)05/95]
If sprayed to clean the glass, engine coolant or antifreeze could
make it difficult to see through the windshield.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

320
[SV18950(ALL)11/93]
17-1/2 pica
art:0050025-B

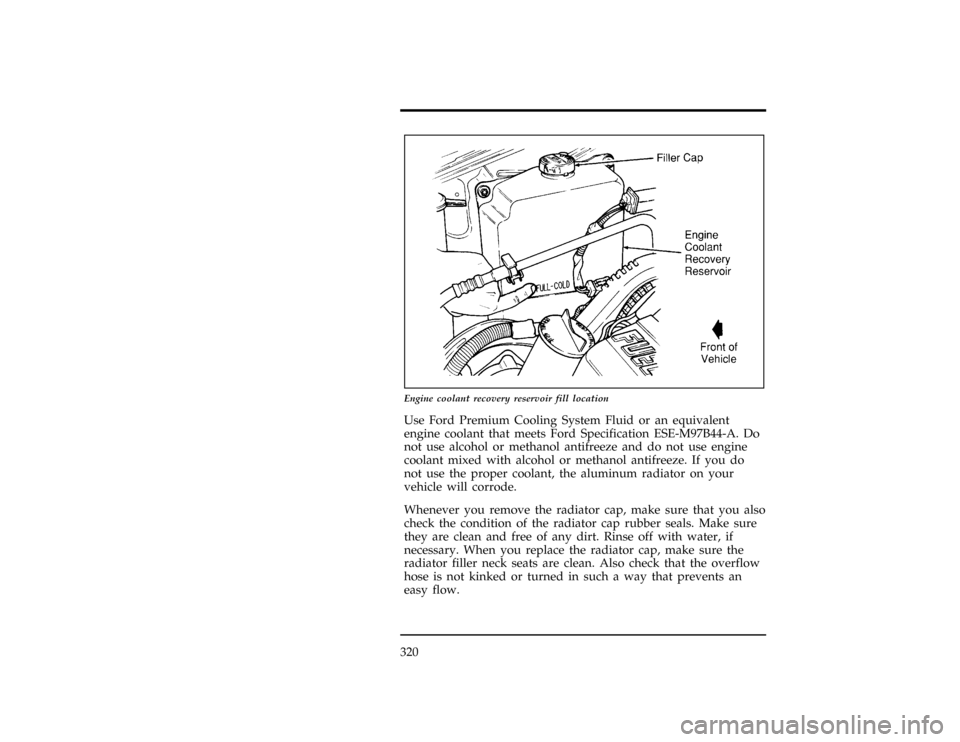

Engine coolant recovery reservoir fill location
%*
[SV18975(ALL)01/95]
Use Ford Premium Cooling System Fluid or an equivalent
engine coolant that meets Ford Specification ESE-M97B44-A. Do
not use alcohol or methanol antifreeze and do not use engine
coolant mixed with alcohol or methanol antifreeze. If you do
not use the proper coolant, the aluminum radiator on your
vehicle will corrode.
*
[SV19000(ALL)01/93]
Whenever you remove the radiator cap, make sure that you also
check the condition of the radiator cap rubber seals. Make sure
they are clean and free of any dirt. Rinse off with water, if
necessary. When you replace the radiator cap, make sure the
radiator filler neck seats are clean. Also check that the overflow
hose is not kinked or turned in such a way that prevents an
easy flow.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

Servicing Your Windstar
321
*
[SV19100(ALL)02/95]
Never remove the radiator cap while the engine is running or
hot. If you must remove the radiator cap, follow these steps to
avoid personal injury that can be caused by escaping steam or
engine coolant.
*
[SV19300(ALL)02/95]1.
Turn the engine off and let it cool before removing the
radiator cap. You should exercise care when removing the
cap, even from a cooled engine.
*
[SV19400(ALL)03/95]2.
When the engine is cool, wrap a thick cloth around the cap
and turn it slowly counterclockwise to the first stop.
*
[SV19500(ALL)02/95]3.
Step back while the pressure is released.
*
[SV19600(ALL)04/95]4.
When you are sure that all the pressure has been released,
use the cloth to press, turn, and remove cap.
[SV19700(ALL)02/95]5.
Stand away from the radiator opening while removing the
cap. Hot steam may blow out or hot engine coolant may
splash out.
%*
[SV19800(ALL)01/93]
Freezing Protection
*
[SV19900(ALL)01/93]
The factory-installed solution of Ford Premium Cooling System
Fluid and water will protect your vehicle tos35ÊF (s37ÊC).
Check the freeze protection rating of the engine coolant at least
once a year, just before winter.
% [SV20000(ALL)02/95]
Add engine coolant only to the engine coolant recovery
reservoir Ð not to the radiator. If the coolant level is low, add
to the engine coolant recovery reservoir a 50/50 mixture of
water and the type of engine coolant that Ford specifies. If the
coolant recovery reservoir is empty, you should also check the
radiator to see if it is low. Check the coolant level again the
next few times you drive your vehicle.
*
[SV20100(ALL)02/95]
Ford Premium Cooling System Fluid is an optimized formula
that will protect all metals and rubber elastomers used in Ford
engines for four years or 50,000 miles (80,000 km). It is not
necessary and not recommended to use supplemental coolant
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

Servicing Your Windstar
323
*
[SV20800(ALL)01/93]
To find out how much engine coolant mixture your vehicle's
coolant system can hold, seeRefill Capacitieslater in this chapter.
[SV20900(ALL)02/95]
You may add water by itself only in an emergency, but you
should replace it with a 50/50 mixture of water and coolant as
soon as possible.
*
[SV21000(ALL)02/95]
Have your dealer check the engine cooling system for leaks if
you have to add engine coolant more than once a month, or
you have to add more than a quart (liter) at a time.
%*
[SV21100(ALL)11/94]
Checking hoses
*
[SV21200(ALL)01/93]
Inspect all engine and heater system hoses for deterioration,
leaks and loose clamps before adding or replacing engine
coolant. Make whatever repairs or replacements are necessary
using Motorcraft parts or their equivalents.
%*
[SV21300(ALL)05/95]
Engine coolant drain and flush
[SV21400(ALL)11/93]
To drain and flush your engine coolant, youMUSTsee your
Ford dealer or refer to the procedure in the service manual.
Failing to do so could result in engine damage.
%*
[SV21505(ALL)05/95]
Battery
*
[SV21510(ALL)02/95]
The Motorcraft maintenance-free battery does not require
additional water during its life of service. The vents are part of
the cover and cannot be removed. For longer, trouble-free
operation, keep the top of the battery clean and dry. Also, make
certain the battery cables are tightly fastened to the battery
terminals.
*
[SV21515(ALL)02/95]
If you see any corrosion on the battery cables or terminals,
remove the cables from the terminal and clean them both with a
wire brush. You can neutralize the acid with a solution of
baking soda and water. Reinstall the cables when you are done
cleaning them, and apply a small quantity of grease to the top
of each battery terminal to help prevent corrosion.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

Servicing Your Windstar
325
*
[SV21555(ALL)02/95]
RWARNING
The gases around the battery can explode if exposed to
flames, sparks, or lit cigarettes. An explosion could result
in injury or vehicle damage.
%*
[SV21560(ALL)05/95]
RWARNING
Batteries contain sulfuric acid which burns skin, eyes,
and clothing.
*
[SV21562(ALL)05/95]
If the acid touches someone's skin, eyes, or clothing,
immediately flush the area with water for at least 15 minutes. If
someone swallows the acid, have him or her drink lots of milk
or water first, then Milk of Magnesia, a beaten egg, or vegetable
oil. Call a doctor immediately.
%*
[SV21570(ALL)05/95]
RWARNING
Applying too much pressure on the ends when lifting a
battery could cause acid to spill. Lift the battery with a
carrier or with your hands on the opposite corners.
%*
[SV21580(ALL)03/95]
Windshield Washer Fluid and Wipers
%*
[SV21600(ALL)03/95]
Washer Fluid
[SV21700(ALL)02/95]
Check the level of the windshield washer fluid every time you
stop for fuel. The reservoir for washer fluid is located on the
front, passenger side of the engine compartment. This reservoir
contains the fluid for both the windshield and liftgate washers.
*
[SV21900(ALL)05/95]
RWARNING
Do not put windshield washer fluid in the container for
the engine coolant.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996
