1996 FORD WINDSTAR display

96
[LG13400(ALL)11/93]
10-1/2 pica
art:0050192-A

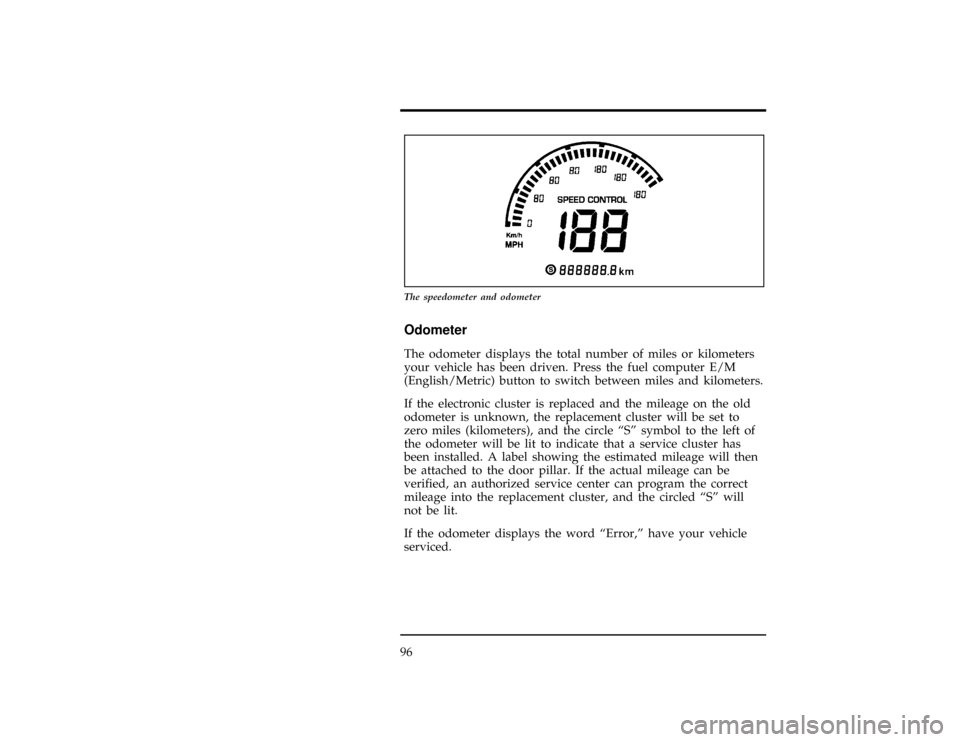

The speedometer and odometer
%*
[LG13500(ALL)01/95]
Odometer
[LG13600(ALL)06/94]
The odometer displays the total number of miles or kilometers
your vehicle has been driven. Press the fuel computer E/M
(English/Metric) button to switch between miles and kilometers.
[LG13700(ALL)10/93]
If the electronic cluster is replaced and the mileage on the old
odometer is unknown, the replacement cluster will be set to
zero miles (kilometers), and the circle ªSº symbol to the left of
the odometer will be lit to indicate that a service cluster has
been installed. A label showing the estimated mileage will then
be attached to the door pillar. If the actual mileage can be
verified, an authorized service center can program the correct
mileage into the replacement cluster, and the circled ªSº will
not be lit.
[LG13800(ALL)10/93]
If the odometer displays the word ªError,º have your vehicle
serviced.
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

Warning Lights and Gauges
97
%*
[LG13900(ALL)02/95]
Tachometer
[LG14000(ALL)10/93]

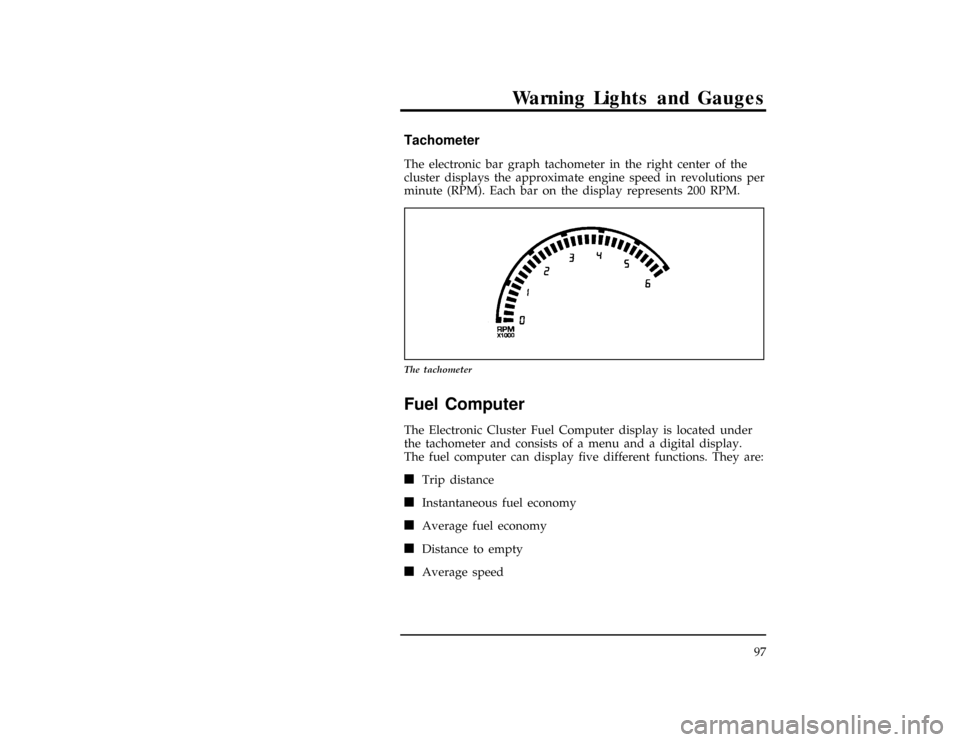

The electronic bar graph tachometer in the right center of the
cluster displays the approximate engine speed in revolutions per
minute (RPM). Each bar on the display represents 200 RPM.
[LG14100(ALL)11/93]
10-1/2 pica
art:0050193-A
The tachometer
% [LG16000(ALL)10/93]
Fuel Computer
[LG16100(ALL)11/93]
The Electronic Cluster Fuel Computer display is located under
the tachometer and consists of a menu and a digital display.
The fuel computer can display five different functions. They are:
[LG16150(ALL)10/93]
n
Trip distance
[LG16200(ALL)10/93]
n
Instantaneous fuel economy
[LG16250(ALL)10/93]
n
Average fuel economy
[LG16300(ALL)10/93]
n
Distance to empty
[LG16350(ALL)10/93]
n
Average speed
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

98
[LG16500(ALL)10/93]
Fuel Computer Buttons
[LG16600(ALL)10/93]

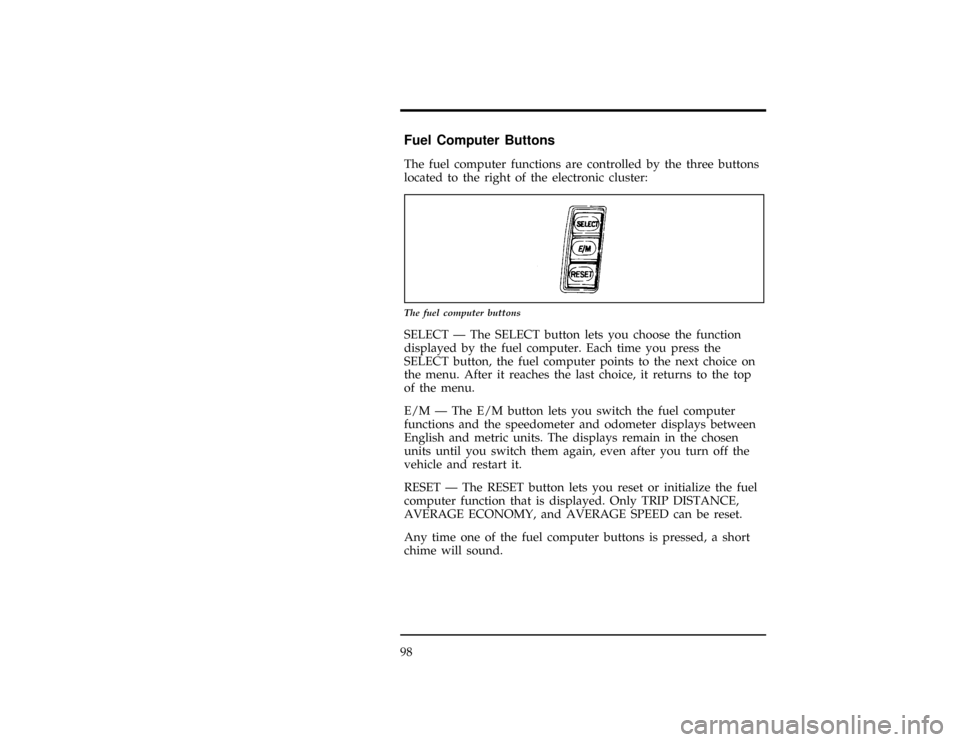

The fuel computer functions are controlled by the three buttons
located to the right of the electronic cluster:
[LG16650(ALL)11/93]
7-1/2 pica art:0050049-A
The fuel computer buttons
% [LG16700(ALL)10/93]
SELECT Ð The SELECT button lets you choose the function
displayed by the fuel computer. Each time you press the
SELECT button, the fuel computer points to the next choice on
the menu. After it reaches the last choice, it returns to the top
of the menu.
% [LG16800(ALL)10/93]
E/M Ð The E/M button lets you switch the fuel computer
functions and the speedometer and odometer displays between
English and metric units. The displays remain in the chosen
units until you switch them again, even after you turn off the
vehicle and restart it.
% [LG16900(ALL)03/94]
RESET Ð The RESET button lets you reset or initialize the fuel
computer function that is displayed. Only TRIP DISTANCE,
AVERAGE ECONOMY, and AVERAGE SPEED can be reset.
[LG16950(ALL)12/93]
Any time one of the fuel computer buttons is pressed, a short
chime will sound.
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

Warning Lights and Gauges
99
[LG17000(ALL)11/93]
The Fuel Computer Functions
[LG17100(ALL)06/94]
The complete fuel computer menu is displayed for about five
seconds after the cluster self-test (when the ignition is turned to
ON) and after the SELECT button is pressed. After five seconds,
only the selected function is displayed.
% [LG17200(ALL)10/93]
TRIP DISTANCE
[LG17300(ALL)03/94]
Your trip distance is the distance you have traveled since the
last reset. To display your current trip distance, press the
SELECT button until the pointer is at TRIP DISTANCE. To reset
the trip distance to zero, press the RESET button while the
pointer is at TRIP DISTANCE. You may want to use this feature
to see how far you have traveled on a particular trip.
[LG17400(ALL)08/94]
If you do not reset your trip distance, the display will roll over
to zero when it passes 1999 miles or kilometers. If you switch
from miles to kilometers after you have passed 1242 miles
(1999 kilometers), you must add 2000 to the kilometers display
for actual distance traveled. The display will then roll over to
zero when it passes 1218 kilometers (3218 kilometers or 1999
miles traveled) whether you select English or metric units. If the
display is in metric units when you pass 1999 kilometers (1242
miles), both English and metric trip distances will roll over to
zero.
% [LG17500(ALL)10/93]
INSTANT ECONOMY
[LG17550(ALL)03/94]
Your instantaneous fuel economy is your vehicle's fuel economy
over the last one second of driving. To display your
instantaneous fuel economy, press SELECT until the pointer is
at INSTANT ECONOMY. Your instantaneous fuel economy
changes with your driving conditions. Factors affecting fuel
economy include braking, acceleration, and road terrain. You
may want to use this feature to see how your driving habits
affect your fuel economy. INSTANT ECONOMY is not
resettable.
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

100
[LG17600(ALL)10/93]
Your instantaneous fuel economy can vary from 0 to 99 miles
per gallon or from 99 to 2 liters per 100 kilometers when your
vehicle is moving. When your vehicle is not moving, fuel
economy is displayed as 0 miles per gallon or as a number of
liters per hour. In the metric mode, instantaneous fuel economy
will display in liters per hour when your vehicle speed drops
below 5 km/h and will stay in liters per hour until your speed
exceeds 7 km/h.
% [LG17650(ALL)10/93]
AVERAGE ECONOMY
[LG17700(ALL)03/94]
Your average fuel economy is the average value of your fuel
economy since the last reset. To display your average fuel
economy, press SELECT until the pointer is at AVERAGE
ECONOMY. The fuel computer calculates average fuel economy
from the distance traveled and the fuel used (as reported by the
Electronic Engine Control module). Press the RESET button
when AVERAGE ECONOMY is selected to reset the average
fuel economy. You may want to use this feature to see how
your fuel economy changes each day or for each tank of fuel.
[LG18000(ALL)03/94]
If you calculate your fuel economy based on the odometer
distance traveled and the amount of fuel you pump into the
tank, your number may be different than the fuel computer
number for various reasons. Most likely, the top level of fuel
added may be different between fill-ups, causing an incorrect
estimate of the amount of fuel used.
% [LG18100(ALL)10/93]
DISTANCE TO EMPTY
[LG18150(ALL)11/93]
Your distance to empty is the approximate number of miles or
kilometers that you can drive before you run out of fuel. To
display your distance to empty, press SELECT until the pointer
is at DISTANCE TO EMPTY. The fuel computer calculates
distance to empty from the amount of fuel in the tank and an
internally determined fuel economy value, which is not the
same as the AVERAGE ECONOMY number. DISTANCE TO
EMPTY is not resettable. You may want to use this feature to
plan when your next fuel fill-up should be.
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

Warning Lights and Gauges
101
[LG18175(ALL)03/94]
Your distance to empty may change faster or slower than actual
distance traveled because your fuel economy varies with
changing driving conditions.
[LG18250(ALL)11/93]
The fuel computer will automatically warn you when your
distance to empty is low. When your distance to empty reaches
50 miles (80 km), 25 miles (40 km) and 10 miles (20 km), the
fuel computer will automatically select DISTANCE TO EMPTY,
flash the number for five seconds, and sound a one second
chime.
[LG18275(ALL)10/93]
If the Distance to Empty function displays CO or CS, you must
have the fuel indication system serviced.
[LG18300(ALL)03/94]
Turn your ignition to OFF while fueling to obtain an accurate
distance to empty reading. If you do not turn your ignition off,
the fuel computer will not display the new distance to empty
immediately, but will slowly increase to the correct value.
[LG18301(ALL)10/93]
AVERAGE SPEED
[LG18350(ALL)03/94]
Your average speed is the average speed your vehicle has
traveled while the ignition was ON since the last reset. To
display your average speed, press SELECT until the pointer is at
AVERAGE SPEED. Press the RESET button when AVERAGE
SPEED is selected to reset the average speed. You may want to
use this feature to see what your average speed is during daily
driving or on a long trip.
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

142
%[SC11400(ALL)05/95]
Speed Control Light (Electronic Cluster Only)
*
[SC11500(ALL)03/95]
This light comes on when you turn on the speed control system
and set the speed. The light will be on whenever the speed
control is set, even if you override the set speed by pressing the
accelerator pedal or by pressing the coast button. The light will
go off when the brakes are used or the speed control system is
turned off.
[SC11600(ALL)11/93]
This light comes on briefly during the display self-test every
time you turn your ignition key to the ON position. The light
will go off when the key is turned to the START position. The
light should stay off when the self-test is done.
*
[SC11700(ALL)05/95]
This light does not indicate any problems with the speed control
system, but is a convenience to tell you when the speed control
system is actively maintaining a set speed.
File:wnscs.ex
Update:Tue Mar 19 08:22:27 1996

196
%*
[AS01175(ALL)04/95]
Compact Disc Radio
*
[AS01250(ALL)05/95]
The Compact Disc Radio combines the Electronic Stereo Radio
with the Ford Compact Disc Player.
*
[AS01300(ALL)04/95]
Using the Controls on Your New Radio/CD Player
*
[AS01400(ALL)04/92]
Most of the features of this unit work for both radio and CD
operation, depending on which mode the unit is in. Also, some
of the buttons control several different functions, so be sure to
read all of the operating instructions carefully.
*
[AS01500(ALL)04/95]
How to turn the radio on and off
*
[AS01600(ALL)04/95]
Press the ªPOWERº button to turn the radio on. Press it again
to turn it off.
*
[AS01625(ALL)04/95]
How to adjust the volume
*
[AS01650(ALL)05/95]
Press the (+/±) side of the ªVOLº button to increase/decrease
the volume. Bars illuminate in the display to show the relative
volume level.
*
[AS01675(ALL)04/95]
NOTE: If the volume level is set above a certain listening
level when the ignition switch is turned off, when the
ignition switch is turned back on, the volume will
come back to a ªnominalº listening level. However, if
the radio power is turned off (with the ªPOWERº
button), the volume will remain in the position it was
set at when radio power is switched back on.
*
[AS01700(ALL)04/95]
Selecting the AM or FM frequency band
*
[AS01800(ALL)04/95]
Push the ªAM/FMº button to select the desired frequency band.
When in the radio mode, pushing the button more than once
will alternate between AM, FM1 and FM2. These functions are
used with the station memory buttons described underHow to
tune radio stations.
File:wnass.ex
Update:Tue Mar 19 08:19:39 1996
