1996 FORD MUSTANG engine

213
*
[RE13500(MBC )09/95]
Reinstalling the anti-theft lug nut
*
[RE13600(MBC )03/95]
Insert the key over the locking lug nut. Place the
lug nut wrench over the lug nut key and, while
applying pressure on the key, install the lug nut.
*
[RE13800( ALL)03/95]
If the Engine Cranks But Does
Not Start or Does Not Start After
a Collision
[RE13810( ALL)07/95]
The Fuel System Shut-off Switch
[RE13900( ALL)07/95]
If the engine cranks but does not start or if you
have had a collision, the fuel system shut-off
switch may have been triggered. The shut-off
switch is a device that stops the fuel system
when your vehicle has been involved in a
substantial jolt.
[RE14000( ALL)07/95]
For information on how to check and reset the
fuel system shut-off switch, seeFuel system
shut-off switchin the Index.
%
*
[RE14100( ALL)05/95]
Towing Your Vehicle
[RE14225(M )10/95]
Mustang/Mustang GT
[RE14250(M )10/95]
It is recommended that your vehicle be towed
with wheel lift or flatbed equipment. If slingbelt
equipment must be used, the towbar will deform
the soft fascia (bumper). However, it will return
to an acceptable shape.
[RE14255(M )10/95]
Mustang Cobra/Convertible
[RE14260(M )10/95]
DO NOT TOW WITH SLINGBELT
EQUIPMENT. Ford Motor Company has not
developed or approved a T-hook sling-type
procedure. Use wheel lift or flatbed equipment.
If your vehicle is to be towed from the rear
using wheel lift equipment, the front wheels
must be placed on a dolly to prevent damage to
the front fascia (bumper).
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996

224disputes. CAMVAP decisions are fast, fair and
final as the Arbitrator's award is binding on
both you and Ford of Cananda.
*
[HS09500( ALL)09/95]
CAMVAP services are available in all territories
and provinces, except Quebec. For more
information, without charge or obligation, call
your CAMVAP Provincial Administrator directly
at 1-800-207-0685.
%
*
[HS09700( ALL)06/95]
Getting Help Outside the U.S.
and Canada
*
[HS09800( ALL)06/95]
Before you export your vehicle to a foreign
country, contact the appropriate foreign embassy
or consulate to make sure local regulations do
not prevent you from registering your vehicle.
Officials at the embassy can also help you decide
whether you should import your vehicle to that
country.
*
[HS09900( ALL)06/95]
Officials at the embassy or consulate can tell you
where to get unleaded fuel. If you cannot get
unleaded fuel or can get only fuel with an
anti-knock index that is lower than your vehicle
needs, contact a district or owner relations office
before you leave the U.S. or Canada.
*
[HS10000( ALL)06/95]
Use of leaded fuel in your vehicle without a
proper conversion may damage the effectiveness
of your emissions control system and may cause
engine knocking or serious engine damage. Ford
Motor Company is not responsible for any
damage that is caused by use of improper fuel.
*
[HS10100( ALL)06/95]
You may also have difficulty importing your
vehicle back into the U.S. if you use leaded fuel.
File:13rchsm.ex
Update:Wed Mar 27 09:35:14 1996

227
Accessories
*
[AC00200( ALL)03/95]
Ford Accessories for Your Vehicle
*
[AC00240( ALL)04/95]
Ford has many fine products available from
your dealer to clean your vehicle and protect its
finishes. For best results, use the following, or
products of equivalent quality:
*
[AC00280( ALL)05/95]
twelve pica chart:0001433-A
*
[AC00300( ALL)04/95]
A wide selection of accessories is available
through your local authorized dealer. These fine
accessories have been engineered specifically to
fulfill your automotive needs. They are custom
designed to complement the style and
aerodynamic appearance of your Ford-built
vehicle. In addition, each accessory is made from
high quality materials and meets or exceeds
Ford's rigid engineering and safety specifications.
That is why Ford brand accessories are
warranted for up to 3 years or 36,000 miles
(60,000 km), whichever comes first. See your
dealer for complete warranty information and
accessory availability.
File:14rcacm.ex
Update:Wed Mar 27 09:35:46 1996

230
*
[AC01600( ALL)01/95]
NOTE: Mobile communications systems may
harm the operation of your vehicle,
particularly if they are not properly
designed for automotive use or are not
properly installed. For example, when
operated, such systems may cause the
engine to stumble or stall. In addition,
such systems may themselves be
damaged or their operation affected by
operating your vehicle. (Citizens band
[CB] transceivers, garage door openers,
and other transmitters whose power
output is 5 watts or less will not
ordinarily affect your vehicle's
operation.)
*
[AC01700( ALL)05/95]
NOTE: Because we have no control over the
installation, design, or manufacture of
such systems, Ford cannot assume
responsibility for any adverse effects or
damage that may result if you use this
equipment.
File:14rcacm.ex
Update:Wed Mar 27 09:35:46 1996

235
Servicing Your Mustang
%*
[SV00300( ALL)03/95]
Service Made Easy
*
[SV00400( ALL)01/95]
Ford has two goals for servicing your vehicle.
*
[SV00550( ALL)01/95]
1. When we can, we design parts that do not
need to be serviced.
*
[SV00600( ALL)01/95]
2. We want to make servicing your vehicle as
easy as possible. To help you:
*
[SV00700( ALL)01/95]
q
We highlight do-it-yourself items in yellow in
the engine compartment so that you can find
them easily.
*
[SV00800( ALL)01/95]
q
When possible, we design parts Ð such as
the headlamp bulbs Ð that can be replaced
without tools.
*
[SV00900( ALL)05/94]
q
We give you a Maintenance Schedule that
makes tracking routine service for your
vehicle easy. The maintenance schedule is
located in theMaintenance Schedule and Record
booklet.
*
[SV01000( ALL)01/95]
This chapter tells you about the basic parts that
you need to check and service regularly.
*
[SV01100( ALL)02/95]
If your vehicle needs professional servicing, your
dealership can provide the parts and service
required. Check yourWarranty Information Booklet
to find out which parts and services are covered.
Also see theCustomer Assistancechapter of this
Owner Guide.
*
[SV01250( ALL)03/95]
Ford Motor Company recommends that the
Owner Maintenance Checks listed in the
Maintenance Schedule and Recordbooklet be
performed for the proper operation of your
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

236vehicle. In addition to the conditions listed in
theOwner Maintenance Checklist, be alert for any
unusual noise, vibration, or other indication that
your vehicle may need service. If you do notice
something unusual, see that your vehicle is
serviced promptly.
*
[SV01275( ALL)03/95]
Use only recommended fuels, lubricants, fluids,
and service parts conforming to Ford
specifications. Motorcraft parts are designed and
built to provide the best performance in your
vehicle. Using these parts for replacement is
your assurance that Ford-built quality stays in
your vehicle.
%*
[SV01400( ALL)09/95]
NOTE: Always dispose of used automotive
fluids in a responsible manner. Follow
your community's standards for
disposing of these types of fluids. Call
your local recycling center to find out
about recycling automotive fluids.
%
*
[SV01600( ALL)06/95]
Precautions When Servicing Your
Vehicle
*
[SV01700( ALL)06/95]
Be especially careful when inspecting or
servicing your vehicle. Here are some general
precautions for your safety:
%*
[SV01800(MBC )10/95]
q
Do not work on a hot engine. The engine
cooling fan may come on unexpectedly.
Always turn the engine off and let it cool.
*
[SV01850(MBC )10/95]
RWARNING
The cooling fan is automatic and may
come on at any time. Always disconnect
the negative terminal of the battery before
working near the fan.
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

237
*
[SV01900( ALL)06/95]
q
If you must work with the engine running,
avoid wearing loose clothing or jewelry that
could get caught in moving parts. Take
appropriate precautions with long hair.
*
[SV02000( ALL)06/95]
q
Do not work on a vehicle in an enclosed
space with the engine running, unless you are
sure you have enough ventilation.
*
[SV02100( ALL)08/95]
q
Never get under a vehicle while it is
supported only by a jack. If you must work
under a vehicle, use safety stands.
*
[SV02200( ALL)06/95]
q
Keep all lit cigarettes and other smoking
materials away from the battery and all
fuel-related parts.
*
[SV02600(MBC )03/95]
If you disconnect the battery, the engine must
ªrelearnº its idle conditions before your vehicle
will drive properly. To find out how the engine
does this, seeBatteryin this chapter.
*
[SV02800( ALL)03/95]
Working with the engine off:
[SV02900(M )03/95]
1. Set the parking brake fully, block the wheels,
and make sure that the gearshift is securely
latched in P (Park) (automatic transmission)
or 1 (First) (manual transmission).
*
[SV03100( ALL)06/95]
2. Remove the key from the ignition after you
turn the engine off.
*
[SV03150( ALL)06/95]
3. Block the wheels. This will prevent your
vehicle from moving unexpectedly.
*
[SV03200( ALL)03/95]
Working with the engine on:
[SV03300(M )03/95]
1. Set the parking brake fully, and make sure
that the gearshift is securely latched in P
(Park) (automatic transmission) or Neutral
(manual transmission).
*
[SV03501( ALL)03/95]
2. Block the wheels. This will prevent your
vehicle from moving unexpectedly.
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

238
*
[SV03600( ALL)02/95]
RWARNING
Do not start your engine with the air
cleaner removed and do not remove it
while the engine is running.
%*
[SV03650( ALL)03/95]
Opening the Hood
[SV03800( ALL)03/95]
1. Inside the vehicle, pull the hood release
located under the lower left corner of the
instrument panel.
[SV04000( ALL)03/95]
2. Go around to the front of the vehicle, and
release the auxiliary catch that is located
under the front edge of the hood at the
center of the vehicle.
[SV04085(M )05/95]
one third page art:0011350-A

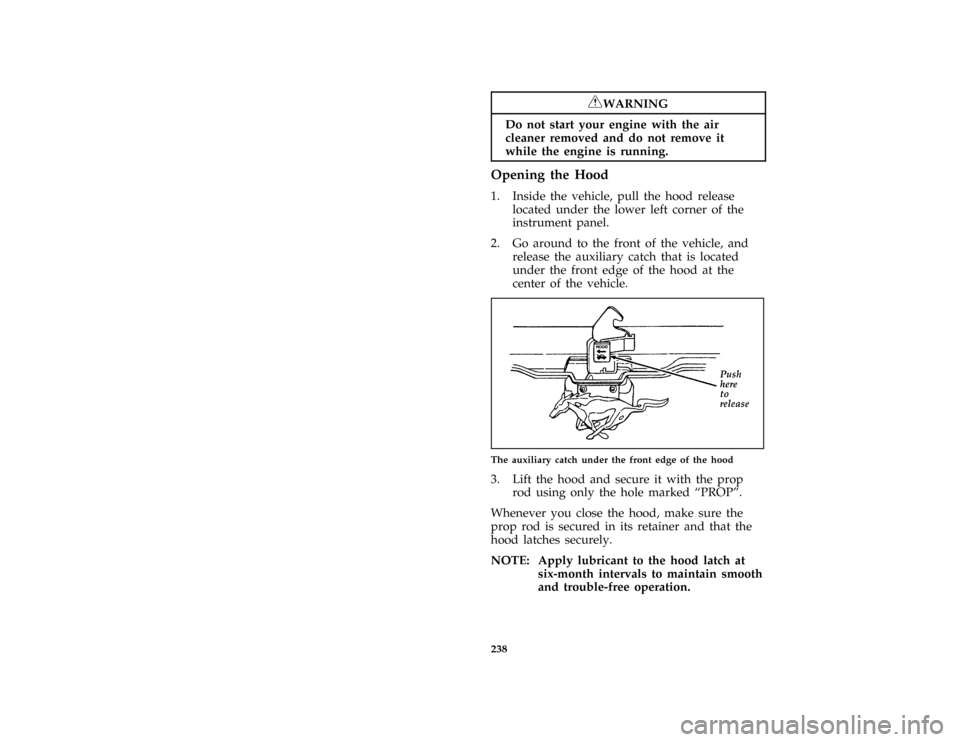

The auxiliary catch under the front edge of the hood
[SV04100(M )01/89]
3. Lift the hood and secure it with the prop
rod using only the hole marked ªPROPº.
[SV04300(M )01/89]
Whenever you close the hood, make sure the
prop rod is secured in its retainer and that the
hood latches securely.
*
[SV04450( ALL)01/95]
NOTE: Apply lubricant to the hood latch at
six-month intervals to maintain smooth
and trouble-free operation.
