RWARNING
To reduce the risk of serious injury in a
collision, children should always ride with
the seatback upright.
*
[SR15900(BEF )01/95]
Safety Seats for Children
*
[SR16000(BEF )05/95]
Use a safety seat that is recommended for the
size and weight of the child. Always follow the
safety seat manufacturer's instructions when
installing and using the safety seat.
*
[SR16015(BEF )02/95]
Ford recommends the use of a child safety seat
having a top tether strap. Install the child safety
seat in a seating position which is capable of
providing a tether anchorage. For more
information on top tether straps seeAttaching
Safety Seats With Tether Strapsin this chapter.
[SR16025(BEF )05/95]
When installing a child safety seat, be sure to
use the correct safety belt buckle for that seating
position making sure the tongue is securely
fastened in the buckle and for a shoulder/lap
belt combination with a sliding tongue make
sure the retractor is in the ªautomatic locking
mode.º
*
[SR16095(BEF )05/95]
All child restraint systems are designed to be
secured in vehicle seats by lap belts or by the
lap portion of a lap-shoulder belt.
*
[SR16100(BEF )05/95]
RWARNING
If you do not properly secure the safety
seat, the child occupying the seat may be
injured during a collision or sudden stop.
An unsecured safety seat could also injure
other passengers.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

36
*
[SR16200(BEF )05/95]
RWARNING
Carefully follow all of the manufacturer's
instructions included with the safety seat
you put in your vehicle. If you do not
install and use the safety seat properly,
the child may be injured in a sudden stop
or collision.
*
[SR16250(BEF )10/94]
RWARNING
Seatbacks should be upright for use with
child safety seats.
*
[SR16275(BEF )05/95]
RWARNING

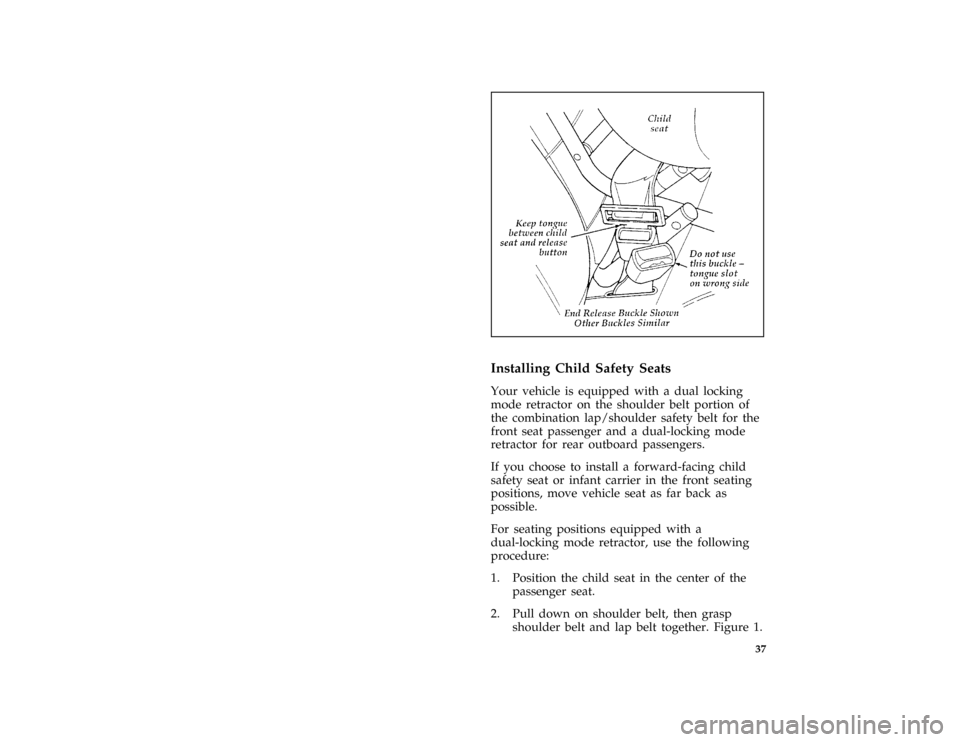

Always keep the buckle release button
pointing upward and away from the child
seat, with the tongue between the child
seat and the release button as shown in
the following illustration.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

37 [SR16280(BEF )05/95]
half page art:0021377-B
[SR16300(BEF )04/95]
Installing Child Safety Seats
[SR16305( F )04/95]
Your vehicle is equipped with a dual locking
mode retractor on the shoulder belt portion of
the combination lap/shoulder safety belt for the
front seat passenger and a dual-locking mode
retractor for rear outboard passengers.
[SR16320( EF )04/95]
If you choose to install a forward-facing child
safety seat or infant carrier in the front seating
positions, move vehicle seat as far back as
possible.
[SR16325( EF )04/95]
For seating positions equipped with a
dual-locking mode retractor, use the following
procedure:
*
[SR16345(BEF )04/95]
1. Position the child seat in the center of the
passenger seat.
*
[SR16350(BEF )04/95]

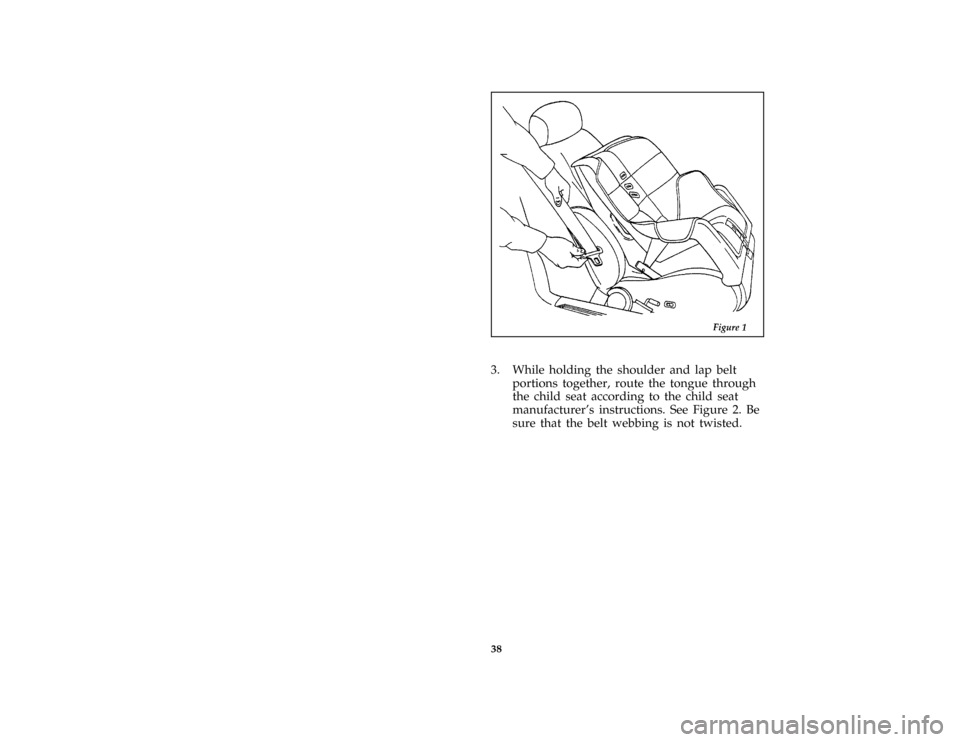

2. Pull down on shoulder belt, then grasp
shoulder belt and lap belt together. Figure 1.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

38
*
[SR16355(BEF )04/95]
half page art:0011238-B
*
[SR16360(BEF )04/95]

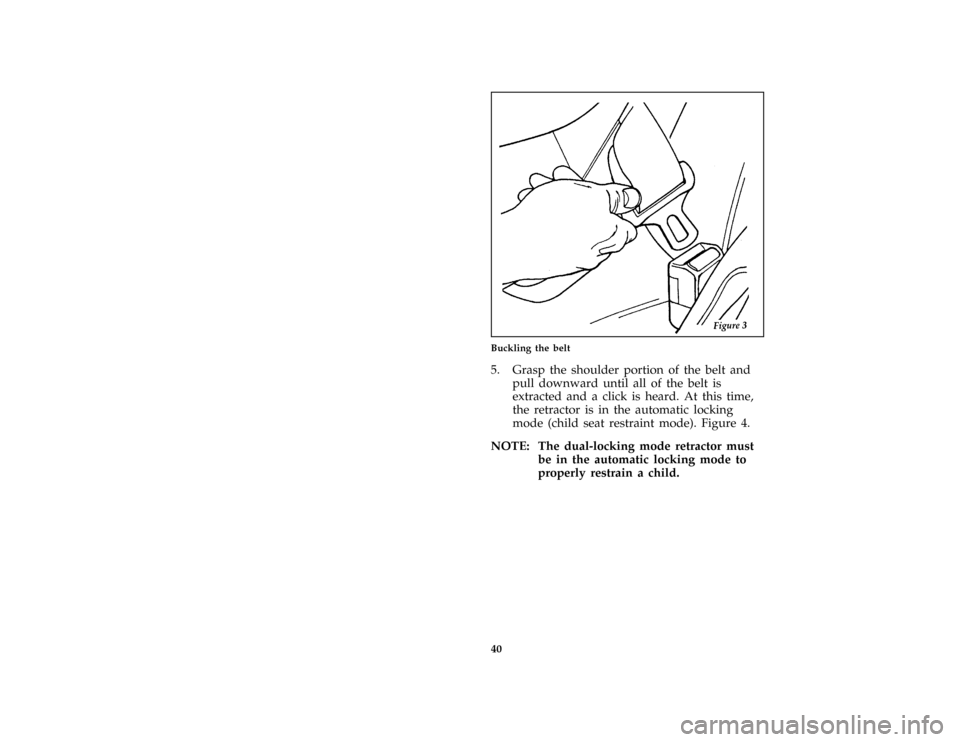

3. While holding the shoulder and lap belt
portions together, route the tongue through
the child seat according to the child seat
manufacturer's instructions. See Figure 2. Be
sure that the belt webbing is not twisted.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

40
*
[SR16375(BEF )04/95]
half page art:0011240-B
Buckling the belt
*
[SR16380(BEF )04/95]

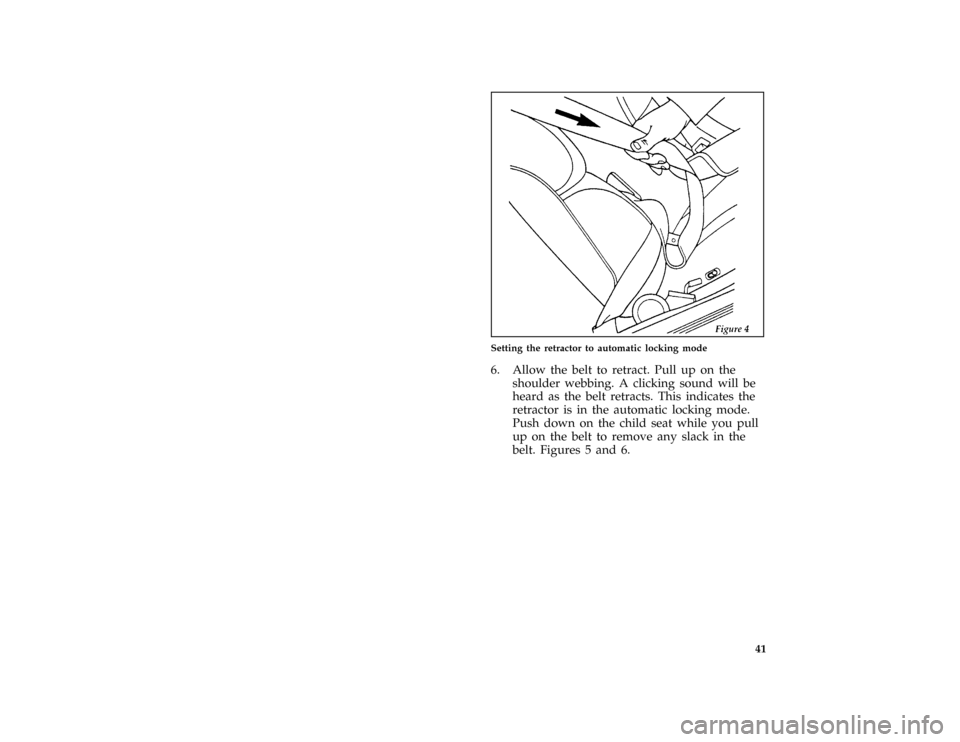

5. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted and a click is heard. At this time,
the retractor is in the automatic locking
mode (child seat restraint mode). Figure 4.
*
[SR16385(BEF )04/95]
NOTE: The dual-locking mode retractor must
be in the automatic locking mode to
properly restrain a child.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

41
*
[SR16390(BEF )04/95]
half page art:0011241-A
Setting the retractor to automatic locking mode
*
[SR16395(BEF )04/95]
6. Allow the belt to retract. Pull up on the
shoulder webbing. A clicking sound will be
heard as the belt retracts. This indicates the
retractor is in the automatic locking mode.
Push down on the child seat while you pull
up on the belt to remove any slack in the
belt. Figures 5 and 6.
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

43
*
[SR16410(BEF )04/95]
7. Before placing the child in the child seat,
forcibly tilt the seat from side to side, and
tug it forward to make sure that the seat is
securely held in place, Figure 7.
*
[SR16412(BEF )04/95]
half page art:0011244-A
Checking that the seat is secure
File:ltsrf.ex
Update:Thu May 9 15:26:26 1996

44
*
[SR16415(BEF )04/95]
8. Double check that the retractor is in the
automatic locking mode. Try to pull more
belt out of the retractor. If you cannot, the
belt is in the automatic locking mode,
Figure 8.
*
[SR16420(BEF )04/95]
half page art:0011245-B
Checking the retractor
*
[SR16425(BEF )04/95]
9. Check to make sure that the child seat is
properly secured prior to each use. If the
retractor is not locked, repeat steps 4
through 7.
*
[SR16430(BEF )04/95]
To remove the retractor from automatic lock
mode, allow webbing to retract fully to its
stowed position and the retractor will
automatically switch back to the vehicle sensitive
locking mode for normal adult usage.
