1996 CHEVROLET TAHOE Owners Manual

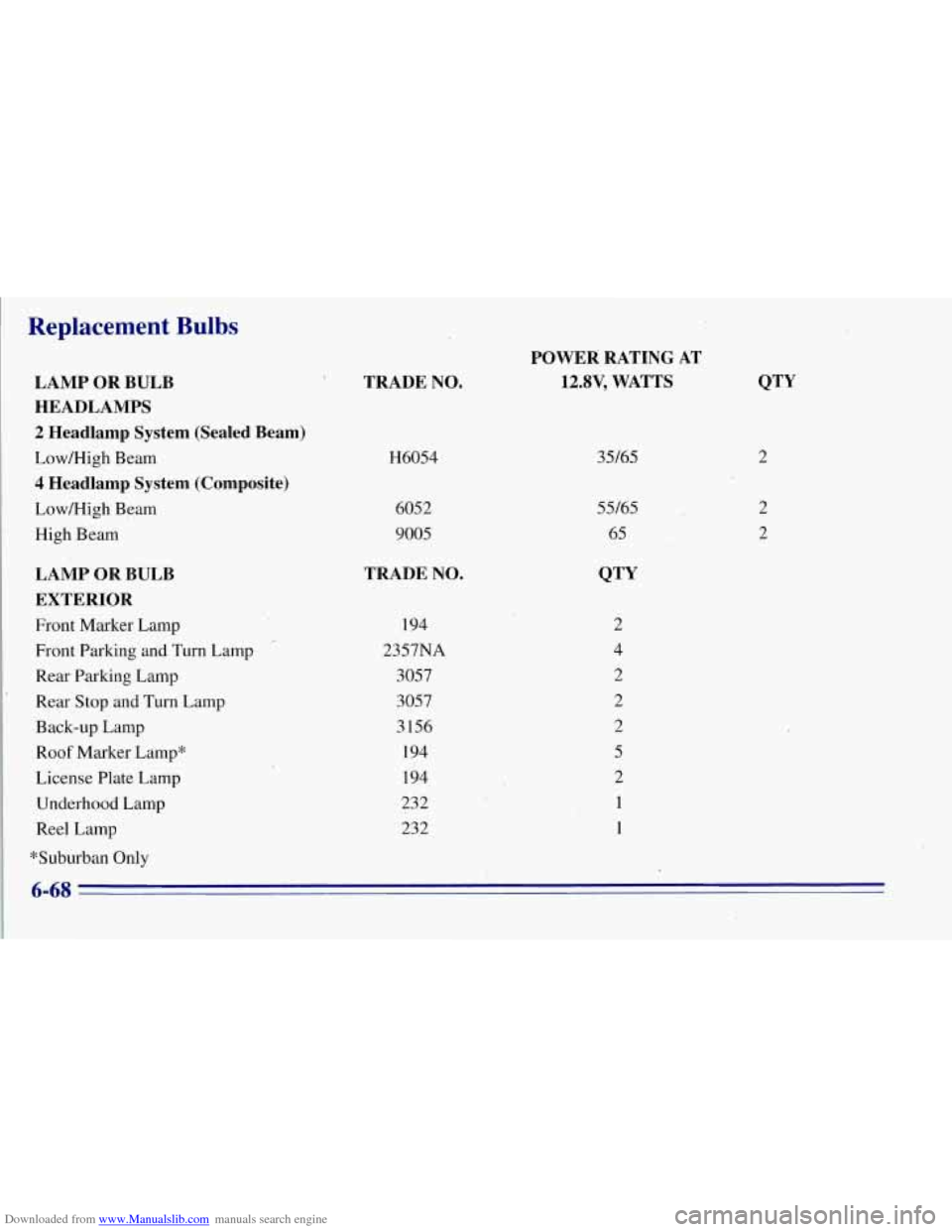

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
LAMP OR BULB HEADLAMPS
2 Headlamp System (Sealed Beam)
Low/High Beam
4 Headlamp System (Composite)
LowIHigh Beam
High Beam
LAMP OR BULB
EXTERIOR
Front Marker Lamp
TRADE NO.
H6054
6052
9005
TRADE NO.
194
2357NA
3057 3057
3156
194
194
232
232
POWER RATING AT
12.8V, WATTS
35/65
55/65
65
2
5
2
1
1
2 2
2
Front Parking and Turn Lamp
Rear Parking Lamp
Rear Stop and Turn Lamp
Back-up Lamp
Roof Marker Lamp*
License Plate Lamp
Underhood Lamp
Reel Lamp
*Suburban Only
6-68

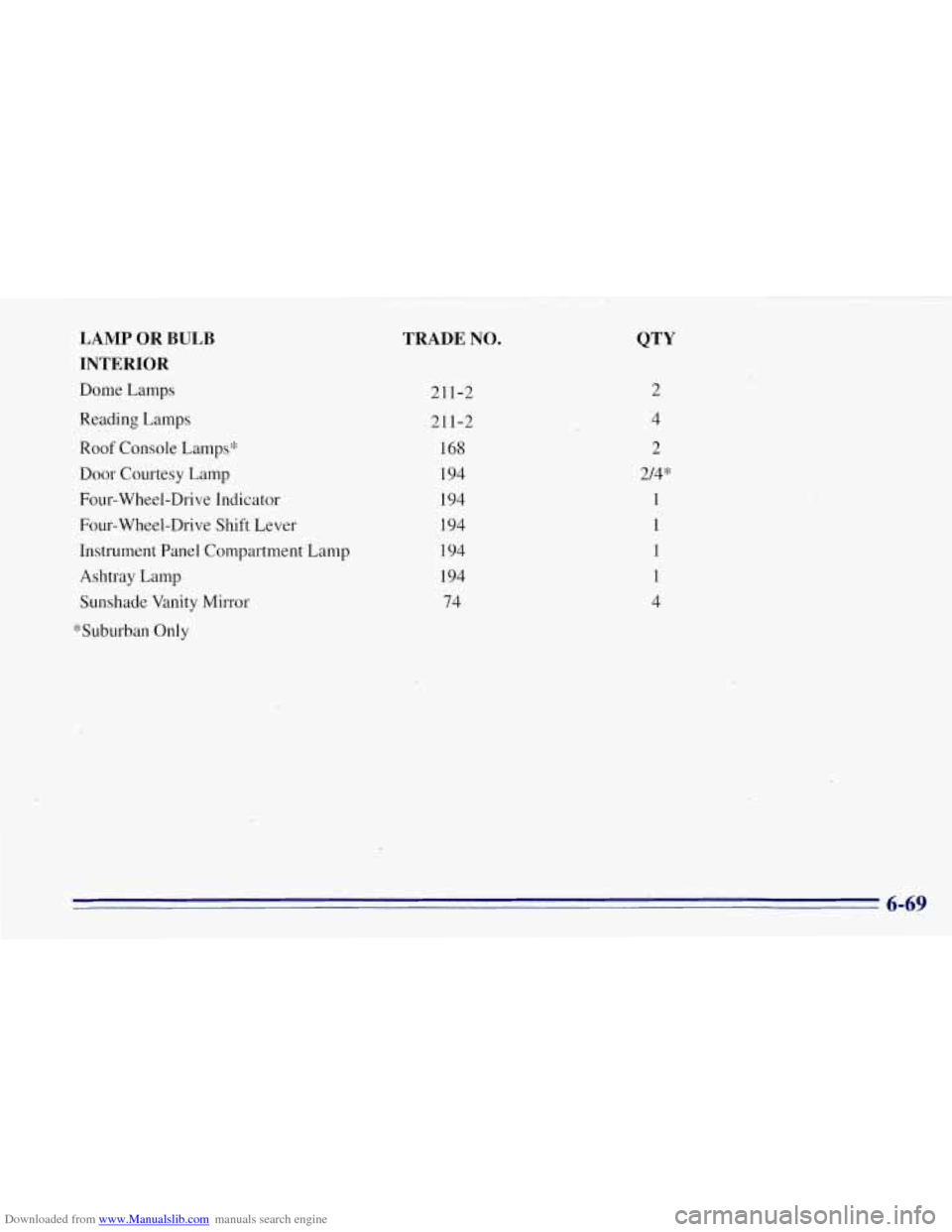

Downloaded from www.Manualslib.com manuals search engine LAMP OR BULB
INTERIOR
Dome Lamps
Reading Lamps
Roof Console Lamps*
Door Courtesy Lamp
Four-Wheel-Drive Indicator
Four-Wheel-Drive Shift Lever
Instrument Panel Compartment Lamp
Ashtray Lamp
Sunshade Vanity Mirror
*Suburban Only
TRADE NO.
211-2
211-2
168
194
194
194
194
194 74
2
4
2
2/4* 1
1
1
1
4
6-69

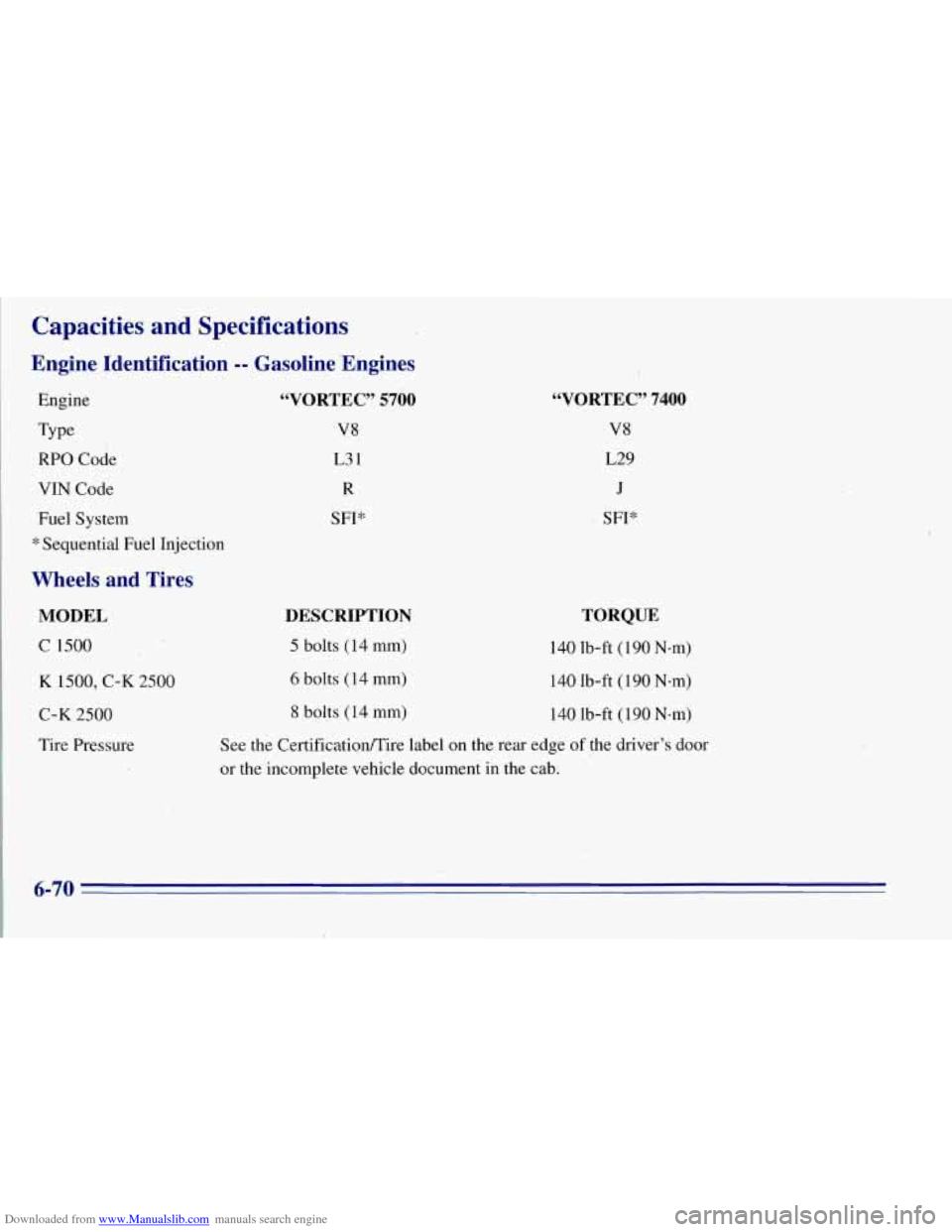

Downloaded from www.Manualslib.com manuals search engine Capacities and Specifications
Engine Identification -- Gasoline ‘Engines
Engine
Type
RPO Code
VIN Code
Fuel System
* Sequential Fuel Injection
Wheels and Tires
MODEL
C 1500
K 1500, C-K 2500
C-K 2500
Tire Pressure
“VORTEC” 5700
V8
L3 1
R
SFI*
“VORTEC” 7400
V8
L29
J
SFI*
DESCRIPTION
TORQUE
5 bolts (14 mm) 140 lb-ft (190 N-m)’
6 bolts (14 mm) 140 lb-ft ( 190 N-m)
8 bolts (14 mm)
140 lb-ft (190 Nem)
See the Certificatioflire label on the rear edge of the driver’s door
or the incomplete vehicle document in the cab.
6-70

Downloaded from www.Manualslib.com manuals search engine Normal Maintenance Replacement Parts -- Gasoline Engines
Replacement part numbers listed In this section are based on the latest information available at the time of printing,
and are subject to change.
If a part listed in this manual is not the same as the part used in your .vehicle when it was
built, or
if you have any questions, please contact your GM truck dealer.
Engine
VORTEC” 5700
VIN R Oil Filter PF1218T
Air Cleaner Filter
A 1300C
Spark Plugs * 4 1-932
Spark Plug Gap
0.060 in. (1.52 mm)
Fuel Filter GF626
Wiper Blades. (Front) 22154886
Wiper Blade Type (Front) Trico
Wiper Blade Length (Front) 18 inches
(45.0 cm)
Wiper Blade (Rear) 22154396
Wiper Blade Type (Rear) Trico
Wiper Blade Length (Rear) 14 inches (35.5 cm)
“four-Wheel-Drive Vehicles
-- use a PF52 oil filter.
46VORTEC” 7400
J
PF1218
A1 3OOC
4 1-932
0.060 in. (1.52 mm)
GF626
22154886 Trico
18 inches
(45.0 cm)
22154396
Trico
14 inches (35.5 cm)

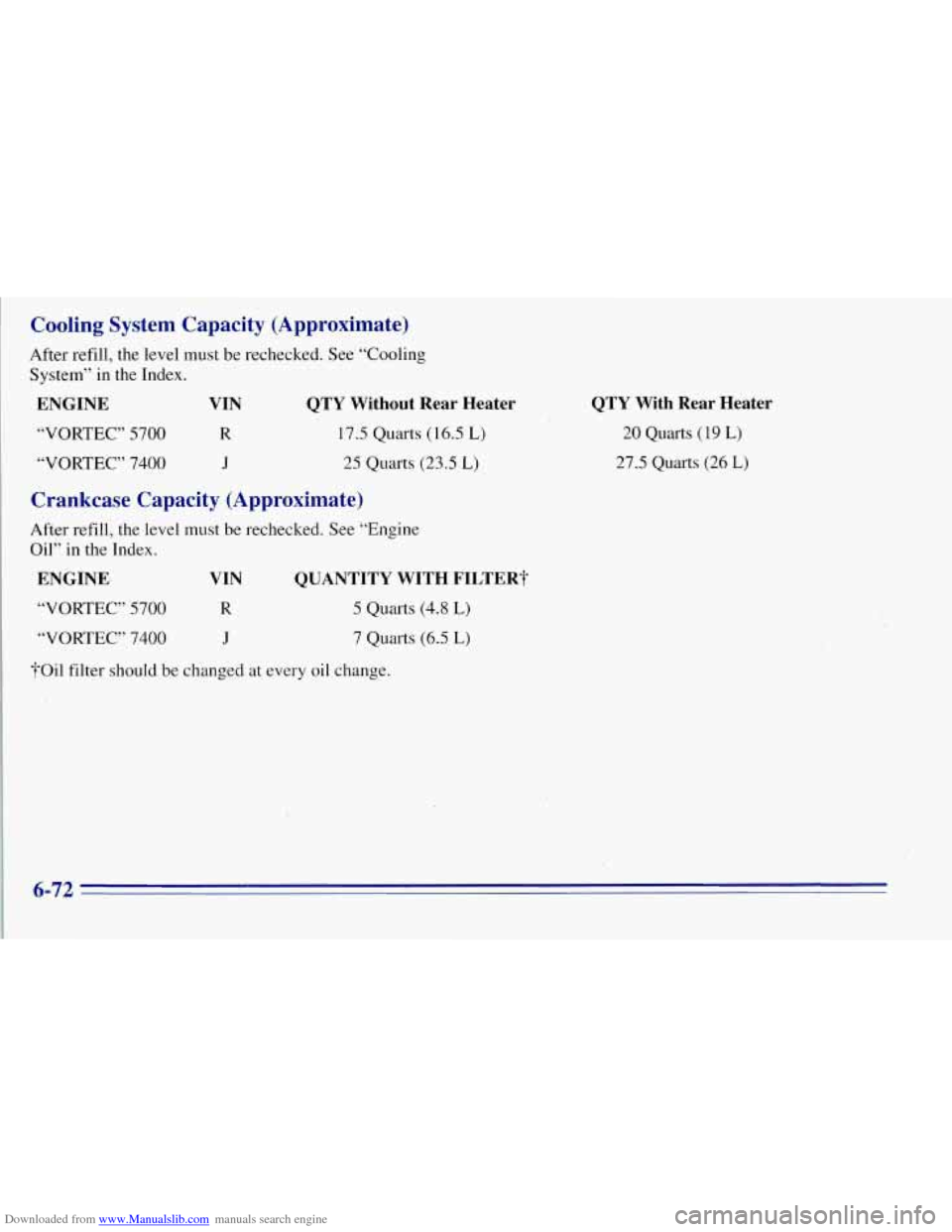

Downloaded from www.Manualslib.com manuals search engine Cooling System Capacity (Approximate)
After refill, the level must be rechecked. See “Cooling
System” in the Index.
ENGINE VIN QTY Without Rear Heater
“VORTEC” 5700
R 17.5 Quarts (1615 L)
“VORTEC” 7400 J 25 Quarts (23.5 L)
Crankcase Capacity (Approximate)
After refill, the level must be rechecked. See “Engine
Oil” in the Index.
ENGINE, VIN QUANTITY WITH FILTER?
“VORTEC” 5700 R 5 Quarts (4.8 L)
“VORTEC” 7400 J 7 Quarts (6.5 L)
?Oil filter should be changed at every oil change.
QTY With Rear Heater
20 Quarts (19 L)
27.5 Quarts (26 L)
6-72

Downloaded from www.Manualslib.com manuals search engine Fuel Tank Capacity (Approximate)
TYPE
Gasoline/Diesel
Utility Model
- Standard
Wagon Model
- Standard
QUANTITY
30 Gallons (1 13 L)
42 Gallons (159 L)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same.
If the air conditioning system in your vehicle needs
refrigerant, be sure the proper refrigerant
is used.
If you're not sure, ask your GM dealer.
See refrigerant charge label under the hood for charge
capacity information and requirements.

Downloaded from www.Manualslib.com manuals search engine NOTES
6-74

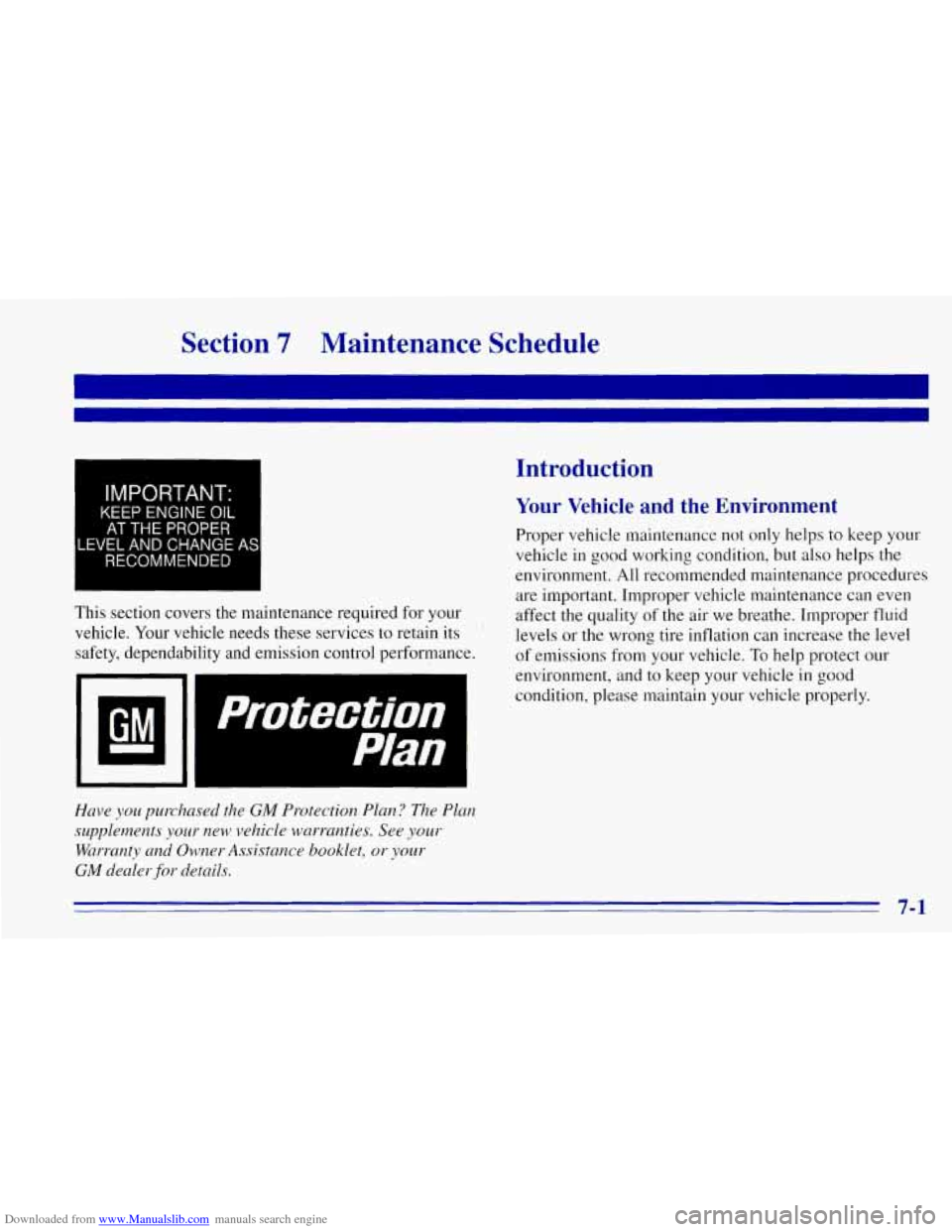

Downloaded from www.Manualslib.com manuals search engine Section 7 Maintenance Schedule
IMPORTANT-
KEEP ENGINE OIL
AT THE PROPER
LEVEL
AND CHANGE AS
RECOMMENDED
This section covers the maintenance required for your
vehicle. Your vehicle needs these services to retain its
safety, dependability and emission control performance.
Protection
Plan
Have you purchased the GM Protection Plan? The Plan
supplements
your new vehicle warranties. See your
Warranty and Owner Assistance booklet, or your
GM dealer for details.
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle
in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance can even
affect the quality of the air we breathe. Improper fluid
levels or the wrong tire inflation can increase the level
of emissions from your vehicle. To help protect our
environment, and
to keep your vehicle in good
condition, please maintain your vehicle properly.
7-1
