1996 CHEVROLET TAHOE Owners Manual

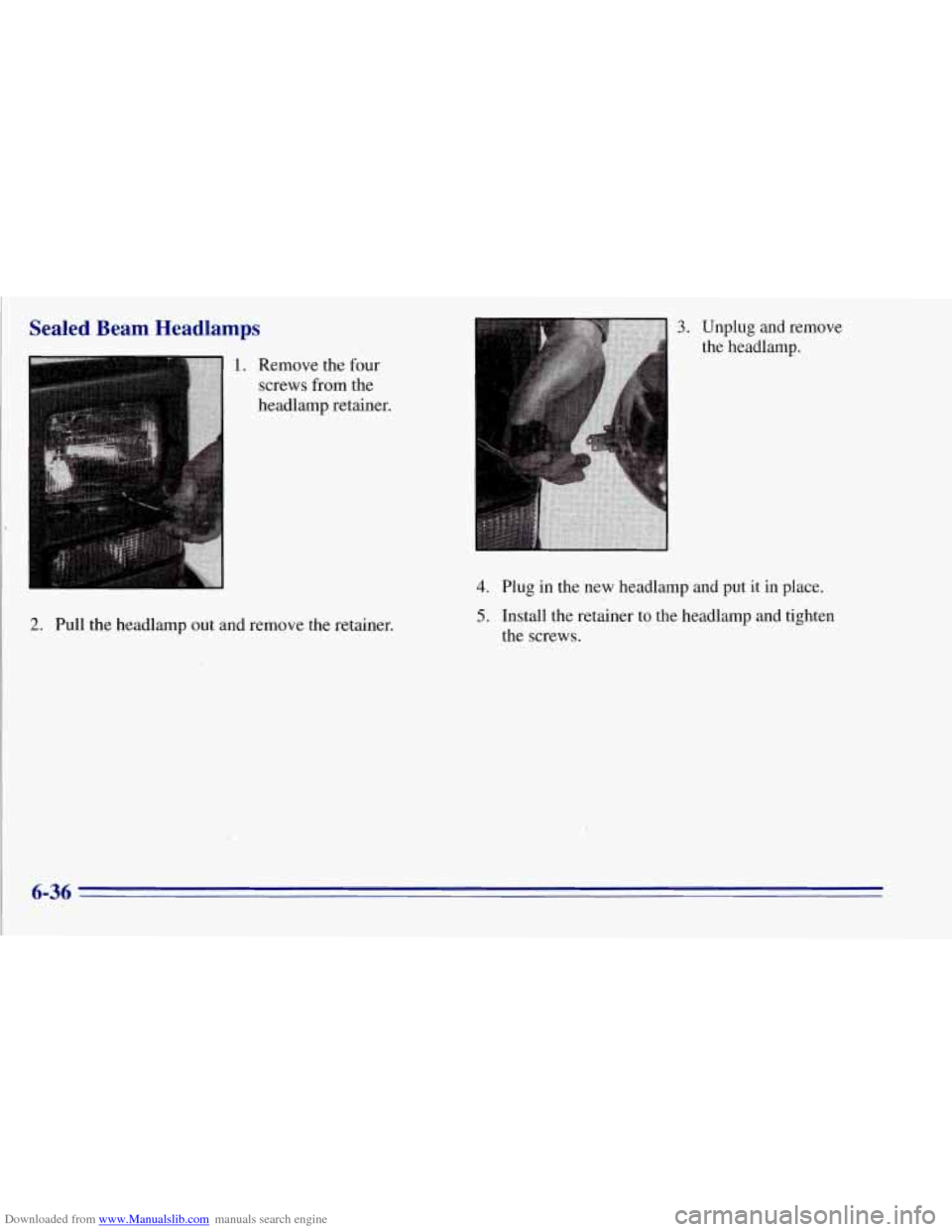

Downloaded from www.Manualslib.com manuals search engine Sealed Beam Headlamps
2.
1. Remove the four
screws from the
headlamp retainer.
Pull the headlamp out and remove the retainer.
3. Unplug and remove
the headlamp.
4. Plug in the new headlamp and put it in place.
5. Install the retainer to the headlamp and tighten
the screws.
6-36

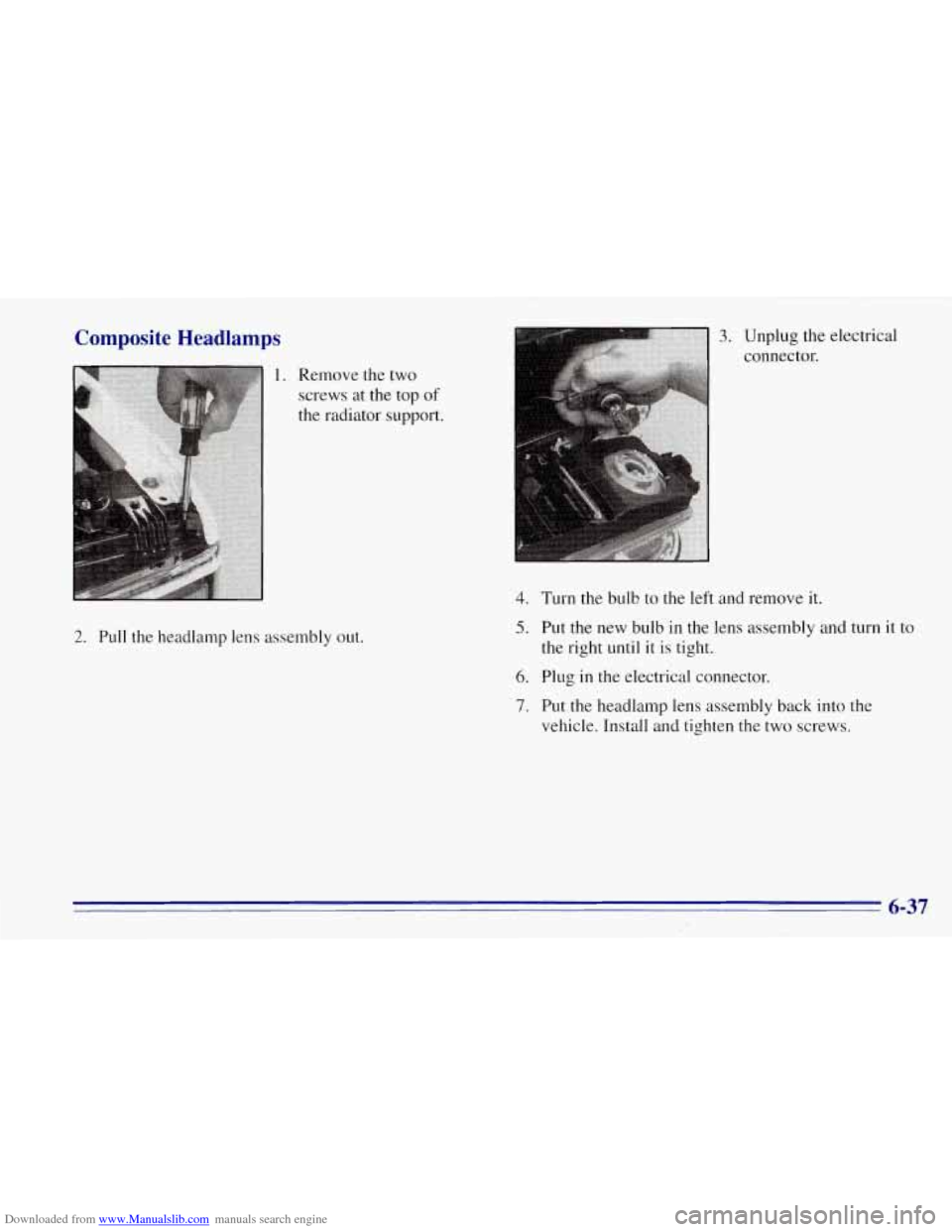

Downloaded from www.Manualslib.com manuals search engine Composite Headlamps
1. Remove the two
screws at the top of
the radiator support.
2. Pull the headlamp lens assembly out.
4.
5.
6.
7.
3. Unplug the
connector. electrical
Turn the bulb to the left and remove it.
Put the new bulb in the lens assembly and turn it to
the right until it is tight.
Plug in the electrical connector.
Put the headlamp lens assembly back into the
vehicle. Install and tighten the two screws.
6-37

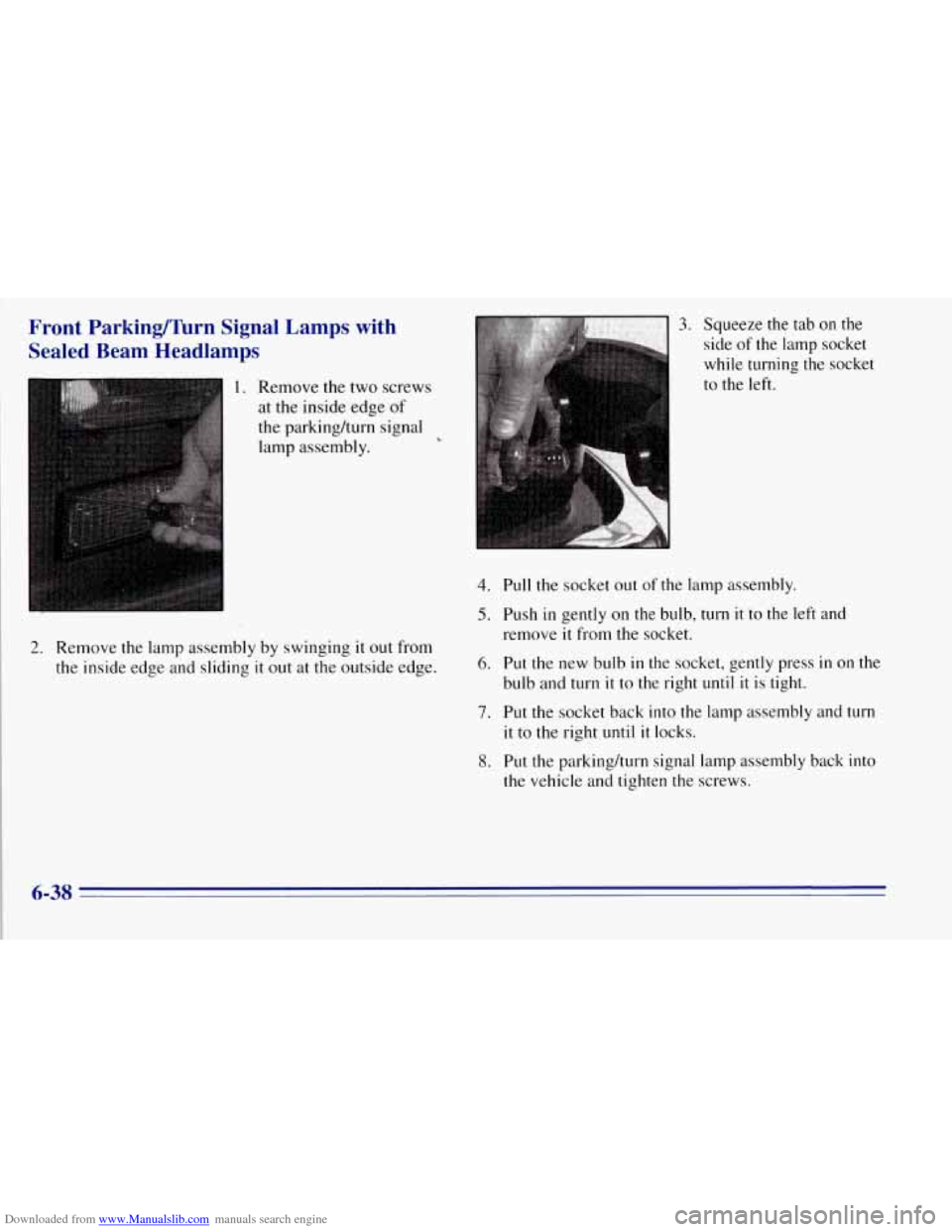

Downloaded from www.Manualslib.com manuals search engine Front Parkingfirn Signal Lamps with
Sealed Beam Headlamps
1. Remove the two screws
at the inside edge
of
the parkinghurn signal
lamp assembly. b
2. Remove the lamp assembly by swinging it out from
the inside edge and sliding it out at the outside edge.
, . :. ,, _. ... ., >- ,. ' ~ .I ,: ,: '_ . , 3. Squeeze the tab on the
side of the lamp socket
while turning the socket
to the left.
4. Pull the socket out of the lamp assembly.
5. Push in gently on the bulb, turn it to the left and
remove
it from the socket.
6. Put the new bulb in the socket, gently press in on the
bulb and turn
it to the right until it is tight.
7. Put the socket back into the lamp assembly and turn
it to the right until
it locks.
8. Put the parkinghrn signal lamp assembly back into
the vehicle and tighten the screws.
6-38

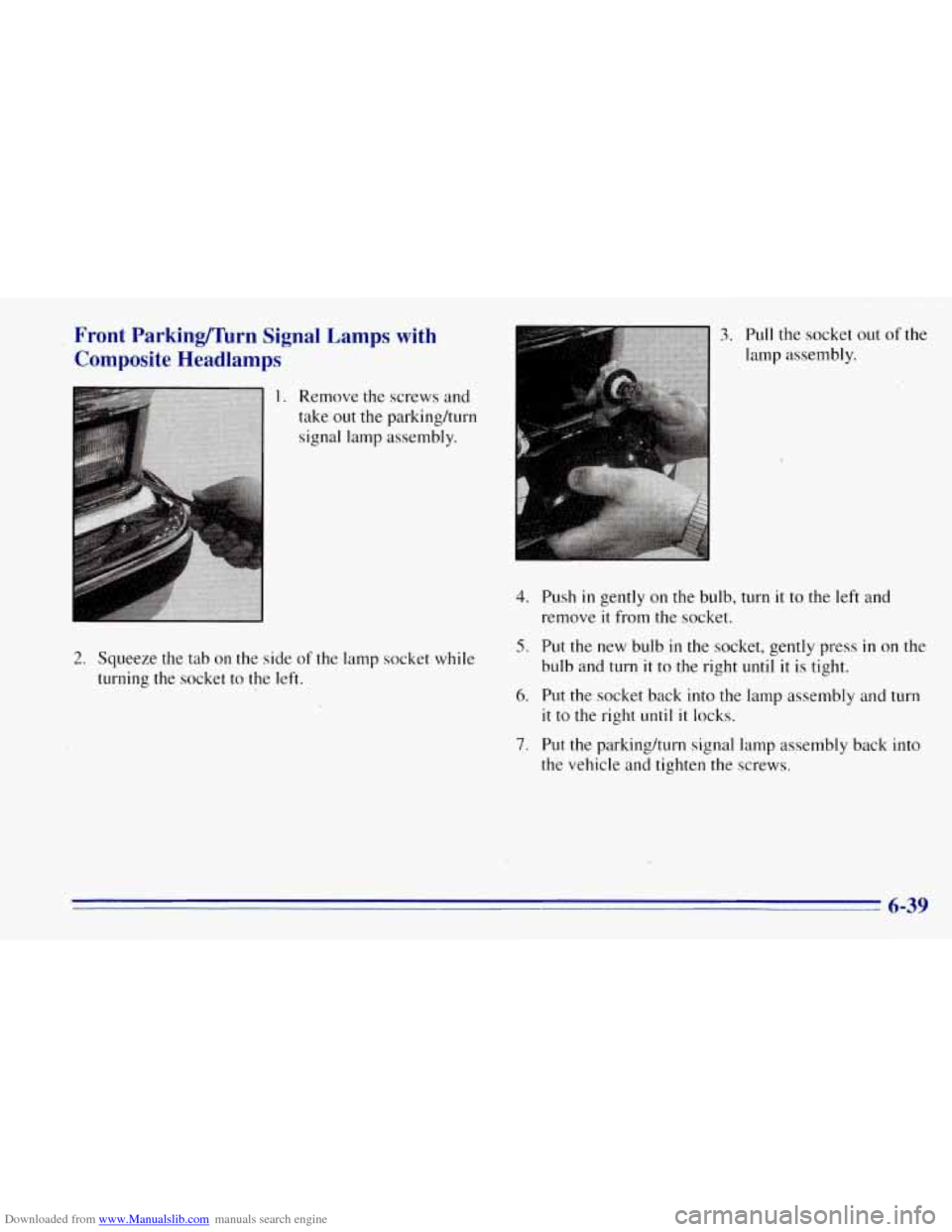

Downloaded from www.Manualslib.com manuals search engine Front Parking/Turn Signal Lamps with Composite Headlamps
1. Remove the screws and
take out the parking/turn signal lamp assembly.
2. Squeeze the tab on the side of the lamp socket while
turning the socket to the left.
3. Pull the socket out of the
lamp assembly.
4. Push in gently on the bulb, turn it to the left and
remove it from the socket.
5. Put the new bulb in the socket, gently press in on the
bulb and turn
it to the right until it is tight.
6. Put the socket back into the lamp assembly and turn
it to the right until it locks.
7. Put the parking/turn signal lamp assembly back into
the vehicle and tighten the screws.
.
6-39

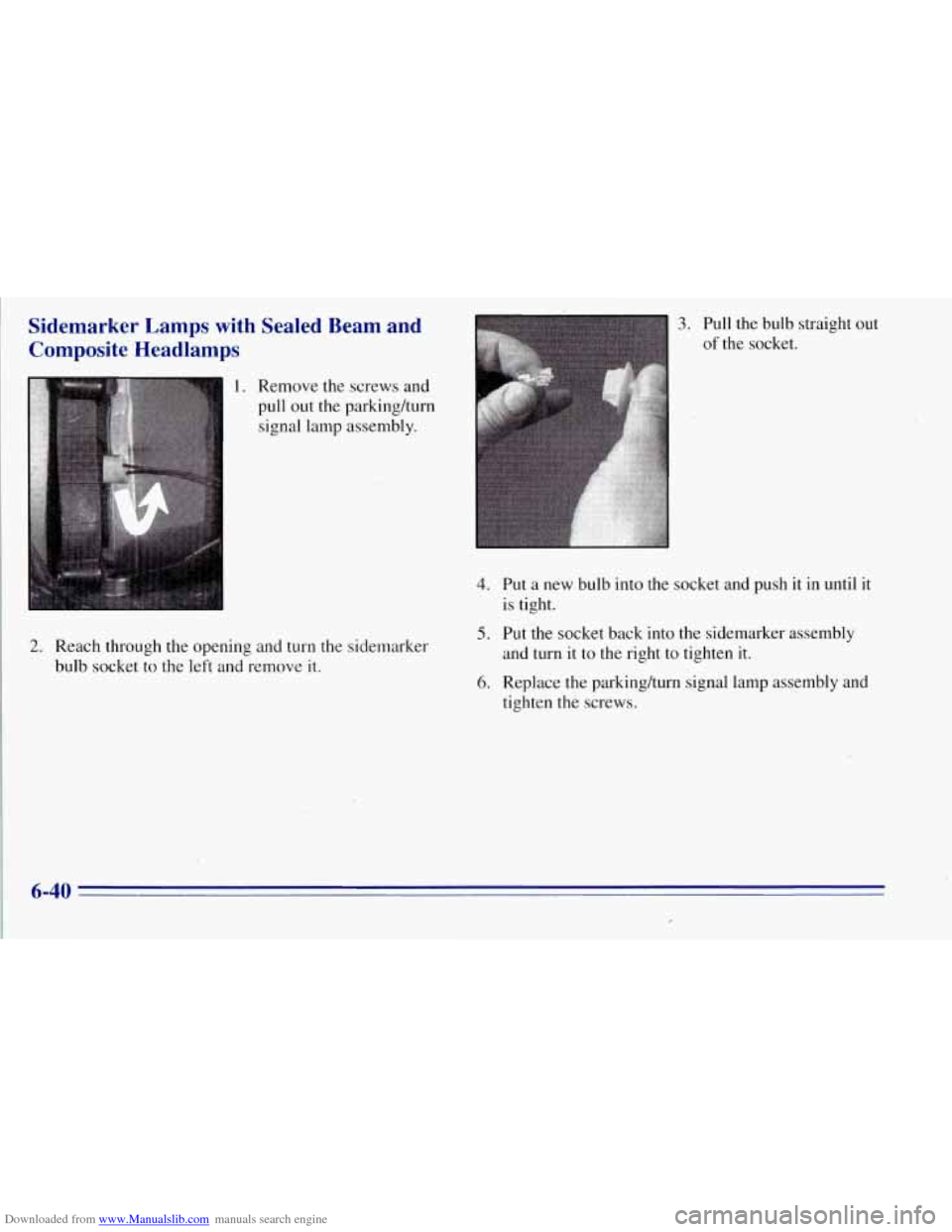

Downloaded from www.Manualslib.com manuals search engine Sidemarker Lamps with Sealed Beam and
Composite Headlamps
2.
3. Pull the bulb ,straight out
of the socket.
. Remove the screws and
pull out the parkinghrn
signal lamp assembly.
4. Put a new bulb into the socket and push it in until it
is tight.
Reach through the opening and turn the sidemarker
bulb socket to the left and remove
it.
5. Put the socket back into the sidemarker assembly
and turn it
to the right to tighten it.
6. Replace the parkingkurn signal lamp assembly and
tighten the screws.
6-40

Downloaded from www.Manualslib.com manuals search engine Center High-Mounted Stoplamp (CHMSL)
The individual bulbs in the CHMSL are not replaceable.
See your dealer for assistance.
Roof Marker Lamps
1. Remove the screws and lift off the lens.
2. Pull the bulb straight out of the socket.
3. Put a new bulb into the socket and push it in until it
4. Replace the lens and tighten the screws.
is
tight.
Rear Lamps
1. Open the tailgate or rear doors.
2. Remove the two black plastic plugs in the rear lamp
assembly access holes.
3. Remove the two rear
lamp assembly screws
inside the fender and
pull out the lamp
assembly. You may want
to use a magnetic
screwdriver when
removing
the screws.
6-41

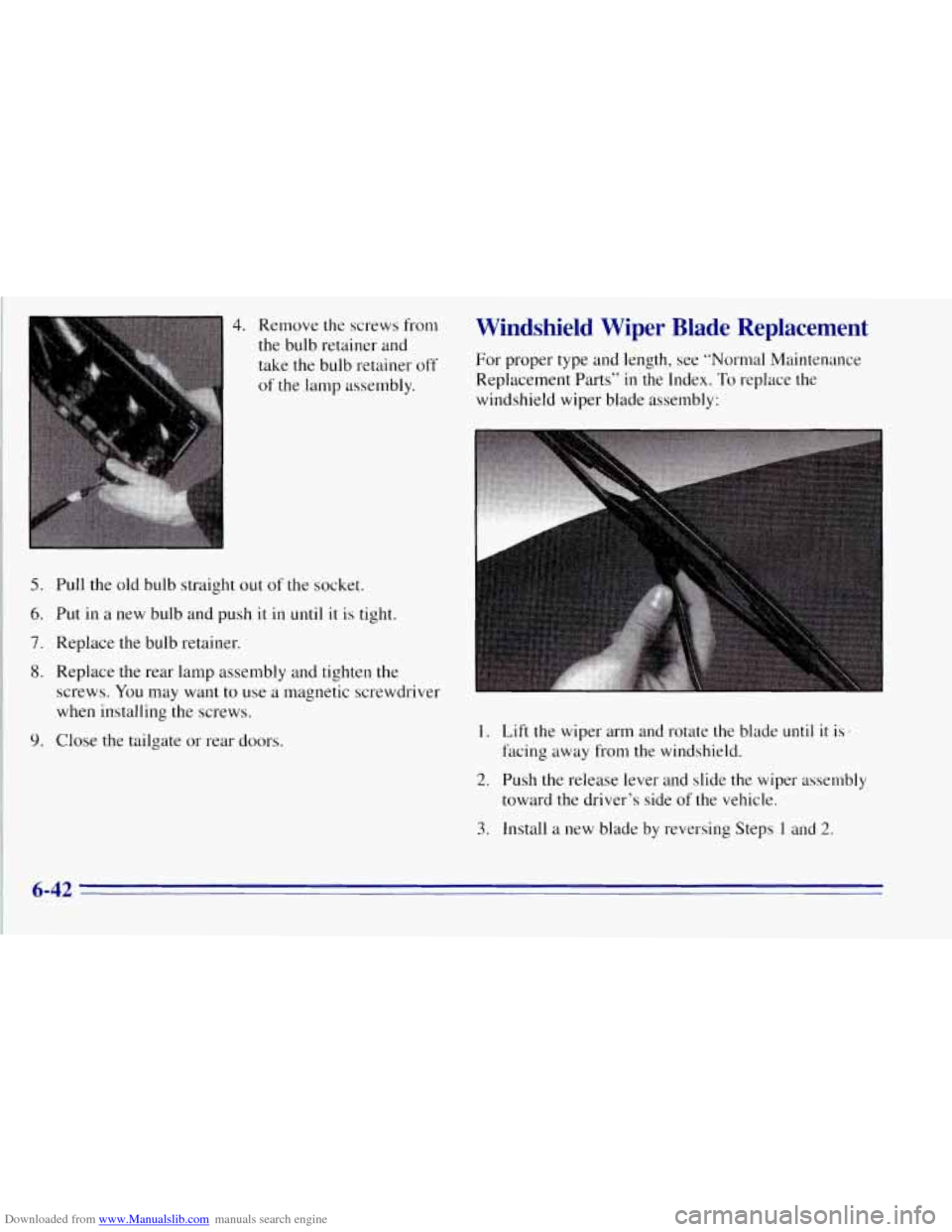

Downloaded from www.Manualslib.com manuals search engine 4. Remove the screws from
the bulb retainer and
take the bulb retainer
off
of the lamp assembly.
5. Pull the old bulb straight out of the socket.
6. Put in a new bulb and push it in until it is tight.
7. Replace the bulb retainer.
8. Replace the rear lamp assembly and tighten the
screws.
You may want to use a magnetic screwdriver
when installing the screws.
9. Close the tailgate or rear doors.
Windshield Wiper Blade Replacement
For proper type and length, see “Normal Maintenance
Replacement Parts” in‘the Index.
To replace the
windshield wiper blade assembly:
1. Lift the wiper arm and rotate the blade until it is..
facing away from the windshield.
2. Push the release lever and slide the wiper assembly
toward the driver’s side
of the vehicle.
3. Install a new blade by reversing Steps 1 and 2.
6-42 . =.

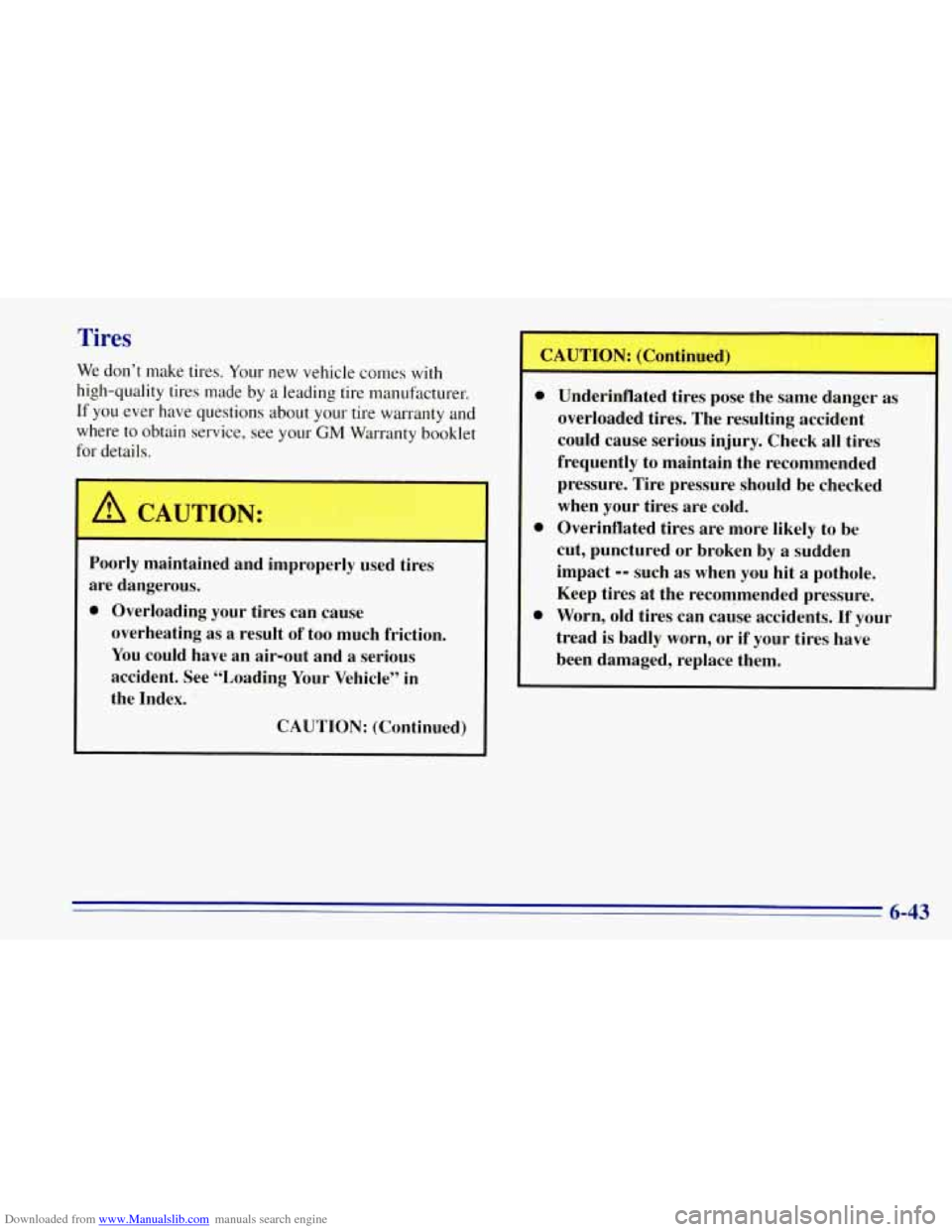

Downloaded from www.Manualslib.com manuals search engine Tires
We don’t make tires. Your new vehicle comes with
high-quality tires made by a leading tire manufacturer.
If you ever have questions about your tire warranty and
where to obtain service, see your
GM Warranty booklet
for details.
A CAUTION:
Poorly maintained and improperly used tires
are dangerous.
0 Overloading your tires can cause
overheating as a result of too much friction.
You could have an air-out and a serious
accident. See “Loading Your Vehicle” in
the Index.
CAUTION: (Continued) CAUTION:
(Continued)
0
0
0
Underinflated tires pose the same danger as
overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be checked
when your tires are cold.
Overinflated tires are more likely to be
cut, punctured or broken by
a sudden
impact
-- such as when you hit a pothole.
Keep tires at the recommended pressure.
Worn, old tires can cause accidents.
If your
tread is badly worn, or if your tires have
been damaged, replace them.
6-43
