h

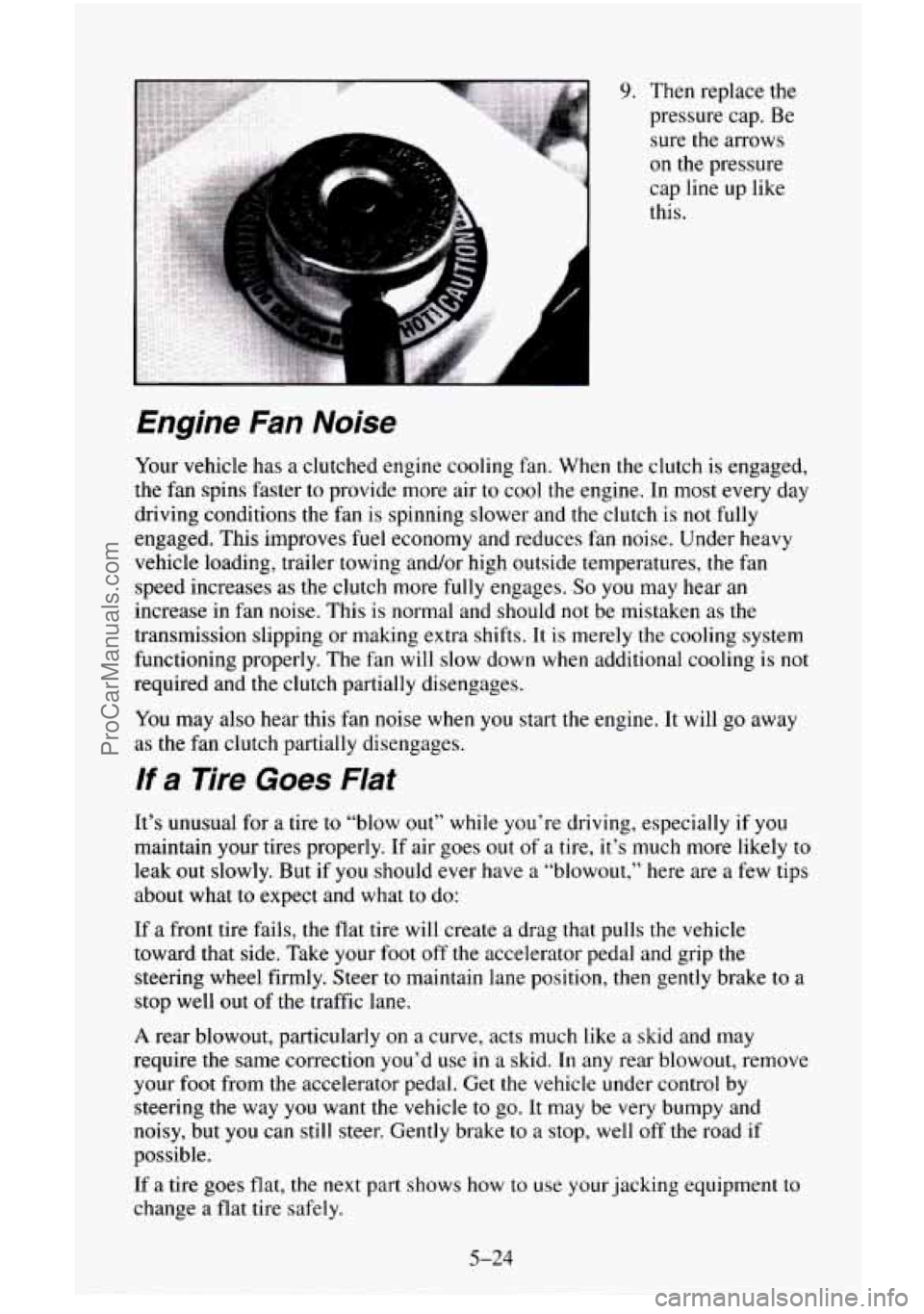

9. Then replace the
pressure cap. Be
sure the arrows
on the pressure
cap line up like
this.
Engine Fan Noise
Your vehicle has a clutched engine cooling fan. When the clutch is engaged,
the fan spins faster to provide more air to cool the engine. In most every day
driving conditions the fan
is spinning slower and the clutch is not fully
engaged. This improves fuel economy and reduces fan noise. Under heavy
vehicle loading, trailer towing and/or high outside temperatures,
the fan
speed increases as the clutch more
fully engages. So you may hear an
increase in fan noise. This is normal and should not be mistaken as the
transmission slipping
or making extra shifts. It is merely the cooling system
functioning properly. The fan will slow down when additional cooling is not
required and the clutch partially disengages.
You may also hear this fan noise when you start the engine. It will go away
as the fan clutch partially disengages.
If a Tire Goes Flat
It’s unusual for a tire to “blow out” while you’re driving, especially if you
maintain your tires properly. If air goes out of a tire, it’s much more likely to
leak out slowly. But if you should ever have a “blowout,” here are a few tips
about what
to expect and what to do:
If a front tire fails, the flat tire will create a drag that pulls the vehicle
toward that side. Take your foot off the accelerator pedal and grip the
steering wheel firmly. Steer
to maintain lane position, then gently brake to a
stop well out of the traffic lane.
A rear blowout, particularly on a curve, acts much like a skid and may
require the same correction you’d
use in a skid. In any rear blowout, remove
your foot from
the accelerator pedal. Get the vehicle under control by
steering the way
you want the vehicle to go. It may be very bumpy and
noisy, but you can still steer. Gently brake to a stop, well
off the road if
possible.
If a tire goes flat, the next part shows how to use your jacking equipment to
change a flat tire safely.
5-24
ProCarManuals.com

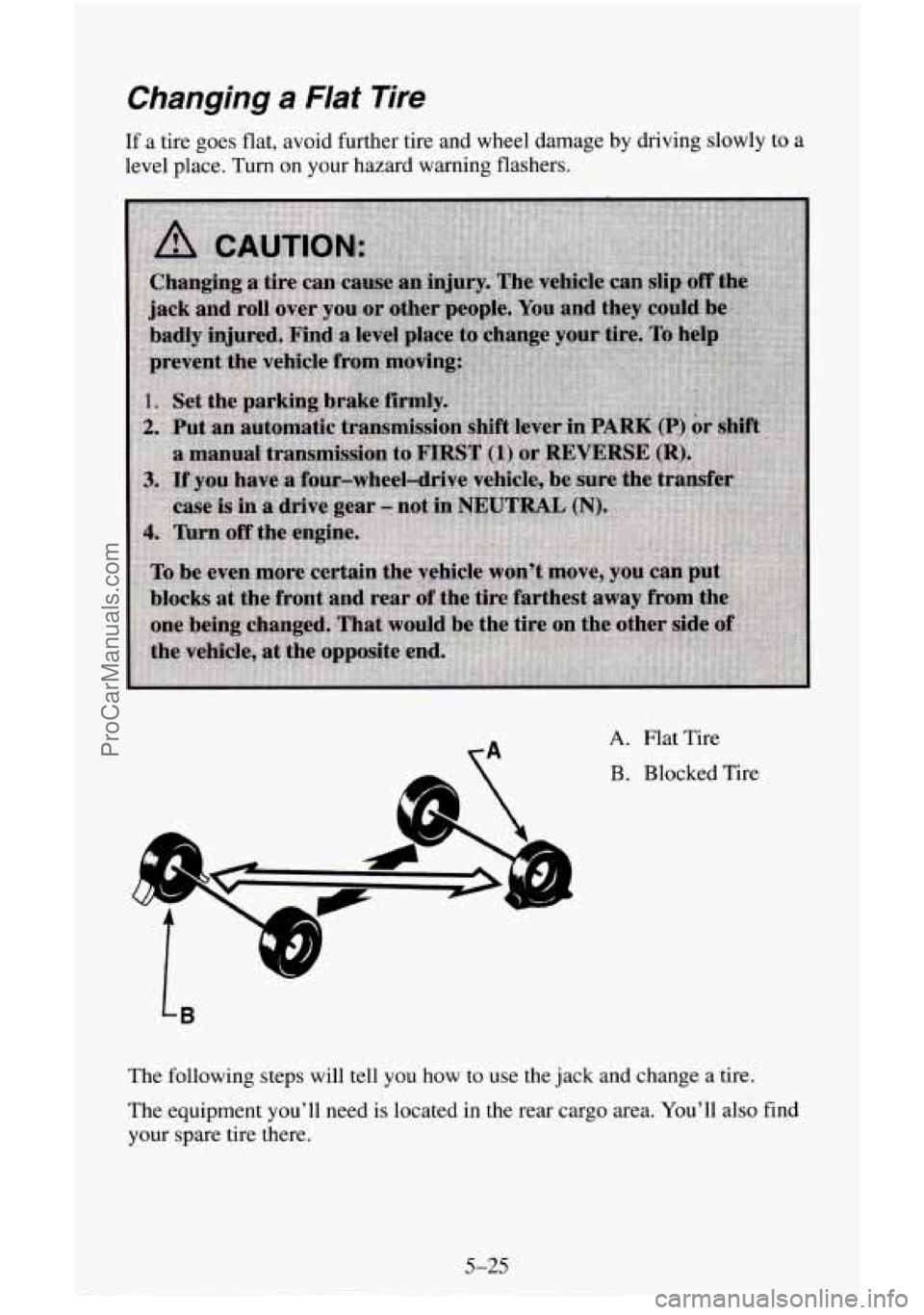

Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage by driving slowly to a
level place. Turn on your hazard warning flashers.
A. Flat Tire
B . Blocked Tire
The following steps will tell you how to use the jack and change a tire.
The equipment you’ll need is located in the rear cargo area. You’ll also find
your spare tire there.
5-25
ProCarManuals.com

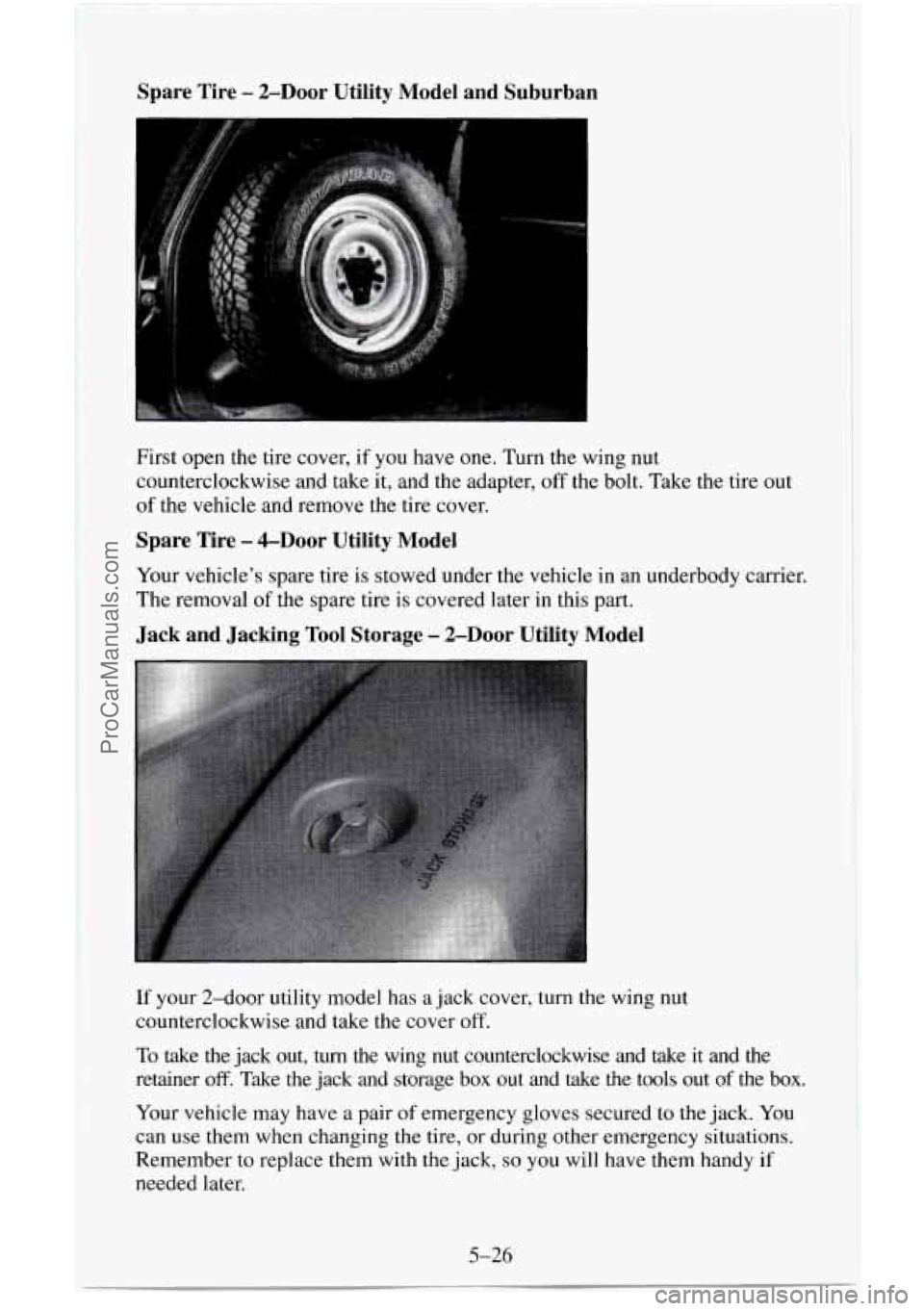

Spare Tire - ZDoor Utility Model and Suburban
I
c
I
First open the tire cover, if you have one. Turn the wing nut
counterclockwise and take it, and the adapter,
off the bolt. Take the tire out
of the vehicle and remove the tire cover.
Spare Tire - &Door Utility Model
Your vehicle’s spare tire is stowed under the vehicle in an underbody carrier.
The removal
of the spare tire is covered later in this part.
Jack and Jacking Tool Storage - 2-Door Utility Model
If your 2-door utility model has a jack cover, turn the wing nut
counterclockwise and take the cover off.
To take the jack out, turn the wing nut counterclockwise and take it and the
retainer
off. Take the jack and storage box out and take the tools out of the box.
Your vehicle may have a pair
of emergency gloves secured to the jack. You
can use them when changing the tire,
or during other emergency situations.
Remember
to replace them with the jack, so you will have them handy if
needed later.
5-26
ProCarManuals.com

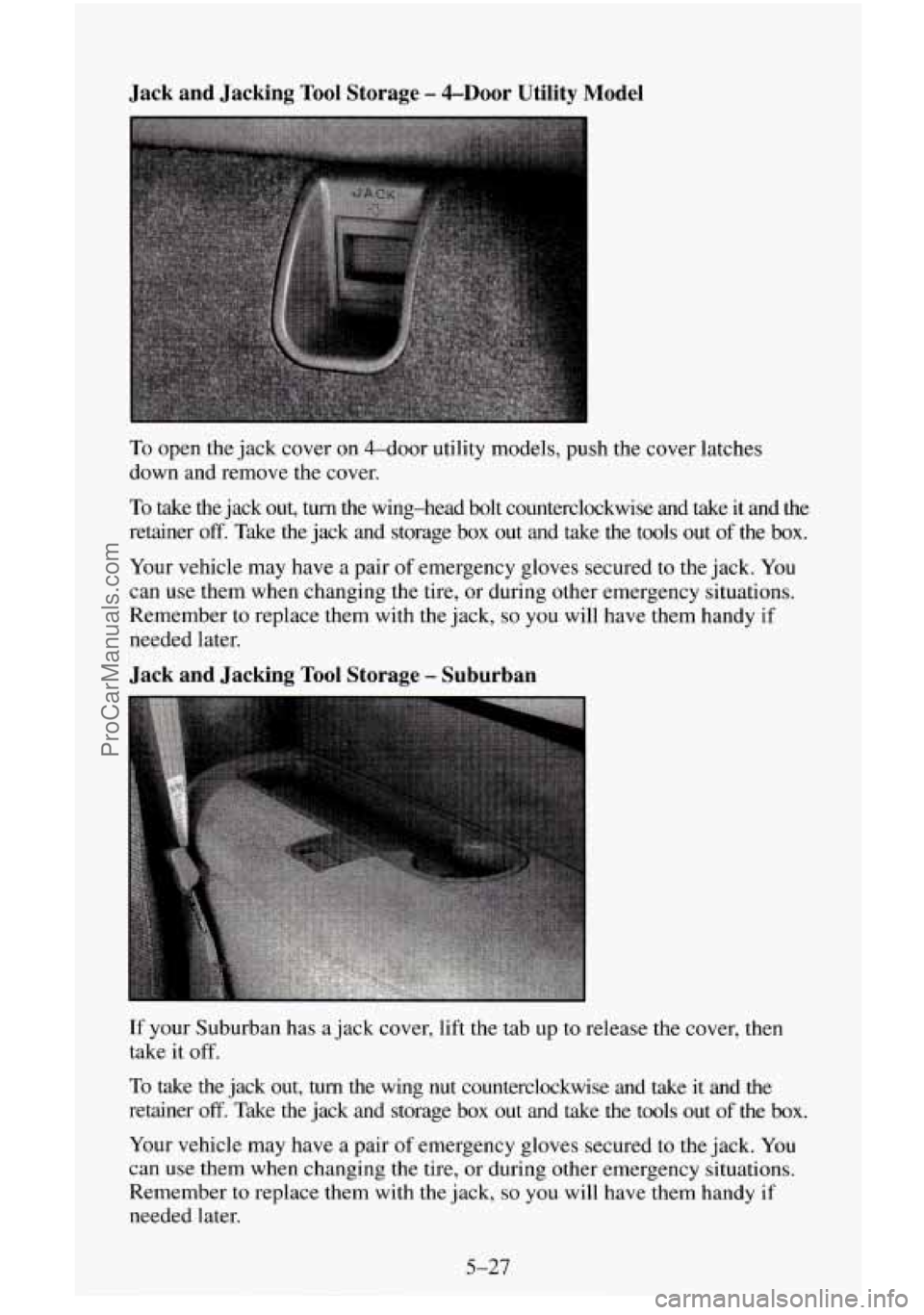

Jack and Jacking Tool Storage - &Door Utility Model
To open the jack cover on 4-dOOr utility models, push the cover latches
down and remove the cover.
To take the jack out, turn the wing-head bolt counterclockwise and take it and the
retainer
off. Take the jack and storage box out and take the tools out of the box.
Your vehicle may have a pair of emergency gloves secured to the jack. You
can use them when changing the tire, or during other emergency situations.
Remember
to replace them with the jack, so you will have them handy if
needed later.
Jack and Jacking Tool Storage - Suburban
If your Suburban has a jack cover, lift the tab up to release the cover, then
take it
off.
To
take the jack out, turn the wing nut counterclockwise and take it and the
retainer
off. Take the jack and storage box out and take the tools out of the box.
Your vehicle may have a pair
of emergency gloves secured to the jack. You
can use them when changing the tire, or during other emergency situations.
Remember to replace them with the jack,
so you will have them handy if
needed later.
5-27
ProCarManuals.com

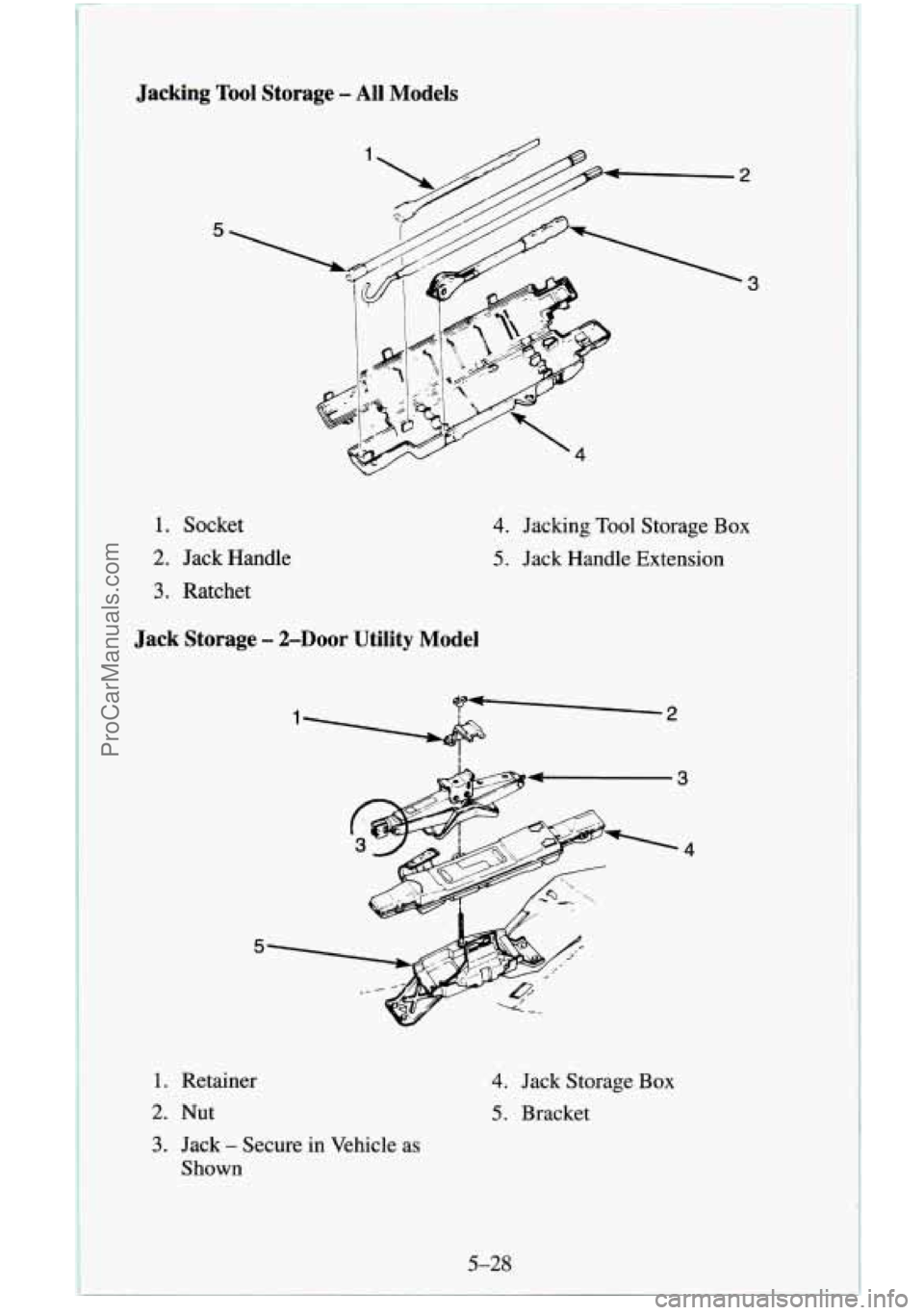

Jacking Tool Storage - All Models
-2
5
U
'4
1. Socket
2. Jack Handle
3. Ratchet
Jack Storage - 2-Door Utility Model
4. Jacking Tool Storage Box
5. Jack Handle Extension
1. Retainer
2. Nut
3. Jack - Secure in Vehicle as
Shown
4. Jack Storage Box
5. Bracket
5-28
ProCarManuals.com

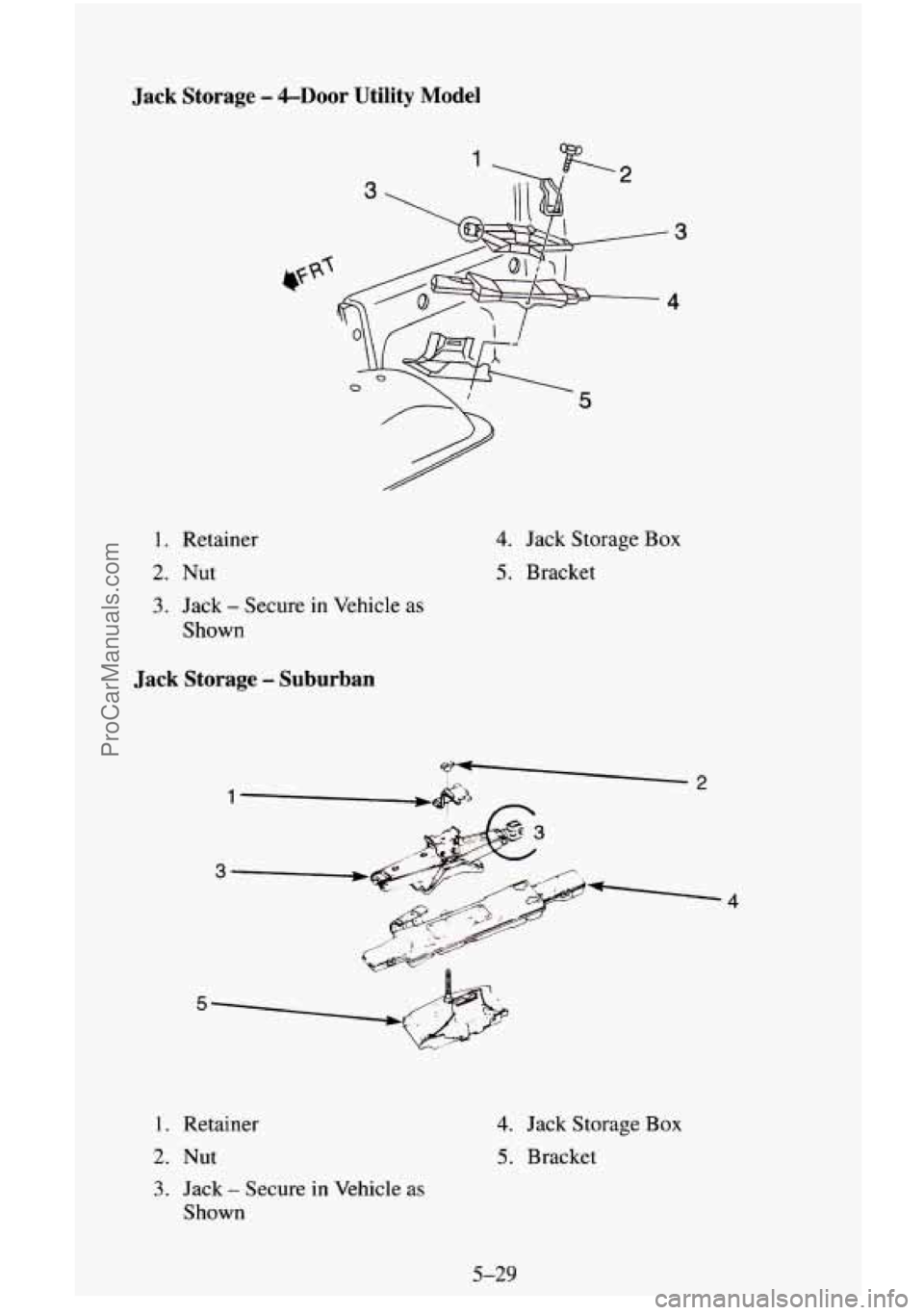

Jack Storage - &Door Utility Model
-3
4
1. Retainer
2. Nut
3. Jack - Secure in Vehicle as
Shown
4. Jack Storage Box
5. Bracket
Jack Storage - Suburban
-2
3-
-4
1. Retainer
2. Nut
3. Jack - Secure in Vehicle as
Shown
4. Jack Storage Box
5. Bracket
5-29
ProCarManuals.com

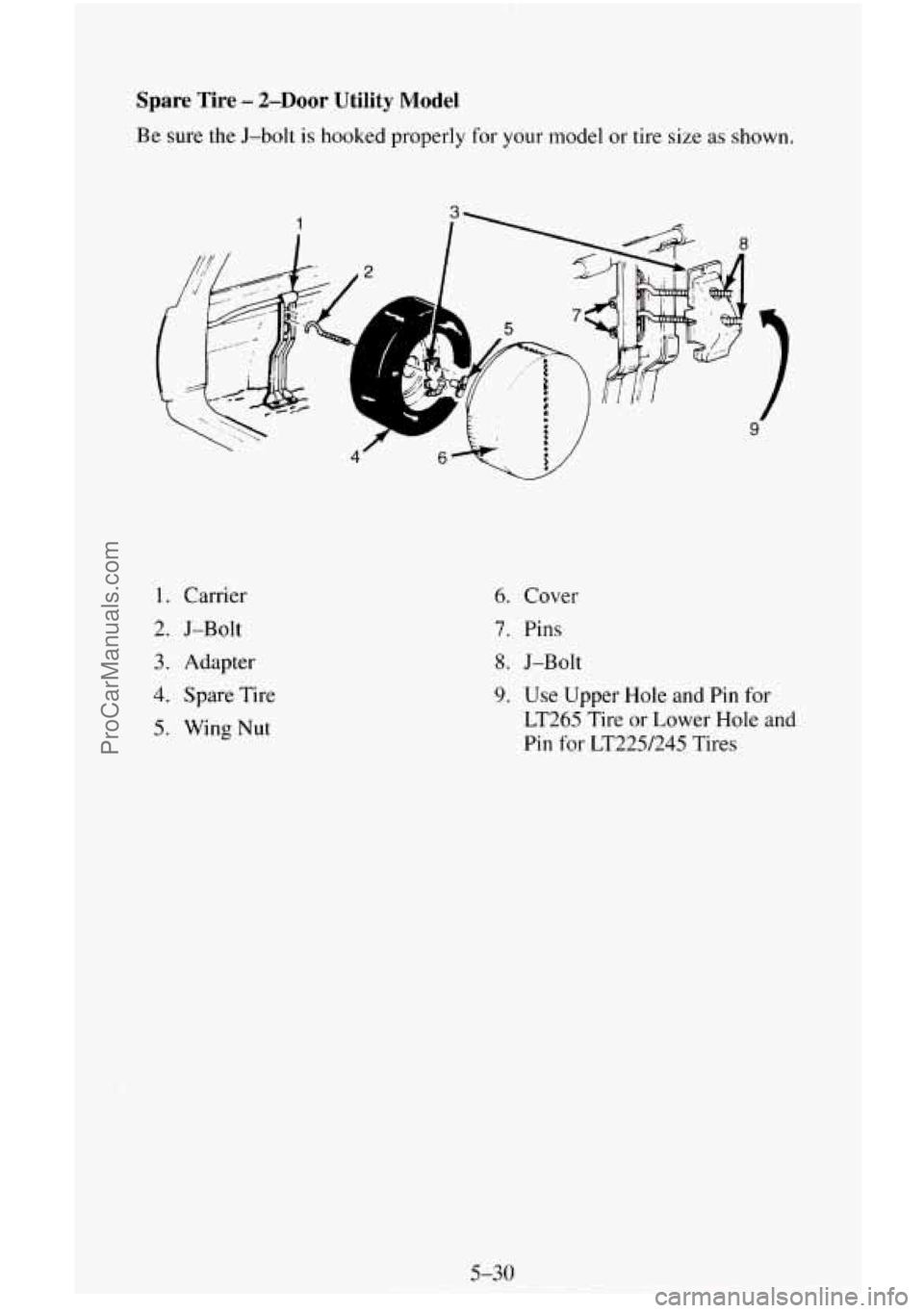

Spare Tire - 2-Door Utility Model
Be sure the J-bolt is hooked properly for your model or tire size as shown.
1
1. Carrier
2. J-Bolt
3. Adapter
4. Spare Tire
5. Wing Nut
4 f
6. Cover
7. Pins
8. J-Bolt
9. Use Upper Hole and Pin for
LT265 Tire or Lower Hole and
Pin
for LT225/245 Tires
5-30
ProCarManuals.com

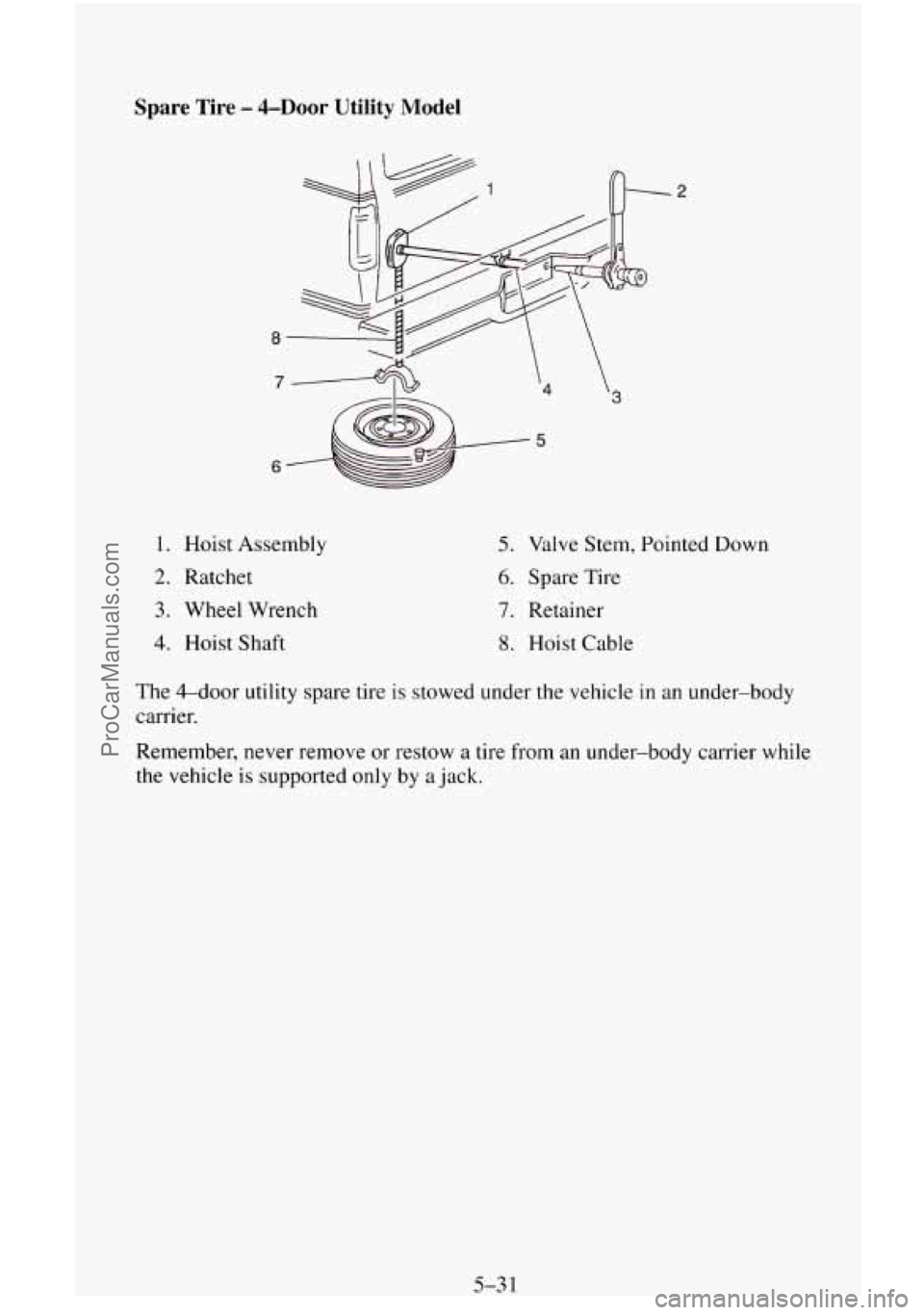

Spare Tire - 4-DOOr Utility Model
2
8
7
6
1. Hoist Assembly
2. Ratchet
3. Wheel Wrench
4. Hoist Shaft
5. Valve Stem, Pointed Down
6. Spare Tire
7. Retainer
8. Hoist Cable
The &door utility spare tire
is stowed under the vehicle in an under-body
carrier.
Remember, never remove or restow a tire from an under-body carrier while
the vehicle
is supported only by a jack.
5-3 1
