1995 PONTIAC GRAND-AM keyless entry

Door Locks
There are several ways to lock and unlock your vehicle.
From the outside you can use your key in the door lock.
You can also use the Keyless Entry System if your
vehicle has this option.
From the inside you can lock the door by sliding the
locking lever rearward.
To unlock the door, slide the locking lever forward.
lock control will show orange when in the unlock
position. The
2-3
ProCarManuals.com

Illuminated EntryExit System
When you lift the outside handle of either front door or
open a rear door, the lamps inside your vehicle will go
on. These lamps will fade out after about
40 seconds, or
when the ignition is turned on after all doors have been
closed.
If the ignition was recently turned off, the lamps
will fade out after
four seconds. These lamps will also
go on when you press the
DOOR or UNLOCK button
on the optional Keyless Entry transmitter.
If the ignition has been off for less than two minutes, the
lamps inside your vehicle will stay on for
15 seconds
when your key is removed from the ignition switch to
provide an illuminated exit. When the interior lamps go
off they will fade out like in a movie theatre.
Keyless Entry System
If your Pontiac has this option, you can lock and unlock
your doors or unlock your trunk from up to
30 feet (9 m)
away using the key chain transmitter supplied with your
vehicle.
Your Keyless Entry System operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)
This device may not cause harmful interference, and (2)
This device must accept any interference received,
including interference that may cause undesired
operation.
Should interference to this system occur, try this:
Check to determine if battery replacement is
necessary. See the instructions on battery
replacement.
2-6
ProCarManuals.com

Battery Replacement
Under normal use, the batteries in your key chain
transmitter should last about two years.
You can tell the batteries are weak if the transmitter
won’t work at the normal range in any location. If you
have to get close to your vehicle before the transmitter
works, it’s probably time to change the batteries.
To Replace Batteries in the Remote Keyless Entry
1. Pop the cover off by inserting a coin or similar
object in the slot between the covers, and then
twisting.
2. Lift the front cover off, bottom half first.
3. Remove and replace the two batteries. Use two
Duracell’ batteries, type DL-2016, or equivalent.
4. Replace the front cover. Make sure the cover is on
tightly,
so water won’t get in.
5. Check the transmitter operation.
Trunk Lock
To unlock the trunk from the outside, insert one of the
keys to the vehicle and
turn the trunk lock cylinder.
Remote Trunk Release
Pull upward on the remote release handle, located on the
floor near the left side of the driver’s seat, to release the
trunk lid. Make sure the lockout feature is not activated.
2-8
ProCarManuals.com

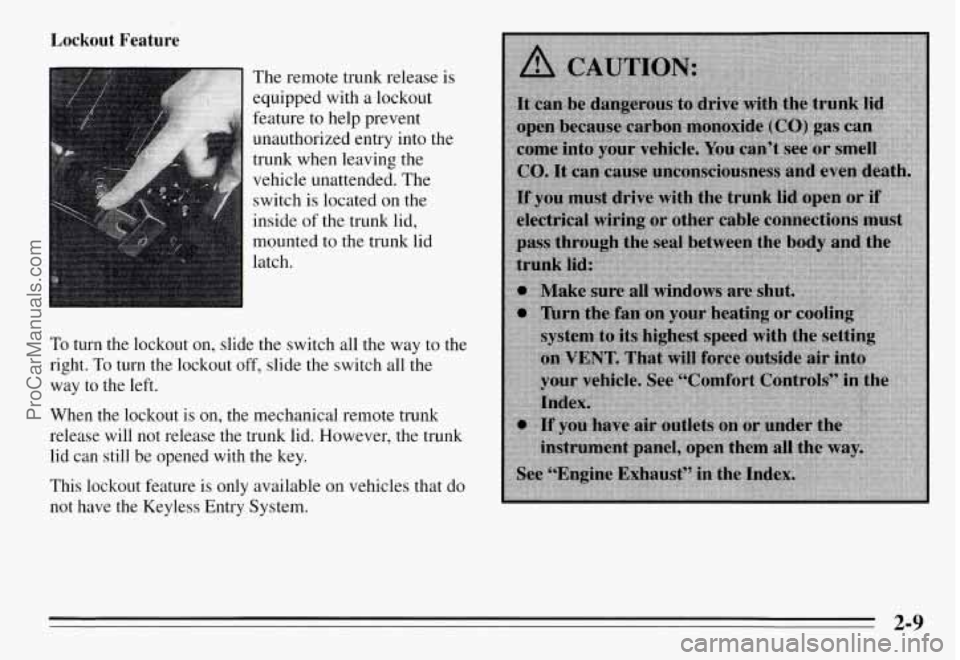

Lockout Feature
To turn the lockout on, slide the switch all the way to the
right.
To turn the lockout off, slide the switch all the
way to the left.
When the lockout is on, the mechanical remote trunk
release will not release the trunk lid. However, the trunk
lid can still be opened with the key.
This lockout feature is only available on vehicles that do
not have the Keyless Entry System.
2-9
ProCarManuals.com

To reactivate the interior lamps, either:
The ignition must be turned on
The activated lamp switch must be turned off and
0 A front door must be opened.
The Battery Rundown Protection feature will also be
activated when any door of your vehicle is left open.
Also, if your vehicle is left with the ignition turned off
€or over 24 days, battery power to your clock, audio
system
and Keyless Entry (if you have this option) will
be
turned off to reduce battery drain. When the ignition
is turned on again, battery power will be resupplied.
However, under these conditions, it will be necessary to
reset the clock
and audio system settings.
then on, OR
Inside Manual Daymight Rearview
Mirror
To reduce glare from headlamps behind you, move the
lever toward you to the night position.
2-46
ProCarManuals.com

I Fuse
PRNDL
F/P INJ
STOP
HAZ
CTSY
AIR BAG
- CIRCUIT PWR WDO
BREAKER
PWR ACC
BREAKER - CIRCUIT
Circuitry
Electronic PRNDL Display (Automatic Trans-
axle only)
Fuel Pump, Injectors
Stop/Hazard Lamps
Door Locks, Power Mirrors, Cigar Lighter
Sumlemental Inflatable Restraint
Fuse - ~~
INST LPS
GAUGES
HORN
ALARM
HTR-A/C
RDO
TURN
DR LK
TAIL LPS
WDO
WIPER
ERLS
DR UNLK
FTP
ACC
AIR BAG
PCM
CRUISE
HDLP
Circuitry
Interior Lamps Dimming
Gauges, Warning Lights, Rear Defog
Horns, Fog Lamps
Interior Lamps, Chime,
Auto Door Locks, Re-
mote Keyless Entry
Heater,
Air Conditioning, Anti-Lock Brakes,
Daytime Running Lamps (Canada)
Radio Power
Turn Signal Lamps
Auto Door Locks
Tail Lamps, Marker Lamps, License Lamp
Power Windows
Windshield Wipers/Washers
Engine Controls, Back-up Lamps
Auto Door Unlock (Remove to Disable)
Flash-to-pass
(U.S.)
Rear Window Defogger, Power Seats, Power
Sunroof (Circuit Breaker)
Supplemental Inflatable Restraint
Powertrain Control Module, Ignition System
Cruise Control
Headlamps (Circuit Breaker)
6-53
ProCarManuals.com

Automatic Transaxle Fluid ........................ 6- 18
Adding
.................................... 6-20
Checking
................................... 6-18
Battery
Low Maintenance ............................ 6-3 1
Replacement. Remote Keyless Entry
.............. 2-8
Replacement. Vehicle
......................... 6-3 1
Voltmeter ................................... 2-60
Warning Light
............................... 2-59
Warnings
.................................... 5-2
BBB Auto Line ................................. 8-3
Blizzard
...................................... 4-24
Brake
Adjustment ................................. 6-30
Fluid. Adding
............................... 6-28
Master Cylinder
............................. 6-28
Parking
.................................... 2-25
PedalTravel
................................ 6-30
System Parts. Replacing ....................... 6-30
System Warning Light
........................ 2-60
Trailer
..................................... 4-34
Transaxle Shift Interlock
.................. 2-28. 7-40
Wear
...................................... 6-29
Brakes. Anti-Lock ............................... 4-6
Brakes. Trailer
................................. 4-34
Braking
........................................ 4-5
Break-In. New Vehicle .......................... 2- 11
BTSI (Brake Transaxle Shift Interlock)
......... 2-28. 7-40
Braking. In Emergencies .......................... 4-8
Bulb Replacement .............................. 6-56
Dome Lamp ................................ 2-45
Headlamps
................................. 6-32
Taillamps
................................... 6-33
FogLamp .................................. 6-34
Canada. Vehicles First Sold In .............. 1- 12.24. 38
Canadian Roadside Assistance ...................... 8-7
Capacities and Specifications
................... 6-55. 57
Carbon Monoxide ...................... 2.29.4.25. 33
Cassette Tape Player Care ........................ 3-19
CDErrors
...................................... 3-14
Center Passenger Position
........................ 1-30
CD Player Theft Deterrent Feature ................. 3-16
Certificatiomire Label .......................... 4-28
Chains, Safety
................................. 4-34
Chains, Tire
................................... 6-42
Changing a Flat Tire
............................. 5-21
Charging System Light
.......................... 2-59
Check Gages Light
.............................. 2-68
Check Oil Light
................................ 2-66
Checking
Your Restraint Systems .................. 1-46
Checking
Automatic Transaxle Fluid ..................... 6-18
BrakeFluid
................................. 6-28
Engine Coolant .............................. 6-24
Engineoil
.................................. 6-11
Hydraulic Clutch Fluid
........................ 6-22
Manual Transaxle Fluid
....................... 6-20
BTSI ...................................... 7-40
9-2
ProCarManuals.com

Rear Seat Passengers ............................ 1-25
Rear Towing Hookups
........................... 5- 11
Rear Window Defogger
........................... 3-4
Rearview Mirror. Inside Day/ Night
................ 2-46
Reclining Front Seatbacks
......................... 1-3
Recommended Fluids and Lubricants
............ 7-43. 44
Recreational Vehicle Towing
...................... 4-26
Front ........................................ 27
Rear
....................................... 4-28
Remote Fuel Door Release
........................ 6-5
Remote Keyless Entry
............................ 2-6
Battery Replacement
........................... 2-8
Matching Transmitters
......................... 2-7
Remote Trunk Release ............................ 2-8
Replacement Bulbs
............................. 6-56
Replacement Parts
.............................. 6-57
Replacement, Wheel
............................ 6-41
Replacing Safety Belts
........................... 1-47
Replacing Seat and Restraint System Parts After
aCrash ...................................... 1-47
Restraints, Checking Your
........................ 1-46
Restraints, Child
................................ 1-3 1
Restraints, Head
................................. 1-5
Restraints, Replacing Parts After a Crash
............ 1-47
Reverse (R) Position, Automatic Transaxle
........... 2- 19
Reverse (R) Position, Manual Transaxle
............. 2-23
Right Front Passenger Position
.................... 1-24
Roadside Assistance
.............................. 8-6
Roadside Assistance, Canadian
..................... 8-7
Rocking Your Vehicle
........................... 5-29
Rotation, Tire
.................................. 6-37
Operation ................................... 2-7
safety Belt Extender ............................ 1-46
Safety Belt Warning Light
.................... 1.7. 2.58
Safety Belts
.................................... 1-7
Adults ..................................... 1-12
Automatic Lap-Shoulder ...................... 1 . 12
Careof
.................................... 6-46
Center Passenger Position
...................... 1-30
Driver Position
.............................. 1-12
Extender
................................... 1-46
How to Wear Properly
..................... 1 - 12, 13
Incorrect Usage
............... 1-15, 16, 17,18,44, 45
LapBelt
................................... 1-30
Lap-Shoulder
............................... 1-25
Questions People Ask
......................... 1-11
Rear Comfort Guides
......................... 1-28
Rear Seat Outside Passenger Positions
............ 1-25
Rear Seat Passengers
......................... 1-25
Replacing After a Crash
....................... 1-47
Right Front Passenger Position
.................. 1-24
Usebychildren
............................. l-31
Use by Larger Children ........................ 1-43
Use by Smaller Children and Babies
............. 1-31
Use During Pregnancy
........................ 1-23
Safety Chains .................................. 4-34
Safety Defects
Reporting to General Motors
.................... 8-5
Reporting to the Canadian Government ............ 8-5
Reporting to the United States Government ......... 8-4
Scheduled Maintenance Services .................... 7-3
Seat, Power
.................................... l-2
WhyTheyWork .............................. 1-8
Safety Warnings and Symbols 111 ... .......................
9-9
ProCarManuals.com
