Page 17 of 390

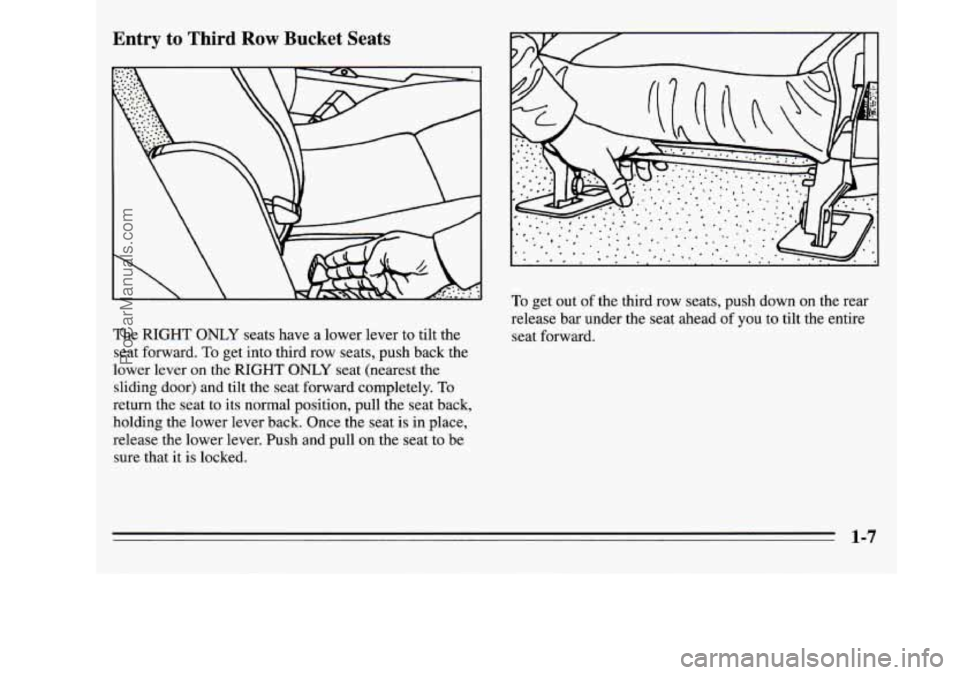

Entry to Third Row Bucket Seats
The RIGHT ONLY seats have a lower lever to tilt the
seat forward. To get into third row seats, push back the
lower lever
on the RIGHT ONLY seat (nearest the
sliding door) and tilt the seat forward completely.
To
return the seat to its normal position, pull the seat back,
holding the lower lever back. Once the seat is in place,
release the lower lever. Push and pull on the seat to be
sure that
it is locked.
To get out of the third row seats, push down on the rear
release bar under the seat ahead of
you to tilt the entire
seat forward.
1-7
ProCarManuals.com
Page 18 of 390

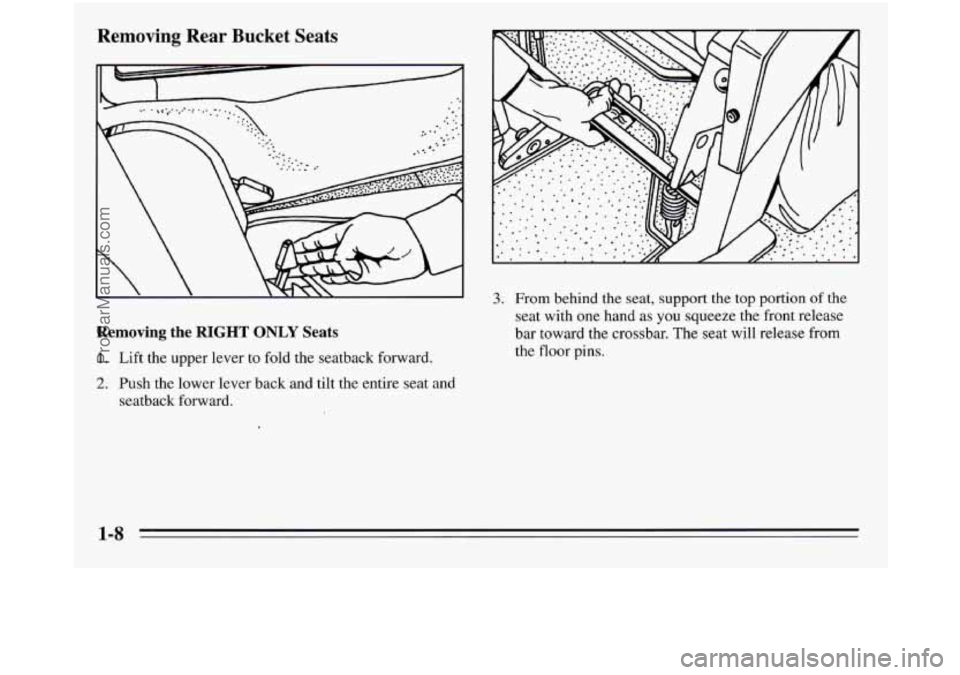

Removing Rear Bucket Seats
Removing the RIGHT ONLY Seats
1. Lift the upper lever to fold the seatback forward.
2. Push the lower lever back and tilt the entire seat and
seatback forward.
3. From behind the seat, support the top portion of the
seat with one hand as you squeeze the front release
bar toward the crossbar. The seat will release from
the floor pins.
1-8
ProCarManuals.com
Page 19 of 390

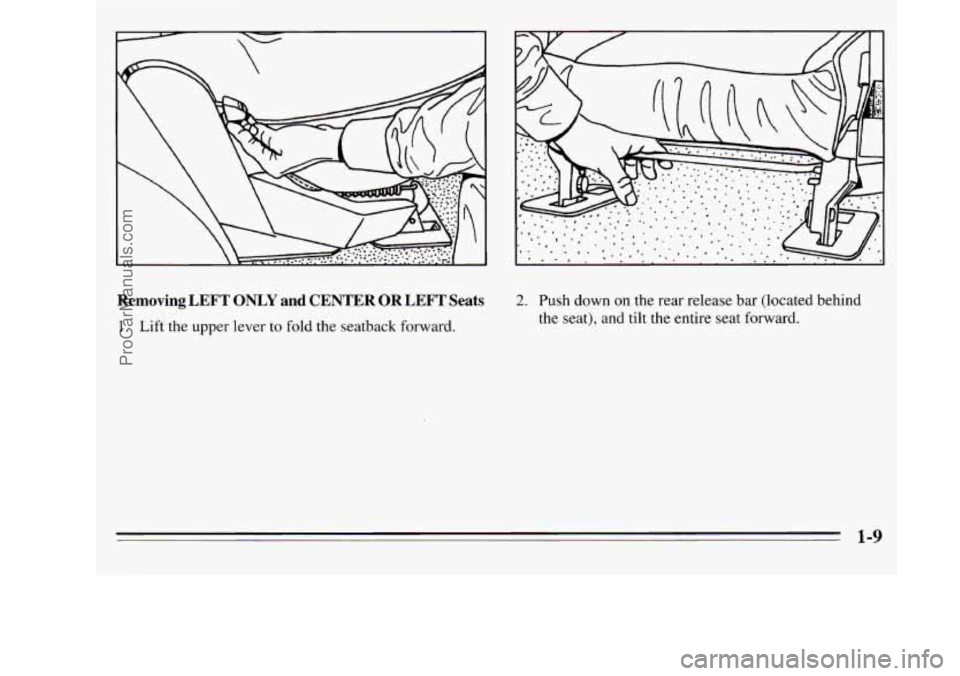

Removing LEFT ONLY and CENTER OR LEFT Seats
1. Lift the upper lever to fold the seatback forward.
2. Push down on the rear release bar (located behind
the seat),
and tilt the entire seat forward.
1-9
ProCarManuals.com
Page 20 of 390

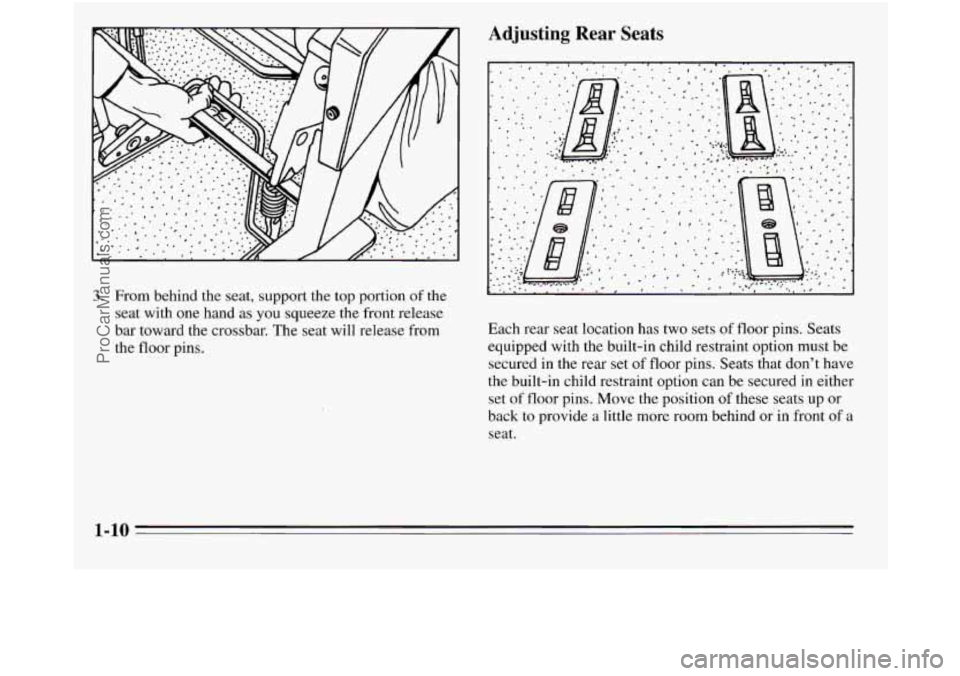

3. From behind the seat, support the top portion of the
seat with one hand
as you squeeze the front release
bar toward the crossbar. The seat will release from
the floor pins.
Adjusting Rear Seats
Each rear seat location has two sets of floor pins. Seats
equipped with the built-in child restraint option must be secured in the rear set of floor pins. Seats that don't have
the built-in child restraint option can be secured in either
set of
floor pins. Move the position of these seats up or
back to provide a little more room behind or in front of a
seat.
1-10
ProCarManuals.com
Page 21 of 390

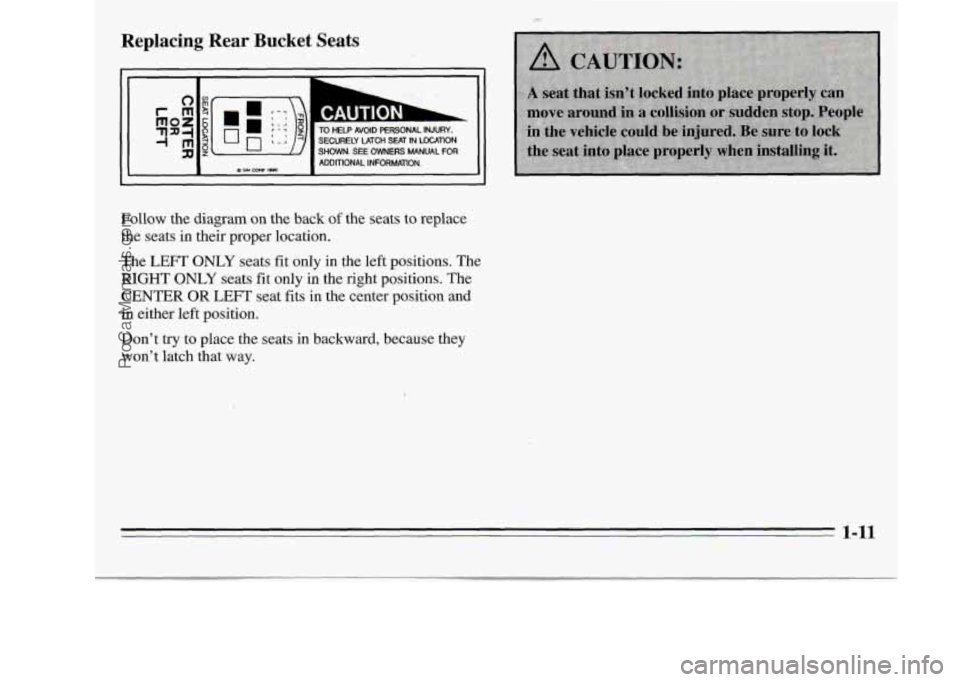

Replacing Rear Bucket Seats CAUTION
-
-
- ~~ h
SECURELY LATCH SEAT IN mnoN TO HELP AVOID PERSONAL INJURY.
SHOWN. SEE OWNERS MANUAL FOR
ADDITIONAL INFORMATION.
Follow the diagram on the back of the seats to replace
the seats in their proper location.
The
LEFT ONLY seats fit only in the left positions. The
RIGHT ONLY seats fit only in the right positions. The
CENTER OR LEFT seat fits in the center position and
in either left position.
Don’t
try to place the seats in backward, because they
won’t latch that way.
1-11
ProCarManuals.com
Page 22 of 390

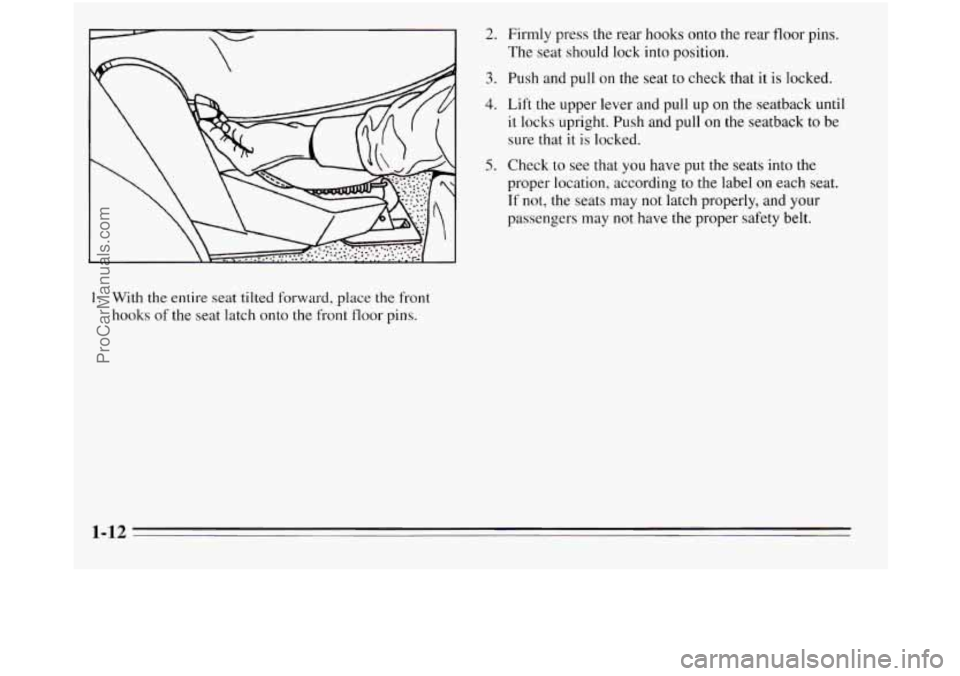

I. With the entire seat tilted forward, place the front
hooks
of the seat latch onto the front floor pins.
2. Firmly press the rear hooks onto the rear floor pins.
The seat should lock into position.
3. Push and pull on the seat to check that it is locked.
4. Lift the upper lever and pull up on the seatback until
it locks upright. Push and pull on the seatback
to be
sure that it is locked.
5. Check to see that you have put the seats into the
proper location, according to the label
on each seat.
If not, the seats may not latch properly, and your
passengers may not have the proper safety belt.
1-12
ProCarManuals.com
Page 23 of 390

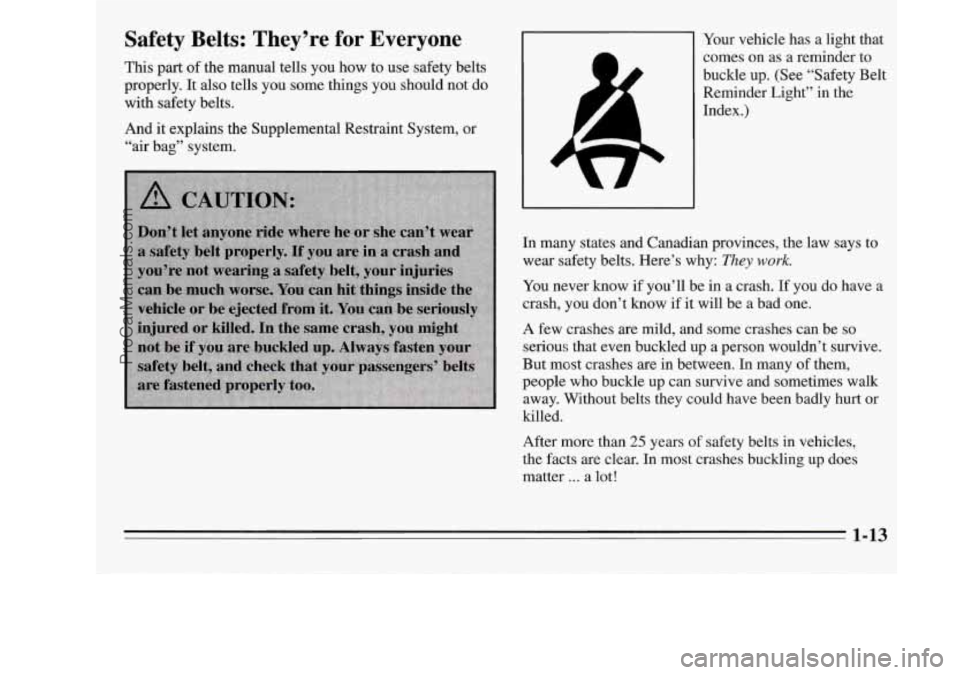

Safety Belts: They’re for Everyone
This part of the manual tells you how to use safety belts
properly. It
also tells you some things you should not do
with safety belts.
And it explains the Supplemental Restraint System, or
“air bag” system. Your
vehicle has a light that
comes on as a reminder to
buckle up. (See “Safety Belt
Reminder Light” in the
Index.)
I
In many states and Canadian provinces, the law says to
wear safety belts. Here’s why:
They work.
You never know if you’ll be in a crash. If you do have a
crash, you don’t know if it will be a bad one.
A few crashes are mild, and some crashes can be
so
serious that even buckled up a person wouldn’t survive.
But mast crashes are in between. In many of them,
people who buckle up can survive and sometimes walk
away. Without belts they could have been badly hurt or
killed.
After more than
25 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up does
matter
... a lot!
ProCarManuals.com
Page 24 of 390

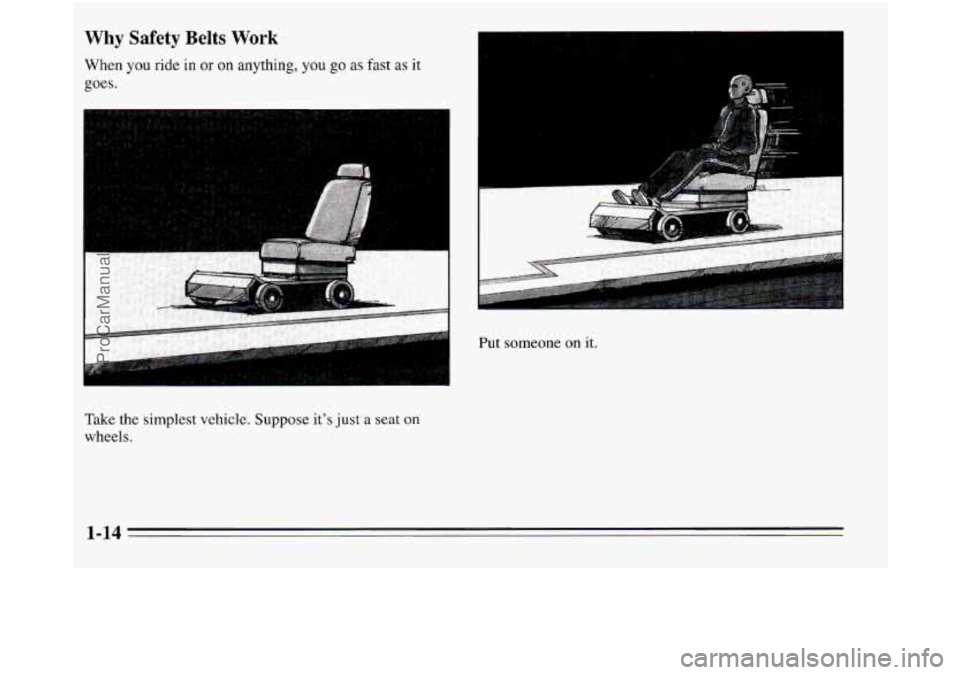

Why Safety Belts Work
When you ride in or on anything, you go as fast as it
goes.
Take the simplest vehicle. Suppose it's just a seat on
wheels. Put someone
on it.
1-14
