1995 OLDSMOBILE SILHOUETTE Owners Manual

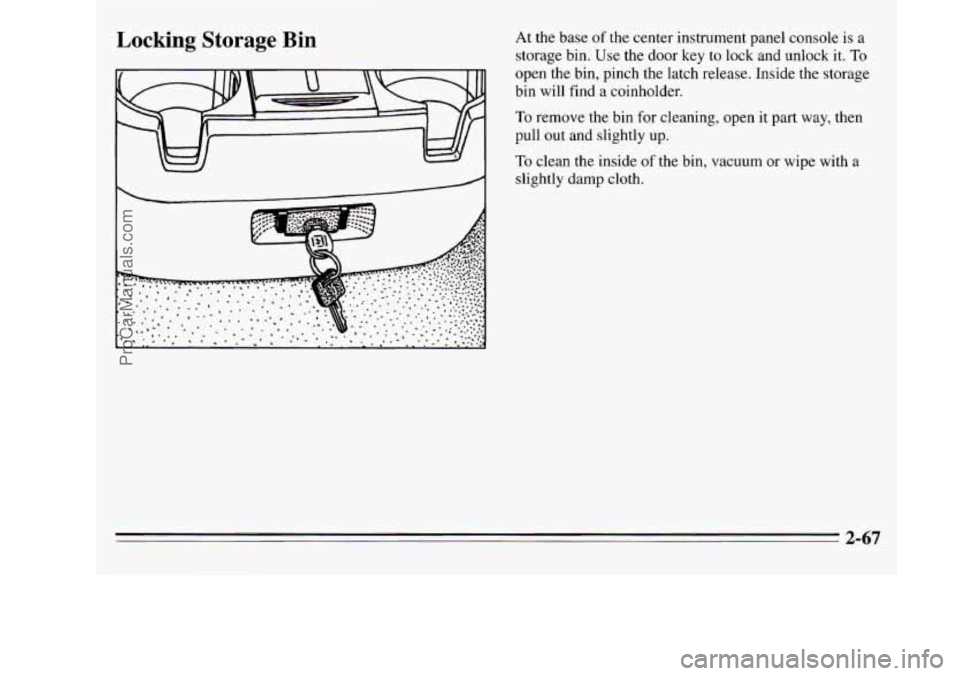

Locking Storage Bin
I .1 I
At the base or me center instrument panel console is a
storage bin. Use the door key to lock and unlock it.
To
open the bin, pinch the latch release. Inside the storage
bin will find
a coinholder.
To remove the bin for cleaning, open it part way, then
pull out and slightly up.
To clean the inside of the bin, vacuum or wipe with a
slightly damp cloth.
2-67
ProCarManuals.com

Electronic Level Control (Option)
With this option, the rear of the vehicle automatically
adjusts to changes in load weight. (See “Loading Your
Vehicle” in the Index.)
You may hear the compressor operating when you load
or unload your vehicle, and periodically as the system
self-adjusts. This is normal.
The compressor should operate for brief periods
of time.
If the sound continues for an extended period
of time,
your vehicle needs service.
To keep your battery from
being drained, you may want to pull the
ELC fuse in the
fuse control panel until you can get your vehicle
serviced (see “Fuses and Circuit Breakers’’ in the Index).
To replace the bin, set the hinge pins (one on each side
of the bin, at the bottom) into the hinge guides (one at
each side
of the console opening, at the base), then close
the bin.
If the hinge pins are placed properly in the
guides, the bin will close easily.
2-68
ProCarManuals.com

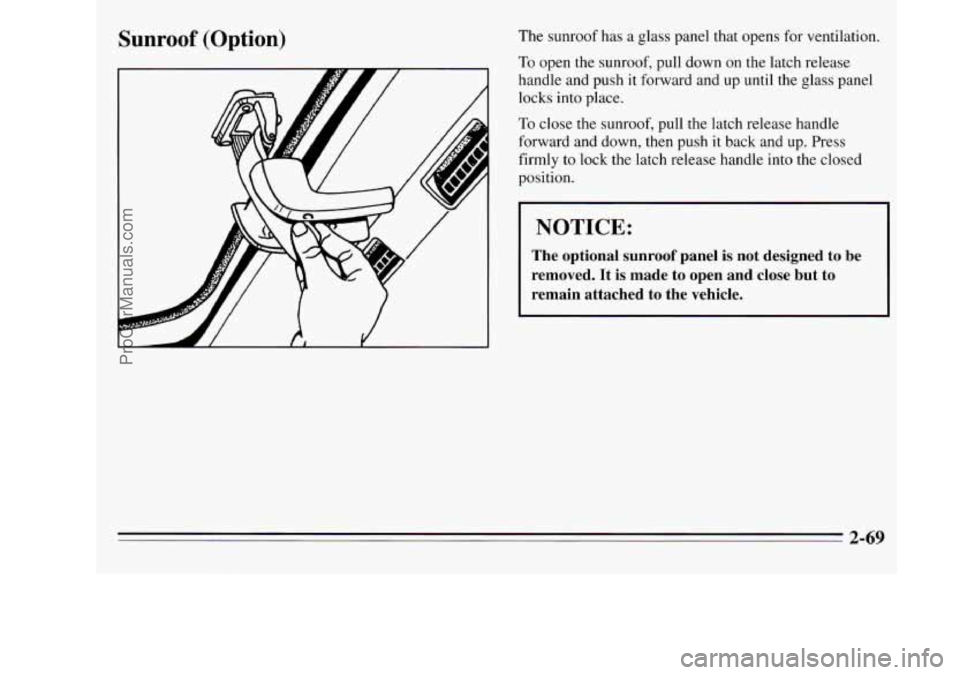

Sunroof (Option) The sunroof has a glass panel that opens for ventilation.
To open the sunroof, pull down on the latch release
handle and push it forward and up until the glass panel
locks
into place.
To close the sunroof, pull the latch release handle
forward and down, then push it back
and up. Press
firmly to lock the latch release handle into the closed
position.
I NOTICE:
The optional sunroof panel is not designed to be
removed. It
is made to open and close but to
remain attached to the vehicle.
2-69
ProCarManuals.com

2-70
ProCarManuals.com

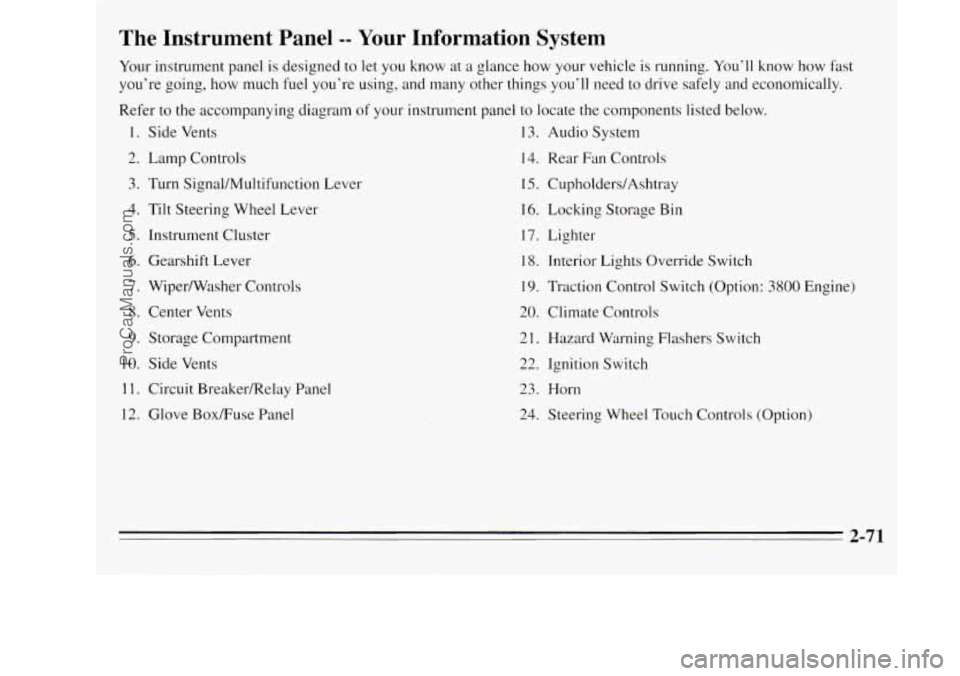

The Instrument Panel -- Your Information System
Your instrument panel is designed to let you know at a glance how your vehicle is running. You’ll know how fast
you’re going, how much fuel you’re using, and many other things you’ll need to drive safely and economically.

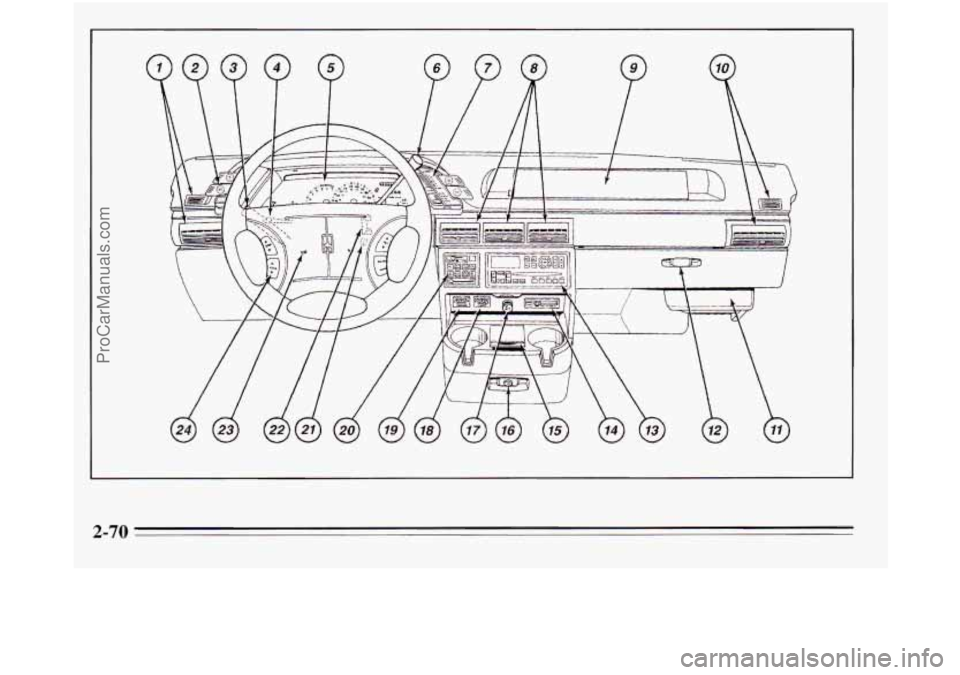

Refer to the accompanying diagram
of your instrument panel to locate the components listed below.
1. Side Vents 13. Audio System
2. Lamp Controls
14. Rear Fan Controls
3. Turn Signal/Multifunction Lever 15. CupholderdAshtray
4. Tilt Steering Wheel Lever 16. Locking
Storage Bin
5. Instrument Cluster 17. Lighter
6. Gearshift Lever
18. Interior Lights Override Switch
7. Wiper/Washer Controls 19. Traction Control Switch (Option: 3800 Engine)
8. Center Vents
20. Climate Controls
9. Storage Compartment 21. Hazard Warning Flashers Switch
10. Side Vents
22. Ignition Switch
1 1. Circuit BreakedRelay Panel 23. Horn
12. Glove BoxRuse Panel
24. Steering Wheel Touch Controls (Option)
-
2-71
ProCarManuals.com

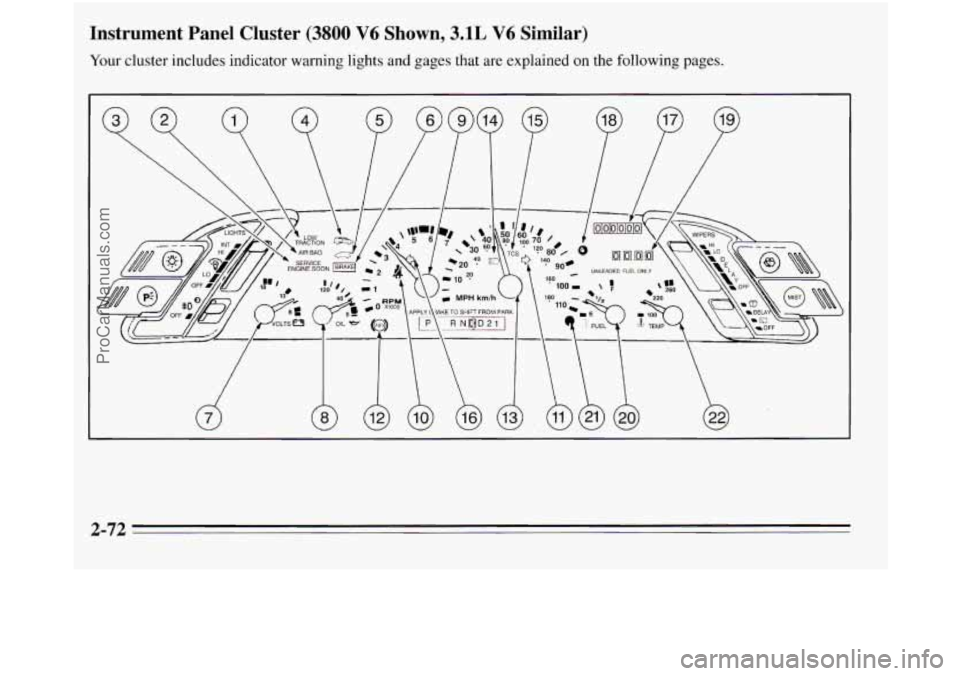

Instrument Panel Cluster (3800 V6 Shown, 3.1L V6 Similar)
Your cluster includes indicator warning lights and gages that are explained on the following pages.
2-72
ProCarManuals.com

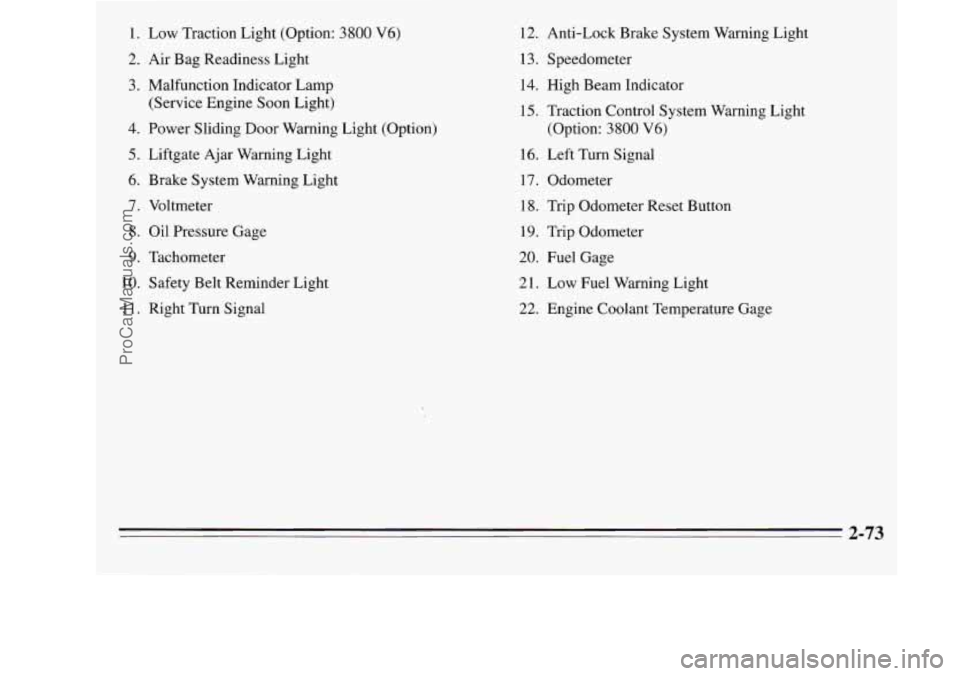

1. Low Traction Light (Option: 3800 V6)
2. Air Bag Readiness Light
3. Malfunction Indicator Lamp
(Service Engine Soon Light)
4. Power Sliding Door Warning Light (Option)
5. Liftgate Ajar Warning Light
6. Brake System Warning Light
7. Voltmeter
8. Oil Pressure Gage
9. Tachometer
10. Safety Belt Reminder Light
11. Right Turn Signal 12.
Anti-Lock Brake System Warning Light
1 3. Speedometer 14. High Beam Indicator
15. Traction Control System Warning Light
(Option: 3800
V6)
16. Left Turn Signal
17. Odometer
18. Trip Odometer Reset Button
19. Trip Odometer
20. Fuel Gage
21. Low Fuel Warning Light
22. Engine Coolant Temperature Gage
2-73
ProCarManuals.com

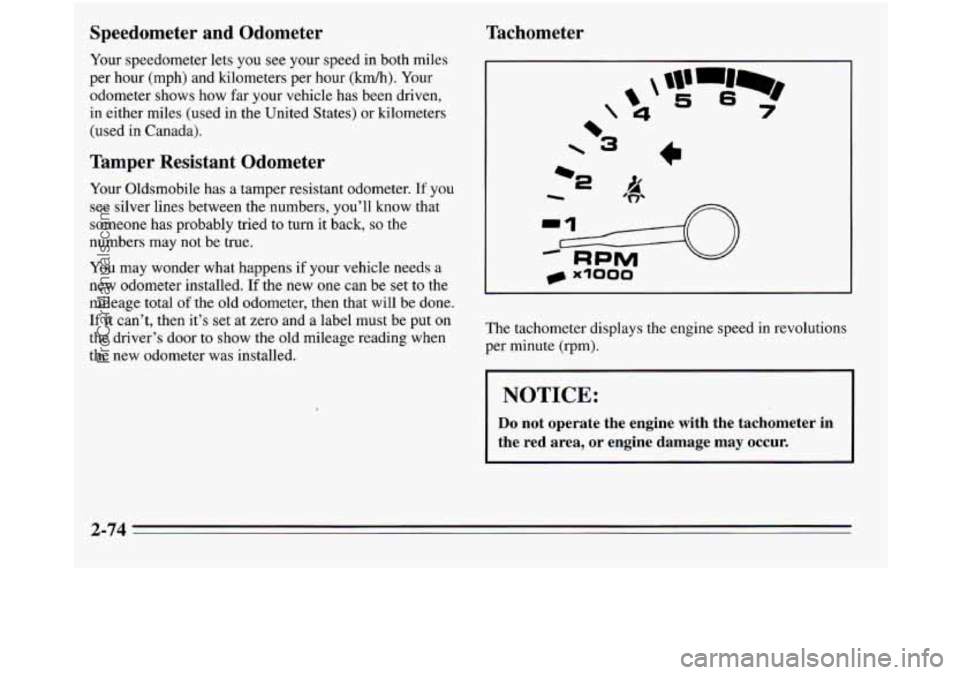

Speedometer and Odometer
Your speedometer lets you see your speed in both miles
per hour (mph) and kilometers per hour (km/h). Your
odometer shows how far your vehicle has been driven,
in either miles (used in the United States) or kilometers
(used in Canada).
Tamper Resistant Odometer
Your Oldsmobile has a tamper resistant odometer. If you
see silver lines between the numbers, you’ll know that
someone has probably tried to turn it back,
so the
numbers may not be true.
You may wonder what happens if your vehicle needs a
new odometer installed. If the new one can be set to the
mileage total
of the old odometer, then that will be done.
If it can’t, then it’s set at zero and a label must be put
on
the driver’s door to show the old mileage reading when
the new odometer was installed.
Tachometer
-2
The tachometer displays the engine speed in revolutions
per minute (rpm).
I NOTICE:
Do not operate the engine with the tachometer in
the red area,
or engine damage may occur.
2-74
