1995 GMC SIERRA automatic transmission

I Schedule I Intervals - Diesel Engines I
Every 2,500 Miles (4 000 km)
Engine Oil and Filter Change (or every 3 months, whichever occurs first)
Chassis Lubrication (or every
3 months, whichever occurs first)
Air Cleaner Filter Inspection.
if Driving in Extremely Dusty or Dirty
(Off-Road) Conditions
Every 5,000 Miles (8 000 km)
Drive Axle Service
Every 7,500 Miles (12 000 km)
Air Cleaner Filter Inspection, if Driving in Dusty Conditions
At 7,500 Miles (12 000 km) - Then Every 15,000 Miles (24 000 km)
Tire Rotation
Every 10,000 Miles (I 6 000 km)
Shields and Underhood Insulation Inspection
Thermostatically Controlled Engine Cooling Fan Check (or every
12
months, whichever occurs first)
Air Intake System Inspection
Every 15,000 Miles (24 000 km)
Air Cleaner Filter Replacement
Front Wheel Bearing Repack
(or at Each Brake Relining) (2-Wheel Drive
Only j
Every 30,000 Miles (50 000 km)
Clutch Fork Ball Stud Lubrication (%Speed Transmission with Deep-Low
Only:)
Fuel Filter Replacement
Cooling
System Service (or every 24 months, whichever occurs first)
Every 50,000 Miles (80 000 km)
Automatic Transmission Service
7- 10
ProCarManuals.com

Every 50,000 Miles (83 000 km)
Automatic Transmission Service
Every 60,000 Miles (100 000 km)
Crankcase Depression Regulator Valve (CDRV) System Inspection
Engine Accessory Drive Belt Inspection
Exhaust Gas Recirculation (EGR) System Inspection
(if equipped)
Exhaust Pressure Regulator Valve Inspection
Maintenance Schedule I - Gasoline Engines With
Light
Duty Emissions
The services shown in this schedule up to 60,000 miles (1 00 000 km) should
be performed after
60,000 miles (100 000 km) at the same intervals.
Footnotes
3 The California Air Resources Board has determined that the failure to
perform this maintenance item will not nullify the emission warranty or
limit recall liability prior to the completion of vehicle useful life. We,
however, urge that all recommended maintenance services be performed at
the indicated intervals and the maintenance be recorded.
:$* Drive axle service:
Locking Differential - Drain fluid and refill at first engine oil change.
At subsequent oil changes, check fluid level and add fluid
as needed. If
driving in dusty areas or towing a trailer, drain fluid and refill every
15,000 miles (25 000 km).
0 Standard Differential - Check fluid level and add fluid as needed at
every oil change.
If driving in dusty areas or towing a trailer, drain
fluid and refill every 15,000 miles (25 000 km).
More frequent lubrication may be required for heavy-duty or off-road
use.
3500 HD Models with applications requiring extreme overload/trailer
towing conditions and high speed (above
45 mph or 72 kmh)
conditions for extended periods of time must have the drive axle fluid
changed every
3,000 miles (5 000 km) or 3 months, whichever occurs
first, or must use
75W-140 synthetic fluid meeting GM specifications.
See “Recommended Fluids and Lubricants”
in this section.
7-12
ProCarManuals.com

Maintenance Schedule I - Gasoline Engines With
Light Duty Emissions
48,000 Miles (80 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage. parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should
not be lubricated unless their temperature is 10" F
(-12" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm
up before lubrication or they could be damaged.
Perform each of the listed lubrication service items at this mileage
interval (or every
6 months, whichever occurs first).
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.*":
DATE SERVICED BY: ACTUAL MILEAGE
50,000 Miles (83 000 km)
0 Change automatic transmission fluid and filter if the vehicle is mainly
driven under one or more of these conditions:
In heavy city traffic where the outside temperature regularly
reaches
90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police or delivery service.
[f you do not use your vehicle under an\' of these conditions, the fluid
and.filter do not require cl1crnging.
Manual transmission fluid doesn't require change.
L
DATE
SERVICED BY:
ACTUAL MILEAGE
7-23
ProCarManuals.com

I

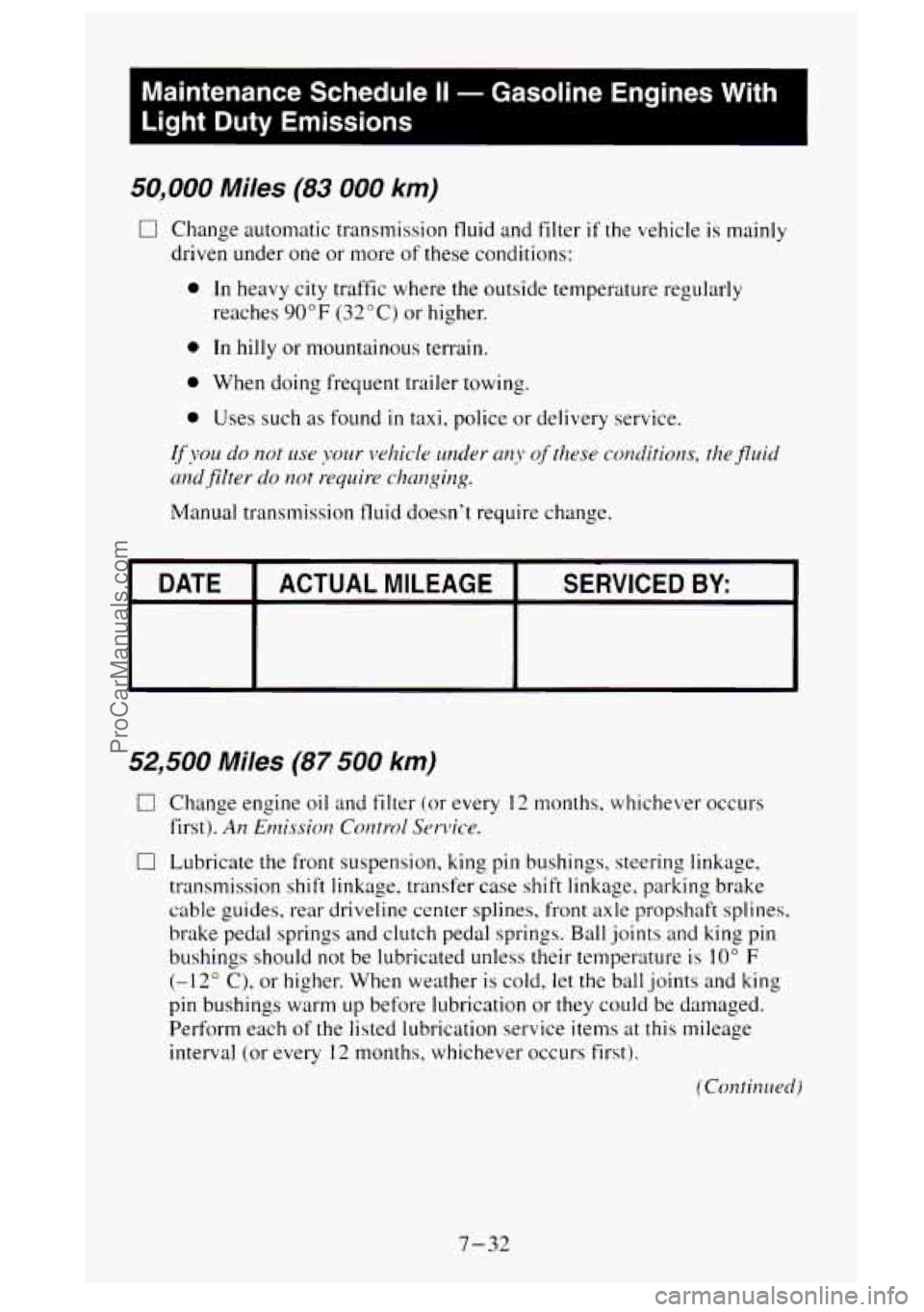

Maintenance Schedule II - Gasoline Engines With
Light Duty Emissions
I
rn
50,000 Miles (83 000 km)
0 Change automatic transmission fluid and filter if the vehicle is mainly
driven under one or more of these conditions:
0 In heavy city traffic where the outside temperature regularly
reaches
90°F (32°C) or higher.
0 In hilly or mountainous terrain.
0 When doing frequent trailer towing.
0 Uses such as found in taxi, police or delivery service.
If you do not me your vehicle under arzy of these conditions, the fluid
md.filter do
not require changing.
Manual transmission fluid doesn't require change.
I DATE I ACTUALMILEAGE I SERVICED BY: I
52,500 Miles (87 500 km)
0 Change engine oil and filter (or every 12 months. whichever occurs
first).
An Emission Control Sunlice.
[7 Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front
axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should
not be lubricated unless their temperature is 10" F
(-12" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each of
the listed lubrication service items at this mileage
interval (or every
12 months, whichever occurs first).
(Continued)
7-32
ProCarManuals.com

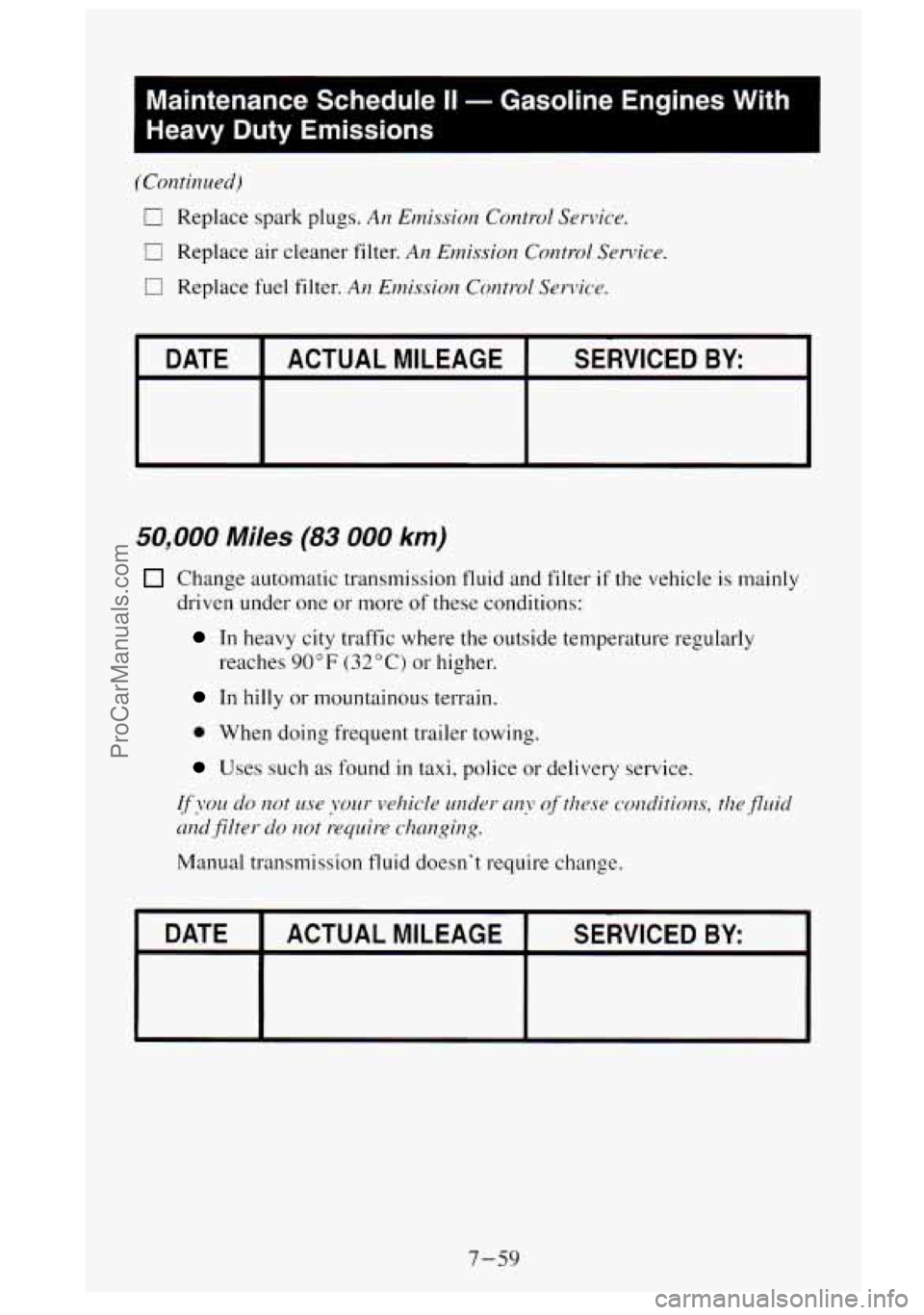

Maintenance Schedule II - Gasoline Engines With
Heavy Duty Emissions
DATE SERVICED BY: ACTUAL MILEAGE
50,000 Miles (83 000 km)
Change automatic transmission fluid and filter if the vehicle is mainly
driven under one or more
of these conditions:
In heavy city traffic where the outside temperature regularly
reaches
90°F (32°C) or higher.
In hilly or mountainous terrain.
0 When doing frequent trailer towing.
Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any qf tlzese conditions, the fluid
nnd,filter
do not require clza12ging.
Manual transmission fluid doesn’t require change.
DATE
SERVICED BY: ACTUAL MILEAGE
~ ~~
~~ ~
7-59
ProCarManuals.com

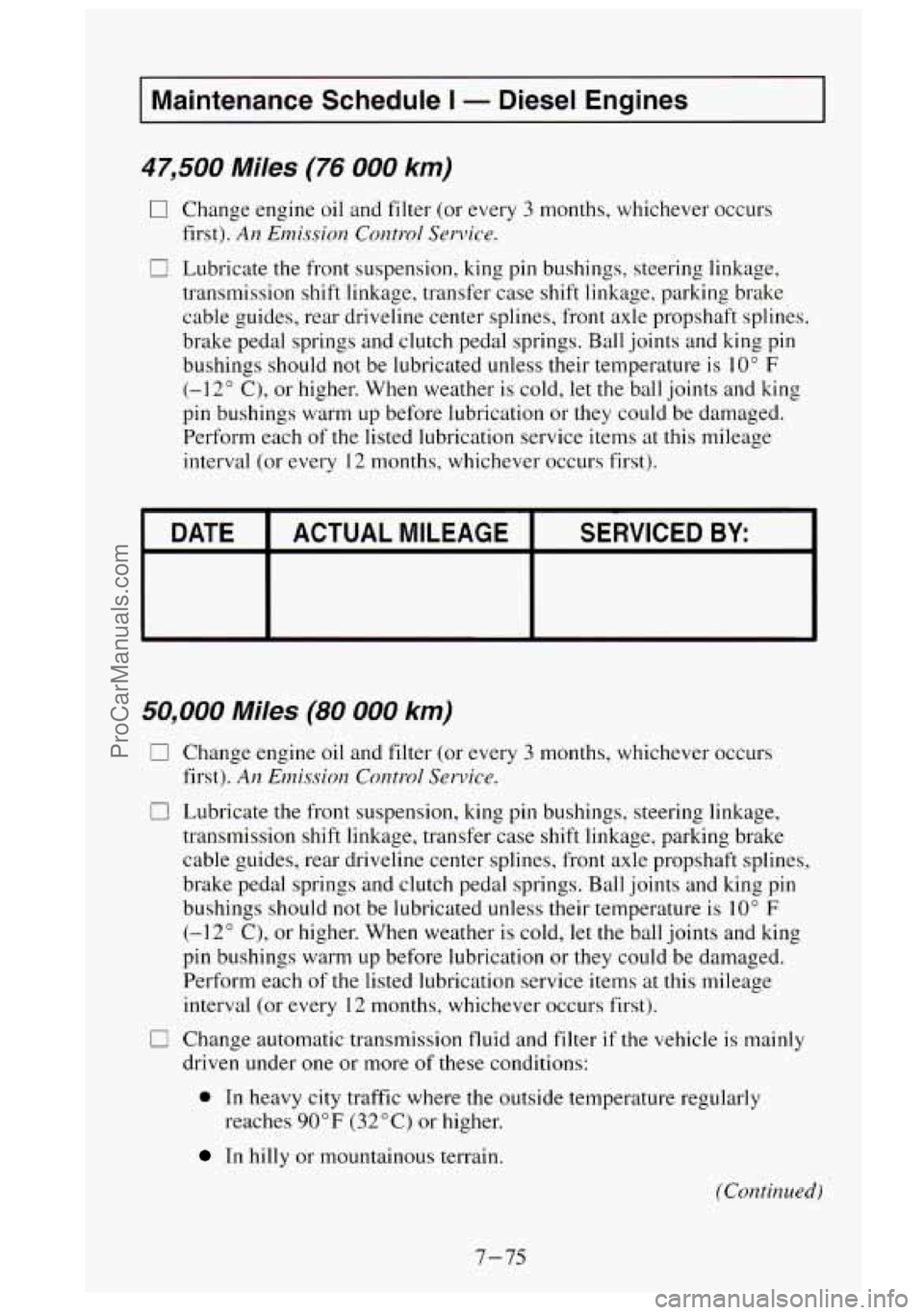

I Maintenance Schedule I - Diesel Engines I
47,500 Miles (76 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs
first).
Arz Emission Control Service.
c I Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs.
Ball joints and king pin
bushings should not be lubricated unless their temperature
is 10" F
(-1 2" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each of the listed lubrication service items at this mileage
interval (or every
12 months, whicheve.r occurs first).
DATE SERVICED BY: ACTUAL MILEAGE
50,000 Miles (80 000 km)
0 Change engine oil and filter (or every 3 months, whichever occurs
first).
An Emission Control Service.
0 Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage, transfer case shift linkage, parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs.
Ball joints and king pin
bushings should
not be lubricated unless their temperature is 10" F
(-1 2" C), or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each
of the listed lubrication service items at this mileage
interval (or every
12 months, whichever occurs first).
0 Change automatic transmission fluid and filter if the vehicle is mainly
driven under one or more
of these conditions:
0 In heavy city traffic where the outside temperature regularly
reaches
90°F (32°C) or higher.
In hilly or mountainous terrain.
7-75
ProCarManuals.com

50,000 Miles (80 000 km)
0
0
Change engine oil and filter (or every 3 months, whichever occurs
first). AII Emissiou Cor1trd Senicv.
Lubricate the front suspension, king pin bushings. steering linkage,
transmission shift linkage, transfer case shift linkage. parking brake
cable guides, rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs.
Ball joints and king pin
bushings should not be lubricated unless their temperature is
10" F
(- 12" C), or higher. When weather is cold, let the ball -joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each of the listed lubrication service items at this mileage
interval (or every
12 months, whichever occurs first).
Change automatic transmission fluid and filter
if the vehicle is mainly
driven under one or more
of these conditions:
0
0
a
0
In heavy city traffic where the outside temperature regularly
reaches
90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such
as found in taxi, police or delivery service. If you do
not use your vehicle under any
of these conditions, the fluid
and filter do not require changing.
Manual transmission fluid
doesn't require change.
Inspect shields and underhood insulation for damage or looseness.
Adjust or replace as required.
This is a Noise Emission Control
Service. Applicable only to vehicles sold in the United States.
Check the air intake system installation to assure that gaskets are
properly sealed and that all hose connections, fasteners and other
components are tight.
Also check to be sure that the air cleaner housing
is properly seated, the cover fits tightly and the wing nuts are tight.
Tighten connections and fasteners or replace damaged parts as
necessary.
This is a Noise Emission Control Service. Applicable only
to vehicles sold in the United States.
If your engine has a thermostatically controlled cooling Fan, inspect all
hoses and ducts for proper hook-up (or every
12 months. whichever
occurs first). Be sure the valve works properly.
This is a Noise
Emission Control Service. Applicable only to vehicles sold in t\
he
United States.
7-89
ProCarManuals.com

Cassette Deck
Clean cassette deck. Cleaning should be done every 50 hours of tape play.
See “Audio Systems”
in the Index for further details.
At Least Once a Year
Key Lock Cylinders
Lubricate the key lock cylinders with the lubricant specified in Part D.
Body Lubrication
Lubricate all fuel doors, body hood and body door hinges, tailgate and
tailgate handle pivot points, latches, locks, and folding seat hardware. Part
D tells you what to use. More frequent lubrication may be required when
exposed to
a corrosive environment.
Starter Switch
A CAUTION:
When you are doing this check, the vehicle could move suddenly.
If it does, you or others could be injured. Follow the steps below.
1. Before you start, be sure you have enough room around the vehicle. It
should be parked
on a level surface.
2. Firmly apply both the parking brake (see “Parking Brake” in the Index
if necessary) and the regular brake.
NOTE: Do not use the accelerator pedal, and be ready to turn off the
engine immediately
if it starts.
3. On automatic transmission vehicles, try to start the engine in each gear.
The starter should work only
in PARK (P) or NEUTRAL (N). If the
starter works in any other position, your vehicle needs service.
On manual transmission vehicles, put the shift lever in NEUTRAL
(N),
push the clutch down halfway and try to start the engine. The starter
should work only when the clutch is pushed down
all the way to the
floor. If the starter works when the clutch isn’t pushed all the way
down, your vehicle needs service.
7-94
ProCarManuals.com
