1995 GMC SIERRA automatic transmission

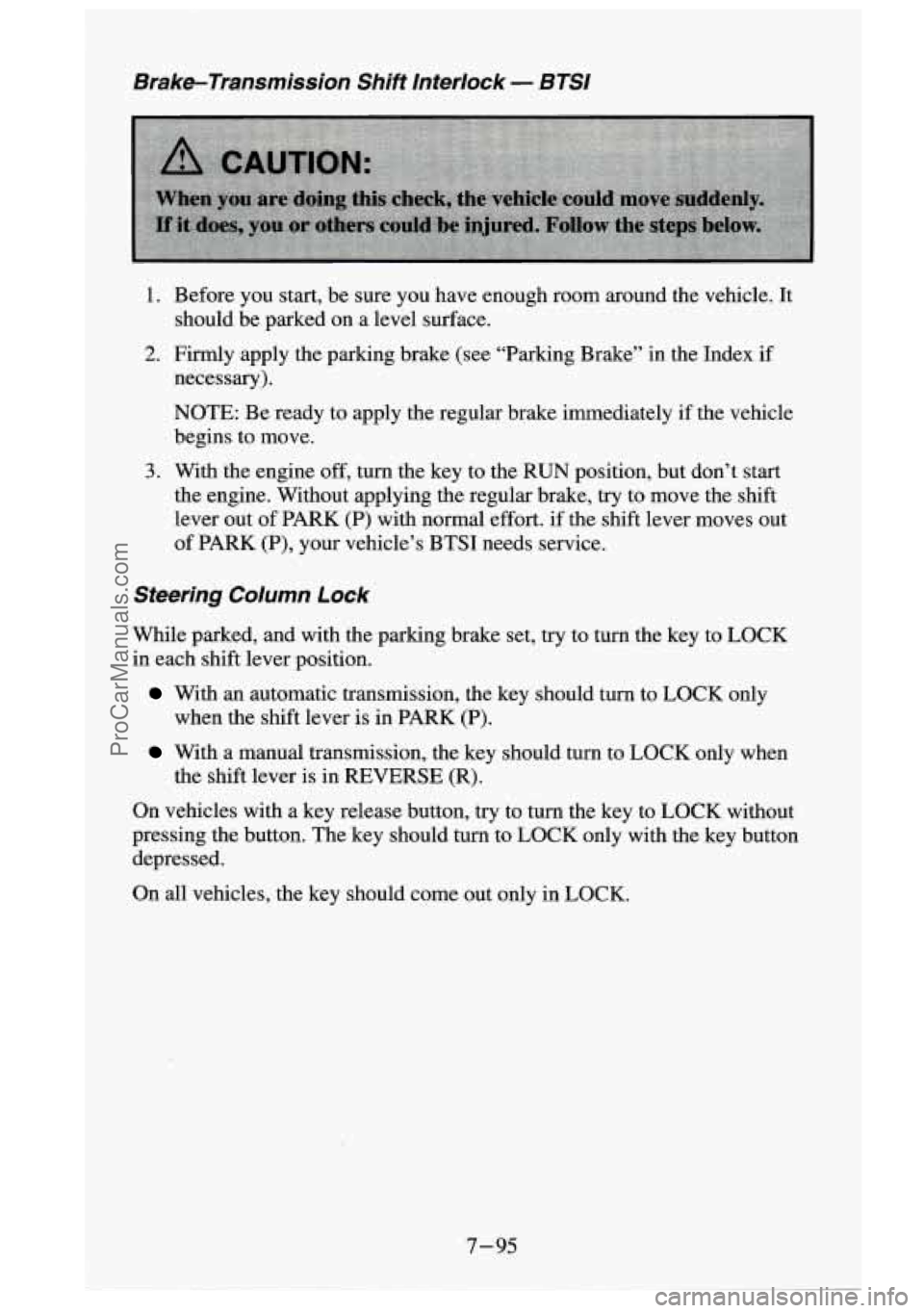

Brake-Transmission Shift Interlock - BTSI
1.
2.
3.
Before you start, be sure you have enough room around the vehicle. It
should be parked on a level surface.
Firrnly apply the parking brake (see “Parking Brake” in the Index
if
necessary).
NOTE: Be ready to apply the regular brake immediately if the vehicle
begins to move.
With the engine
off, turn the key to the RUN position, but don’t start
the engine. Without applying the regular brake,
try to move the shift
lever out of PARK (P) with normal effort. if the shift lever moves out
of PARK (P), your vehicle’s BTSI needs service.
Steering Column Lock
While parked, and with the parking brake set, try to turn the key to LOCK
in each shift lever position.
With an automatic transmission, the key should turn to LOCK only
With a manual transmission, the key should turn to LOCK only when
On vehicles with
a key release button, try to turn the key to LOCK without
pressing the button. The key should turn to LOCK only with the key button
depressed. when
the shift lever
is in PARK (P).
the shift lever is
in REVERSE (R).
On all vehicles, the key should come out only in LOCK.
7-95
ProCarManuals.com

Parking Brake and Automatic Transmission PARK (P)
Mechanism Check
Park on a fairly steep hill, with the vehicle facing downhill. Keeping your
foot on the regular brake, set the parking brake.
0
0 To check the parking brake: With the engine running and transmission
in NEUTRAL
(N), slowly remove foot pressure from the regular brake
pedal.
Do this until the vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding ability: Shift to PARK
(P). Then release all brakes.
Lap and Shoulder Belts Condition and Operation
Inspect belt system, including: webbing, buckles, latch plates, retractors,
guide loops and anchors. Have a belt assembly replaced
if the webbing has
been cut or otherwise damaged.
7-96
ProCarManuals.com

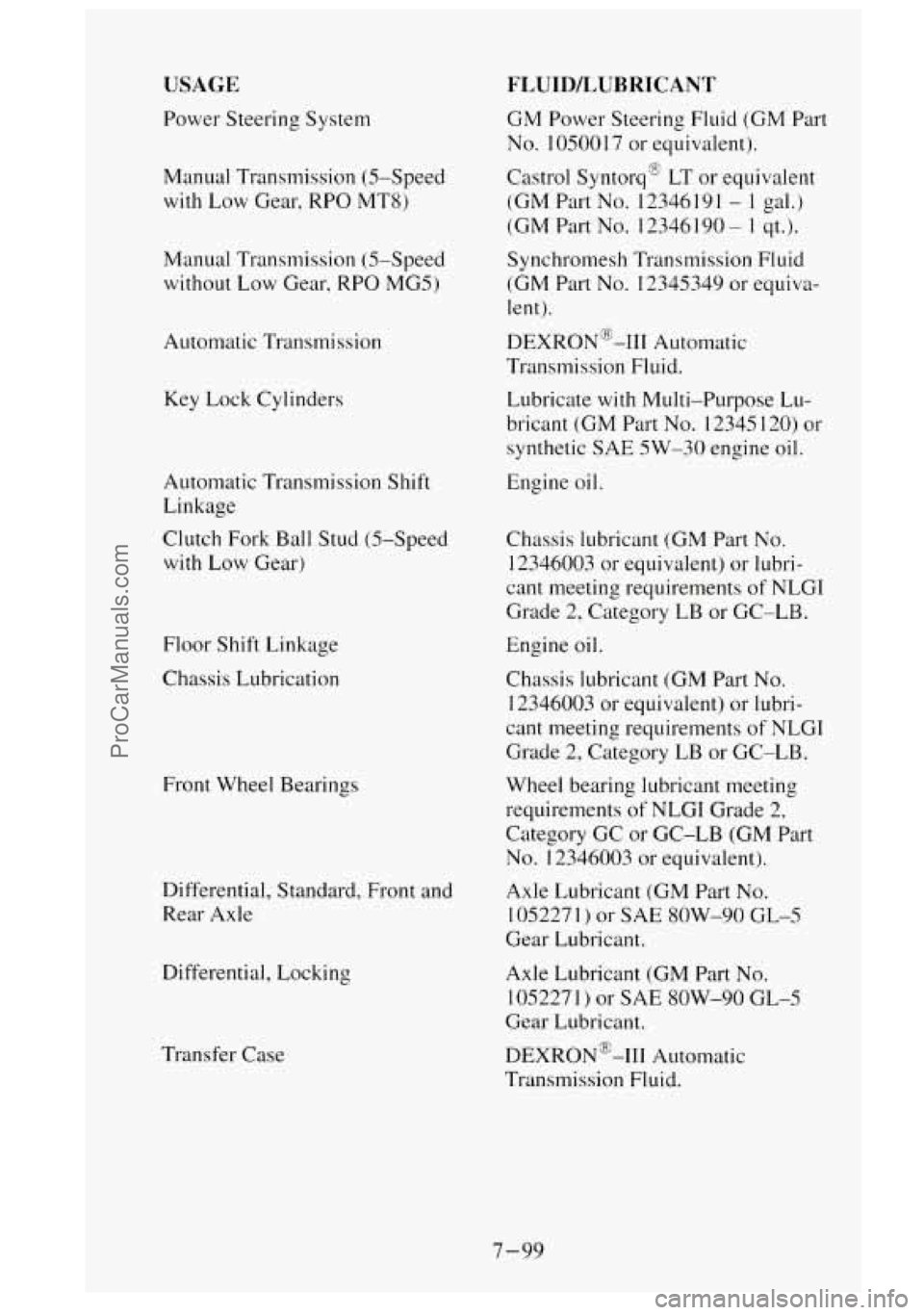

USAGE
Power Steering System Manual Transmission (5-Speed
with Low Gear, RPO MT8)
Manual Transmission (5-Speed
without Low Gear, RPO MG5)
Automatic Transmission Key Lock Cylinders
FLUIDLUBRICANT
GM Power Steering Fluid (GM Part
No. 10500 I7 or equivalent).
Castrol Syntorq'
LT or equivalent
(GM Part No. 12346191
- 1 gal.)
(GM Part
No. I23461 90 - 1 qt.).
Synchromesh Transmission Fluid
(GM Part
No. 12345349 or equiva-
lent).
DEXR0N'-I11 Automauc
Transmission Fluid.
Lubricate
with Multi-Purpose Lu-
bricant (GM Part No. I2345 120) or
synthetic SAE SW-30 engine oil.
Automatic Transmission Shift
Linkage
Clutch Fork Ball Stud (5-Speed
with Low Gear)
Floor Shift Linkage
Chassis Lubrication
Front Wheel Bearings
Differential, Standard, Front and
Rear Axle
Differential, Locking
Transfer Case Engine
oil.
Chassis lubricant (GM Part
No.
12346003 or equivalent) or lubri-
cant meeting requirements of NLGI
Grade 2, Category LB or GC-LB.
Engine
oil.
Chassis lubricant (GM Part No.
I2346003 or equivalent) or lubri-
cant meeting requirements of NLGI
Grade
2, Category LB or GC-LB.
Wheel bearing lubricant meeting
requirements
of NLGI Grade 2,
Category GC or GC-LB (GM Part
No. I2346003 or equivalent).
Axle Lubricant (GM Part No.
105227
1 ) or SAE 8OW-90 GL-5
Gear Lubricant.
Axle Lubricant (GM Part
No.
105227 1) or SAE 80W-90 GL-5
Gear Lubricant.
DEXR0N"-111 Automatic
Transmission Fluid.
7-99
ProCarManuals.com

Index
A
Adding Equipment to Your Air Bag-Equipped Vehicle (See "Supplemental
Intlatable Restraint System (SIR)")
Air Bag (See "Supplemental Intlatable Restrain1 System (SIR)")
Air Cleaner (See "Engine-Air Cleaner")
Air Conditioning (See "HeatedAir Conditioning Controls")
Antenna
....................................................... 3-25
Readiness Light
(See "Lights")
Anti-Lock Brakes (See "Brakes")
Appearance Care
................................
Materials Chart ..............................
Arbitration Program (See "Better Business Bureau Media
Audio Systems
.................................
................ 6-67
................. 6-75
. tion")
.................. 3-6
Care of Your Cassette Player and Tapes ............................ 3-24
Care_of Compact Discs
......................................... 3-25
ETR: AM-FM Stereo Audio Cassette System
....................... 3-9
ETRf AM-FM Stereo Audio Cassette ATC System
.................. 3-11
ETR'?' AM-FM Stereo Audio Compact Disc ATC System ............. 3-16
Rcmote Cassette Player
...................................... 3-22
ETR&AM-FM Stereo Audio System
............................... 3-7
THEFTLOCK Theft Deterrent Feature
........................ 3- 14. 3-20
Understanding Radio Reception .................................. 3-23
Automatic Transmission (See "Tnlnsmission")
Axle LockingRea r
................................................. 2-27
Front (See "Four-Wheel Drive")
Rear
........................................................ 6-32
B
Battery ........................................................ 6-47
Belts (See "Safety Belts")
Better Business Bureau Mediation
.................................... 8-3
Blizzard (See "Driving-If You're Caught
in a Blizzard")
Brakes Adjustment
.................................................. 6-45
Anti-Lock (ABS)
.............................................. 4-6
Anti-Lock Warning Light (See "Lights")
Hydro-Boost Brake System
..................................... 6-41
Master Cylinder .............................................. 6-42
Parking
..................................................... 2-27
PedalTravel
................................................. 644
Propshaft Parking Brake Burnish Procedure
........................ 2-28
Replacingparts
............................................... 6-45
System Warning Light (See *'Lights")
To Check Brake Fluid .......................................... 6-43
Trailer (.See "Trailer-Brakes")
Transmission Shift Interlock
(BTSI) ............................... 2-20
Wear
....................................................... 6-44
WhattoAdd
................................................. 643
Braking ......................................................... 4-5
In Emergencies ................................................ 4-7
1
ProCarManuals.com

Towing ATrailer
.................................................... 442
DrivingonGrades
.......................................... 4-47
Driving with
a Trailer ....................................... 4-46
ParkingonHills
............................................ 4-48
Passing
................................................... 4-46
Safety Chains
.............................................. 445
Hitches
..................................................... 4-45
TowingYourVehicle .............................................. 5-7
Trailer
Brakes
...................................................... 4-45
Recommendations ............................................. 4-42
Towing (See “Towing”)
Wiring Harness
.......................................... 2-83. 6-79
Trailering Package (See “Loading Your Vehicle”)
Transmission
Automatic
.............................................. 2-19. 6-27
How To Add Fluid
.......................................... 6-30
How
To Check Fluid ........................................ 6-27
When to Check and Change Fluid
.............................. 6-27
Five-SpeedManual
...................................... 2-22: 6-30
How
To Add Fluid .......................................... 6-31
HowToCheck
............................................. 6-30
Shift Light (See “Lights”)
Shiftspeeds
............................................... 2-25
With Low
Gear ............................................ 2-22
WithoutLowGear
.......................................... 2-24
WhenToCheck
............................................ 6-30
TorqueLock
............................................ 2-28, 2-30
Trip Odometer (See “Gages”)
Turn Signal and Lane Change Indicator (See “Lights”)
V
Vehicle
Damage Warnings
............................................... vi
Identification Number ..................................... 6-76. 6-77
Loading (See “Loading Your Vehicle”)
Storage
..................................................... 6-47
Symbols
........................................... v. vi. v11. ~111. ix
Ventilation System
................................................ 3-5
Tips ......................................................... 3-5
Voltmeter (See “Gages”)
.....
Warning
Devices. Other
................................................ 5-2
Hazard Flashers (See “Hazard Warning Flashers”)
Lights and Indicators
........................................... 2-70
10
