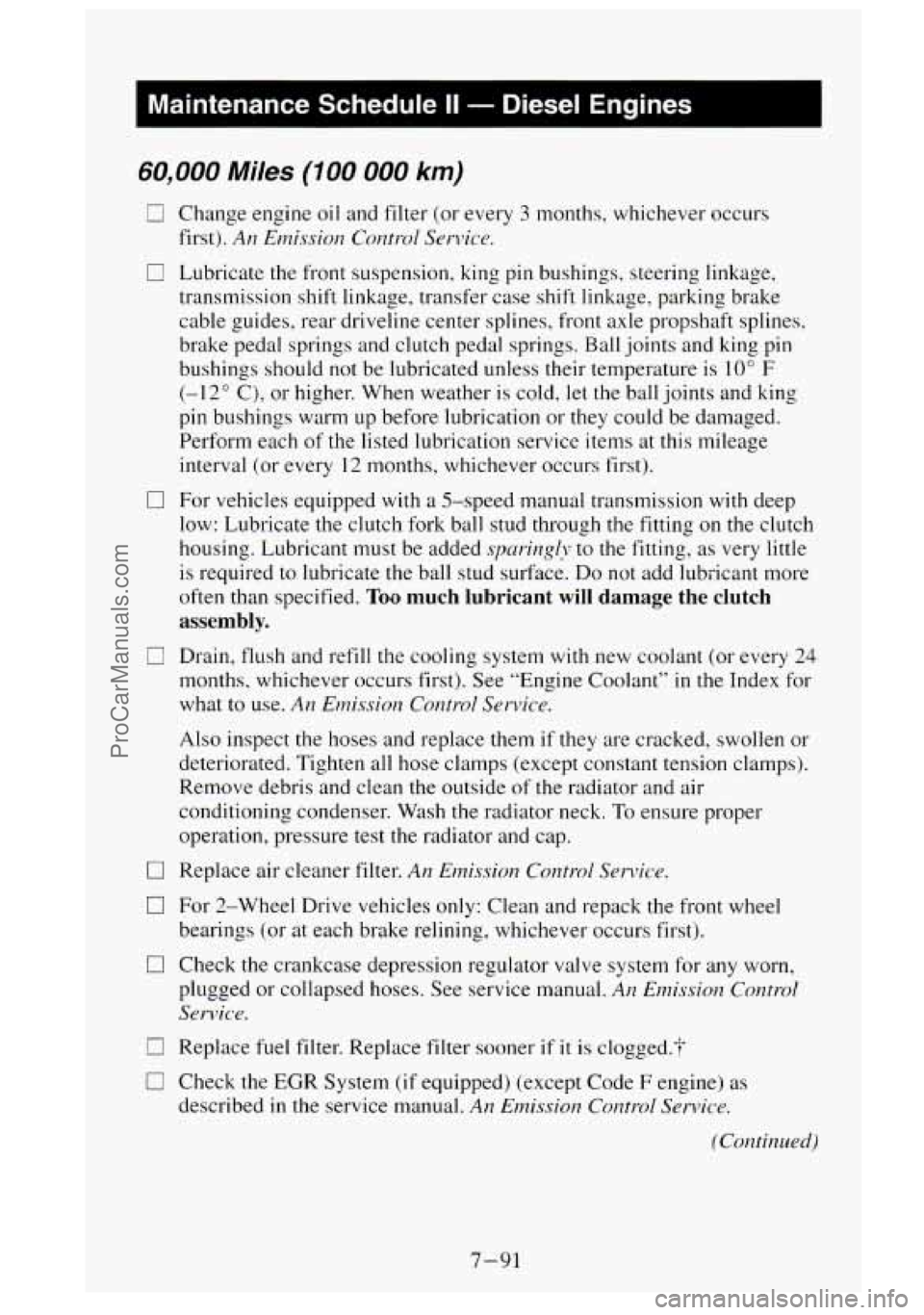

60,000 Miles (100 000 km)
o
r
0
0
0
0
E
Change engine oil and filter (or every 3 months, whichever occurs
first).
An Emissim~ Control Ser~~ice.
Lubricate the front suspension, king pin bushings, steering linkage,
transmission shift linkage. transfer case shift linkage. parking brake
cable guides. rear driveline center splines, front axle propshaft splines,
brake pedal springs and clutch pedal springs. Ball joints and king pin
bushings should
not be lubricated unless their temperature is 10" F
(-12" C). or higher. When weather is cold, let the ball joints and king
pin bushings warm up before lubrication or they could be damaged.
Perform each
of the listed lubrication service items at this mileage
interval (or every 12 months, whichever occurs first).
For vehicles equipped with a 5-speed manual transmission
with deep
low: Lubricate the clutch fork ball stud through the fitting
on the clutch
housing. Lubricant must be added
.spari11gl~* to the fitting, as very little
is required to lubricate the ball stud surface. Do not add lubricant more
often than specified.
Too much lubricant will damage the clutch
assembly.
Drain, flush and refill the cooling system with new coolant (or every 24
months. whichever occurs first). See "Engine Coolant''
in the Index for
what
to use. Ar? Emissioll Cor1trol Service.
Also inspect the hoses and replace them if they are cracked, swollen or
deteriorated. Tighten all hose clamps (except constant tension clamps).
Remove debris and clean the outside
of the radiator and air
conditioning condenser. Wash
the radiator neck. To ensure proper
operation, pressure test the radiator and cap.
Replace air cleaner filter.
An Emission Control Set-l*icv.
For 2-Wheel Drive vehicles only: Clean and repack the front wheel
bearings (or at each brake relining, whichever occurs first).
Check the crankcase depression regulator valve system for any worn,
plugged or collapsed hoses. See service manual.
AIZ E~ui.ssio~? Co11troI
ScJr-\,ic*e.
Replace fuel filter. Replace filter sooner if it is clogged.-!-
Check the
EGR System (if equipped) (except Code F engine) as
described in the service manual. At7 EIII~SS~OII Control Service.
(C~)11tin~d)
7-93
ProCarManuals.com

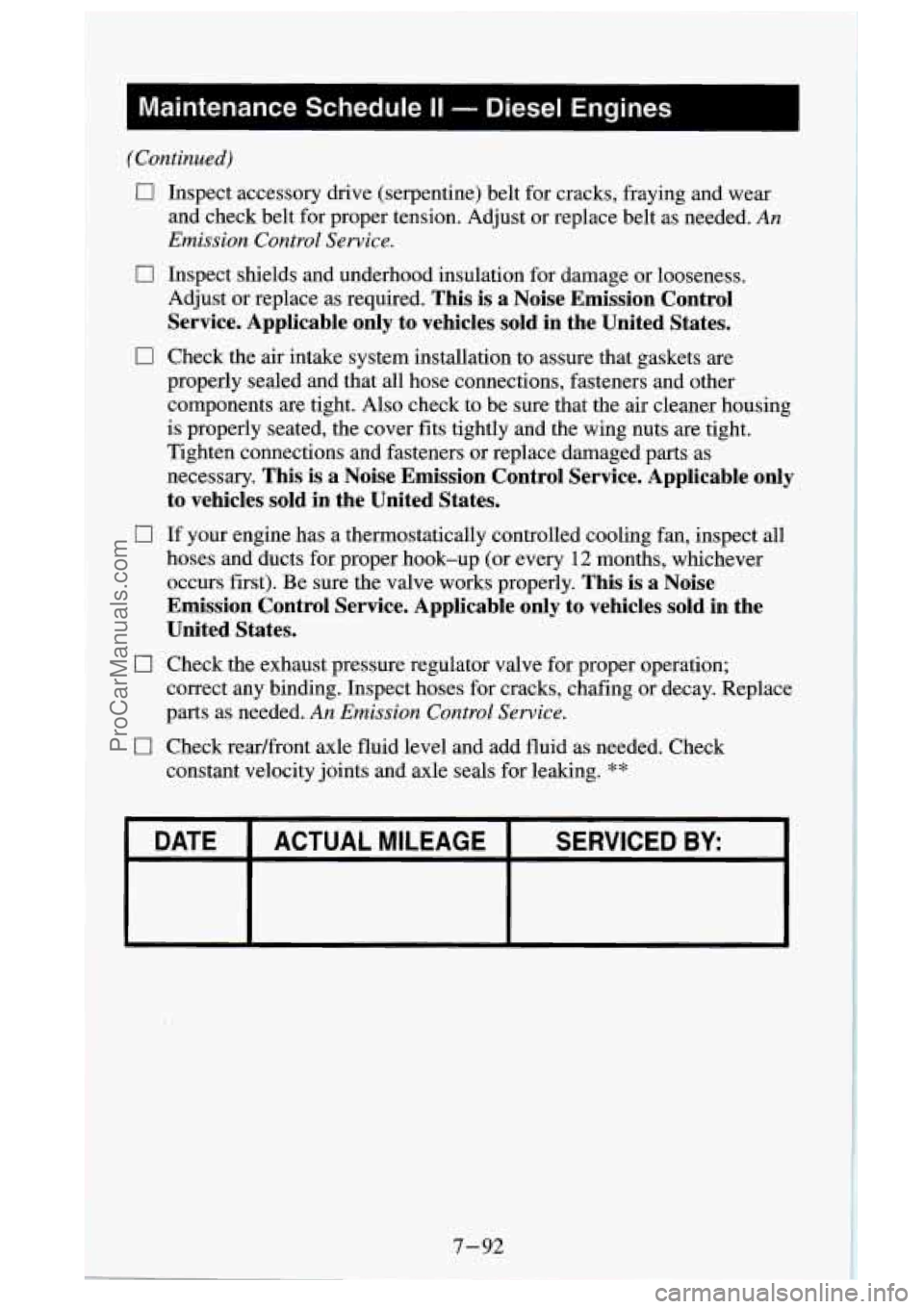

(Continued)
0 Inspect accessory drive (serpentine) belt for cracks, fraying and wear
and check belt for proper tension. Adjust or replace belt as needed.
An
Emission Control Service.
0 Inspect shields and underhood insulation for damage or looseness.
Adjust or replace as required.
This is a Noise Emission Control
Service. Applicable only to vehicles sold in the United States.\

0 Check the air intake system installation to assure that gaskets are
properly sealed and that all hose connections, fasteners and other
components are tight. Also check to be sure that the air cleaner housing
is properly seated, the cover fits tightly and the wing nuts are tight.
Tighten connections and fasteners or replace damaged parts as
necessary.
This is a Noise Emission Control Service. Applicable only
to vehicles sold in the United States.
0 If your engine has a thermostatically controlled cooling fan, inspect all
hoses and ducts for proper hook-up (or every
12 months, whichever
occurs first). Be sure the valve works properly.
This is a Noise
Emission Control Service. Applicable only to vehicles sold in t\
he
United States.
0 Check the exhaust pressure regulator valve for proper operation;
correct any binding. Inspect hoses for cracks, chafing or decay. Replace
parts as needed.
An Emission Control Service.
0 Check readfront axle fluid level and add fluid as needed. Check
constant velocity joints and axle seals for leaking.
**
DATE ACTUAL MILEAGE SERVICED BY:
7-92
ProCarManuals.com

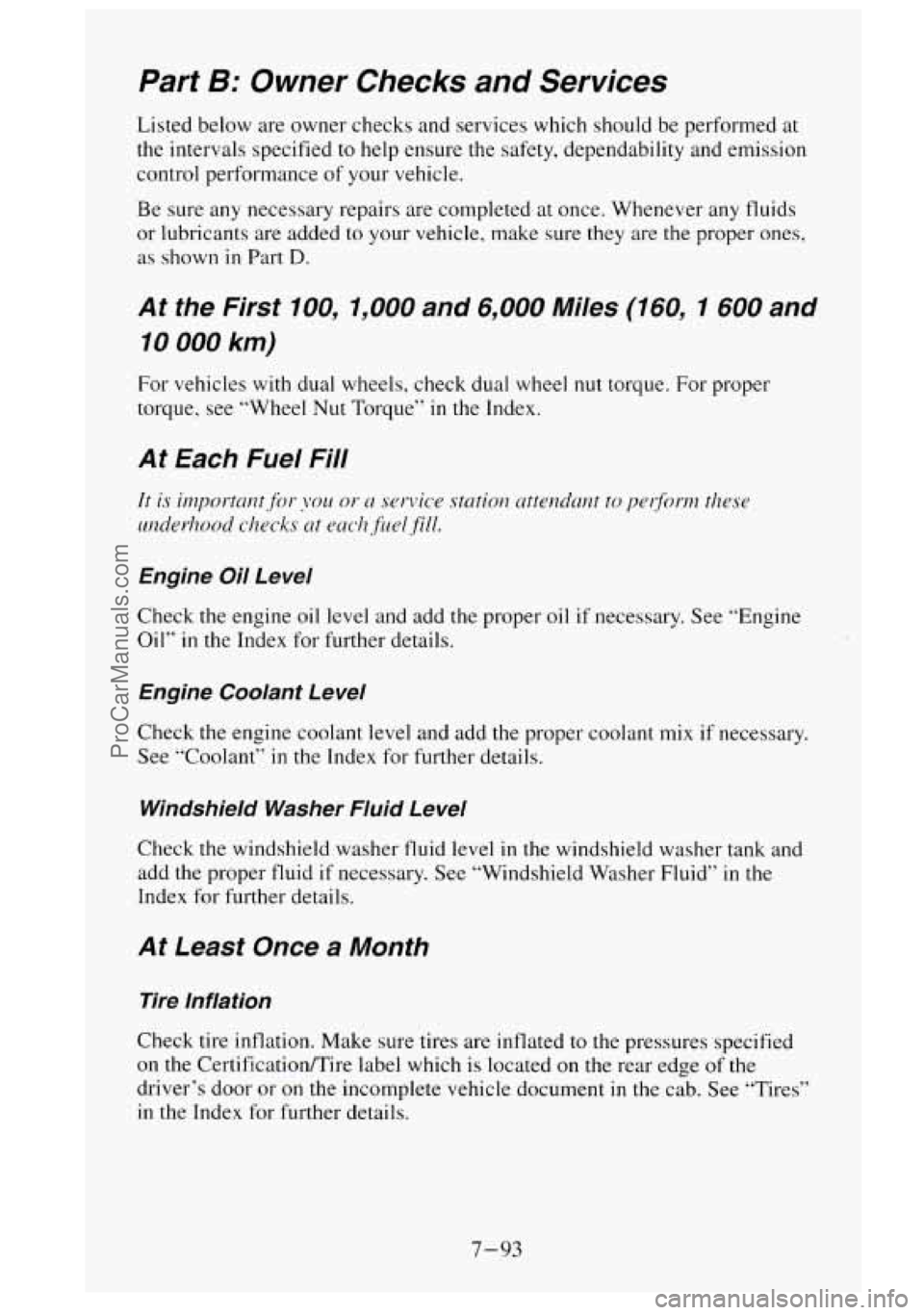

Part B: Owner Checks and Services
Listed below are owner checks and services which should be performed at
the intervals specified to help ensure the safety, dependability and emission
control performance of your vehicle.
Be sure any necessary repairs are completed at once. Whenever any fluids
or lubricants are added to your vehicle, make sure they are the proper ones,
as shown in Part D.
At the First 100, 1,000 and 6,000 Miles (160, I 600 and
IO 000 km)
For vehicles with dual wheels, check dual wheel nut torque. For proper
torque, see “Wheel
Nut Torque’’ in the Index.
At Each Fuel Fill
Engine Oil Level
Check the engine oil level and add the proper oil if necessary. See “Engine
Oil”
in the Index for further details.
Engine Coolant Level
Check the engine coolant level and add the proper coolant mix if necessary.
See ”Coolant”
in the Index for further details.
Windshield Washer Fluid Level
Check the windshield washer fluid level in the windshield washer tank and
add the proper fluid if necessary. See ”Windshield Washer Fluid” in the
Index for further details.
At Least Once a Month
Tire Inflation
Check tire inflation. Make sure tires are inflated to the pressures specified
on the Certification/Tire label which is located on the rear edge of the
driver’s door or on the incomplete vehicle document in the cab. See “Tires”
in the Index for further details.
7-93
ProCarManuals.com

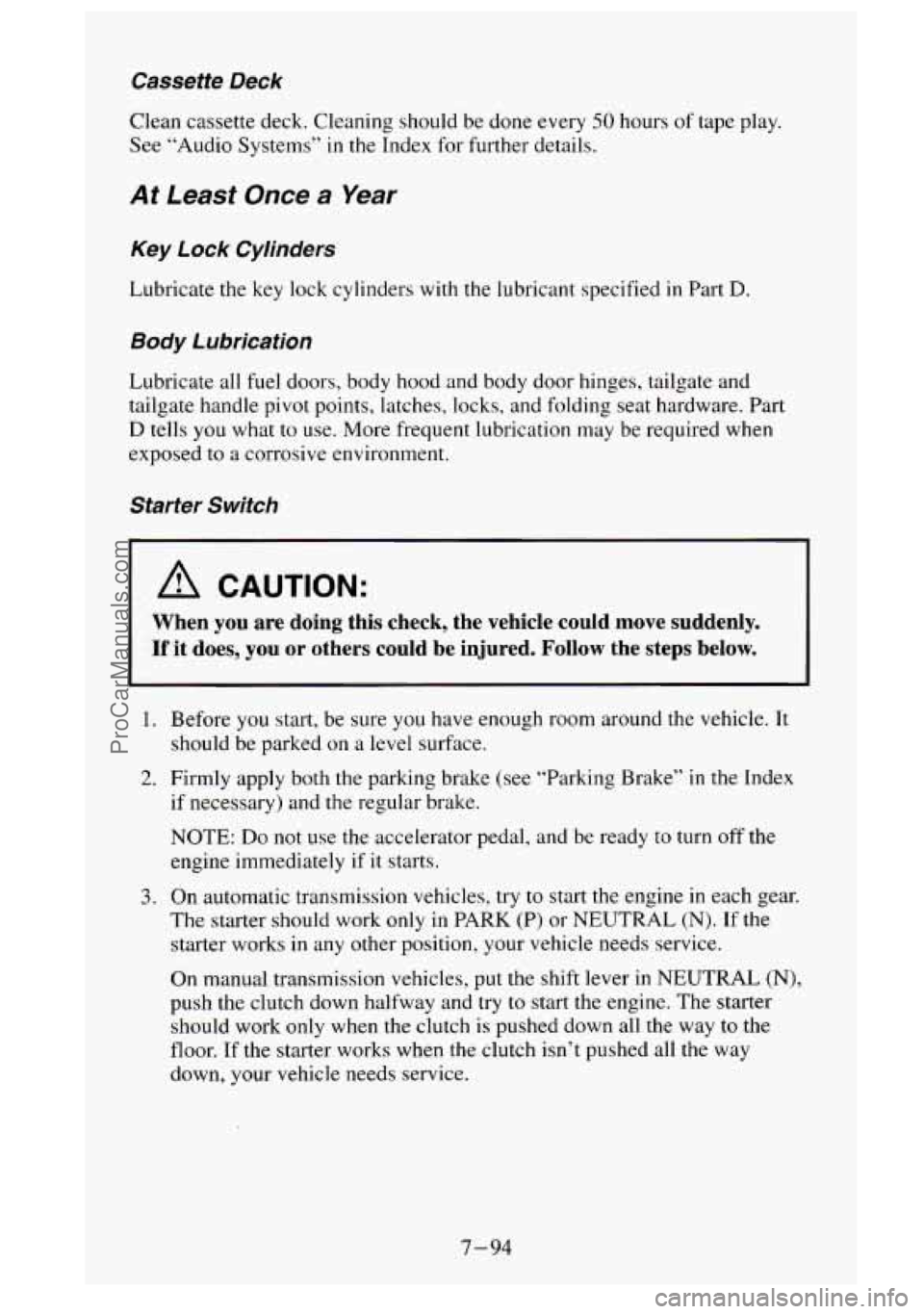

Cassette Deck
Clean cassette deck. Cleaning should be done every 50 hours of tape play.
See “Audio Systems”
in the Index for further details.
At Least Once a Year
Key Lock Cylinders
Lubricate the key lock cylinders with the lubricant specified in Part D.
Body Lubrication
Lubricate all fuel doors, body hood and body door hinges, tailgate and
tailgate handle pivot points, latches, locks, and folding seat hardware. Part
D tells you what to use. More frequent lubrication may be required when
exposed to
a corrosive environment.
Starter Switch
A CAUTION:
When you are doing this check, the vehicle could move suddenly.
If it does, you or others could be injured. Follow the steps below.
1. Before you start, be sure you have enough room around the vehicle. It
should be parked
on a level surface.
2. Firmly apply both the parking brake (see “Parking Brake” in the Index
if necessary) and the regular brake.
NOTE: Do not use the accelerator pedal, and be ready to turn off the
engine immediately
if it starts.
3. On automatic transmission vehicles, try to start the engine in each gear.
The starter should work only
in PARK (P) or NEUTRAL (N). If the
starter works in any other position, your vehicle needs service.
On manual transmission vehicles, put the shift lever in NEUTRAL
(N),
push the clutch down halfway and try to start the engine. The starter
should work only when the clutch is pushed down
all the way to the
floor. If the starter works when the clutch isn’t pushed all the way
down, your vehicle needs service.
7-94
ProCarManuals.com

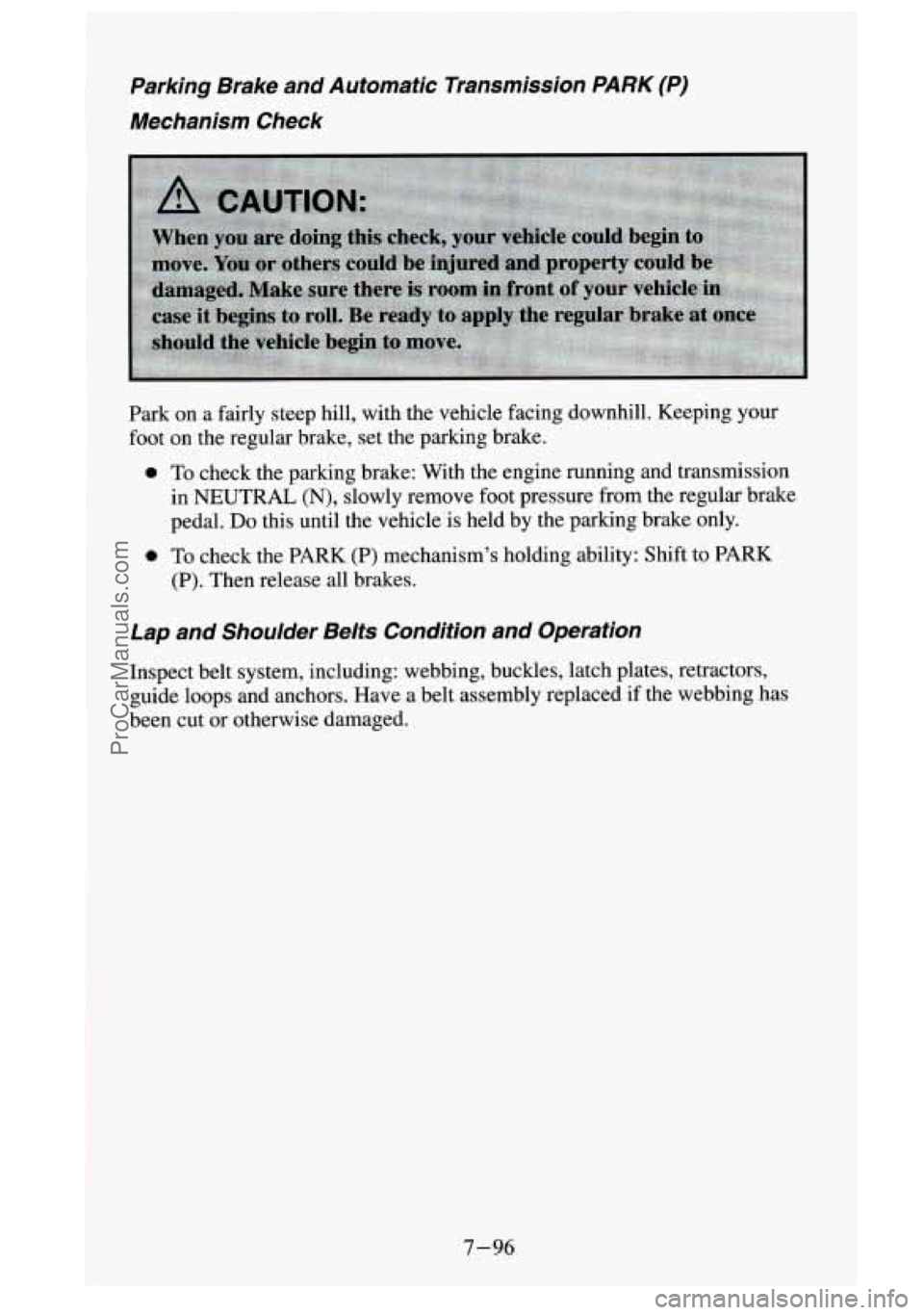

Parking Brake and Automatic Transmission PARK (P)
Mechanism Check
Park on a fairly steep hill, with the vehicle facing downhill. Keeping your
foot on the regular brake, set the parking brake.
0
0 To check the parking brake: With the engine running and transmission
in NEUTRAL
(N), slowly remove foot pressure from the regular brake
pedal.
Do this until the vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding ability: Shift to PARK
(P). Then release all brakes.
Lap and Shoulder Belts Condition and Operation
Inspect belt system, including: webbing, buckles, latch plates, retractors,
guide loops and anchors. Have a belt assembly replaced
if the webbing has
been cut or otherwise damaged.
7-96
ProCarManuals.com

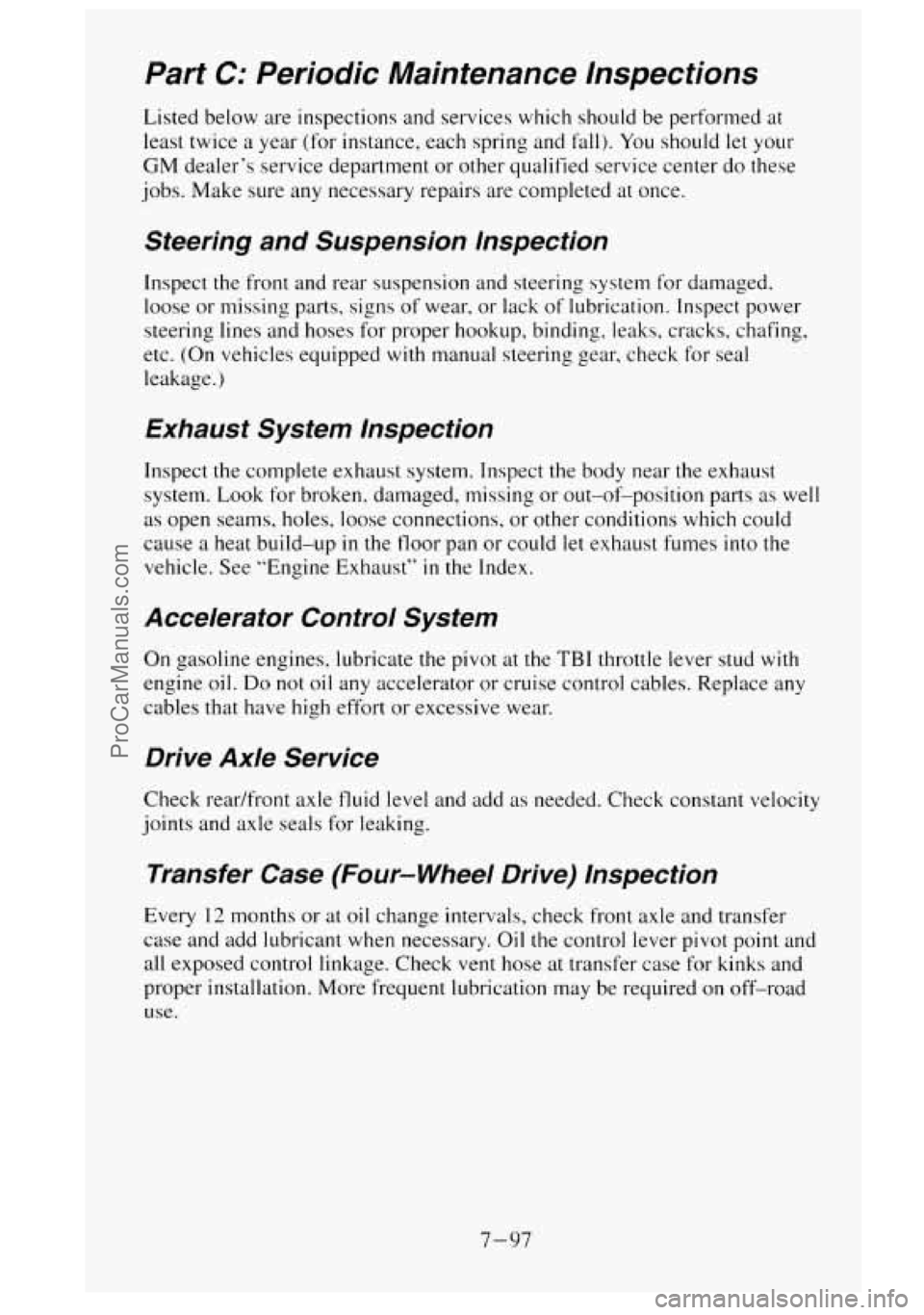

Part C: Periodic Maintenance lnspections
Listed below are inspections and services which should be performed at
least twice a year (for instance, each spring and
fall). You should let your
GM dealer’s service department or other qualified service center do these
jobs. Make sure any necessary repairs are completed at once.
Steering and Suspension Inspection
Inspect the front and rear suspension and steering system for damaged.
loose or missing parts, signs of wear,
or lack of lubrication. Inspect power
steering lines and hoses for proper hookup, binding, leaks, cracks, chafing,
etc. (On vehicles equipped with manual steering gear, check for seal
leakage.)
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body near the exhaust
system.
Look for broken. damaged, missing or out-of-position parts as well
as open seams, holes, loose connections,
or other conditions which could
cause a heat build-up
in the floor pan or could let exhaust fumes into the
vehicle. See “Engine Exhaust”
in the Index.
Accelerator Control System
On gasoline engines. lubricate the pivot at the TBI throttle lever stud with
engine
oil. Do not oil any accelerator or cruise control cables. Replace any
cables that have high effort or excessive wear.
Drive Axle Service
Check readfront axle fluid level and add as needed. Check constant velocity
Joints and axle seals for leaking.
Transfer Case (Four- Wheel Drive) Inspection
Every 12 months or at oil change intervals, check front axle and transfer
case and add lubricant when necessary. Oil the control lever pivot point and
all exposed control linkage. Check vent hose at transfer case for kinks and
proper installation. More frequent lubrication may be required on off-road
use.
7-97
ProCarManuals.com

USAGE
Column Shift Lever and Propeller
Shaft
Windshield Washer Solvent
Propeller Shaft Spline/Universal
Joint
Hood Latch Assembly
a. Pivots and Spring Anchor
b. Release Pawl
Hood and Door Hinges
Body Door Hinge Pins, Tailgate
Hinge and Linkage, Folding Seat,
Fuel
Door Hinge
Outer Tailgate Handle Pivot Points
Weatherstrip Conditioning
Weatherstrip Squeaks
Gas Line
FLUIDLUBRICANT
Chassis lubricant meeting require-
ments
of NLGI Grade 2, Category
LB
or GC-LB (GM Part No.
12346003).
GM Optikleen’ Washer Solvent
(GM Part
No. 105 1 5 1 5) or equiva-
lent.
Chassis lubricant (GM Part
No.
12346003 or equivalent) or lubri-
cant meeting requirements
of NLGI
Grade 2, Category LB or GC-LB.
a. Engine oil.
b. Chassis lubricant (GM Part No.
12346003 or equivalent) or lubri-
cant meeting requirements
of NLGI
Grade 2, Category LB or GC-LB.
Engine oil or Lubriplate Lubricant
(GM Part
No. 1050109).
Engine Oil.
Multi-Purpose Lubricant (GM Part
No. 12345 120 or equivalent).
Dielectric Silicone Grease (GM
Part
No. 12345579 or equivalent).
Spray-A-Squeek (GM
Part No.
1 05 2277).
Gas Line De-Icer (GM Part No.
105 15 16).
Part E: Maintenance Record
After the scheduled services are performed, record the date, odometer
reading and who performed the service
in the boxes provided after the
maintenance interval. Any additional information from “Owner Checks and
Services” or “Periodic Maintenance” can be added on the following record
pages. Also, you should retain all maintenance receipts. Your owner
information portfolio
is a convenient place to store them.
7-100
ProCarManuals.com

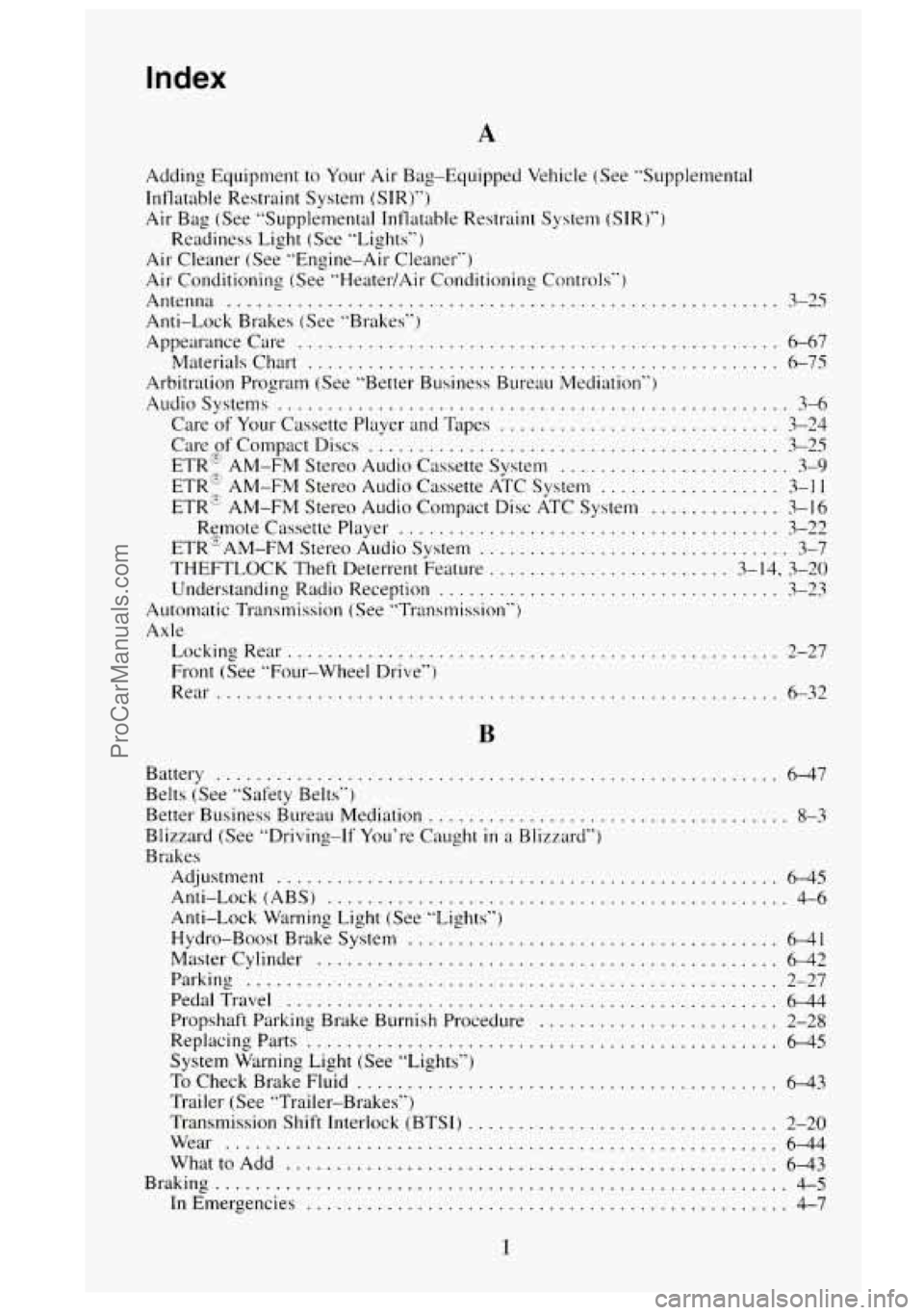

Index
A
Adding Equipment to Your Air Bag-Equipped Vehicle (See "Supplemental
Intlatable Restraint System (SIR)")
Air Bag (See "Supplemental Intlatable Restrain1 System (SIR)")
Air Cleaner (See "Engine-Air Cleaner")
Air Conditioning (See "HeatedAir Conditioning Controls")
Antenna
....................................................... 3-25
Readiness Light
(See "Lights")
Anti-Lock Brakes (See "Brakes")
Appearance Care
................................
Materials Chart ..............................
Arbitration Program (See "Better Business Bureau Media
Audio Systems
.................................
................ 6-67
................. 6-75
. tion")
.................. 3-6
Care of Your Cassette Player and Tapes ............................ 3-24
Care_of Compact Discs
......................................... 3-25
ETR: AM-FM Stereo Audio Cassette System
....................... 3-9
ETRf AM-FM Stereo Audio Cassette ATC System
.................. 3-11
ETR'?' AM-FM Stereo Audio Compact Disc ATC System ............. 3-16
Rcmote Cassette Player
...................................... 3-22
ETR&AM-FM Stereo Audio System
............................... 3-7
THEFTLOCK Theft Deterrent Feature
........................ 3- 14. 3-20
Understanding Radio Reception .................................. 3-23
Automatic Transmission (See "Tnlnsmission")
Axle LockingRea r
................................................. 2-27
Front (See "Four-Wheel Drive")
Rear
........................................................ 6-32
B
Battery ........................................................ 6-47
Belts (See "Safety Belts")
Better Business Bureau Mediation
.................................... 8-3
Blizzard (See "Driving-If You're Caught
in a Blizzard")
Brakes Adjustment
.................................................. 6-45
Anti-Lock (ABS)
.............................................. 4-6
Anti-Lock Warning Light (See "Lights")
Hydro-Boost Brake System
..................................... 6-41
Master Cylinder .............................................. 6-42
Parking
..................................................... 2-27
PedalTravel
................................................. 644
Propshaft Parking Brake Burnish Procedure
........................ 2-28
Replacingparts
............................................... 6-45
System Warning Light (See *'Lights")
To Check Brake Fluid .......................................... 6-43
Trailer (.See "Trailer-Brakes")
Transmission Shift Interlock
(BTSI) ............................... 2-20
Wear
....................................................... 6-44
WhattoAdd
................................................. 643
Braking ......................................................... 4-5
In Emergencies ................................................ 4-7
1
ProCarManuals.com
