1995 CHEVROLET S10 Owners Manual

Downloaded from www.Manualslib.com manuals search engine Fog Lamps (Option)
Use your fog lamps
for better vision in
foggy
or misty
conditions. Your
parking lights and/or low beam headlamps
must be
on or your
.. : L .ii$..I.'.%$:~>:. -,.-.:* . ',I.?: ,: ,, '*$+A& ., . ,, .. , ', . .. fog lamps won't work.
The fog lamp switch is on the instrument panel under
the INT LIGHTS
switch.
Press the side
of the
switch with the light
to turn the fog lamps
on, and OFF to turn
them off.
A light will
glow in the switch
when the fog lamps
are on.
Remember, fog lamps alone will not give off as
much light as your
headlamps.
Never use your
fog lamps in the dark without turning on your headlamps.
Fog lamps will go off whenever your high beam headlamps come on. When
the high beams
go off, the fog lamps will come on again.
2-44

Downloaded from www.Manualslib.com manuals search engine Daytime Running Lamps (DRL) lndicator Light
I You may have this
light
on the instrument
panel.
It goes on
whenever the Daytime
Running Lamps
are
on, the ignition is on,
the headlamp switch is
off, and the parking
brake is released.
Daytime Running Lamps
Daytime Running Lamps (DRL) make it easier to see the front of your
vehicle during the day. DRL can be helpful when it’s raining and
in the
short periods after dawn and before sunset. Several countries, including
Canada, require DRL. Vehicles sold
in the United States may have this
option.
The DRL system will make your high-beam headlamps come
on at a
reduced brightness when:
The ignition is on,
0 The headlamp switch is off, and
0 The parking brake is released.
When the DRL are on, only your high-beam headlamps will be on. The
taillamps, sidemarker and other lamps won’t be
on. Your instrument panel
won’t be lit up either.
When it begins
to get dark, your DRL indicator light is a reminder to turn
your headlamp switch on. The other lamps that come
on with your
headlamps will also come on.
When you turn the headlamp switch off, the regular lamps
will go off, and
your high-beam headlamps will change to the reduced brightness of DRL.
To idle your vehicle with the DRL off, set the parking brake. The DRL will
stay
off until you release the parking brake.
Headamps-On Reminder
A reminder tone will sound when your headlamps or parking lamps are
turned
on and your ignition is in OFF, LOCK or ACC. To turn the tone off,
press the OFF switch.
2-45

Downloaded from www.Manualslib.com manuals search engine Dome Lamp
L A
The dome lamp will
come
on when the
side doors are opened
You can also turn the
dome lamp on by
turning the INT
LIGHTS dimmer
switch up until it
clicks.
Mirrors
Inside Mirror
If your vehicle has optional map lamps, they will automatically come on for
approximately
20 seconds when either front door is opened or unlocked
with
the Keyless Entry system, if so equipped, or until the ignition is turned
to RUN or ACC. The lights will also stay on for approximately 15 seconds
after you exit the vehicle.
They will also stay on for 15 seconds when the interior light switch on the
dash is turned
on then off, while the ignition is off.
2-46

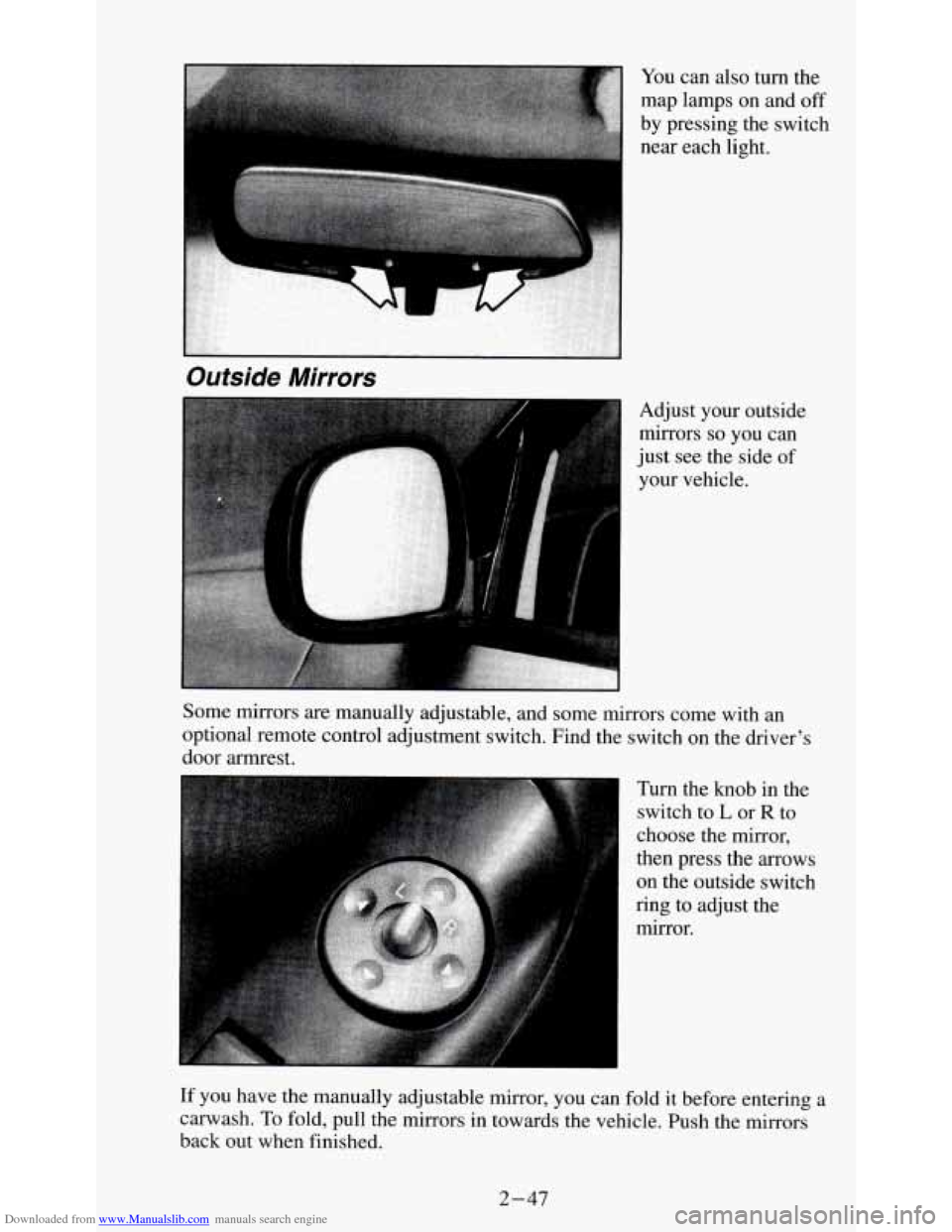

Downloaded from www.Manualslib.com manuals search engine Adjust your outside
mirrors
so you can
just see the side
of
your vehicle.
Outside Mirrors
Some mirrors are manually adjustable, and some mirrors come with an
optional remote control adjustment switch. Find the switch on the driver's
door armrest.
Turn the knob
in the
switch to
L or R to
choose the mirror,
then press the arrows
on the outside switch
ring to adjust the
mirror.
If you have the manually adjustable mirror, you can fold it before entering a
carwash. To fold, pull the mirrors in towards the vehicle. Push the mirrors
back out when finished.
2-47

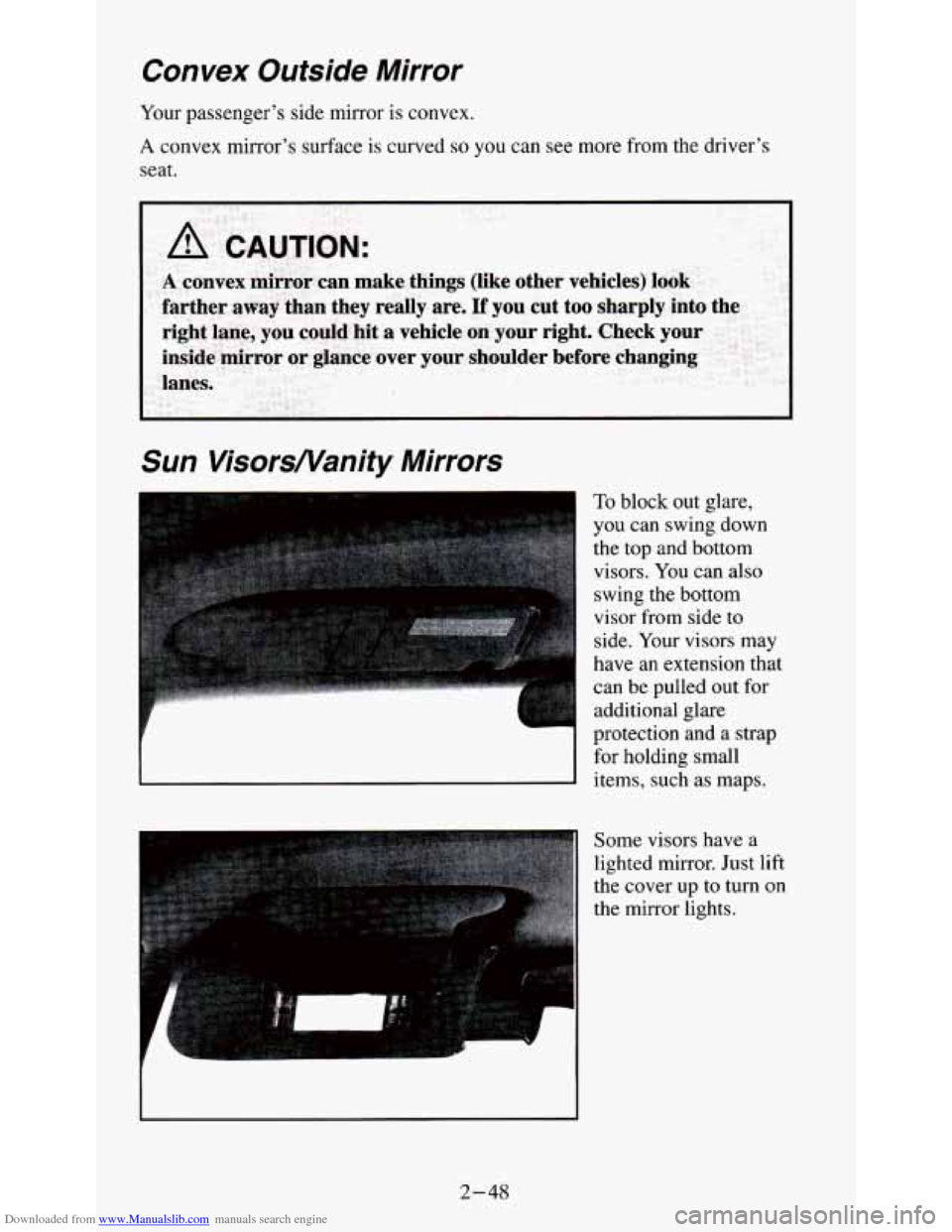

Downloaded from www.Manualslib.com manuals search engine Convex Outside Mirror
Your passenger’s side mirror is convex.
A convex mirror’s surface is curved so you can see more from the driver’s
seat.
Sun VisorsNanity Mirrors
To block out glare,
you can swing down
the top and bottom visors.
You can also
swing the bottom
visor from side to
side.
Your visors may
have an extension that
can
be pulled out for
additional glare
protection and a strap
for holding small
items, such as maps.
Some visors have a
lighted mirror. Just lift
the cover
up to turn on
the mirror lights.
2-48

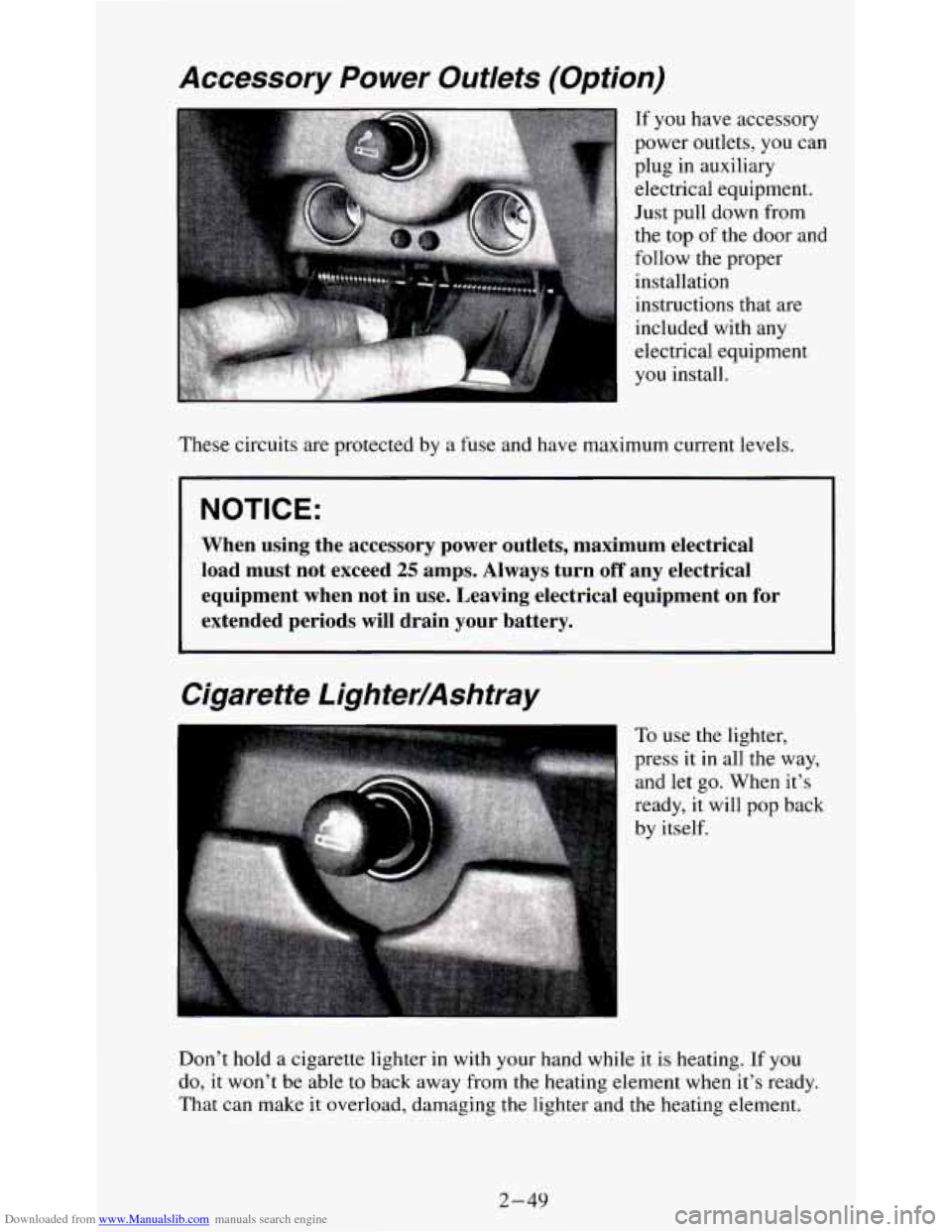

Downloaded from www.Manualslib.com manuals search engine Accessory Power Outlets (Option)
If you have accessory
power outlets, you can
plug in auxiliary
electrical equipment.
Just pull down from
the top
of the door and
follow
the proper
installation
instructions that are
included with any
electrical equipment
you install.
These circuits are protected by a fuse and have maximum current levels.
I NOTICE:
When using the accessory power outlets, maximum electrical
load must not exceed
25 amps. Always turn off any electrical
equipment when not in use. Leaving electrical equipment on for \
extended periods
will drain your battery.
Cigarette Lighter/Ashtray
To use the lighter,
press it in all the way,
and let go. When it’s
ready, it will
pop back
by itself.
Don’t hold
a cigarette lighter in with your hand while it is heating. If you
do, it won’t be able
to back away from the heating element when it’s ready.
That can make it overload, damaging
the lighter and the heating element.
2-49

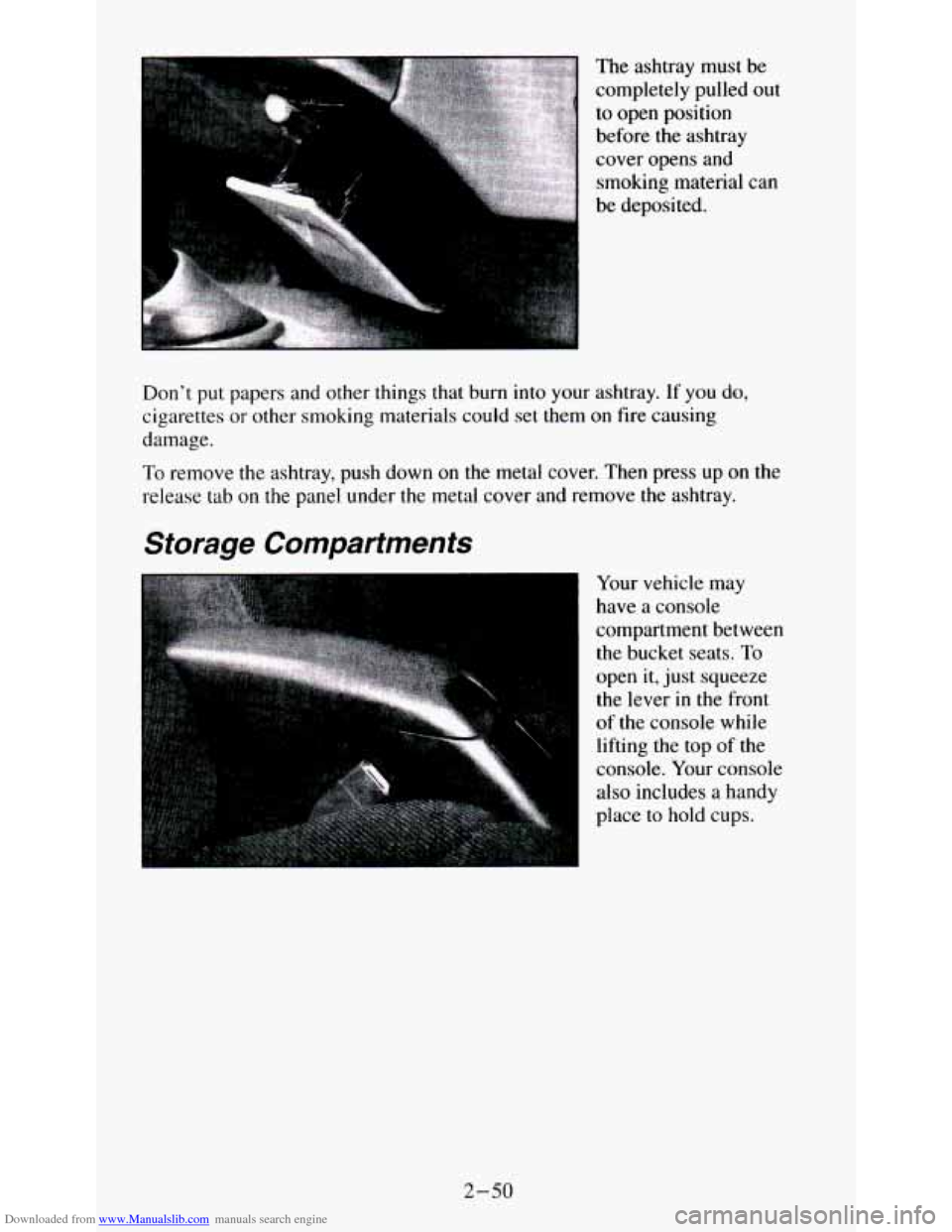

Downloaded from www.Manualslib.com manuals search engine The ashtray must be
completely pulled out
to open position
before the ashtray
cover opens and
smoking material can
be deposited.
Don’t put papers and other things that burn
into your ashtray. If you do,
cigarettes or other smoking materials could set them on fire causing
damage.
To remove the ashtray, push down on the metal cover. Then press up on the
release tab
on the panel under the metal cover and remove the ashtray.
Storage Compartments
Your vehicle may
have
a console
compartment between
the bucket seats.
To
open it, just squeeze
the lever
in the front
of the console while
lifting
the top of the
console. Your console
also includes a handy
place to hold cups.
2-50

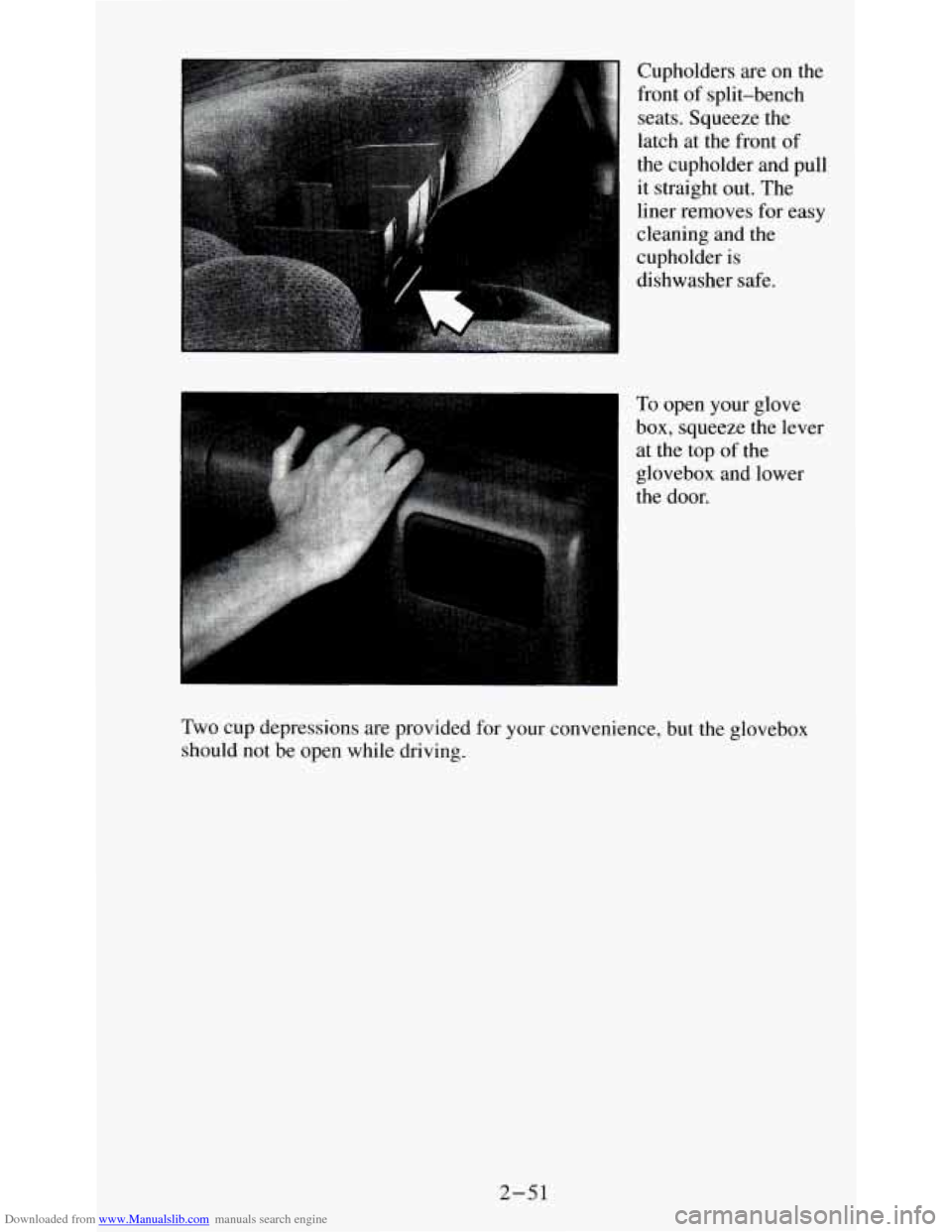

Downloaded from www.Manualslib.com manuals search engine Cupholders are on the
front of split-bench
seats. Squeeze the
latch at the front of
the cupholder and pull
it straight
out. The
liner removes for easy
cleaning and the
cupholder is
dishwasher safe.
To open your glove
box, squeeze the lever
at the top of the
glovebox and lower
the door.
Two cup depressions are provided for your convenience, but the glovebox
should not be open while driving.
2-53
