1995 CHEVROLET MONTE CARLO headlamp

Downloaded from www.Manualslib.com manuals search engine 1

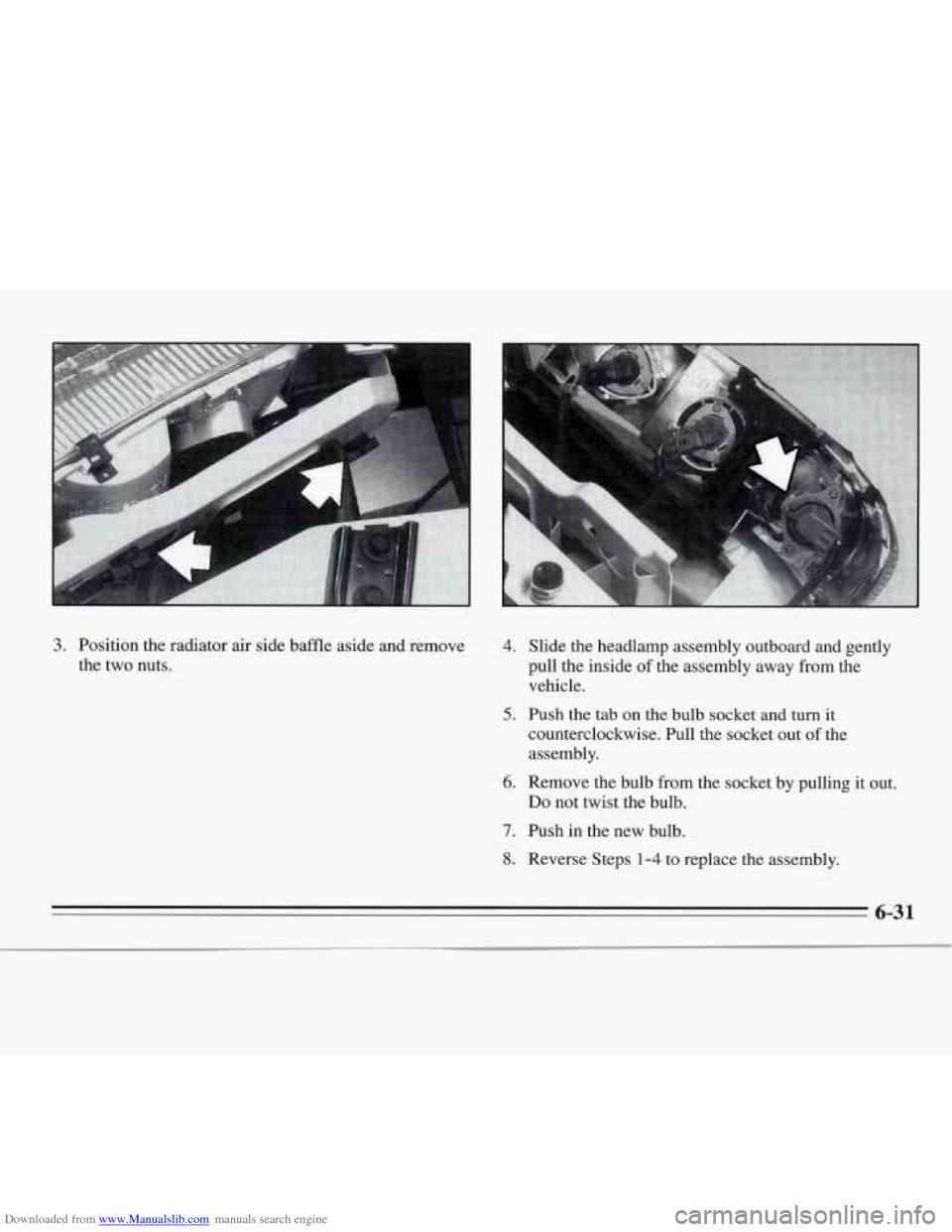

3. Position the radiator air side baffle aside and remove
the two nuts. 4. Slide the headlamp assembly outboard and gently
pull the inside of the assembly away from the
vehicle.
5. Push the tab on the bulb socket and turn it
counterclockwise. Pull the socket out of the
assembly.
Do not twist the bulb.
6. Remove the bulb from the socket by pulling it out.
7. Push in the new bulb.
8. Reverse Steps 1-4 to replace the assembly.
6-3 1

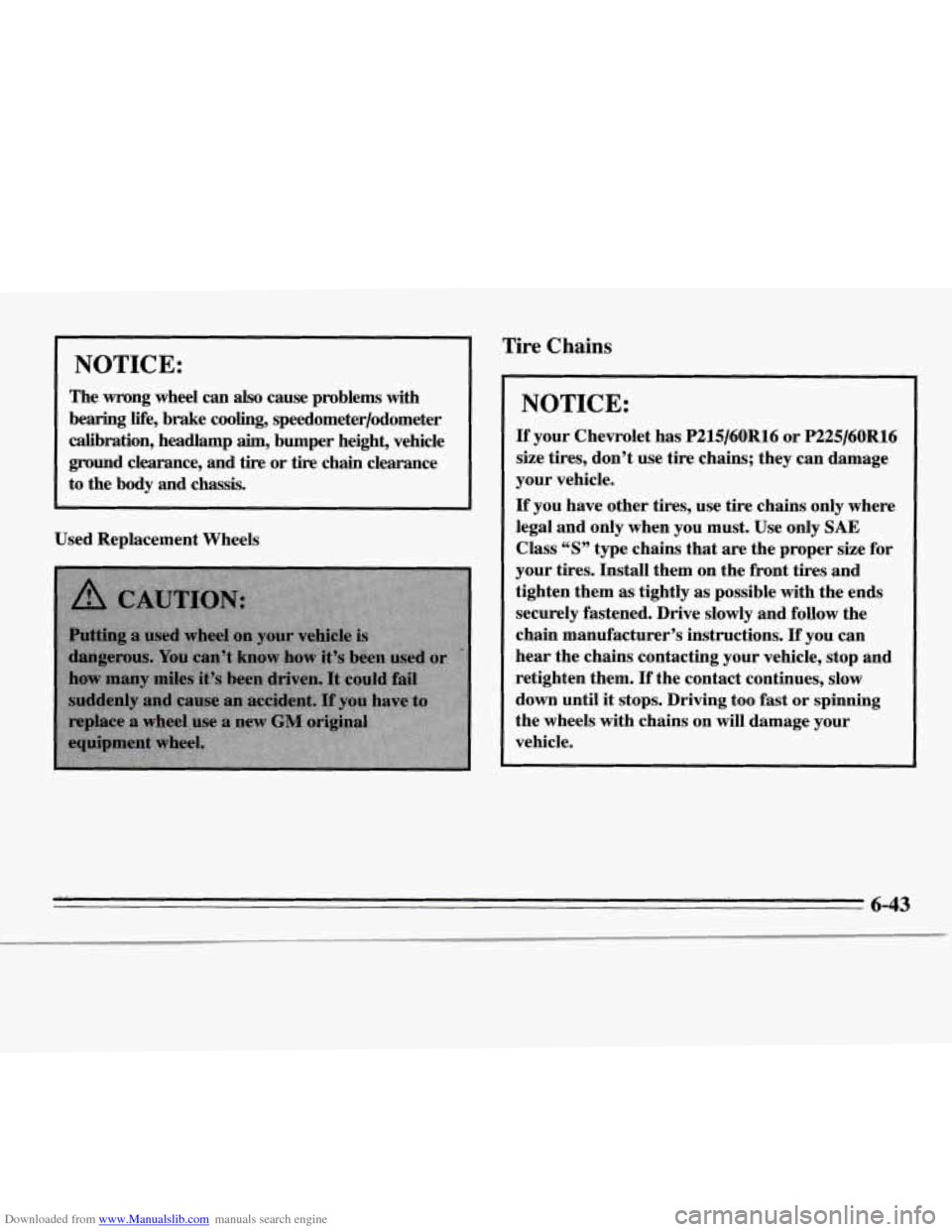

Downloaded from www.Manualslib.com manuals search engine NOTICE:
The wrong wheel can also cause problems with
bearing life, brake cooling, speedometer/odometer
calibration, headlamp
aim, bumper height, vehicle
ground clearance, and
tire or tire chain clearance
to the body and chassis.
Used Replacement Wheels
Tire Chains
NOTICE:
If your Chevrolet has P215/60R16 or P225/60R16
size tires, don’t use tire chains; they can damage
your vehicle.
If you have other tires, use tire chains only where
legal and only when you must. Use only
SAE
Class “S” type chains that are the proper size for
your tires. Install them on the front tires and
tighten them
as tightly as possible with the ends
securely fastened. Drive slowly and follow the
chain manufacturer’s instructions.
If you can
hear the chains contacting your vehicle, stop and
retighten them. If the contact continues, slow
down until
it stops. Driving too fast or spinning
the wheels with chains on will damage your
vehicle.
6-43

Downloaded from www.Manualslib.com manuals search engine Fuse
1
5
10
11
12
14
15
16
19
21
Rating
Description
CIGAR LIGHTER -- Instrument Panel and
Console Cigar Lighters
HAZARD FLASHER
I/P ELECTRONICS BATTERY FEED
-- Chime
Module, Electronic Brake Control Module
(EBCM), Theft Deterrent Module, Radio
AIR BAG #2
-- Sensing and Diagnostic Module
(SDM), Starter Relay
ANTI-THEFT
-- Theft Deterrent Module
HVAC BLOWER MOTOR
-- Blower Motor
Relay
HVAC
#1 -- Air Temperature Valve Motor,
Daytime Running Lamps Module (with DRL),
HVAC Control Assembly, Multifunction Lever
Cruise Control Switch
REAR DEFOG
-- WAC Control Assembly
Rear Window Defogger Switch
POWER ACCESSORY
#I -- Door Lock
Switches
AIR BAG
#1 -- Sensing and Diagnostic Module
(SDM)
Fuse Rating
Description
23
24
28
29
30
32
33
38
39 STOPLAMPS
-- TCC/Brake Switch
HVAC #2
-- HVAC Control Assembly, Solenoid
Box
CTSY LAMPS
-- Vanity Mirrors, Defogger
Relay,
UP Compartment Lamp, Trunk Courtesy
Lamp, Header Courtesy and Reading Lamp,
I/S Lighted Rearview Mirror, Dome Lamp
WIPER
-- Wiper Switch
TURN SIGNAL
-- Turn Signal Flasher
POWER LOCKS
-- Door Lock Relay, Keyless
Entry Receiver
ABS
-- Electronic Brake Control Module
(EBCM), ABS Relay
RADIO
-- Radio
I/€' ELECTRONICS IGNITION FEED
--
Headlamp Switch, Cruise Control Cut-Out
Switch, Sensing and Diagnostic Module
(SDM),
TCC/Brake Switch, Instrument Cluster, Chime
Module, Keyless Entry Receiver, Daytime
Running Lamps Module (with DRL)
6-55

Downloaded from www.Manualslib.com manuals search engine Underhood Electrical Center -- Driver Side
ODD
000
uno
FOG LPS PARKLPS HORN
VAR PIS
Fuse
FOG LPS
PARK LPS
HORN
VAR
P/S
Description
Fog Lamps
Headlamp Switch Horn Relay, Underhood Lamp
EVO Steering
Fuse
10
11
12
13
Relay
14
15
16
Description
IGN SW2 -- I/P Fuse Block: PWR
WDO and Circuit Breaker “D”;
Passenger Side Underhood
Electrical Center: TCC and
ENG
EMIS Fuses
IGN
SWl -- I/P Fuse Block:
Radio, Wiper, HVAC, ABS and
Turn Signal Fuses; Passenger Side
Underhood Electrical Center:
F/IJN, ECM IGN and ELEK IGN
Fuses
HD
LPS -- Circuit Breaker to
Headlamp Switch
ABS -- ABS Relay
Description
ABS -- Anti-lock Brake System
FOG LPS
HORN
6-58

Downloaded from www.Manualslib.com manuals search engine Headlamp Wiring
The headlamp wiring is protected by a circuit breaker in
the underhood electrical center. An electrical overload
will cause the lamps to go on and off, or in some cases
to remain off.
If this happens, have your headlamp
system checked right away.
Windshield Wipers
The windshield wiper motor is protected by a circuit
breaker and a fuse.
If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools.
If
the overload is caused by some electrical problem, have
it fixed.
Power Windows and Other Power Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and closes,
protecting the circuit until the problem
is fixed.
6-59

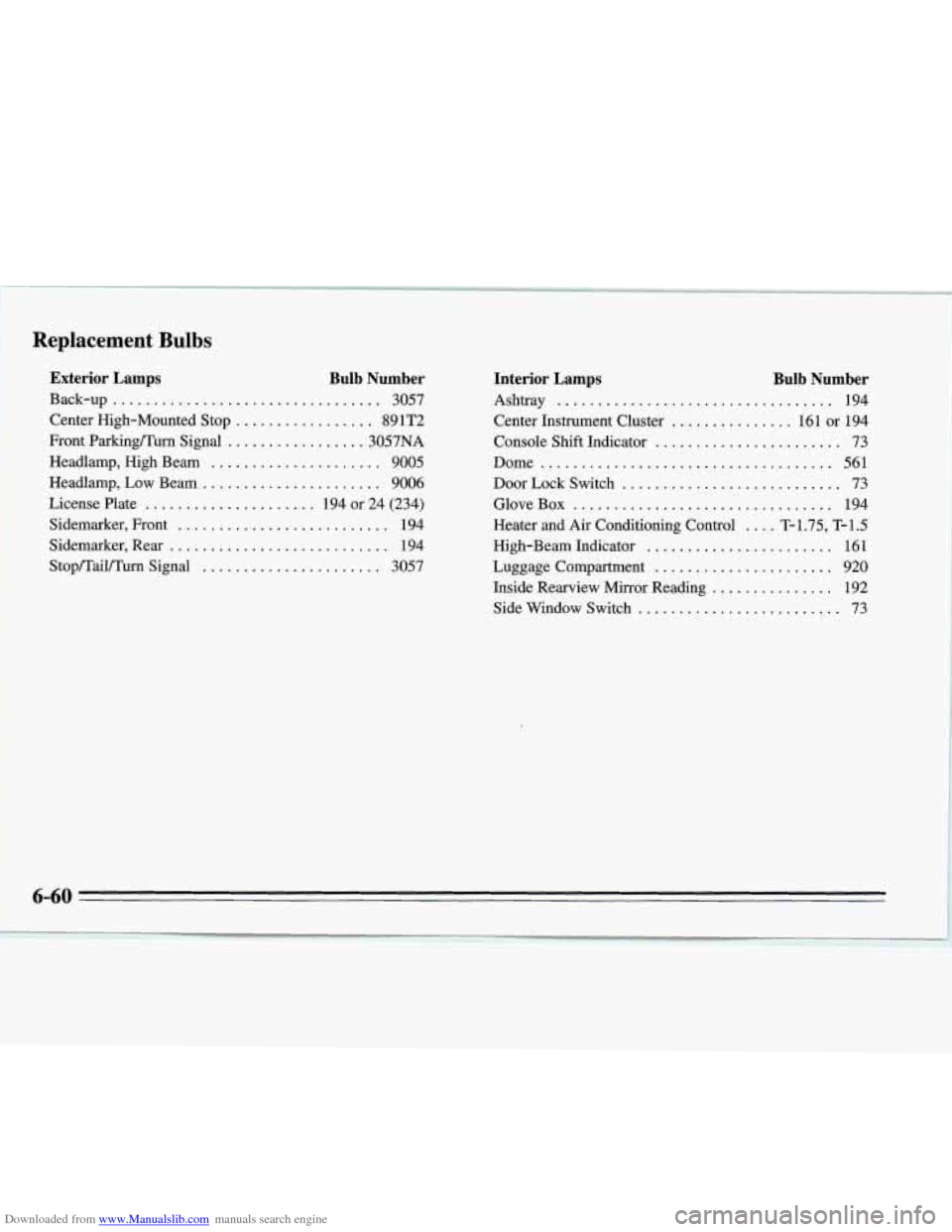

Downloaded from www.Manualslib.com manuals search engine Replacement Bulbs
Exterior Lamps Bulb Number
Back-up ................................. 3057
Center High-Mounted Stop
................. 891T2
Front Parking/Turn Signal
................. 3057NA
Headlamp. High Beam
..................... 9005
Headlamp. Low Beam
...................... 9006
License Plate
..................... 194 or 24 (234)
Sidemarker. Front
.......................... 194
Sidemarker. Rear
........................... 194
Stop/Tail/Turn Signal
...................... 3057
Interior Lamps
Bulb Number
Ashtray .................................. 194
Center Instrument Cluster
............... 161 or 194
Console
Shift Indicator ....................... 73
Door Lock Switch
........................... 73
Glove Box
................................ 194
High-Beam Indicator
....................... 161
Luggage Compartment
...................... 920
Inside Rearview Mirror Reading ............... 192
Side Window Switch
......................... 73
Dome
.................................... 561
Heater and Air Conditioning Control
.... T-1.75, T-1.5

Downloaded from www.Manualslib.com manuals search engine Fiberglass Springs .............................. 6-5 1
FillingYourTank ................................ 6-5
Filter. Air Cleaner
.............................. 6-15
Finish Care
.................................... 6-49
Finish Damage
................................. 6-50
First Gear. Automatic Transaxle
................... 2- 17
Fixed Mast Antenna
............................. 3- 17
Flashers. Hazard Warning ......................... 5-1
Flat Tire. Changing
............................. 5-22
Fluid Capacities
................................ 6-61
Fluids and Lubricants
............................ 7-40
Folding Rear Seat
................................ 1-5
Foreign Countries. Fuel
........................... 6-4
Four-Way Manual Seat
........................... 1-2
Franpis. guide en
11
Freeway Driving ............................... 4- 18
French Language Manual 11
Front Park and Turn Signal Lamp Bulb Replacement ... 6-30
Fuel
.......................................... 6-3
Filling Your Tank ............................. 6-5
Gage
...................................... 2-43
In Foreign Countries
........................... 6-4
Fuse Block. Instrument Panel
..................... 6-54
Fuses and Circuit Breakers
....................... 6-54
.. .................................
.. ...........................
Gage . Engine Coolant Temperature ............... 2-48
Gasoline
....................................... 6-3
Gasolines for Cleaner Air ......................... 6-4
GAWR (Gross Axle Weight Rating)
................ 4-26
GearPositions
................................. 2-14 Glass. Cleaning
................................ 6-47
GloveBox
..................................... 2-8
GVWR (Gross Vehicle Weight Rating)
.............. 4-26
Halogen Bulbs
................................ 6-28
Hazard Warning Flashers
.......................... 5-1
Head Restraints
................................. 1-5
Headlamp Bulb Replacement ...................... 6-29
Headlamp HighLow Beam Changer
................ 2-26
Headlamp. Wiring
.............................. 6-59
Headlamps. Operation
........................... 2-31
Hearing
or Speech Impaired. Customer Assistance ...... 8-2
Heating
........................................ 3-3
Heritage Pages ................................... 111
High-Beam Lamps. How to Change ................ 2-26
Highway Hypnosis
.............................. 4-20
Hill and Mountain Roads
......................... 4-20
Hitches. Trailer ................................. 4-31
Hood Release
................................... 6-7
Horn
......................................... 2-24
HotEngine
.................................... 5-12
Hydroplaning
.................................. 4-16
...
Ice. Driving On ................................ 4-23
Ignition Key Positions
........................... 2-10
Ignitionswitch
................................. 2-10
Inflation
. Tire Pressure .......................... 6-36
Inside Daymight Rearview Mirror
................. 2-34
9-5

Downloaded from www.Manualslib.com manuals search engine Window. Auto-Down ............................ 2-24
Windows, Power
............................... 2-24
Windshield Washer Fluid
......................... 6-24
Windshield Washers
............................. 2-27
Windshield Wiper, Blade Replacement
.............. 6-35
Windows
..................................... 2-23
Windshield Wiper.
Circuit Breaker
................. 6-59
Windshield Wipers
.............................. 2-26
Winter. Driving In
.............................. 4-22
Wiring. Headlamp
.............................. 6-59
WreckerTowing
................................. 5-7
9-12
