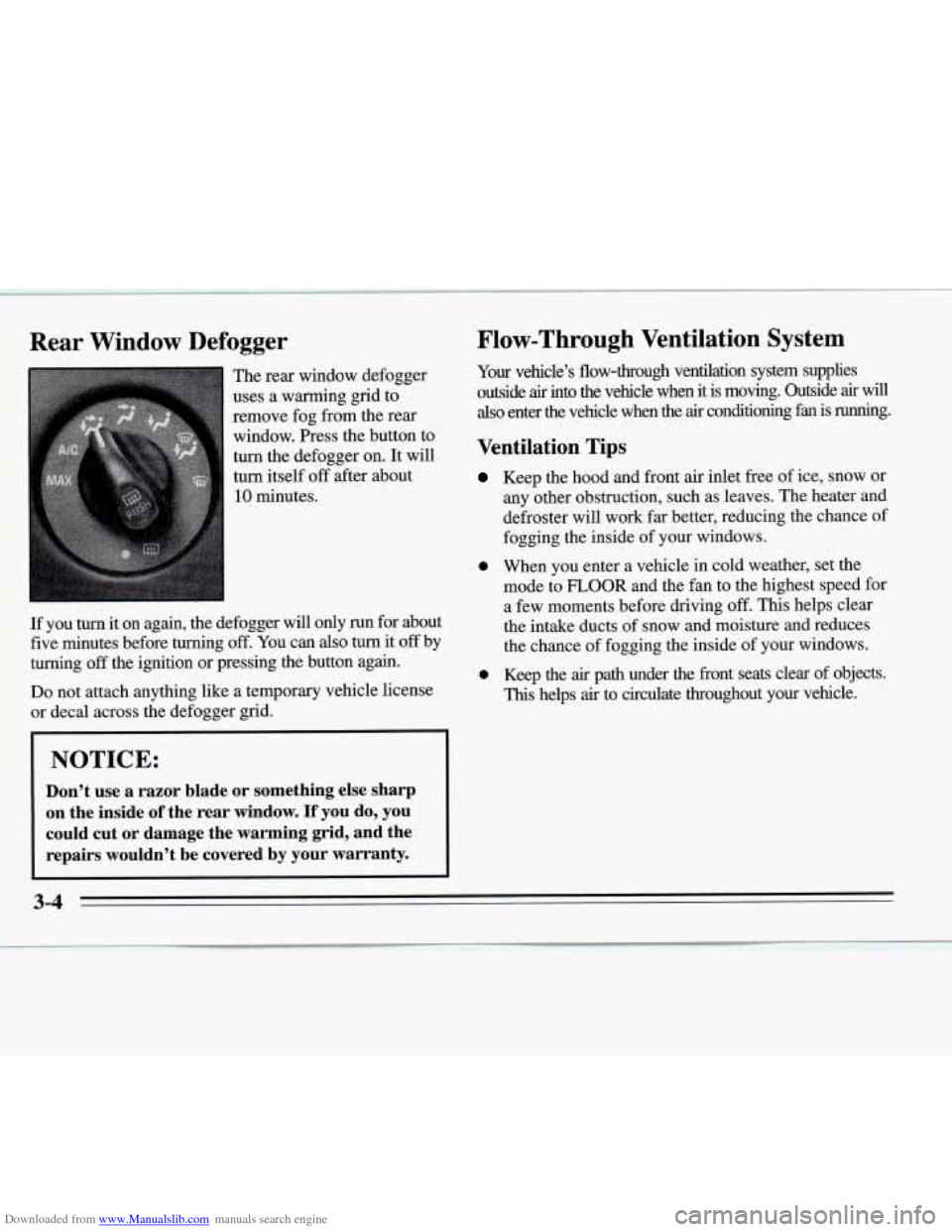

Downloaded from www.Manualslib.com manuals search engine Rear Window Defogger
The rear window defogger
uses a warming grid to
remove fog from the rear
window. Press the button to
turn the defogger on. It will
turn itself-off after about
10 minutes.
Flow-Through Ventilation System
Your velucle's flow-through ventilation system supplies
outside
air into the vehicle when it is moving. Outside air will
also enter the vehicle when the air conditioning fan is running.
Ventilation Tips
Keep the hood and front air inlet free of ice, snow or
any other obstruction, such as leaves. The heater and
defroster will work far better, reducing the chance of
fogging the inside of your windows.
If you
turn it on again, the defogger will only run for about
five minutes before turning
off. You can also turn it off by
turning
off the ignition or pressing the button again.
Do not attach anything like a temporary vehicle license
or decal across the defogger
grid.
NOTICE:
Don't use a razor blade or something else sharp
on the inside of the rear window. If you do,' you
could cut or damage the warming grid, and the
repairs wouldn't be covered by your warranty.
0 When you enter a vehicle in cold weather, set the
mode to
FLOOR and the fan to the highest speed for
a few moments before driving off. This helps clear
the intake ducts
of snow and moisture and reduces
the chance of fogging the inside of your windows.
0 Keep the air path under the front seats clear of objects.
This helps air to circulate throughout your vehicle.
3-4

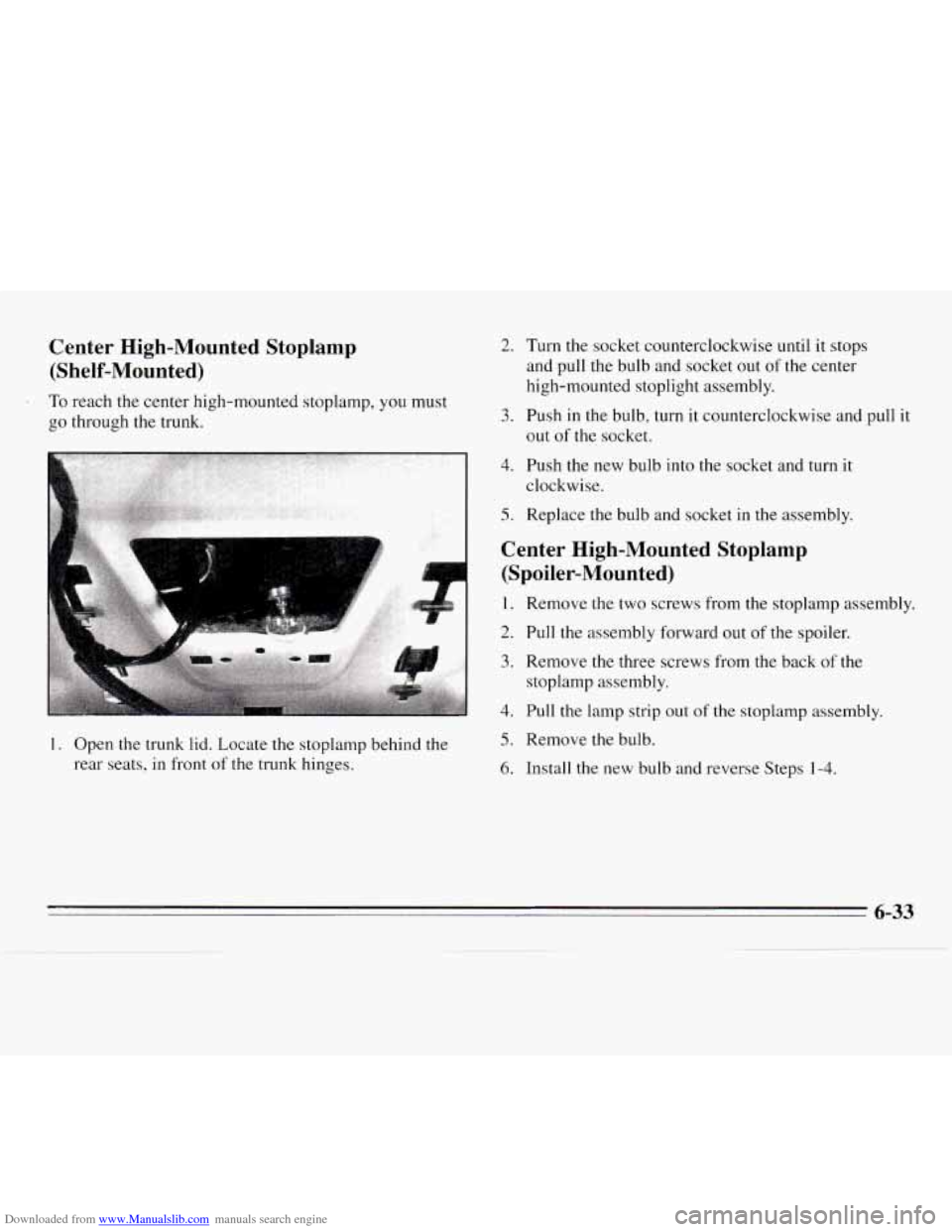

Downloaded from www.Manualslib.com manuals search engine Center High-Mounted Stoplamp (Shelf-Mounted)
To reach the center high-mounted stoplamp, you must
go through the trunk.
1. Open the trunk lid. Locate the stoplamp behind the
rear seats, in front
of the trunk hinges.
2. Turn the socket counterclockwise until it stops
and pull the bulb and socket out of the center
high-mounted stoplight assembly.
3. Push in the bulb, turn it counterclockwise and pull it
out of the socket.
4. Push the new bulb into the socket and turn it
clockwise.
5. Replace the bulb and socket in the assembly.
Center High-Mounted Stoplamp
(Spoiler-Mounted)
1. Remove the two screws from the stoplamp assembly.
2. Pull the assembly forward out of the spoiler.
3. Remove the three screws from the back of the
stoplamp assembly.
4. Pull the lamp strip out of the stoplamp assembly.
5. Remove the bulb.
6. Install the new bulb and reverse Steps 1-4.
6-33
