1995 CHEVROLET CAMARO check engine

Downloaded from www.Manualslib.com manuals search engine A green arrow on the
instrument panel will flash
in the direction of the turn
or lane change.
To signal a lane change, just raise or lower the lever
until the green arrow starts to flash. Hold it there until
you complete your lane change. The lever will return by
itself when you release it.
As you signal a turn or a lane change, if the arrows don’t
flash but just stay
on, a signal bulb may be burned out
and other drivers won’t see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident.
If the green arrows don’t go on at all when you
signal a turn, check the fuse (see “Fuses” in the Index).
Headlamp High-Low Beam
To change the headlamps
from low beam to high or
high to low, pull the turn
signal lever all the way
toward
you. Then release it.
When the high beams are
on, this blue light on the
instrument panel also will
be
on.
2-39

Downloaded from www.Manualslib.com manuals search engine 3. Open the latch and close the T-top. Check to see if
there are any gaps showing. Unlatch the T-top and
adjust the sunshade as required.
stick the Velcro@ buttons on the glass for a proper fit
every time you install the sunshades. To do this, first
remove the T-top with the sunshade installed and
place it upside down on a table or bench. Take care
not to scratch the glass.
4. Once the sunshade is installed properly, you can
5. Pull the sunshade back a little and remove the
backing paper from the Velcro@ buttons. Push the sunshade back into place sticking the Velcro@ to the
glass.
Repeat the above steps for the passenger-side
sunshade.
6. Install the T-top, close the latch and lock the T-top.

Downloaded from www.Manualslib.com manuals search engine Warning lights come on when there may be or is a
problem with
one of your vehicle’s functions. As you
will see in the details on the next few pages, some
warning lights come on briefly when you start the
engine just to let you know they’re working. If
you are
familiar with this section, you should not be alarmed
when this happens.
Gages can indicate when there may be
or is a problem
with one of your vehicle’s functions. Often gages and
warning lights work together to let you know when
there’s a problem with your vehicle.
When
one of the warning lights comes on and stays on
when
you are driving, or when one of the gages shows
there may be
a problem, check the section that tells you
what to do about it. Please follow this manual’s advice.
Waiting to do repairs can be costly
-- and even
dangerous.
So please get to know your warning lights
and gages. They’re a
big help.
Safety Belt Reminder Light
When the key is turned to RUN or START, a tone will
come
on for about eight seconds to remind people to
fasten their safety belts, unless the driver’s safety belt is
already buckled. The safety belt light will also come
on
and stay on until the driver’s belt is buckled.
2-68

Downloaded from www.Manualslib.com manuals search engine Air Bag Readiness Light
There is an air bag readiness light on the instrument
panel, which shows
AIR BAG.
AIR BAG
The system checks the air
bag’s electrical system for
malfunctions. The light
tells you if there is an
electrical problem.
The system check includes the air bag sensors and
modules, the wiring and the diagnostic module. For
more information on the
air bag system, see “Air Bag”
in the Index.
You will see this light flash for a few seconds when you
turn your ignition to
RUN or START. Then the light
should go out. This means the system is ready.
If the
air bag readiness light doesn’t come on when you
start your vehicle, or stays on, or comes on when you
are driving, your air bag system may not work properly.
Have your vehicle serviced right away.
Brake System Warning Light
Your Chevrolet’s hydraulic
brake system is divided into
two parts. If one part isn’t
working, the other part
can
still work and stop you. For
good braking, though, you
need both parts working
well.
If the warning light comes on, there could be a brake
problem. Have your brake system inspected right away.
This light should come on briefly as you start the
vehicle.
If it doesn’t come on then, have it fixed so it
will be ready
to warn you if there’s a problem.
If the light comes on while you are driving, pull
off the
road and stop carefully. You may notice that the pedal is
harder to push. Or, the pedal may go closer to the floor.
It may take longer to stop. If the light
is still on, or if the
anti-lock brake system warning light is flashing, have
the vehicle towed for service. (See “Anti-Lock Brake
System Warning Light” and “Towing Your
Car” in the
Index.)
2-69

Downloaded from www.Manualslib.com manuals search engine The ASR system warning light may come on for the
following reasons: Low Traction Light
If you turn the system off by pressing the button
located on the console near the cigarette lighter, the
warning light will come
on and stay on. To turn the
system back
on, press the button again. The warning
light should
go off. (See “ASR System” in the Index
for more information.)
0 If the temperature of the throttle control begins to
rise, the system will turn off and the warning light
will come on until the system cools down. The
system
does this to prevent damage from
overheating.
If the ASR system warning light comes on and stays on
for an extended period of time when the system is
turned on, your vehicle needs service. When your anti-lock
system is adjusting brake pressure to help avoid a braking skid, the LOW TRAC light will
appear on your instrument cluster. If you have the
ASR
system, this light will also come on when the system is
limiting wheel spin. Slippery road conditions may exist
if this light comes
on, so adjust your driving
accordingly. The light will stay on for a few seconds
after the anti-lock system stops adjusting brake pressure
or the
ASR system stops limiting wheel spin.
The
LOW TRAC light also comes on briefly, as a bulb
check, when
the engine is started. If the light doesn’t
come
on then, have it fixed so it will be there to tell you
when the anti-lock brake system or
ASR system is active.
2-72

Downloaded from www.Manualslib.com manuals search engine Malfunction Indicator Lamp (Service Engine Soon Light)
SERVICE
ENGINE SOON
A computer monitors operation of your fuel, ignition
and emission control systems. This amber indicator light
should come
on when the ignition is on, but the engine
is
not running, as a check to show you it is working. If it
does not come on at all, have it fixed right away. If
it
stays on, or it comes on while you are driving, the
computer is indicating that you have a problem. You
should take your vehicle in for service soon.
NOTICE:
If you keep driving your vehicle with this light
on, after a while the emission controls won’t
work as well, your fuel economy won’t be as good
and your engine may not run
as smoothly. This
could lead to costly repairs not covered by your
warranty.
OBD I1 3800 L36 Engine (Code K)
Certain vehicles are equipped with a new emission
diagnostic system. You can tell whether your vehicle has
this system by reading your tune-up label Iocated under
the hood. If the label says OBD I1 on it, the following
instructions apply.
Your Chevrolet is equipped with an onboard computer
which monitors operation
of the emission control
system. This system is called
OBD I1 (On-Board
Diagnostics-Second Generation) and is intended
to
assure that emissions are at acceptable levels for the life
of the vehicle, helping to produce a cleaner
environment. The SERVICE ENGINE
SOON light
comes on to indicate when service is required.
Malfunctions often will be indicated by the system
2-74

Downloaded from www.Manualslib.com manuals search engine before any problem is apparent, which may prevent
more serious damage to your vehicle. This system is
also designed to assist your service technician in
correctly diagnosing any malfunction.
The SERVICE ENGINE
SOON light should come on,
as a check to show you it is working, when the ignition
is on and the engine is not running. This light will also
come on during a malfunction in one of two ways:
Light on steady - indicates a system malfunction has
been detected. Drive the vehicle to the dealer for
service at your first opportunity.
0 Light flashing - indicates a misfire has been detected
which may damage the emission control system. The
damage may be reduced by lowering the vehicle
speed, reducing the amount of cargo being hauled or
trailered, avoiding hard acceleration, or
by avoiding
steep uphill grades. If these actions are effective, the
light will stop flashing and remain on steady. Drive
the vehicle to a dealer for service. If the light
continues to flash, stop the vehicle. Wait for
a steady
light to come on,
then drive the vehicle to a dealer
for service. These
following conditions also may cause the
SERVICE ENGINE SOON light to come on:
Low Fuel/Out of Fuel
- As the vehicle starts to run out
of fuel the SERVICE ENGINE SOON light may come
on as a result of an engine misfire. Filling your gasoline
tank should correct this condition. Make sure to install
the gas cap fully. It will require a few driving trips to
turn the light off.
Poor Quality Fuel
- Be sure to fuel your vehicle with
quality fuel. Your engine may not run efficiently on poor
fuel.
Poor fuel may cause stalling, hesitation or misfire.
These conditions may go away when the engine is
warmed-up. However, poor quality fuel may cause the
SERVICE ENGINE SOON light to come on.
Have a dealer check the vehicle. If
no problems are
found, you may want to change to another brand of fuel.
Driving Through Standing Water
- Driving your vehicle
through puddles
of deep standing water may result in a
temporary misfire condition. This condition will usually
correct itself shortly after the electrical system dries out.
It will require a few driving trips to turn the light off.
2-75

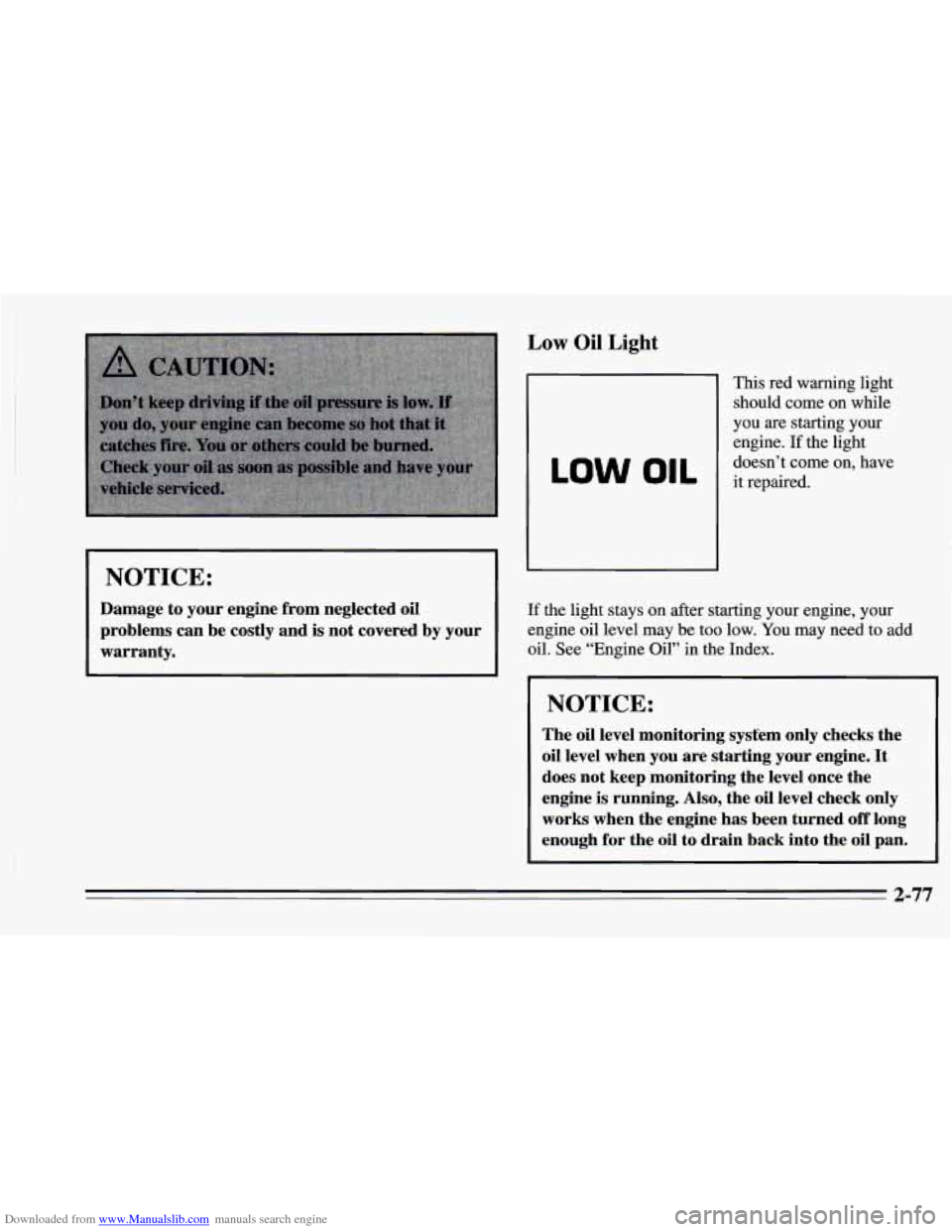

Downloaded from www.Manualslib.com manuals search engine Low Oil Light
I
Damage to your engine from neglected oil
problems can be costly and
is not covered by your
warranty.
This red warning light
should come on while
you are starting your
engine. If the light
1 NOTICE:
If the light stays on after starting your engine, your
engine oil level may be too
low. You may need to add
oil. See “Engine
Oil” in the Index.
NOTICE:
The oil level monitoring system only checks the
oil level when you are starting your engine.
It
does not keep monitoring the level once the
engine
is running. Also, the oil level check only
works when the engine has been turned off long
enough for the oil to drain back into the oil pan.
2-77
