Page 41 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Passenger Seat Circuit (2 of 2) 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company

Page 42 of 60

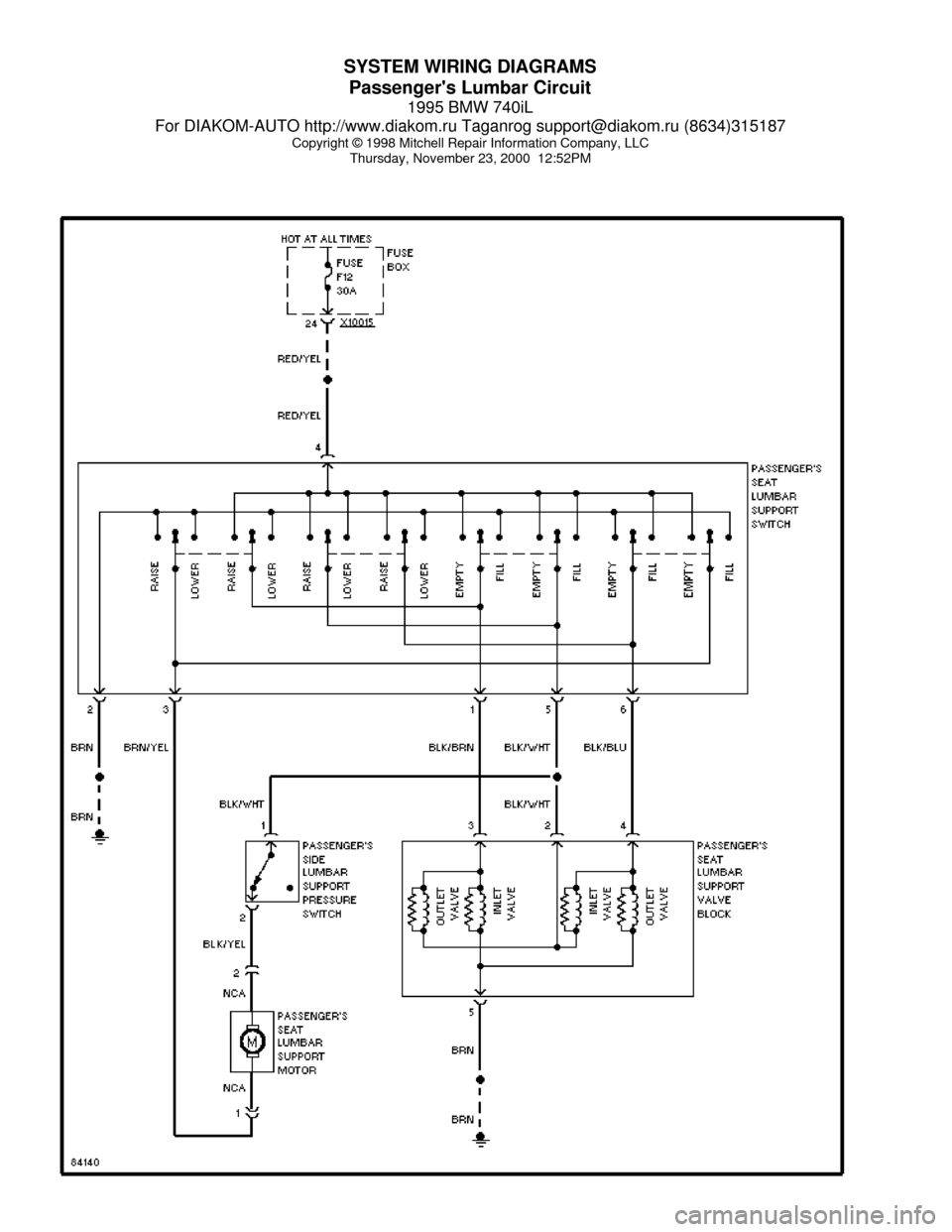

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Passengers Lumbar Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC

Page 43 of 60

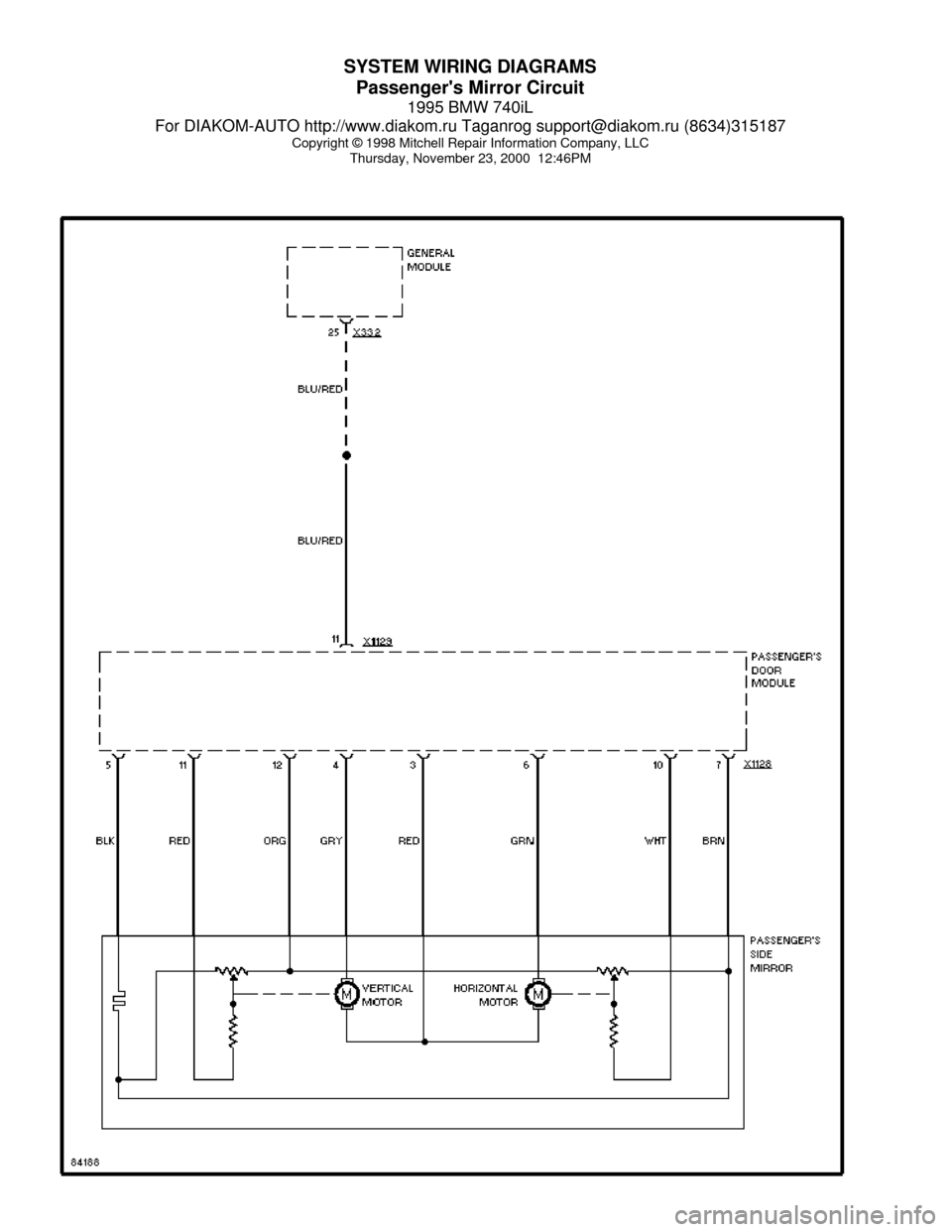

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Passengers Mirror Circuit 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Company, LLC

Page 44 of 60

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Power Distribution Circuit (1 of 5) 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Com

Page 45 of 60

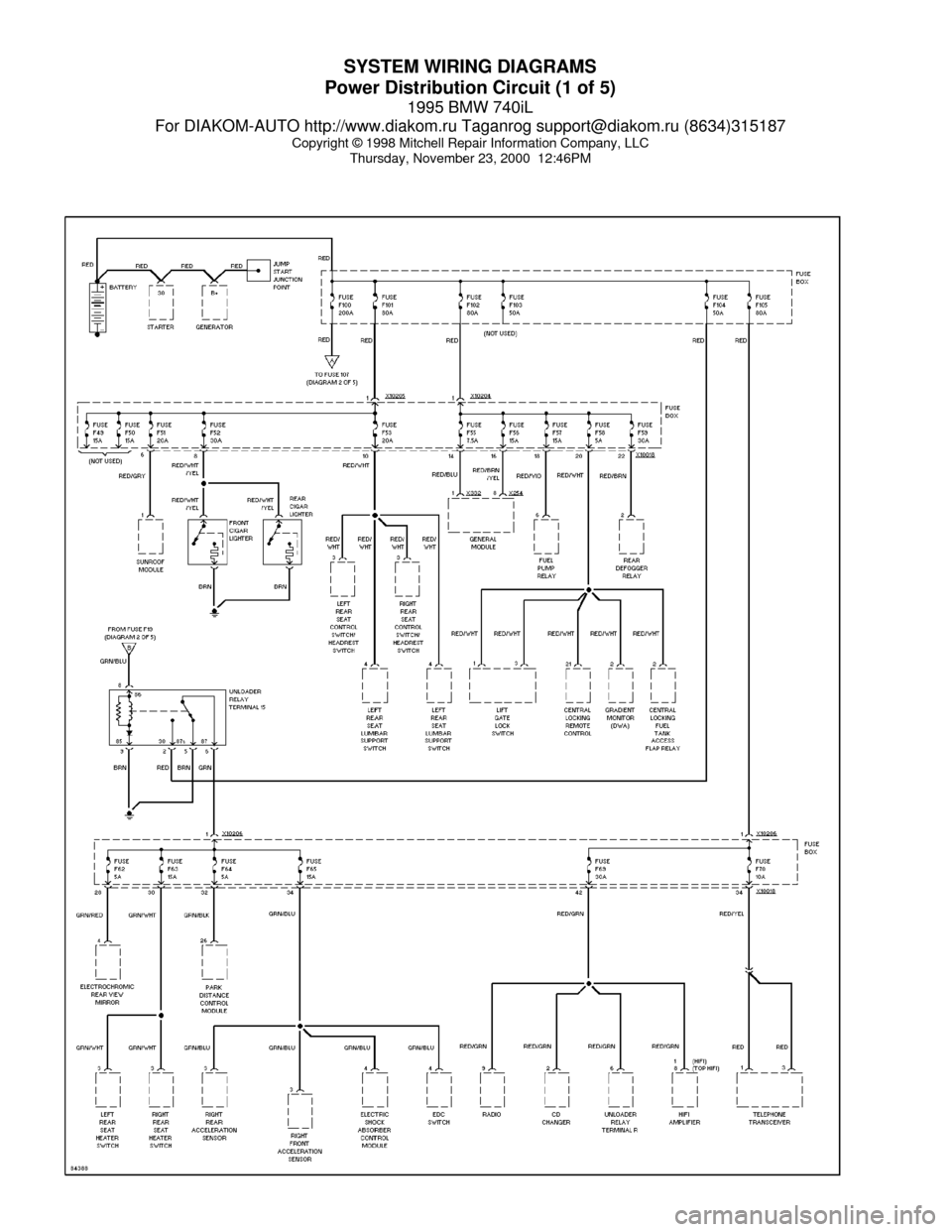

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Power Distribution Circuit (2 of 5) 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Com

Page 46 of 60

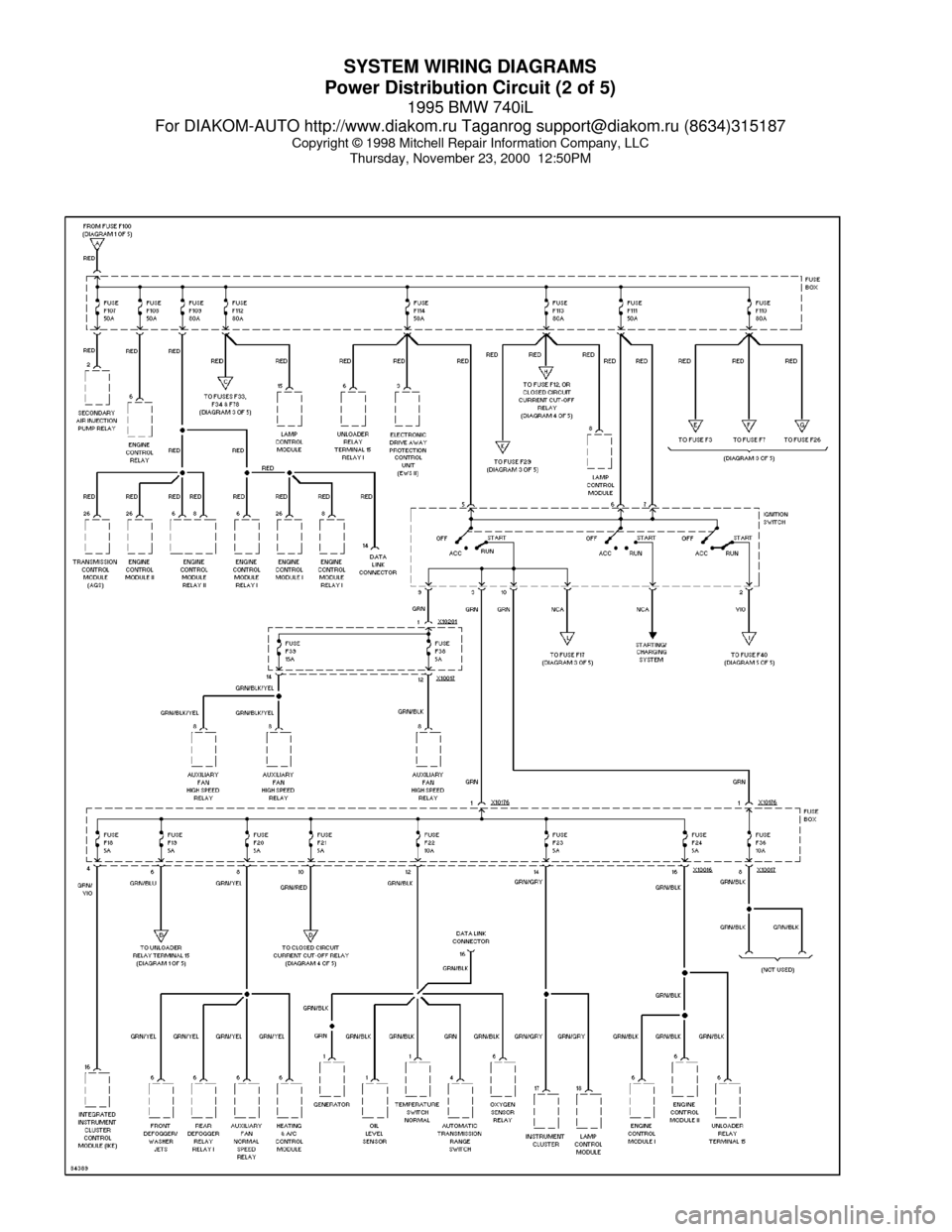

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Power Distribution Circuit (3 of 5) 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Com

Page 47 of 60

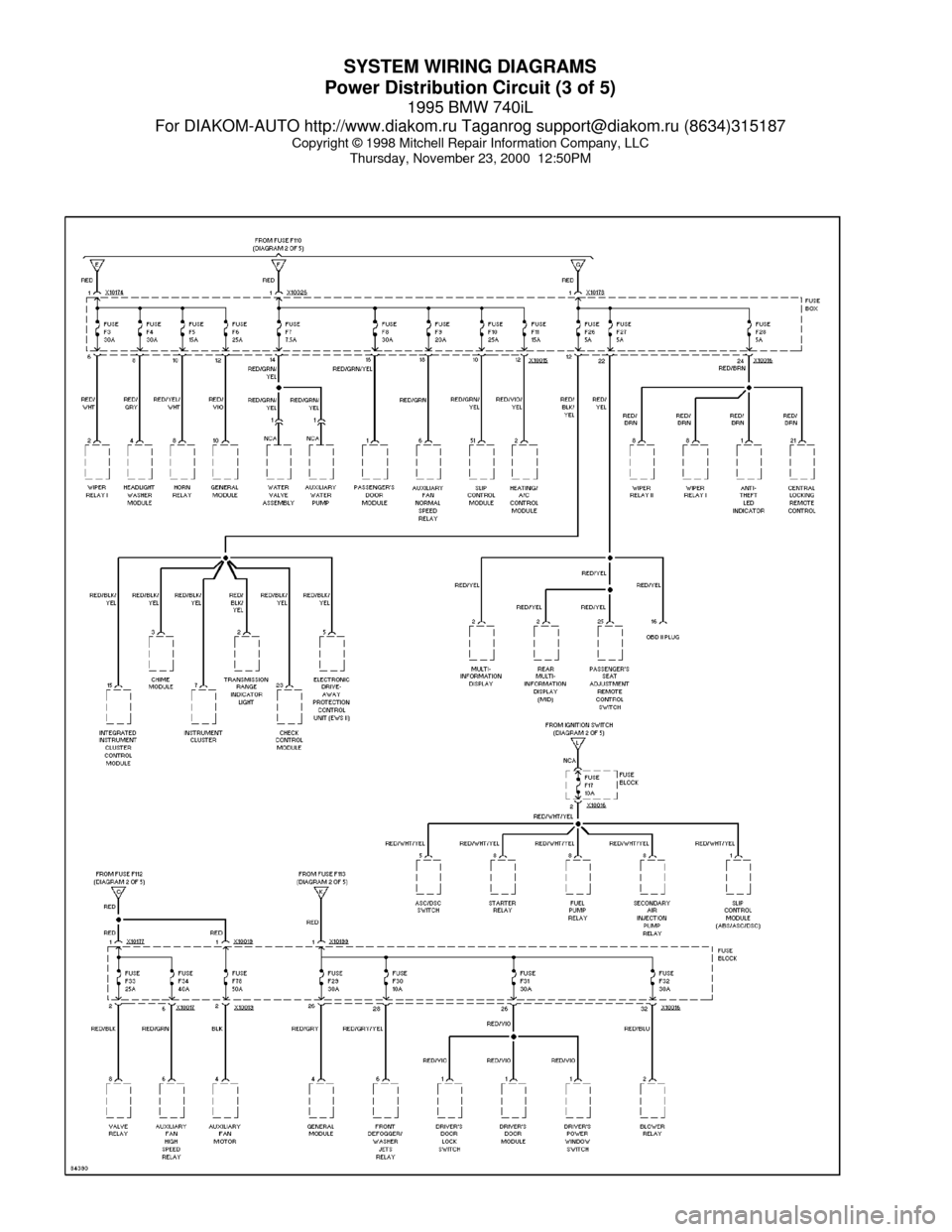

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Power Distribution Circuit (4 of 5) 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Com

Page 48 of 60

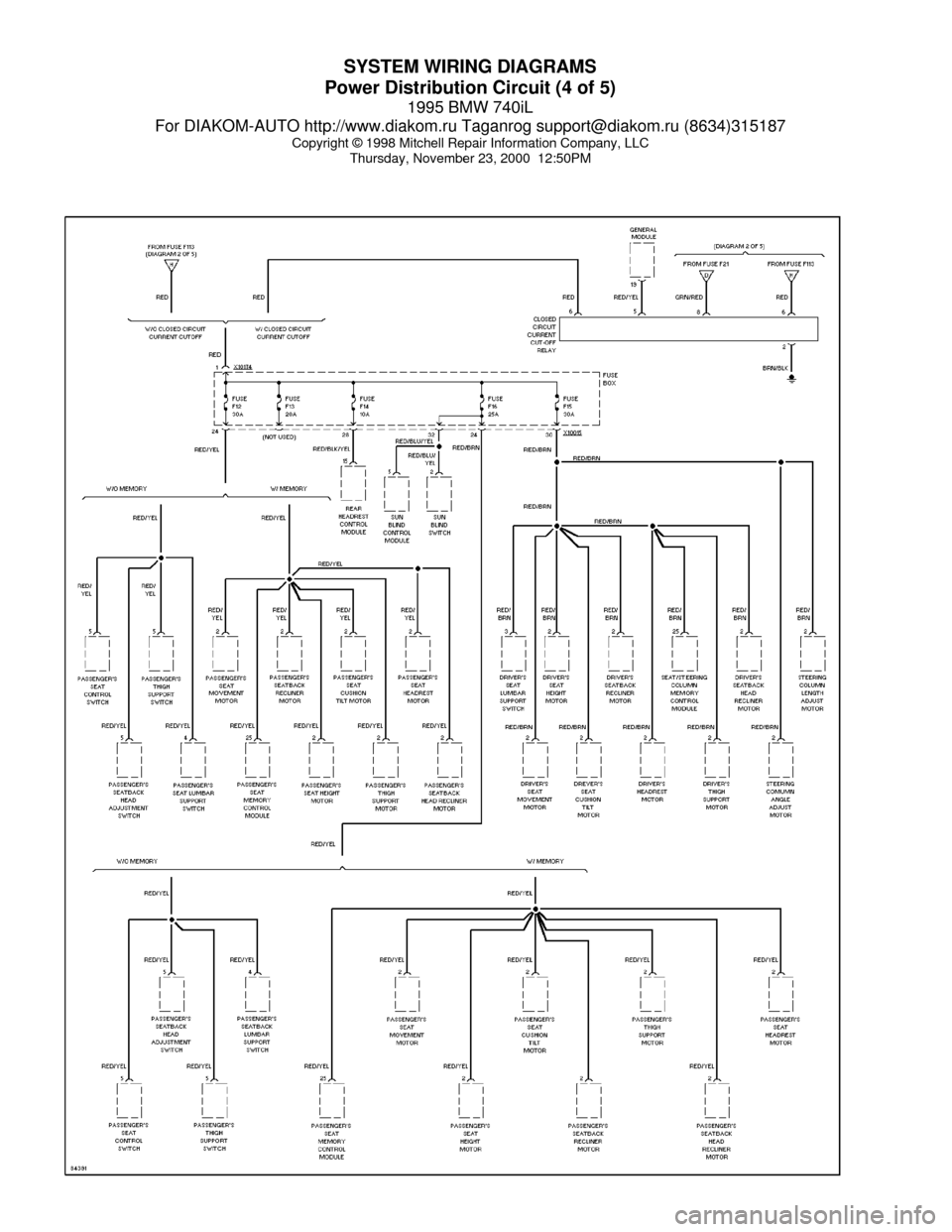

BMW 740il 1995 E38 System Wiring Diagrams SYSTEM WIRING DIAGRAMS Power Distribution Circuit (5 of 5) 1995 BMW 740iL For DIAKOM-AUTO http://www.diakom.ru Taganrog support@diakom.ru (8634)315187 Copyright © 1998 Mitchell Repair Information Com
